Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

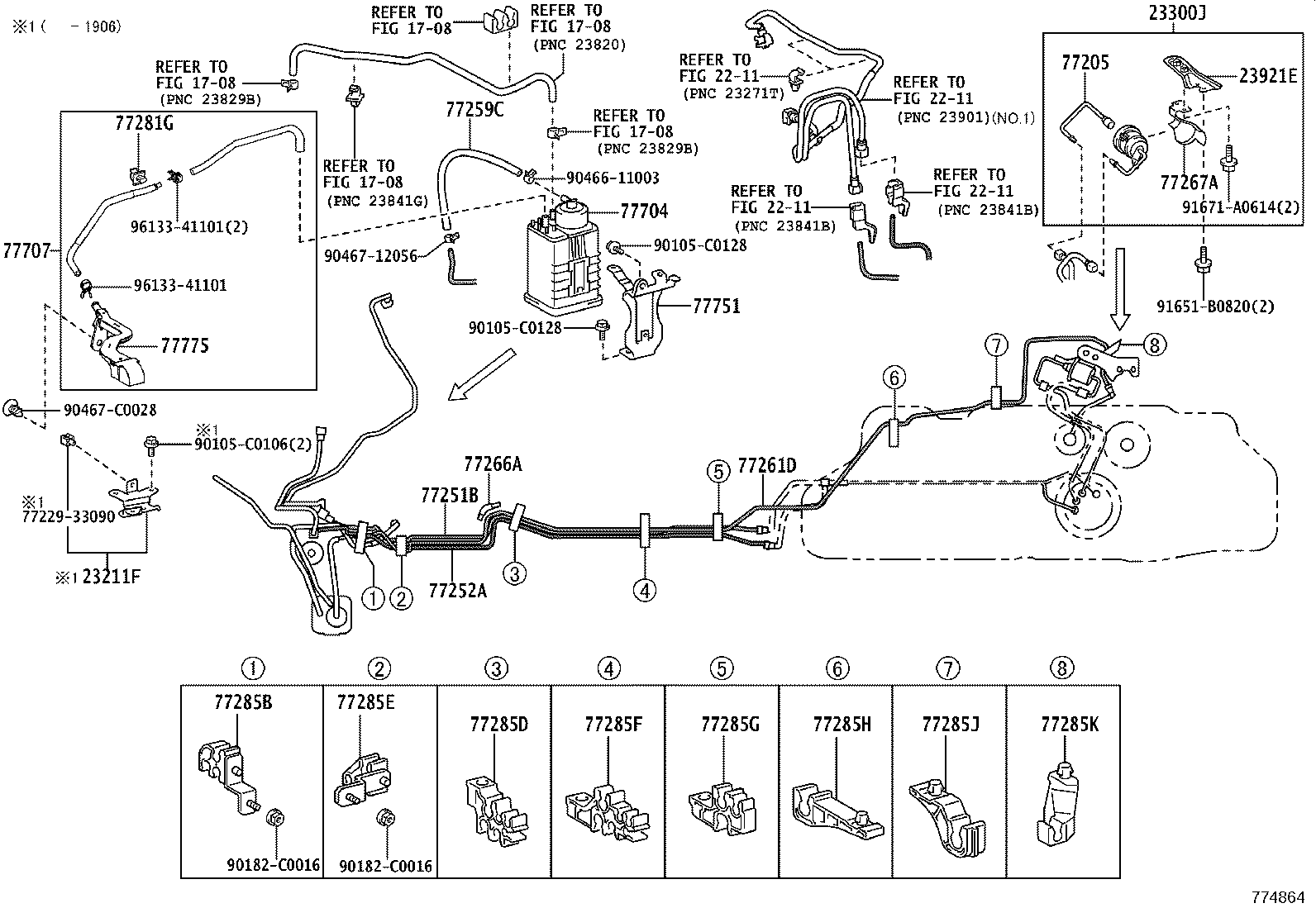

Exploded illustration 774864 2211 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 1708 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 2211 — not listed in this catalogue 77285B — CLAMP, FUEL TUBE W/GROMMET, NO.1 (4 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285E — CLAMP, FUEL TUBE W/GROMMET, NO.1 (4 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285G — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285H — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285J — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285K — CLAMP, FUEL TUBE, NO.1 (2 parts) 90182C0016 — not listed in this catalogue 90182C0016 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (6 parts) 77252A — TUBE, FUEL MAIN, NO.2 (2 parts) 77261D — TUBE, FUEL TANK TO CANISTER (6 parts) 77266A — PROTECTOR, FUEL TUBE, NO.1 (4 parts) 1708 — not listed in this catalogue 1708 — not listed in this catalogue 23300J — FILTER ASSY, FUEL (7 parts) 77704 — CANISTER SUB-ASSY, CHARCOAL (4 parts) 77751 — BRACKET, CHARCOAL CANISTER BASE (5 parts) 9046712056 — not listed in this catalogue 9046611003 — not listed in this catalogue 91651B0820 — not listed in this catalogue 90105C0128 — not listed in this catalogue 90105C0128 — not listed in this catalogue 77259C — HOSE, FUEL (3 parts) 91671A0614 — not listed in this catalogue 77707 — TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET (6 parts) 77775 — GUIDE, CHARCOAL CANISTER OUTLET (1 parts) 77205 — TUBE SUB-ASSY, FUEL MAIN (2 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (2 parts) 23921E — SUPPORT, FUEL FILTER (3 parts) 77281G — CLAMP, FUEL HOSE (5 parts) 23211F — BRACKET (5 parts) 90105C0106 — not listed in this catalogue 9613341101 — not listed in this catalogue 9613341101 — not listed in this catalogue 7722933090 — not listed in this catalogue 90467C0028 — not listed in this catalogue
774864 · 23 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
23211F — Bracket
23264-31011 Bracket
2013-02 → 2013-11 ended
1GRFE GRJ150 —
23264-31011 Bracket
2010-05 → 2013-01 ended
1GRFE GRJ150 —
23264-31011 Bracket
2013-11 → 2017-11 ended
7GRFKS,2TRFE GRJ152,TRJ152 —
23264-31011 Bracket
2013-11 → 2015-09 ended
1GRFE,2TRFE GRJ150,TRJ150 —
23264-31011 Bracket
2017-11 → 2019-06 ended
7GRFKS GRJ152 —
23300J — Filter Assy, Fuel
23300-31160 Filter Assy, Fuel
2010-05 → 2013-01 ended
1GRFE GRJ150 —
23300-31160 Filter Assy, Fuel
2013-02 → 2013-11 ended
1GRFE GRJ150 —
23300-31160 Filter Assy, Fuel
2013-11 → 2015-09 ended
1GRFE,2TRFE GRJ150,TRJ150 —
23300-31160 Filter Assy, Fuel
2013-11 → 2017-11 ended
2TRFE TRJ152 —
23310-31030 Filter Assy, Fuel
2015-09 → 2016-03 ended
7GRFKS GRJ152 —
23310-31031 Filter Assy, Fuel
2016-04 → 2017-11 ended
7GRFKS GRJ152 —
23310-31031 Filter Assy, Fuel
2017-11 → 2020-06 ended
7GRFKS GRJ152 —
23921E — Support, Fuel Filter
23921-30060 Support, Fuel Filter
2015-09 → 2016-04 ended
7GRFKS GRJ152 —
23921-31060 Support, Fuel Filter
2016-04 → 2017-11 ended
7GRFKS GRJ152 —
23921-31060 Support, Fuel Filter
2017-11 → 2020-06 ended
7GRFKS GRJ152 —
77205 — Tube Sub-assy, Fuel Main
77205-60C90 Tube Sub-assy, Fuel Main
2015-09 → 2017-11 ended
GRJ152 —
77205-60C90 Tube Sub-assy, Fuel Main
2017-11 → 2020-06 ended
GRJ152 —
77251B — Tube, Fuel Main
77205-0G040 Tube, Fuel Main
2010-05 → 2013-11 ended
GRJ150 —
77205-0G040 Tube, Fuel Main
2013-11 → 2015-09 ended
GRJ150 —
77205-6A340 Tube, Fuel Main
2015-03 → 2015-09 ended
TRJ150 —
77205-6A340 Tube, Fuel Main
2015-03 → 2017-11 ended
TRJ152 —
77251-0G030 Tube, Fuel Main
2015-09 → 2017-11 ended
GRJ152 —
77251-0G030 Tube, Fuel Main
2017-11 → 2020-06 ended
GRJ152 —
77252A — Tube, Fuel Main, NO.2
77252-0G010 Tube, Fuel Main, NO.2
2015-09 → 2017-11 ended
GRJ152 —
77252-0G010 Tube, Fuel Main, NO.2
2017-11 → 2020-06 ended
GRJ152 —
77259C — Hose, Fuel
95333-06040 Hose, Fuel
2010-05 → 2013-11 ended
GRJ150 —
95333-06040 Hose, Fuel
2013-11 → 2017-11 ended
GRJ15# —
95333-06040 Hose, Fuel
2017-11 → 2020-06 ended
GRJ152 —
77261D — Tube, Fuel Tank TO Canister
77261-0G020 Tube, Fuel Tank TO Canister
2010-05 → 2013-11 ended
GRJ150 —
77261-0G020 Tube, Fuel Tank TO Canister
2013-11 → 2015-09 ended
GRJ150 —
77261-0G030 Tube, Fuel Tank TO Canister
2015-09 → 2017-11 ended
GRJ152 —
77261-60460 Tube, Fuel Tank TO Canister
2015-03 → 2015-09 ended
TRJ150 —
77261-60460 Tube, Fuel Tank TO Canister
2015-03 → 2017-11 ended
TRJ152 —
77261-0G030 Tube, Fuel Tank TO Canister
2017-11 → 2020-06 ended
GRJ152 —
77266A — Protector, Fuel Tube, NO.1
77266-60160 Protector, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77266-60160 Protector, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77266-60160 Protector, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77266-60160 Protector, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77267A — Protector, Fuel Tube, NO.2
77266-60170 Protector, Fuel Tube, NO.2
2015-09 → 2017-11 ended
GRJ152 —
77266-60170 Protector, Fuel Tube, NO.2
2017-11 → 2020-06 ended
GRJ152 —
77281G — Clamp, Fuel Hose
77281-60430 Clamp, Fuel Hose
2010-05 → 2013-11 ended
GRJ150 —
77281-60430 Clamp, Fuel Hose
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77281-60430 Clamp, Fuel Hose
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
16581-25050 Clamp, Fuel Hose
2019-06 → 2020-06 ended
GRJ152 —
77281-60430 Clamp, Fuel Hose
2017-11 → 2019-06 ended
GRJ152 —
77285B — Clamp, Fuel Tube W/Grommet, NO.1
77285-35631 Clamp, Fuel Tube W/Grommet, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35631 Clamp, Fuel Tube W/Grommet, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35631 Clamp, Fuel Tube W/Grommet, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35631 Clamp, Fuel Tube W/Grommet, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285D — Clamp, Fuel Tube, NO.1
77285-35670 Clamp, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35670 Clamp, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35670 Clamp, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35670 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285E — Clamp, Fuel Tube W/Grommet, NO.1
77285-35641 Clamp, Fuel Tube W/Grommet, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35641 Clamp, Fuel Tube W/Grommet, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35641 Clamp, Fuel Tube W/Grommet, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35641 Clamp, Fuel Tube W/Grommet, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285F — Clamp, Fuel Tube, NO.1
77285-35680 Clamp, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35680 Clamp, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35680 Clamp, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35680 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285G — Clamp, Fuel Tube, NO.1
77285-35690 Clamp, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35690 Clamp, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35690 Clamp, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35690 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285H — Clamp, Fuel Tube, NO.1
77285-35700 Clamp, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35700 Clamp, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35700 Clamp, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35700 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285J — Clamp, Fuel Tube, NO.1
77285-35710 Clamp, Fuel Tube, NO.1
2010-05 → 2013-11 ended
GRJ150 —
77285-35710 Clamp, Fuel Tube, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77285-35710 Clamp, Fuel Tube, NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77285-35710 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77285K — Clamp, Fuel Tube, NO.1
77285-0G010 Clamp, Fuel Tube, NO.1
2015-09 → 2017-11 ended
GRJ152 —
77285-0G010 Clamp, Fuel Tube, NO.1
2017-11 → 2020-06 ended
GRJ152 —
77704 — Canister Sub-assy, Charcoal
77704-63010 Canister Sub-assy, Charcoal
2010-05 → 2013-11 ended
GRJ150 —
77704-63010 Canister Sub-assy, Charcoal
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77704-63010 Canister Sub-assy, Charcoal
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77704-63010 Canister Sub-assy, Charcoal
2017-11 → 2020-06 ended
GRJ152 —
77707 — Tube Sub-assy, Charcoal Canister Outlet
77707-0G010 Tube Sub-assy, Charcoal Canister Outlet
2012-12 → 2013-11 ended
GRJ150 —
77707-60051 Tube Sub-assy, Charcoal Canister Outlet
2010-05 → 2012-12 ended
GRJ150 —
77707-0G010 Tube Sub-assy, Charcoal Canister Outlet
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77707-0G010 Tube Sub-assy, Charcoal Canister Outlet
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77707-0G010 Tube Sub-assy, Charcoal Canister Outlet
2017-11 → 2019-06 ended
GRJ152 —
77707-60070 Tube Sub-assy, Charcoal Canister Outlet
2019-06 → 2020-06 ended
GRJ152 —
77751 — Bracket, Charcoal Canister Base
77751-0G010 Bracket, Charcoal Canister Base
2012-12 → 2013-11 ended
GRJ150 —
77751-60290 Bracket, Charcoal Canister Base
2010-05 → 2012-12 ended
GRJ150 —
77751-0G010 Bracket, Charcoal Canister Base
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
77751-0G010 Bracket, Charcoal Canister Base
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
77751-0G010 Bracket, Charcoal Canister Base
2017-11 → 2020-06 ended
GRJ152 —
77775 — Guide, Charcoal Canister Outlet
77775-60050 Guide, Charcoal Canister Outlet
2019-06 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
