Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

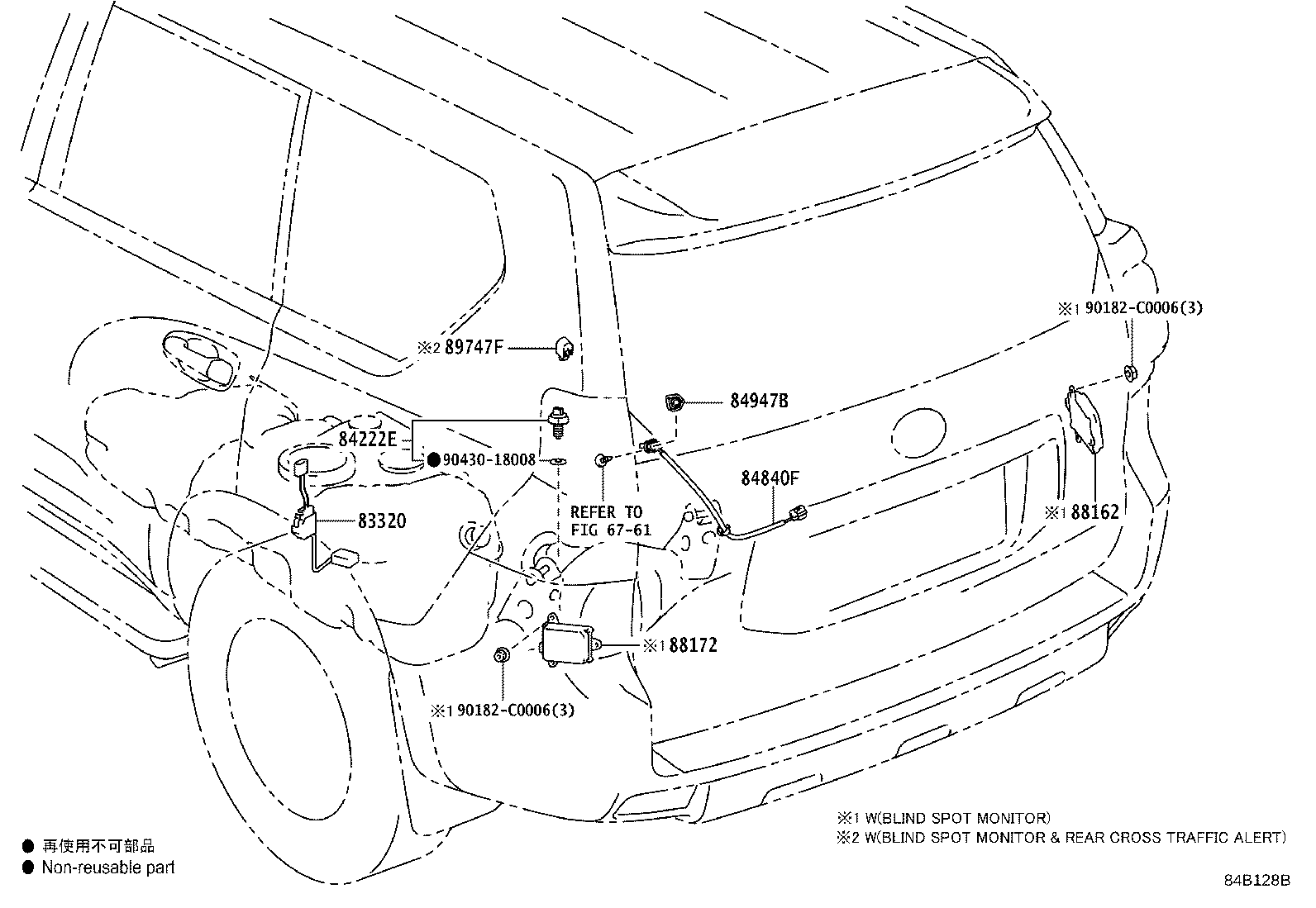

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-60520 |
Gage Assy, Fuel Sender
2010-05 → 2013-02
ended
|
GRJ150 | — | |
| 83320-60620 |
Gage Assy, Fuel Sender
2013-03 → 2013-11
ended
|
GRJ150 | — | |
| 83320-60620 |
Gage Assy, Fuel Sender
2013-11 → 2017-11
ended
|
GRJ15#,TRJ15# | — | |
| 83320-60610 |
Gage Assy, Fuel Sender
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84222E — Switch, Differential Lock Indicator | ||||
| 84222-12010 note |
Switch, Differential Lock Indicator
2010-05 → 2013-11
ended
|
GRJ150 VX | — | |
| 84222-12010 note |
Switch, Differential Lock Indicator
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 84840F — Switch Assy, Glass Hatch Opener | ||||
| 84840-60010 |
Switch Assy, Glass Hatch Opener
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 84947B — Cover, Switch | ||||
| 84947-60020 |
Cover, Switch
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-0W400 note |
Sensor, Blind Spot Monitor, RH
2015-09 → 2016-04
ended
|
GRJ152 VX | — | |
| 88162-60040 note |
Sensor, Blind Spot Monitor, RH
2016-05 → 2017-11
ended
|
GRJ152 VX | — | |
| 88162-60050 |
Sensor, Blind Spot Monitor, RH
2017-11 → 2018-06
ended
|
GRJ152 VX | — | |
| 88162-60051 |
Sensor, Blind Spot Monitor, RH
2018-07 → 2020-06
ended
|
GRJ152 VX | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-0W400 note |
Sensor, Blind Spot Monitor, LH
2015-09 → 2016-04
ended
|
GRJ152 VX | — | |
| 88162-60040 note |
Sensor, Blind Spot Monitor, LH
2016-05 → 2017-11
ended
|
GRJ152 VX | — | |
| 88162-60050 |
Sensor, Blind Spot Monitor, LH
2017-11 → 2018-06
ended
|
GRJ152 VX | — | |
| 88162-60051 |
Sensor, Blind Spot Monitor, LH
2018-07 → 2020-06
ended
|
GRJ152 VX | — | |
| 89747F — Buzzer, Blind Spot Monitor | ||||
| 89747-52010 note |
Buzzer, Blind Spot Monitor
2015-09 → 2017-11
ended
|
GRJ152 VX | — | |
| 89747-52010 |
Buzzer, Blind Spot Monitor
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
