Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

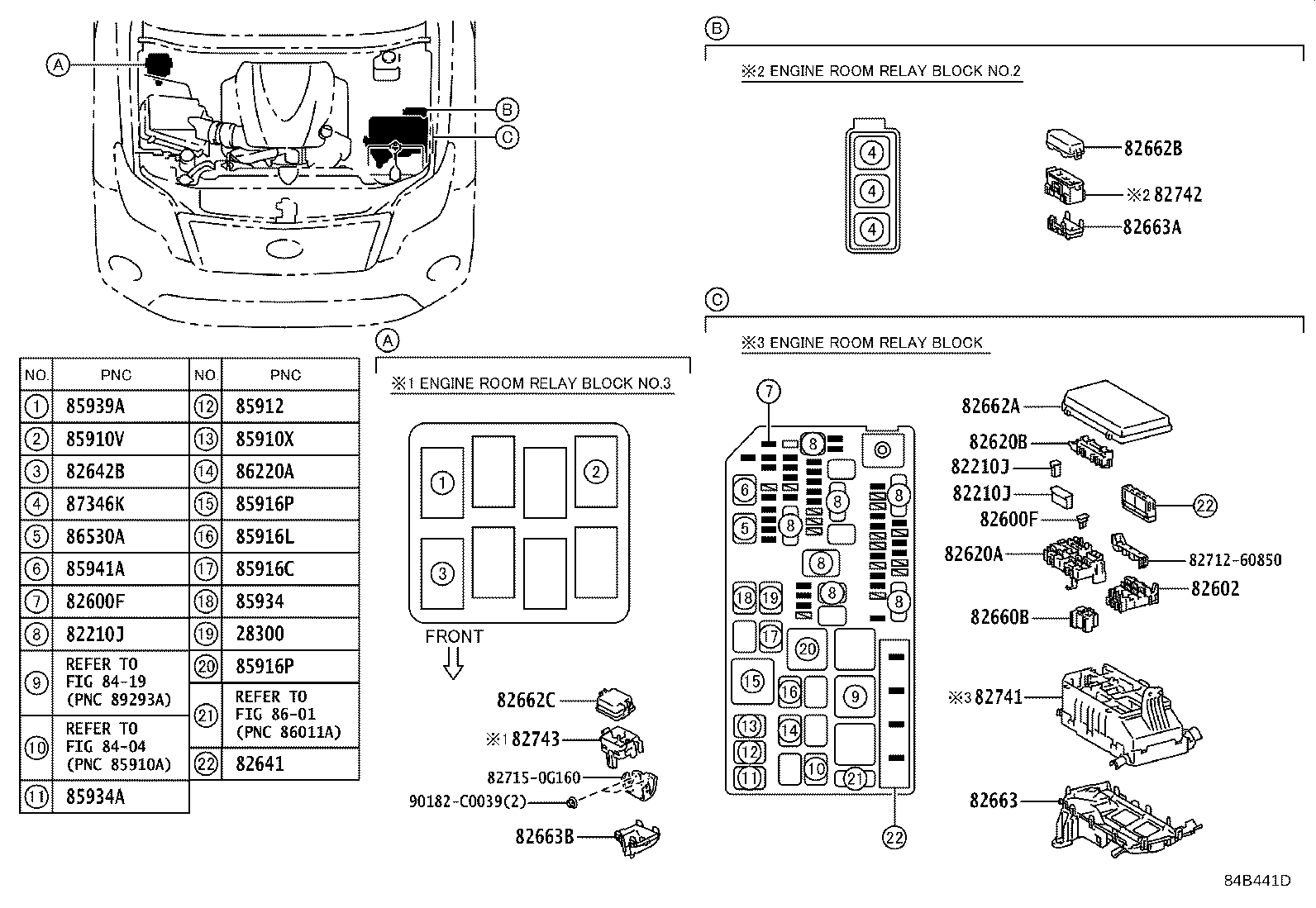

Exploded illustration 84B441D 85939A — RELAY, STEERING HEATER (2 parts) 85910V — RELAY, SEAT HEATER (11 parts) 82642B — RELAY, DAY TIME RUNNING LIGHT, NO.1 (6 parts) 82662C — COVER, RELAY BLOCK, UPPER, NO.3 (8 parts) 82743 — BLOCK, ENGINE ROOM RELAY, NO.3 (7 parts) 82663B — COVER, RELAY BLOCK, LOWER, NO.3 (7 parts) 90182C0039 — not listed in this catalogue 827150G160 — not listed in this catalogue 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (5 parts) 82620B — BLOCK ASSY, FUSIBLE LINK (4 parts) 82660B — BLOCK ASSY, RELAY (4 parts) 82741 — BLOCK, ENGINE ROOM RELAY (4 parts) 82663 — COVER, RELAY BLOCK, LOWER (4 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (4 parts) 82210J — FUSIBLE LINK (27 parts) 82600F — FUSE, FUSE BLOCK (60 parts) 82602 — BLOCK SUB-ASSY, RELAY (3 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (6 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (6 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (6 parts) 8271260850 — not listed in this catalogue 82210J — FUSIBLE LINK (27 parts) 86530A — RELAY, HORN (4 parts) 85941A — RELAY, REAR WINDSHIELD WASHER (3 parts) 82600F — FUSE, FUSE BLOCK (60 parts) 82210J — FUSIBLE LINK (27 parts) 87346K — RELAY, PTC HEATER (6 parts) 8419 — not listed in this catalogue 8404 — not listed in this catalogue 8601 — not listed in this catalogue 85912 — RELAY, DEFOGGER (4 parts) 85934A — RELAY CONDENSER FAN (7 parts) 85910X — RELAY, HEATER MIRROR (5 parts) 86220A — RELAY, INVERTER (11 parts) 85916P — RELAY, HEADLAMP (4 parts) 85916L — RELAY, REAR FOG LAMP (3 parts) 85916C — RELAY, BACK UP LAMP (3 parts) 85934 — RELAY, MAGNET-CLUTCH (4 parts) 28300 — RELAY ASSY, STARTER (5 parts) 85916P — RELAY, HEADLAMP (4 parts) 82641 — RELAY, INTEGRATION NO.1 (4 parts)
84B441D · 35 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
237 parts on this figure
Part number Description Fitment Price
28300 — Relay Assy, Starter
28300-28010 Relay Assy, Starter
2010-05 → 2013-11 ended
1GRFE GRJ150 —
28300-21020 Relay Assy, Starter
2015-03 → 2015-09 ended
1GRFE,2TRFE GRJ150,TRJ150 —
28300-21020 Relay Assy, Starter
2015-03 → 2017-11 ended
7GRFKS,2TRFE GRJ152,TRJ152 —
28300-28010 Relay Assy, Starter
2013-11 → 2015-02 ended
1GRFE GRJ150 —
28300-21020 Relay Assy, Starter
2017-11 → 2020-06 ended
7GRFKS GRJ152 —
82210J — Fusible Link
90982-08274 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08295 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08300 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08301 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08302 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08305 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08306 note Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
90982-08274 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08274 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08286 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08286 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08294 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08294 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08295 note Fusible Link
2015-09 → 2017-11 ended
GRJ152,TRJ152 —
90982-08295 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08300 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08300 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08301 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08301 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08302 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08302 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08305 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08305 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08306 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-08306 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08307 note Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-08307 note Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82600F — Fuse, Fuse Block
90982-09020 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09020 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09021 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09021 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09022 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09022 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09023 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09023 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09024 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09024 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09025 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 —
90982-09025 note Fuse, Fuse Block
2010-05 → 2013-11 ended
GRJ150 VX —
90982-09020 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09020 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09020 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-09020 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09020 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09020 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09020 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09020 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09021 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-09021 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09021 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09021 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09021 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09021 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09021 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09021 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09022 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-09022 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09022 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09022 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09022 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09022 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09022 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09022 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09023 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09023 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-09023 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09023 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09023 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09023 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09023 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09023 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09024 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09024 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09024 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09024 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09024 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09024 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90982-09024 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09024 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09025 note Fuse, Fuse Block
2015-03 → 2017-11 ended
TRJ152 6FC —
90982-09025 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 VX —
90982-09025 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 TX —
90982-09025 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152 VX —
90982-09025 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90982-09025 note Fuse, Fuse Block
2013-11 → 2015-09 ended
GRJ150 TX —
90982-09025 note Fuse, Fuse Block
2015-03 → 2015-09 ended
TRJ150 4FC —
90982-09025 note Fuse, Fuse Block
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82602 — Block Sub-assy, Relay
82602-60090 Block Sub-assy, Relay
2010-05 → 2013-11 ended
GRJ150 —
82602-60090 Block Sub-assy, Relay
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82602-60090 Block Sub-assy, Relay
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82620A — Block Assy, Fusible Link
82620-60060 Block Assy, Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
82620-60060 Block Assy, Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82620-60060 Block Assy, Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82620-60220 Block Assy, Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82620B — Block Assy, Fusible Link
82620-60070 Block Assy, Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
82620-60070 Block Assy, Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82620-60070 Block Assy, Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82620-60230 Block Assy, Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82641 — Relay, Integration NO.1
82641-60080 Relay, Integration NO.1
2010-05 → 2013-11 ended
GRJ150 —
82641-60080 Relay, Integration NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82641-60080 Relay, Integration NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82641-60160 Relay, Integration NO.1
2017-11 → 2020-06 ended
GRJ152 —
82642B — Relay, Day Time Running Light, NO.1
90987-T2005 Relay, Day Time Running Light, NO.1
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2005 note Relay, Day Time Running Light, NO.1
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 note Relay, Day Time Running Light, NO.1
2015-03 → 2015-09 ended
TRJ150 4FC —
90987-T2005 Relay, Day Time Running Light, NO.1
2013-11 → 2017-11 ended
GRJ152 VX —
90987-T2005 note Relay, Day Time Running Light, NO.1
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 note Relay, Day Time Running Light, NO.1
2015-03 → 2017-11 ended
TRJ152 6FC —
82660B — Block Assy, Relay
82660-0H070 Block Assy, Relay
2010-05 → 2013-11 ended
GRJ150 —
82660-0H070 Block Assy, Relay
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82660-0H070 Block Assy, Relay
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82660-60120 Block Assy, Relay
2017-11 → 2020-06 ended
GRJ152 —
82662A — Cover, Relay Block, Upper, NO.1
82662-60450 Cover, Relay Block, Upper, NO.1
2010-05 → 2013-11 ended
GRJ150 —
82662-60650 Cover, Relay Block, Upper, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82662-60710 Cover, Relay Block, Upper, NO.1
2015-09 → 2017-11 ended
GRJ152 —
82662-60800 Cover, Relay Block, Upper, NO.1
2015-09 → 2017-11 ended
TRJ152 —
82662-60890 Cover, Relay Block, Upper, NO.1
2017-11 → 2020-06 ended
GRJ152 —
82662B — Cover, Relay Block, Upper, NO.2
82662-60380 Cover, Relay Block, Upper, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82662-60380 Cover, Relay Block, Upper, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82662-60380 note Cover, Relay Block, Upper, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82662-60380 Cover, Relay Block, Upper, NO.2
2013-11 → 2017-11 ended
GRJ152 —
82662-60380 note Cover, Relay Block, Upper, NO.2
2015-09 → 2017-11 ended
TRJ152 6FC —
82662-60380 Cover, Relay Block, Upper, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82662C — Cover, Relay Block, Upper, NO.3
82662-60610 Cover, Relay Block, Upper, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82662-60610 Cover, Relay Block, Upper, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82662-60A10 Cover, Relay Block, Upper, NO.3
2017-11 → 2018-04 ended
GRJ152 —
82662-60A11 Cover, Relay Block, Upper, NO.3
2018-05 → 2020-06 ended
GRJ152 —
82663 — Cover, Relay Block, Lower
82663-60080 Cover, Relay Block, Lower
2010-05 → 2013-11 ended
GRJ150 —
82663-60080 Cover, Relay Block, Lower
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82663-60080 Cover, Relay Block, Lower
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82663-60170 Cover, Relay Block, Lower
2017-11 → 2020-06 ended
GRJ152 —
82663A — Cover, Relay Block, Lower, NO.2
82663-60100 Cover, Relay Block, Lower, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82663-60100 Cover, Relay Block, Lower, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82663-60100 note Cover, Relay Block, Lower, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82663-60100 Cover, Relay Block, Lower, NO.2
2013-11 → 2017-11 ended
GRJ152 VX —
82663-60100 note Cover, Relay Block, Lower, NO.2
2013-11 → 2017-11 ended
GRJ152 TX —
82663-60100 Cover, Relay Block, Lower, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82663B — Cover, Relay Block, Lower, NO.3
82663-60130 note Cover, Relay Block, Lower, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82663-60130 note Cover, Relay Block, Lower, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82663-60130 Cover, Relay Block, Lower, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82663-60130 Cover, Relay Block, Lower, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82663-60130 Cover, Relay Block, Lower, NO.3
2017-11 → 2020-06 ended
GRJ152 —
82741 — Block, Engine Room Relay
82741-60040 Block, Engine Room Relay
2010-05 → 2013-11 ended
GRJ150 —
82741-60040 Block, Engine Room Relay
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82741-60040 Block, Engine Room Relay
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82741-60100 Block, Engine Room Relay
2017-11 → 2020-06 ended
GRJ152 —
82742 — Block, Engine Room Relay, NO.2
82742-60030 Block, Engine Room Relay, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82742-60030 Block, Engine Room Relay, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82742-60030 note Block, Engine Room Relay, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82742-60030 Block, Engine Room Relay, NO.2
2013-11 → 2017-11 ended
GRJ152 VX —
82742-60030 note Block, Engine Room Relay, NO.2
2013-11 → 2017-11 ended
GRJ152 TX —
82742-60030 Block, Engine Room Relay, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82743 — Block, Engine Room Relay, NO.3
82743-60020 note Block, Engine Room Relay, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82743-60020 note Block, Engine Room Relay, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82743-60020 note Block, Engine Room Relay, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82743-60020 Block, Engine Room Relay, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82743-60020 note Block, Engine Room Relay, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82743-60020 Block, Engine Room Relay, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82743-60020 Block, Engine Room Relay, NO.3
2017-11 → 2020-06 ended
GRJ152 —
85910V — Relay, Seat Heater
90987-T2005 Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 VX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 VX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
85910X — Relay, Heater Mirror
90987-T2005 Relay, Heater Mirror
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Heater Mirror
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Heater Mirror
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2005 Relay, Heater Mirror
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Heater Mirror
2017-11 → 2020-06 ended
GRJ152 TX —
85912 — Relay, Defogger
90987-T2005 Relay, Defogger
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Defogger
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Defogger
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2005 Relay, Defogger
2017-11 → 2020-06 ended
GRJ152 —
85916C — Relay, Back UP Lamp
90987-T2005 Relay, Back UP Lamp
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Back UP Lamp
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Back UP Lamp
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
85916L — Relay, Rear Fog Lamp
90987-T2005 Relay, Rear Fog Lamp
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Rear Fog Lamp
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Rear Fog Lamp
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
85916P — Relay, Headlamp
90987-T2004 Relay, Headlamp
2010-05 → 2013-11 ended
GRJ150 —
90987-T2004 Relay, Headlamp
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2004 Relay, Headlamp
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2004 Relay, Headlamp
2017-11 → 2020-06 ended
GRJ152 —
85934 — Relay, Magnet-clutch
90987-02028 Relay, Magnet-clutch
2010-05 → 2013-11 ended
GRJ150 —
90987-02028 Relay, Magnet-clutch
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-02028 Relay, Magnet-clutch
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-02028 Relay, Magnet-clutch
2017-11 → 2020-06 ended
GRJ152 —
85934A — Relay Condenser Fan
90987-T2005 Relay Condenser Fan
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 note Relay Condenser Fan
2015-03 → 2017-11 ended
TRJ152 6FC —
90987-T2005 note Relay Condenser Fan
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 Relay Condenser Fan
2013-11 → 2017-11 ended
GRJ152 VX —
90987-T2005 note Relay Condenser Fan
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 Relay Condenser Fan
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2005 note Relay Condenser Fan
2015-03 → 2015-09 ended
TRJ150 4FC —
85939A — Relay, Steering Heater
90987-T2005 Relay, Steering Heater
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2005 Relay, Steering Heater
2013-11 → 2017-11 ended
GRJ152 VX —
85941A — Relay, Rear Windshield Washer
90987-T2005 Relay, Rear Windshield Washer
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Rear Windshield Washer
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Rear Windshield Washer
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
86220A — Relay, Inverter
90987-T2005 Relay, Inverter
2010-05 → 2013-11 ended
GRJ150 VX —
90987-T2005 note Relay, Inverter
2010-05 → 2013-11 ended
GRJ150 TX —
90987-T2005 note Relay, Inverter
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 note Relay, Inverter
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 Relay, Inverter
2013-11 → 2017-11 ended
TRJ152;GRJ152 VX —
90987-T2005 note Relay, Inverter
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 note Relay, Inverter
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 Relay, Inverter
2013-11 → 2015-09 ended
TRJ150;GRJ150 VX —
90987-T2005 Relay, Inverter
2017-11 → 2020-06 ended
GRJ152 VX —
90987-T2005 note Relay, Inverter
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Inverter
2017-11 → 2020-06 ended
GRJ152 TX —
86530A — Relay, Horn
90987-T2005 Relay, Horn
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Horn
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Horn
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2005 Relay, Horn
2017-11 → 2020-06 ended
GRJ152 —
87346K — Relay, Ptc Heater
90987-T2004 Relay, Ptc Heater
2010-05 → 2013-11 ended
GRJ150 —
90987-T2004 Relay, Ptc Heater
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2004 note Relay, Ptc Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2004 Relay, Ptc Heater
2013-11 → 2017-11 ended
GRJ152 —
90987-T2004 note Relay, Ptc Heater
2015-09 → 2017-11 ended
TRJ152 6FC —
90987-T2004 Relay, Ptc Heater
2017-11 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
