Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

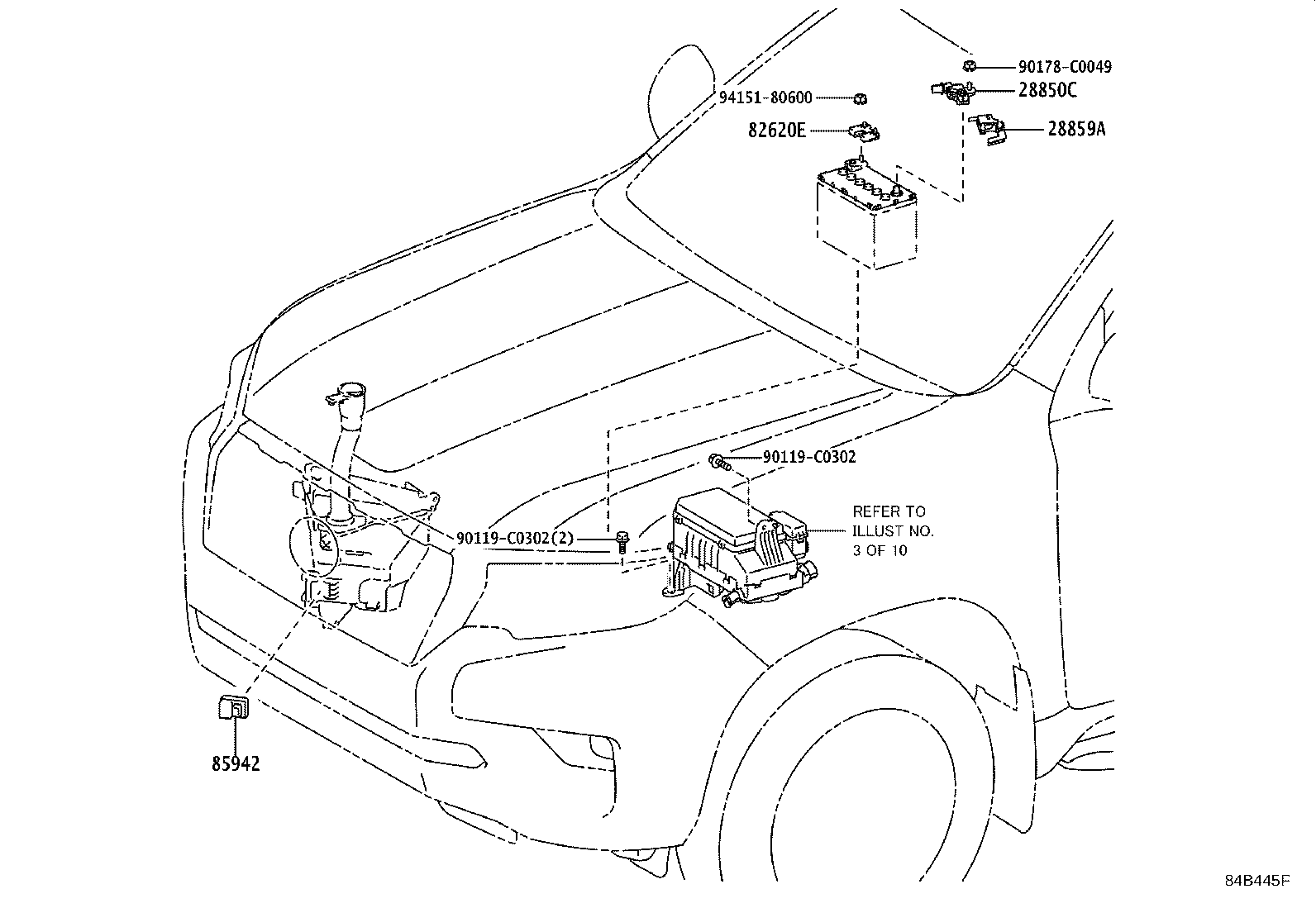

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-0V020 |
Sensor Assy, Battery State
2017-11 → 2018-09
ended
|
7GRFKS GRJ152 | — | |
| 28850-F0010 |
Sensor Assy, Battery State
2018-10 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-31020 |
Holder, Battery Current Sensor
2018-10 → 2020-06
ended
|
7GRFKS GRJ152 | — | |
| 28859-75010 |
Holder, Battery Current Sensor
2017-11 → 2018-10
ended
|
7GRFKS GRJ152 | — | |
| 82620E — Block Assy, Fusible Link | ||||
| 82620-60210 |
Block Assy, Fusible Link
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-58010 |
Relay, Headlamp Cleaner Control
2010-05 → 2013-11
ended
|
GRJ150 VX | — | |
| 85942-30040 |
Relay, Headlamp Cleaner Control
2013-11 → 2017-11
ended
|
GRJ15# VX | — | |
| 85942-30040 note |
Relay, Headlamp Cleaner Control
2013-11 → 2017-11
ended
|
GRJ15# TX | — | |
| 85942-30040 note |
Relay, Headlamp Cleaner Control
2015-03 → 2017-11
ended
|
TRJ15# ATM | — | |
| 85942-30040 |
Relay, Headlamp Cleaner Control
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 85942-30040 note |
Relay, Headlamp Cleaner Control
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 85942-30040 note |
Relay, Headlamp Cleaner Control
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
