Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

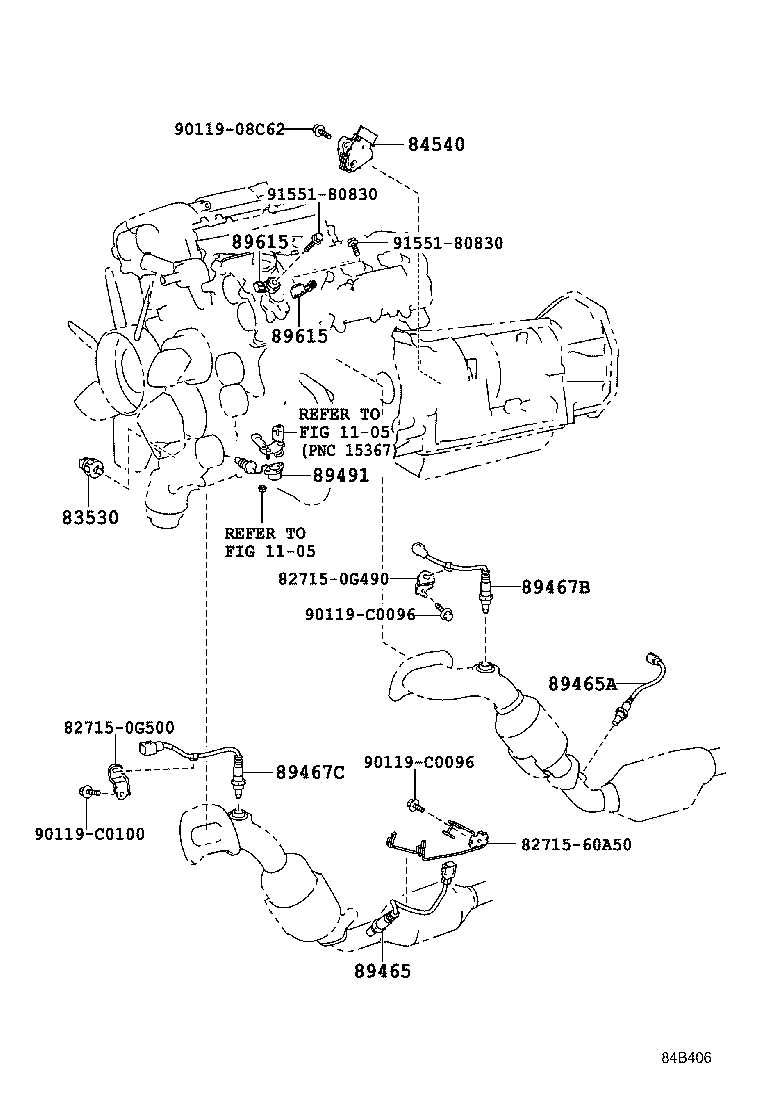

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2011-04 → 2013-11
ended
|
GRJ150 | — | |
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-05 → 2011-04
ended
|
GRJ150 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2011-04 → 2013-11
ended
|
GRJ150 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-35060 |
Switch Assy, Neutral Start
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 84540-35050 |
Switch Assy, Neutral Start
2015-03 → 2015-09
ended
|
TRJ150 4FC | — | |
| 84540-35060 |
Switch Assy, Neutral Start
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 84540-60050 |
Switch Assy, Neutral Start
2015-09 → 2017-11
ended
|
GRJ152,TRJ152 6FC | — | |
| 84540-60050 |
Switch Assy, Neutral Start
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-0G100 |
Sensor, Oxygen
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 89465-0G100 |
Sensor, Oxygen
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 89465-0G110 |
Sensor, Oxygen
2015-09 → 2017-11
ended
|
TRJ152 | — | |
| 89465-0G130 |
Sensor, Oxygen
2015-09 → 2017-11
ended
|
GRJ152 | — | |
| 89465-60440 |
Sensor, Oxygen
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 89465-0G130 |
Sensor, Oxygen
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89465A — Sensor, Oxygen NO.2 | ||||
| 89465-0G030 |
Sensor, Oxygen NO.2
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 89465-0G030 |
Sensor, Oxygen NO.2
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 89465-0G120 |
Sensor, Oxygen NO.2
2015-09 → 2017-11
ended
|
GRJ152 | — | |
| 89465-0G120 |
Sensor, Oxygen NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-60060 |
Sensor, Air Fuel Ratio
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 89467-0G030 |
Sensor, Air Fuel Ratio
2015-09 → 2017-11
ended
|
TRJ152 | — | |
| 89467-0G050 |
Sensor, Air Fuel Ratio
2015-09 → 2017-11
ended
|
GRJ152 | — | |
| 89467-60060 |
Sensor, Air Fuel Ratio
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 89467-60110 |
Sensor, Air Fuel Ratio
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 89467-0G050 |
Sensor, Air Fuel Ratio
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-0G040 |
Sensor, Air Fuel Ratio, NO.2
2015-09 → 2017-11
ended
|
GRJ152 | — | |
| 89467-0G040 |
Sensor, Air Fuel Ratio, NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-35060 |
Sensor, Engine Oil Level
2015-09 → 2017-11
ended
|
GRJ152 | — | |
| 89491-35060 |
Sensor, Engine Oil Level
2017-11 → 2018-08
ended
|
GRJ152 | — | |
| 89491-35061 |
Sensor, Engine Oil Level
2018-09 → 2020-06
ended
|
GRJ152 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 89615-20090 |
Sensor, Knock Control
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 89615-20090 |
Sensor, Knock Control
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 89615-20090 |
Sensor, Knock Control
2013-11 → 2017-11
ended
|
GRJ152 | — | |
| 89615-20090 |
Sensor, Knock Control
2015-03 → 2017-11
ended
|
TRJ152 | — | |
| 89615-20090 |
Sensor, Knock Control
2017-11 → 2020-06
ended
|
GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
