Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

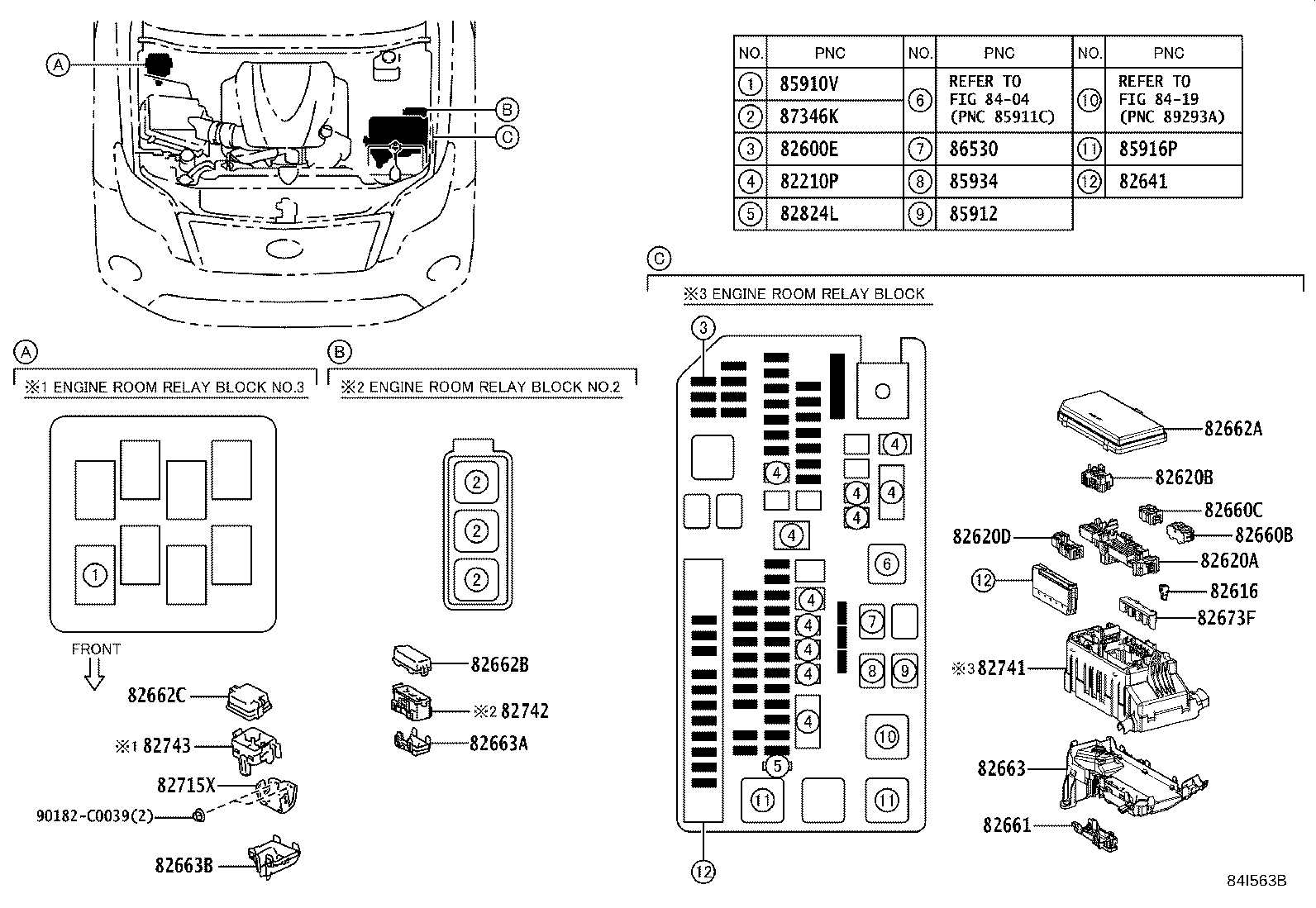

Exploded illustration 84I563B 87346K — RELAY, PTC HEATER (6 parts) 85910V — RELAY, SEAT HEATER (11 parts) 82600E — ENGINE ROOM FUSE (6 parts) 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (6 parts) 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (6 parts) 82742 — BLOCK, ENGINE ROOM RELAY, NO.2 (6 parts) 82824L — PIN, SHORT (3 parts) 86530 — RELAY ASSY, HORN (1 parts) 85934 — RELAY, MAGNET-CLUTCH (4 parts) 85912 — RELAY, DEFOGGER (4 parts) 82210P — ENGINE ROOM FUSIBLE LINK (7 parts) 8419 — not listed in this catalogue 8404 — not listed in this catalogue 85916P — RELAY, HEADLAMP (4 parts) 82641 — RELAY, INTEGRATION NO.1 (4 parts) 90182C0039 — not listed in this catalogue 82662C — COVER, RELAY BLOCK, UPPER, NO.3 (8 parts) 82743 — BLOCK, ENGINE ROOM RELAY, NO.3 (7 parts) 82663B — COVER, RELAY BLOCK, LOWER, NO.3 (7 parts) 82715X — BRACKET, WIRING HARNESS CLAMP, NO.2 (1 parts) 82741 — BLOCK, ENGINE ROOM RELAY (4 parts) 82620D — BLOCK ASSY, FUSIBLE LINK (1 parts) 82663 — COVER, RELAY BLOCK, LOWER (4 parts) 82673F — BRACKET, JUNCTION BLOCK (1 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (4 parts) 82620B — BLOCK ASSY, FUSIBLE LINK (4 parts) 82660B — BLOCK ASSY, RELAY (4 parts) 82660C — BLOCK ASSY, RELAY (1 parts) 82661 — COVER, RELAY BLOCK, NO.1 (1 parts) 82616 — PULLER, FUSE (3 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (5 parts)
84I563B · 28 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
123 parts on this figure
Part number Description Fitment Price
82210P — Engine Room Fusible Link
90982-08286 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08294 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08295 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08296 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08301 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08302 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
90982-08307 note Engine Room Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82600E — Engine Room Fuse
90982-09020 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
90982-09021 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
90982-09022 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
90982-09023 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
90982-09024 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
90982-09025 note Engine Room Fuse
2017-11 → 2020-06 ended
GRJ152 —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82616-58010 Puller, Fuse
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82616-58010 Puller, Fuse
2017-11 → 2020-06 ended
GRJ152 —
82620A — Block Assy, Fusible Link
82620-60060 Block Assy, Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
82620-60060 Block Assy, Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82620-60060 Block Assy, Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82620-60220 Block Assy, Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82620B — Block Assy, Fusible Link
82620-60070 Block Assy, Fusible Link
2010-05 → 2013-11 ended
GRJ150 —
82620-60070 Block Assy, Fusible Link
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82620-60070 Block Assy, Fusible Link
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82620-60230 Block Assy, Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82620D — Block Assy, Fusible Link
82620-60250 Block Assy, Fusible Link
2017-11 → 2020-06 ended
GRJ152 —
82641 — Relay, Integration NO.1
82641-60080 Relay, Integration NO.1
2010-05 → 2013-11 ended
GRJ150 —
82641-60080 Relay, Integration NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82641-60080 Relay, Integration NO.1
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82641-60160 Relay, Integration NO.1
2017-11 → 2020-06 ended
GRJ152 —
82660B — Block Assy, Relay
82660-0H070 Block Assy, Relay
2010-05 → 2013-11 ended
GRJ150 —
82660-0H070 Block Assy, Relay
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82660-0H070 Block Assy, Relay
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82660-60120 Block Assy, Relay
2017-11 → 2020-06 ended
GRJ152 —
82660C — Block Assy, Relay
82660-75010 Block Assy, Relay
2017-11 → 2020-06 ended
GRJ152 —
82661 — Cover, Relay Block, NO.1
82661-60470 Cover, Relay Block, NO.1
2017-11 → 2020-06 ended
GRJ152 —
82662A — Cover, Relay Block, Upper, NO.1
82662-60450 Cover, Relay Block, Upper, NO.1
2010-05 → 2013-11 ended
GRJ150 —
82662-60650 Cover, Relay Block, Upper, NO.1
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82662-60710 Cover, Relay Block, Upper, NO.1
2015-09 → 2017-11 ended
GRJ152 —
82662-60800 Cover, Relay Block, Upper, NO.1
2015-09 → 2017-11 ended
TRJ152 —
82662-60890 Cover, Relay Block, Upper, NO.1
2017-11 → 2020-06 ended
GRJ152 —
82662B — Cover, Relay Block, Upper, NO.2
82662-60380 Cover, Relay Block, Upper, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82662-60380 Cover, Relay Block, Upper, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82662-60380 note Cover, Relay Block, Upper, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82662-60380 Cover, Relay Block, Upper, NO.2
2013-11 → 2017-11 ended
GRJ152 —
82662-60380 note Cover, Relay Block, Upper, NO.2
2015-09 → 2017-11 ended
TRJ152 6FC —
82662-60380 Cover, Relay Block, Upper, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82662C — Cover, Relay Block, Upper, NO.3
82662-60610 Cover, Relay Block, Upper, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82662-60610 note Cover, Relay Block, Upper, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82662-60610 Cover, Relay Block, Upper, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82662-60610 note Cover, Relay Block, Upper, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82662-60610 note Cover, Relay Block, Upper, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82662-60A10 Cover, Relay Block, Upper, NO.3
2017-11 → 2018-04 ended
GRJ152 —
82662-60A11 Cover, Relay Block, Upper, NO.3
2018-05 → 2020-06 ended
GRJ152 —
82663 — Cover, Relay Block, Lower
82663-60080 Cover, Relay Block, Lower
2010-05 → 2013-11 ended
GRJ150 —
82663-60080 Cover, Relay Block, Lower
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82663-60080 Cover, Relay Block, Lower
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82663-60170 Cover, Relay Block, Lower
2017-11 → 2020-06 ended
GRJ152 —
82663A — Cover, Relay Block, Lower, NO.2
82663-60100 Cover, Relay Block, Lower, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82663-60100 note Cover, Relay Block, Lower, NO.2
2013-11 → 2017-11 ended
GRJ152 TX —
82663-60100 Cover, Relay Block, Lower, NO.2
2013-11 → 2017-11 ended
GRJ152 VX —
82663-60100 Cover, Relay Block, Lower, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82663-60100 note Cover, Relay Block, Lower, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82663-60100 Cover, Relay Block, Lower, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82663B — Cover, Relay Block, Lower, NO.3
82663-60130 Cover, Relay Block, Lower, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82663-60130 Cover, Relay Block, Lower, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82663-60130 note Cover, Relay Block, Lower, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82663-60130 Cover, Relay Block, Lower, NO.3
2017-11 → 2020-06 ended
GRJ152 —
82673F — Bracket, Junction Block
82673-60110 Bracket, Junction Block
2017-11 → 2020-06 ended
GRJ152 —
82715X — Bracket, Wiring Harness Clamp, NO.2
82715-0G160 Bracket, Wiring Harness Clamp, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82741 — Block, Engine Room Relay
82741-60040 Block, Engine Room Relay
2010-05 → 2013-11 ended
GRJ150 —
82741-60040 Block, Engine Room Relay
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82741-60040 Block, Engine Room Relay
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82741-60100 Block, Engine Room Relay
2017-11 → 2020-06 ended
GRJ152 —
82742 — Block, Engine Room Relay, NO.2
82742-60030 Block, Engine Room Relay, NO.2
2010-05 → 2013-11 ended
GRJ150 —
82742-60030 Block, Engine Room Relay, NO.2
2013-11 → 2015-09 ended
GRJ150 VX —
82742-60030 note Block, Engine Room Relay, NO.2
2013-11 → 2017-11 ended
GRJ152 TX —
82742-60030 Block, Engine Room Relay, NO.2
2013-11 → 2017-11 ended
GRJ152 VX —
82742-60030 note Block, Engine Room Relay, NO.2
2013-11 → 2015-09 ended
GRJ150 TX —
82742-60030 Block, Engine Room Relay, NO.2
2017-11 → 2020-06 ended
GRJ152 —
82743 — Block, Engine Room Relay, NO.3
82743-60020 Block, Engine Room Relay, NO.3
2013-11 → 2015-09 ended
GRJ150 VX —
82743-60020 note Block, Engine Room Relay, NO.3
2013-11 → 2015-09 ended
GRJ150 TX —
82743-60020 note Block, Engine Room Relay, NO.3
2015-03 → 2015-09 ended
TRJ150 4FC —
82743-60020 Block, Engine Room Relay, NO.3
2013-11 → 2017-11 ended
GRJ152 VX —
82743-60020 note Block, Engine Room Relay, NO.3
2013-11 → 2017-11 ended
GRJ152 TX —
82743-60020 note Block, Engine Room Relay, NO.3
2015-03 → 2017-11 ended
TRJ152 6FC —
82743-60020 Block, Engine Room Relay, NO.3
2017-11 → 2020-06 ended
GRJ152 —
82824L — Pin, Short
82824-41010 Pin, Short
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
82824-41010 Pin, Short
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
82824-41010 Pin, Short
2017-11 → 2020-06 ended
GRJ152 —
85910V — Relay, Seat Heater
90987-T2005 note Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2005 Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 VX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2013-11 → 2017-11 ended
GRJ152 TX —
90987-T2005 Relay, Seat Heater
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2005 Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 VX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
90987-T2005 note Relay, Seat Heater
2017-11 → 2020-06 ended
GRJ152 TX —
85912 — Relay, Defogger
90987-T2005 Relay, Defogger
2010-05 → 2013-11 ended
GRJ150 —
90987-T2005 Relay, Defogger
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2005 Relay, Defogger
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2005 Relay, Defogger
2017-11 → 2020-06 ended
GRJ152 —
85916P — Relay, Headlamp
90987-T2004 Relay, Headlamp
2010-05 → 2013-11 ended
GRJ150 —
90987-T2004 Relay, Headlamp
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-T2004 Relay, Headlamp
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-T2004 Relay, Headlamp
2017-11 → 2020-06 ended
GRJ152 —
85934 — Relay, Magnet-clutch
90987-02028 Relay, Magnet-clutch
2010-05 → 2013-11 ended
GRJ150 —
90987-02028 Relay, Magnet-clutch
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
90987-02028 Relay, Magnet-clutch
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
90987-02028 Relay, Magnet-clutch
2017-11 → 2020-06 ended
GRJ152 —
86530 — Relay Assy, Horn
90987-T2005 Relay Assy, Horn
2017-11 → 2020-06 ended
GRJ152 —
87346K — Relay, Ptc Heater
90987-T2004 Relay, Ptc Heater
2010-05 → 2013-11 ended
GRJ150 —
90987-T2004 Relay, Ptc Heater
2013-11 → 2015-09 ended
GRJ150 VX —
90987-T2004 note Relay, Ptc Heater
2013-11 → 2015-09 ended
GRJ150 TX —
90987-T2004 Relay, Ptc Heater
2013-11 → 2017-11 ended
GRJ152 —
90987-T2004 note Relay, Ptc Heater
2015-09 → 2017-11 ended
TRJ152 6FC —
90987-T2004 Relay, Ptc Heater
2017-11 → 2020-06 ended
GRJ152 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
