Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

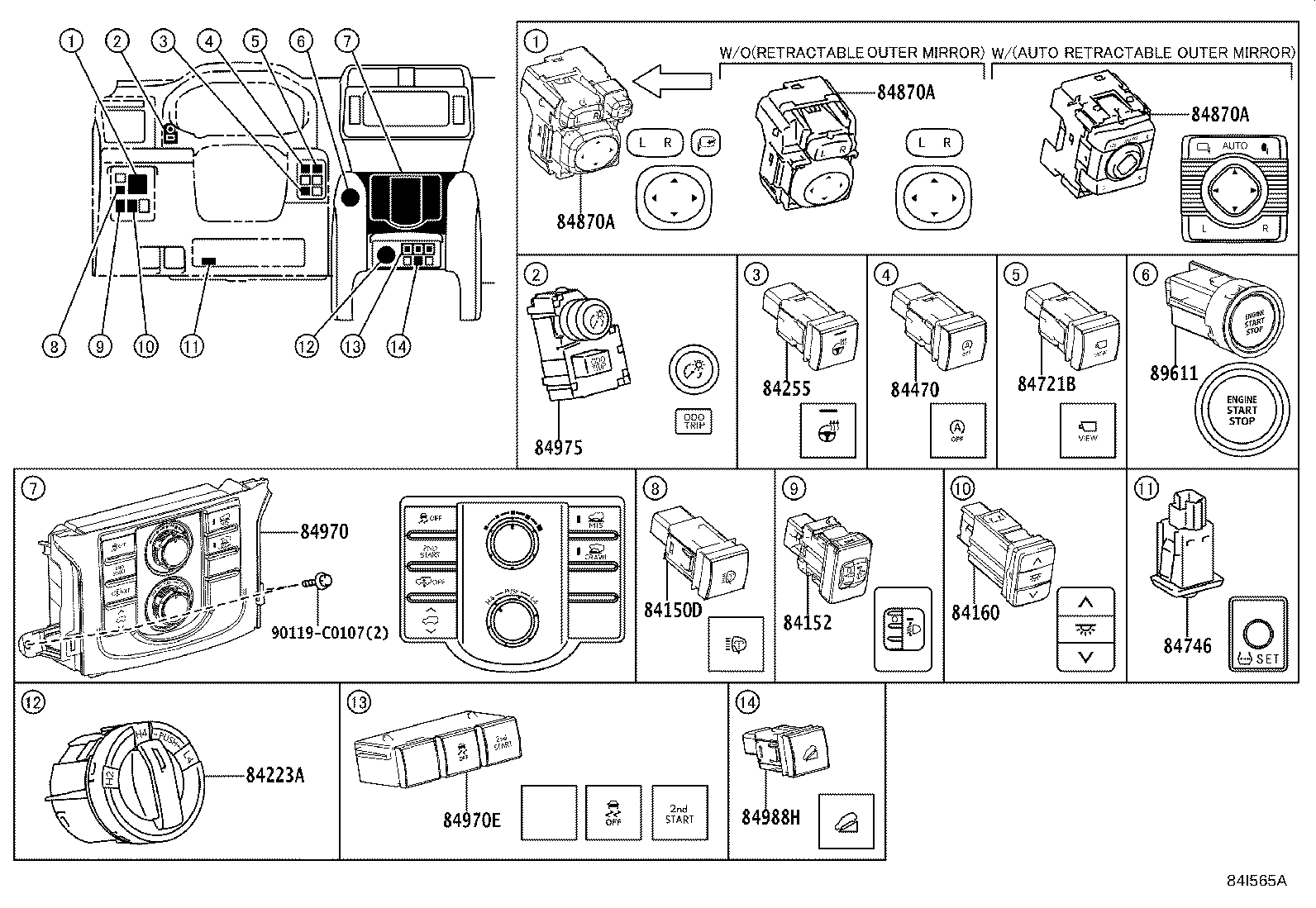

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-06010 |
Switch Assy, Headlamp Cleaner
2012-12 → 2013-11
ended
|
GRJ150 VX | — | |
| 84150-33050 |
Switch Assy, Headlamp Cleaner
2010-05 → 2012-12
ended
|
GRJ150 VX | — | |
| 84150-06010 note |
Switch Assy, Headlamp Cleaner
2013-11 → 2014-02
ended
|
GRJ150 TX | — | |
| 84150-06010 |
Switch Assy, Headlamp Cleaner
2013-11 → 2014-02
ended
|
GRJ150 VX | — | |
| 84150-06011 |
Switch Assy, Headlamp Cleaner
2014-03 → 2015-09
ended
|
GRJ150 VX | — | |
| 84150-06011 note |
Switch Assy, Headlamp Cleaner
2014-03 → 2015-09
ended
|
GRJ150 TX | — | |
| 84150-06011 note |
Switch Assy, Headlamp Cleaner
2015-03 → 2015-09
ended
|
TRJ150 4FC | — | |
| 84150-06011 |
Switch Assy, Headlamp Cleaner
2014-03 → 2017-11
ended
|
GRJ152 VX | — | |
| 84150-06011 note |
Switch Assy, Headlamp Cleaner
2014-03 → 2017-11
ended
|
GRJ152 TX | — | |
| 84150-06011 note |
Switch Assy, Headlamp Cleaner
2015-03 → 2017-11
ended
|
TRJ152 6FC | — | |
| 84150-0G010 |
Switch Assy, Headlamp Cleaner
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84150-0G010 note |
Switch Assy, Headlamp Cleaner
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84150-0G010 note |
Switch Assy, Headlamp Cleaner
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-52100 |
Switch, Headlamp Leveling
2010-05 → 2013-11
ended
|
GRJ150 TX | — | |
| 84152-0G010 |
Switch, Headlamp Leveling
2013-11 → 2014-02
ended
|
GRJ150 TX | — | |
| 84152-0G011 |
Switch, Headlamp Leveling
2014-03 → 2015-09
ended
|
GRJ150,TRJ150 TX | — | |
| 84152-0G011 |
Switch, Headlamp Leveling
2014-03 → 2017-11
ended
|
GRJ152,TRJ152 TX | — | |
| 84152-0R031 |
Switch, Headlamp Leveling
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84160 — Switch Assy, Room Lamp | ||||
| 84170-60020 |
Switch Assy, Room Lamp
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 84170-0G010 |
Switch Assy, Room Lamp
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 84170-0G010 |
Switch Assy, Room Lamp
2013-11 → 2017-11
ended
|
GRJ152 | — | |
| 84170-0G020 |
Switch Assy, Room Lamp
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84223A — Switch, Transfer Position | ||||
| 84223-60020 |
Switch, Transfer Position
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 84223-0G010 |
Switch, Transfer Position
2013-11 → 2015-09
ended
|
GRJ150 | — | |
| 84223-0G010 note |
Switch, Transfer Position
2013-11 → 2017-11
ended
|
GRJ152 VX | — | |
| 84223-0G010 |
Switch, Transfer Position
2013-11 → 2017-11
ended
|
GRJ152 | — | |
| 84223-0G010 note |
Switch, Transfer Position
2013-11 → 2015-09
ended
|
GRJ150 VX | — | |
| 84223-60030 |
Switch, Transfer Position
2015-03 → 2017-11
ended
|
TRJ152 | — | |
| 84223-60030 |
Switch, Transfer Position
2015-03 → 2015-09
ended
|
TRJ150 | — | |
| 84223-0G020 |
Switch, Transfer Position
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84223-0G020 note |
Switch, Transfer Position
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84255 — Switch, Steering Heater | ||||
| 84255-0G010 |
Switch, Steering Heater
2013-11 → 2015-02
ended
|
GRJ150 VX | — | |
| 84255-0G011 |
Switch, Steering Heater
2015-03 → 2015-09
ended
|
GRJ150 VX | — | |
| 84255-0G011 |
Switch, Steering Heater
2015-03 → 2017-11
ended
|
GRJ152 VX | — | |
| 84255-0G020 |
Switch, Steering Heater
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84470 — Switch Assy, Warning Canceling | ||||
| 84470-0G010 |
Switch Assy, Warning Canceling
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84721B — Switch, Panoramic View Monitor | ||||
| 84721-0G020 |
Switch, Panoramic View Monitor
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84746 — Switch, Tire Pressure Warning | ||||
| 84746-50010 |
Switch, Tire Pressure Warning
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84746-50010 note |
Switch, Tire Pressure Warning
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84746-50010 note |
Switch, Tire Pressure Warning
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-0G020 |
Switch Assy, Outer Mirror
2010-05 → 2013-11
ended
|
GRJ150 | — | |
| 84870-0G020 |
Switch Assy, Outer Mirror
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 84870-0G020 |
Switch Assy, Outer Mirror
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 84872-0N040 |
Switch Assy, Outer Mirror
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84872-0P030 |
Switch Assy, Outer Mirror
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84872-60080 note |
Switch Assy, Outer Mirror
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84970 — Switch Assy, Combination | ||||
| 84970-0G010 note |
Switch Assy, Combination
2013-11 → 2015-09
ended
|
GRJ150 VX | — | |
| 84970-0G010 note |
Switch Assy, Combination
2013-11 → 2017-11
ended
|
GRJ152 VX | — | |
| 84970-0G020 note |
Switch Assy, Combination
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84970E — Switch Assy, Combination NO.2 | ||||
| 84970-0G030 |
Switch Assy, Combination NO.2
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 84970-0G030 note |
Switch Assy, Combination NO.2
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84975 — Switch, Trip | ||||
| 84975-60020 |
Switch, Trip
2010-05 → 2013-07
ended
|
GRJ150 VX | — | |
| 84975-60020 note |
Switch, Trip
2010-05 → 2013-07
ended
|
GRJ150 TX | — | |
| 84975-60021 |
Switch, Trip
2013-08 → 2013-11
ended
|
GRJ150 VX | — | |
| 84975-60021 note |
Switch, Trip
2013-08 → 2013-11
ended
|
GRJ150 TX | — | |
| 84975-60040 |
Switch, Trip
2010-05 → 2013-07
ended
|
GRJ150 TX | — | |
| 84975-60041 |
Switch, Trip
2013-08 → 2013-11
ended
|
GRJ150 TX | — | |
| 84975-60021 note |
Switch, Trip
2013-11 → 2015-09
ended
|
GRJ150 TX | — | |
| 84975-60021 note |
Switch, Trip
2013-11 → 2017-11
ended
|
GRJ152 TX | — | |
| 84975-60021 |
Switch, Trip
2013-11 → 2017-11
ended
|
GRJ152 VX | — | |
| 84975-60021 |
Switch, Trip
2013-11 → 2015-09
ended
|
GRJ150 VX | — | |
| 84975-60041 |
Switch, Trip
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 TX | — | |
| 84975-60041 |
Switch, Trip
2013-11 → 2017-11
ended
|
GRJ152,TRJ152 TX | — | |
| 84975-60021 |
Switch, Trip
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84975-60021 note |
Switch, Trip
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84975-60021 note |
Switch, Trip
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84975-60041 |
Switch, Trip
2017-11 → 2020-06
ended
|
GRJ152 TX | — | |
| 84988H — Switch, Downhill Assist Control | ||||
| 84988-0G010 note |
Switch, Downhill Assist Control
2012-02 → 2013-11
ended
|
GRJ150 VX | — | |
| 84988-0G010 note |
Switch, Downhill Assist Control
2012-02 → 2013-11
ended
|
GRJ150 VX | — | |
| 84988-0G010 |
Switch, Downhill Assist Control
2012-02 → 2013-11
ended
|
GRJ150 | — | |
| 84988-48080 |
Switch, Downhill Assist Control
2010-05 → 2012-02
ended
|
GRJ150 | — | |
| 84988-48080 note |
Switch, Downhill Assist Control
2010-05 → 2012-02
ended
|
GRJ150 VX | — | |
| 84988-48080 note |
Switch, Downhill Assist Control
2010-05 → 2012-02
ended
|
GRJ150 VX | — | |
| 84988-0G010 |
Switch, Downhill Assist Control
2013-11 → 2015-02
ended
|
GRJ150 | — | |
| 84988-0G010 note |
Switch, Downhill Assist Control
2013-11 → 2015-02
ended
|
GRJ150 VX | — | |
| 84988-0G011 |
Switch, Downhill Assist Control
2015-03 → 2015-09
ended
|
GRJ150 | — | |
| 84988-0G011 note |
Switch, Downhill Assist Control
2015-03 → 2015-09
ended
|
GRJ150 VX | — | |
| 84988-0G011 |
Switch, Downhill Assist Control
2015-03 → 2017-11
ended
|
GRJ152 | — | |
| 84988-0G011 note |
Switch, Downhill Assist Control
2015-03 → 2017-11
ended
|
GRJ152 VX | — | |
| 84988-60080 note |
Switch, Downhill Assist Control
2017-11 → 2020-06
ended
|
GRJ152 VX | — | |
| 84988-60080 |
Switch, Downhill Assist Control
2017-11 → 2020-06
ended
|
GRJ152 | — | |
| 89611 — Switch, Push Start | ||||
| 89611-0N020 |
Switch, Push Start
2010-05 → 2010-10
ended
|
GRJ150 | — | |
| 89611-0N021 |
Switch, Push Start
2010-11 → 2011-06
ended
|
GRJ150 | — | |
| 89611-0N022 |
Switch, Push Start
2011-07 → 2013-01
ended
|
GRJ150 | — | |
| 89611-0N023 |
Switch, Push Start
2013-02 → 2013-11
ended
|
GRJ150 | — | |
| 89611-0N023 |
Switch, Push Start
2013-11 → 2015-09
ended
|
GRJ150,TRJ150 | — | |
| 89611-0N023 |
Switch, Push Start
2013-11 → 2016-09
ended
|
GRJ152,TRJ152 | — | |
| 89611-0N024 |
Switch, Push Start
2016-10 → 2017-11
ended
|
GRJ152,TRJ152 | — | |
| 89611-0R012 |
Switch, Push Start
2017-11 → 2020-06
ended
|
GRJ152 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
