Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

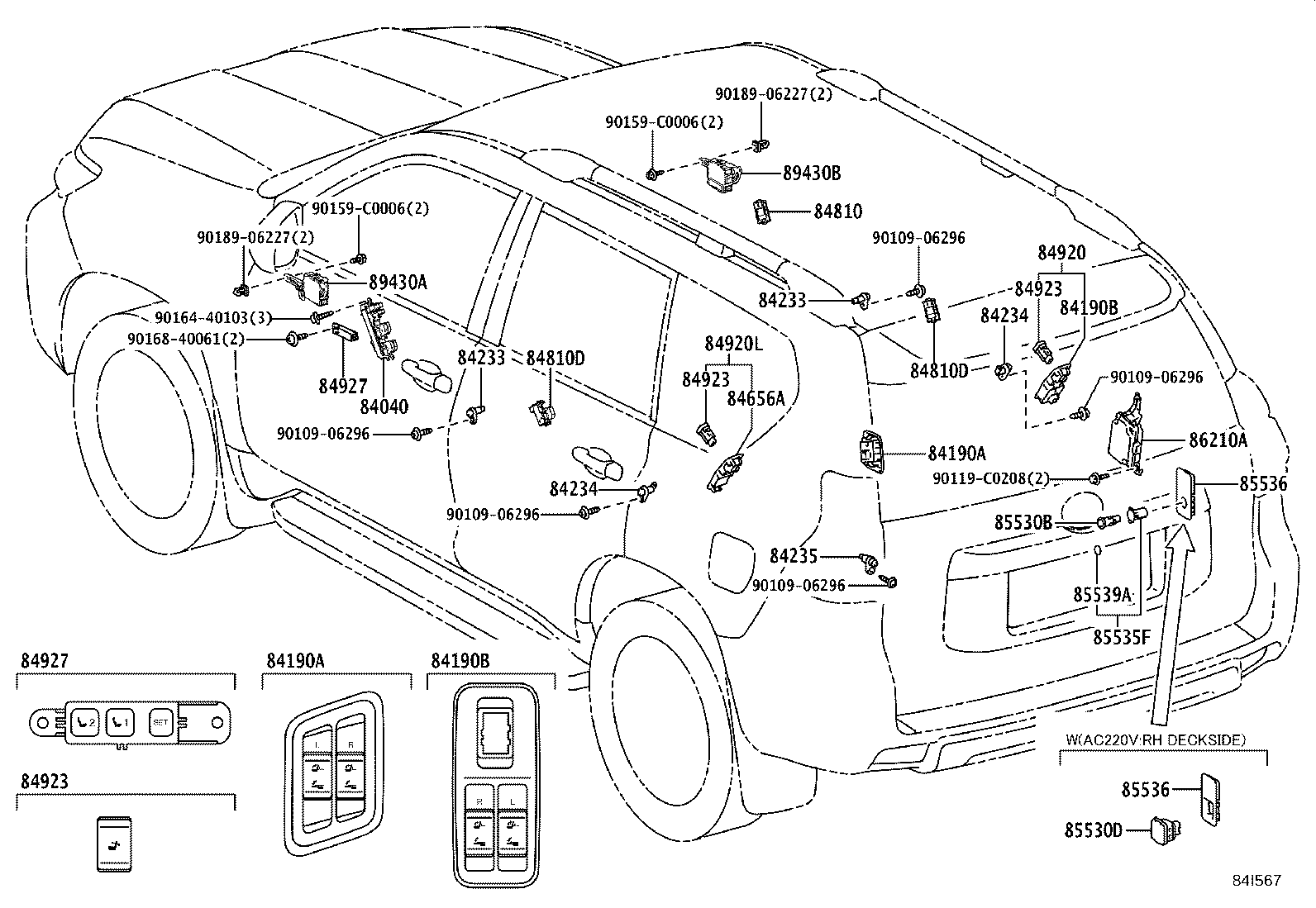

Exploded illustration 84I567 84040 — MASTER SWITCH ASSY,MULTIPLEX NETWORK (5 parts) 9010906296 — not listed in this catalogue 9016840061 — not listed in this catalogue 9016440103 — not listed in this catalogue 9010906296 — not listed in this catalogue 9010906296 — not listed in this catalogue 9010906296 — not listed in this catalogue 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (6 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (6 parts) 89430B — COMPUTER ASSY, OUTER MIRROR CONTROL, RH (1 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (6 parts) 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (5 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (5 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (5 parts) 84923 — SWITCH, REAR POWER SEAT (11 parts) 84235 — SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) (5 parts) 84190A — SWITCH ASSY, FOLD SEAT, NO.1 (14 parts) 9010906296 — not listed in this catalogue 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (5 parts) 9018906227 — not listed in this catalogue 90159C0006 — not listed in this catalogue 89430A — COMPUTER ASSY, OUTER MIRROR CONTROL, LH (1 parts) 90159C0006 — not listed in this catalogue 9018906227 — not listed in this catalogue 84927 — SWITCH, SEAT MEMORY (3 parts) 84656A — BEZEL, SWITCH (14 parts) 84920L — SWITCH ASSY, POWER SEAT, NO.2 (6 parts) 84923 — SWITCH, REAR POWER SEAT (11 parts) 84190B — SWITCH ASSY, FOLD SEAT, NO.2 (14 parts) 84920 — SWITCH ASSY, POWER SEAT (6 parts) 84923 — SWITCH, REAR POWER SEAT (11 parts) 84190A — SWITCH ASSY, FOLD SEAT, NO.1 (14 parts) 90119C0208 — not listed in this catalogue 86210A — INVERTER ASSY, VOLTAGE (15 parts) 85536 — BEZEL, POWER OUTLET SOCKET (22 parts) 85536 — BEZEL, POWER OUTLET SOCKET (22 parts) 85530B — SOCKET ASSY, POWER OUTLET, REAR NO.1 (5 parts) 85535F — COVER, POWER OUTLET SOCKET, REAR (6 parts) 85539A — LABEL, POWER OUTLET NOTICE, REAR (5 parts) 85530D — SOCKET ASSY, POWER OUTLET, NO.2 (12 parts) 84190B — SWITCH ASSY, FOLD SEAT, NO.2 (14 parts) 84927 — SWITCH, SEAT MEMORY (3 parts)
84I567 · 30 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
167 parts on this figure
Part number Description Fitment Price
84040 — Master Switch Assy,Multiplex Network
84040-0P021 Master Switch Assy,Multiplex Network
2013-07 → 2013-11 ended
GRJ150 —
84040-33100 Master Switch Assy,Multiplex Network
2010-05 → 2013-07 ended
GRJ150 —
84040-0P021 Master Switch Assy,Multiplex Network
2013-11 → 2017-11 ended
GRJ15#,TRJ15# —
84040-0N030 Master Switch Assy,Multiplex Network
2019-03 → 2020-06 ended
GRJ152 —
84040-60230 Master Switch Assy,Multiplex Network
2017-11 → 2019-02 ended
GRJ152 —
84190A — Switch Assy, Fold Seat, NO.1
84190-0G010-A0 note Switch Assy, Fold Seat, NO.1
2012-02 → 2013-11 ended
GRJ150 VX —
84190-0G010-A0 note Switch Assy, Fold Seat, NO.1
2012-02 → 2013-11 ended
GRJ150 TX —
84190-60060-A0 note Switch Assy, Fold Seat, NO.1
2010-05 → 2012-02 ended
GRJ150 VX —
84190-60060-A0 note Switch Assy, Fold Seat, NO.1
2010-05 → 2012-02 ended
GRJ150 TX —
84190-0G010-A1 note Switch Assy, Fold Seat, NO.1
2013-11 → 2017-11 ended
GRJ15# VX —
84190-0G010-A1 note Switch Assy, Fold Seat, NO.1
2013-11 → 2017-11 ended
GRJ15# TX —
84190-0G010-B0 note Switch Assy, Fold Seat, NO.1
2013-11 → 2017-11 ended
GRJ15# VX —
84190-0G010-B0 note Switch Assy, Fold Seat, NO.1
2013-11 → 2017-11 ended
GRJ15# TX —
84190-0G030-B0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 VX —
84190-0G030-B0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G030-B0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G030-E0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 VX —
84190-0G030-E0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G030-E0 note Switch Assy, Fold Seat, NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
84190B — Switch Assy, Fold Seat, NO.2
84190-0G020-A0 note Switch Assy, Fold Seat, NO.2
2012-02 → 2013-11 ended
GRJ150 TX —
84190-0G020-A0 note Switch Assy, Fold Seat, NO.2
2012-02 → 2013-11 ended
GRJ150 VX —
84190-60080-A0 note Switch Assy, Fold Seat, NO.2
2010-05 → 2013-11 ended
GRJ150 VX —
84190-60080-A0 note Switch Assy, Fold Seat, NO.2
2010-05 → 2013-11 ended
GRJ150 TX —
84190-0G020-A1 note Switch Assy, Fold Seat, NO.2
2013-11 → 2017-11 ended
GRJ15# VX —
84190-0G020-A1 note Switch Assy, Fold Seat, NO.2
2013-11 → 2017-11 ended
GRJ15# TX —
84190-0G020-C0 note Switch Assy, Fold Seat, NO.2
2013-11 → 2017-11 ended
GRJ15# VX —
84190-0G020-C0 note Switch Assy, Fold Seat, NO.2
2013-11 → 2017-11 ended
GRJ15# TX —
84190-0G040-C0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
84190-0G040-C0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G040-C0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G040-E0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G040-E0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84190-0G040-E0 note Switch Assy, Fold Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2010-05 → 2013-11 ended
GRJ150 —
84231-02130 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
84231-02130 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
84231-02130 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2017-11 → 2018-12 ended
GRJ152 —
84231-0R010 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2019-01 → 2020-06 ended
GRJ152 —
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-53010 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2010-05 → 2013-11 ended
GRJ150 —
84231-02160 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
84231-02160 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
84231-02160 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2017-11 → 2018-12 ended
GRJ152 —
84231-0E070 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2019-01 → 2020-06 ended
GRJ152 —
84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84231-60070 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
2010-05 → 2013-11 ended
GRJ150 —
84231-02130 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
2013-11 → 2015-09 ended
GRJ150,TRJ150 —
84231-02130 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
2013-11 → 2017-11 ended
GRJ152,TRJ152 —
84231-02130 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
2017-11 → 2018-12 ended
GRJ152 —
84231-0R010 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
2019-01 → 2020-06 ended
GRJ152 —
84656A — Bezel, Switch
84656-0G010-A0 note Bezel, Switch
2012-02 → 2013-11 ended
GRJ150 VX —
84656-0G010-A0 note Bezel, Switch
2012-02 → 2013-11 ended
GRJ150 TX —
84656-60140-A0 note Bezel, Switch
2010-05 → 2013-11 ended
GRJ150 VX —
84656-60140-A0 note Bezel, Switch
2010-05 → 2013-11 ended
GRJ150 TX —
84656-0G010-A1 note Bezel, Switch
2013-11 → 2017-11 ended
GRJ15# VX —
84656-0G010-A1 note Bezel, Switch
2013-11 → 2017-11 ended
GRJ15# TX —
84656-0G010-C0 note Bezel, Switch
2013-11 → 2017-11 ended
GRJ15# TX —
84656-0G010-C0 note Bezel, Switch
2013-11 → 2017-11 ended
GRJ15# VX —
84656-0G010-C0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 VX —
84656-0G010-C0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 TX —
84656-0G010-C0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 TX —
84656-0G010-E0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 VX —
84656-0G010-E0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 TX —
84656-0G010-E0 note Bezel, Switch
2017-11 → 2020-06 ended
GRJ152 TX —
84810 — Switch Assy, Power Window Regulator
84810-33120 Switch Assy, Power Window Regulator
2010-05 → 2013-11 ended
GRJ150 —
84810-33120 Switch Assy, Power Window Regulator
2017-10 → 2017-11 ended
GRJ152,TRJ152 —
84810-33120 Switch Assy, Power Window Regulator
2013-11 → 2017-11 ended
GRJ150,TRJ150 —
84810-33120 Switch Assy, Power Window Regulator
2013-11 → 2017-09 ended
GRJ152,TRJ152 —
84810-0P010 Switch Assy, Power Window Regulator
2019-03 → 2020-06 ended
GRJ152 —
84810-30220 Switch Assy, Power Window Regulator
2017-11 → 2019-02 ended
GRJ152 —
84810D — Switch Assy, Power Window Regulator, Rear
84810-33120 Switch Assy, Power Window Regulator, Rear
2010-05 → 2013-11 ended
GRJ150 —
84810-33120 Switch Assy, Power Window Regulator, Rear
2013-11 → 2017-09 ended
GRJ152,TRJ152 —
84810-33120 Switch Assy, Power Window Regulator, Rear
2013-11 → 2017-11 ended
GRJ150,TRJ150 —
84810-33120 Switch Assy, Power Window Regulator, Rear
2017-10 → 2017-11 ended
GRJ152,TRJ152 —
84810-0P010 Switch Assy, Power Window Regulator, Rear
2019-03 → 2020-06 ended
GRJ152 —
84810-30220 Switch Assy, Power Window Regulator, Rear
2017-11 → 2019-02 ended
GRJ152 —
84920 — Switch Assy, Power Seat
84920-0G030-C0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G030-C0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G030-C0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 VX —
84920-0G030-E0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 VX —
84920-0G030-E0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G030-E0 note Switch Assy, Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84920L — Switch Assy, Power Seat, NO.2
84920-0G040-C0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
84920-0G040-C0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G040-C0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G040-E0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
84920-0G040-E0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84920-0G040-E0 note Switch Assy, Power Seat, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
84923 — Switch, Rear Power Seat
84923-0G010 note Switch, Rear Power Seat
2012-02 → 2013-11 ended
GRJ150 TX —
84923-0G010 note Switch, Rear Power Seat
2012-02 → 2013-11 ended
GRJ150 VX —
84923-60030-C0 note Switch, Rear Power Seat
2010-05 → 2013-11 ended
GRJ150 VX —
84923-60030-C0 note Switch, Rear Power Seat
2010-05 → 2013-11 ended
GRJ150 TX —
84923-0G010 Switch, Rear Power Seat
2013-11 → 2015-09 ended
GRJ150 VX —
84923-0G010 note Switch, Rear Power Seat
2013-11 → 2015-09 ended
GRJ150 TX —
84923-0G010 Switch, Rear Power Seat
2013-11 → 2017-11 ended
GRJ152 VX —
84923-0G010 note Switch, Rear Power Seat
2013-11 → 2017-11 ended
GRJ152 TX —
84923-0G020 Switch, Rear Power Seat
2017-11 → 2020-06 ended
GRJ152 VX —
84923-0G020 note Switch, Rear Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84923-0G020 note Switch, Rear Power Seat
2017-11 → 2020-06 ended
GRJ152 TX —
84927 — Switch, Seat Memory
84927-24040 Switch, Seat Memory
2010-05 → 2013-11 ended
GRJ150 VX —
84927-24040 Switch, Seat Memory
2013-11 → 2017-11 ended
GRJ15# VX —
84927-24040 Switch, Seat Memory
2017-11 → 2020-06 ended
GRJ152 VX —
85530B — Socket Assy, Power Outlet, Rear NO.1
85530-0N010 Socket Assy, Power Outlet, Rear NO.1
2012-02 → 2013-11 ended
GRJ150 TX —
85530-42010 Socket Assy, Power Outlet, Rear NO.1
2010-05 → 2012-02 ended
GRJ150 TX —
85530-0N010 Socket Assy, Power Outlet, Rear NO.1
2013-11 → 2015-09 ended
GRJ150 TX —
85530-0N010 Socket Assy, Power Outlet, Rear NO.1
2013-11 → 2017-11 ended
GRJ152 TX —
85530-0N010 Socket Assy, Power Outlet, Rear NO.1
2017-11 → 2020-06 ended
GRJ152 TX —
85530D — Socket Assy, Power Outlet, NO.2
85530-60170-A0 note Socket Assy, Power Outlet, NO.2
2010-05 → 2013-11 ended
GRJ150 VX —
85530-60170-A0 note Socket Assy, Power Outlet, NO.2
2010-05 → 2013-11 ended
GRJ150 TX —
85530-60170-A1 note Socket Assy, Power Outlet, NO.2
2013-11 → 2017-11 ended
TRJ15#;GRJ15# VX —
85530-60170-A1 note Socket Assy, Power Outlet, NO.2
2013-11 → 2017-11 ended
GRJ15# TX —
85530-60170-C0 note Socket Assy, Power Outlet, NO.2
2013-11 → 2017-11 ended
TRJ15#;GRJ15# VX —
85530-60170-C0 note Socket Assy, Power Outlet, NO.2
2013-11 → 2017-11 ended
GRJ15# TX —
85530-60170-C0 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
85530-60170-C0 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
85530-60170-C0 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
85530-60170-E1 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 VX —
85530-60170-E1 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
85530-60170-E1 note Socket Assy, Power Outlet, NO.2
2017-11 → 2020-06 ended
GRJ152 TX —
85535F — Cover, Power Outlet Socket, Rear
85535-0G030-A0 note Cover, Power Outlet Socket, Rear
2012-02 → 2013-11 ended
GRJ150 TX —
85535-28060-A0 note Cover, Power Outlet Socket, Rear
2010-05 → 2012-02 ended
GRJ150 TX —
85535-0G030-A1 note Cover, Power Outlet Socket, Rear
2013-11 → 2017-11 ended
GRJ15# TX —
85535-0G030-C0 note Cover, Power Outlet Socket, Rear
2013-11 → 2017-11 ended
GRJ15# TX —
85535-0G030-C0 note Cover, Power Outlet Socket, Rear
2017-11 → 2020-06 ended
GRJ152 TX —
85535-0G030-E0 note Cover, Power Outlet Socket, Rear
2017-11 → 2020-06 ended
GRJ152 TX —
85536 — Bezel, Power Outlet Socket
85536-0G010-A0 note Bezel, Power Outlet Socket
2012-02 → 2013-11 ended
GRJ150 TX —
85536-60040-A0 note Bezel, Power Outlet Socket
2010-05 → 2012-02 ended
GRJ150 TX —
85536-60060-A0 note Bezel, Power Outlet Socket
2010-05 → 2011-02 ended
GRJ150 VX —
85536-60060-A0 note Bezel, Power Outlet Socket
2010-05 → 2011-02 ended
GRJ150 TX —
85536-60100-A0 note Bezel, Power Outlet Socket
2011-03 → 2012-08 ended
GRJ150 VX —
85536-60100-A0 note Bezel, Power Outlet Socket
2012-12 → 2013-11 ended
GRJ150 TX —
85536-60100-A0 note Bezel, Power Outlet Socket
2011-03 → 2012-08 ended
GRJ150 TX —
85536-60100-A0 note Bezel, Power Outlet Socket
2012-12 → 2013-11 ended
GRJ150 VX —
85536-0G010-A1 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
GRJ15# TX —
85536-0G010-C0 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
GRJ15# TX —
85536-60100-A1 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
TRJ15#;GRJ15# VX —
85536-60100-A1 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
GRJ15# TX —
85536-60100-C0 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
TRJ15#;GRJ15# VX —
85536-60100-C0 note Bezel, Power Outlet Socket
2013-11 → 2017-11 ended
GRJ15# TX —
85536-0G010-C0 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85536-0G010-E0 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85536-60100-C0 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 VX —
85536-60100-C0 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85536-60100-C0 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85536-60100-E1 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 VX —
85536-60100-E1 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85536-60100-E1 note Bezel, Power Outlet Socket
2017-11 → 2020-06 ended
GRJ152 TX —
85539A — Label, Power Outlet Notice, Rear
85539-0G010 note Label, Power Outlet Notice, Rear
2012-02 → 2013-11 ended
GRJ150 TX —
85539-48030 note Label, Power Outlet Notice, Rear
2010-05 → 2013-11 ended
GRJ150 TX —
85539-0G010 Label, Power Outlet Notice, Rear
2013-11 → 2017-11 ended
GRJ152 TX —
85539-0G010 Label, Power Outlet Notice, Rear
2013-11 → 2015-09 ended
GRJ150 TX —
85539-0G010 Label, Power Outlet Notice, Rear
2017-11 → 2020-06 ended
GRJ152 TX —
86210A — Inverter Assy, Voltage
86210-60110 Inverter Assy, Voltage
2010-05 → 2013-11 ended
GRJ150 VX —
86210-60110 note Inverter Assy, Voltage
2010-05 → 2013-11 ended
GRJ150 TX —
86210-60070 note Inverter Assy, Voltage
2013-11 → 2017-11 ended
GRJ152 TX —
86210-60070 Inverter Assy, Voltage
2015-03 → 2017-11 ended
TRJ152 —
86210-60070 Inverter Assy, Voltage
2015-03 → 2015-09 ended
TRJ150 —
86210-60070 note Inverter Assy, Voltage
2013-11 → 2015-09 ended
GRJ150 TX —
86210-60110 note Inverter Assy, Voltage
2013-11 → 2015-09 ended
GRJ150 TX —
86210-60110 note Inverter Assy, Voltage
2015-03 → 2015-09 ended
TRJ150 4FC —
86210-60110 Inverter Assy, Voltage
2013-11 → 2015-09 ended
GRJ150 VX —
86210-60110 Inverter Assy, Voltage
2013-11 → 2017-11 ended
GRJ152 VX —
86210-60110 note Inverter Assy, Voltage
2013-11 → 2017-11 ended
GRJ152 TX —
86210-60110 note Inverter Assy, Voltage
2015-03 → 2017-11 ended
TRJ152 6FC —
86210-60110 Inverter Assy, Voltage
2017-11 → 2020-06 ended
GRJ152 VX —
86210-60110 note Inverter Assy, Voltage
2017-11 → 2020-06 ended
GRJ152 TX —
86210-60110 note Inverter Assy, Voltage
2017-11 → 2020-06 ended
GRJ152 TX —
89430A — Computer Assy, Outer Mirror Control, LH
89430-60160 Computer Assy, Outer Mirror Control, LH
2017-11 → 2020-06 ended
GRJ152 VX —
89430B — Computer Assy, Outer Mirror Control, RH
89430-60150 Computer Assy, Outer Mirror Control, RH
2017-11 → 2020-06 ended
GRJ152 VX —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
