Timing Gear Cover & Rear End Plate

23 part groups · 6 illustrations

Illustrations

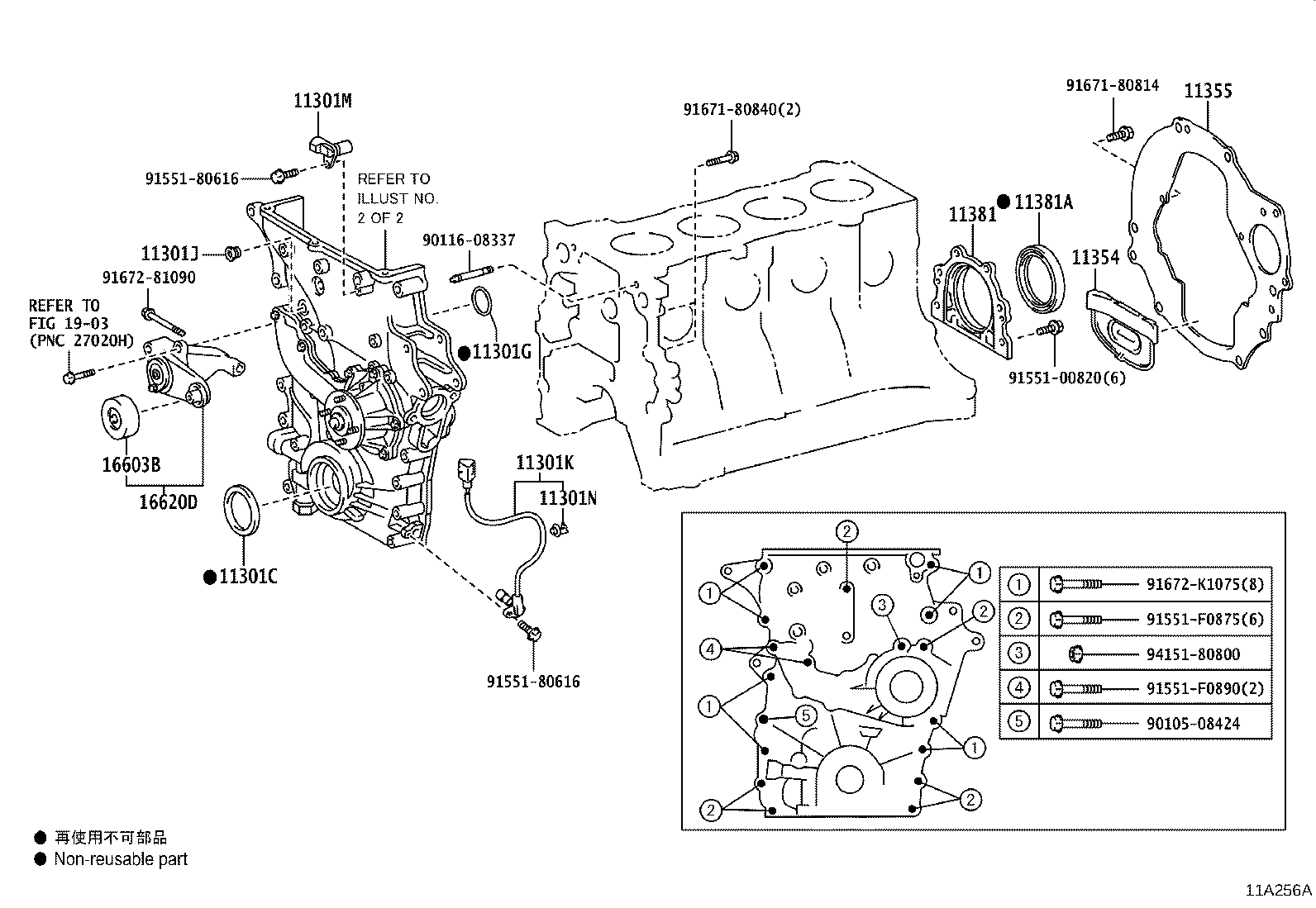

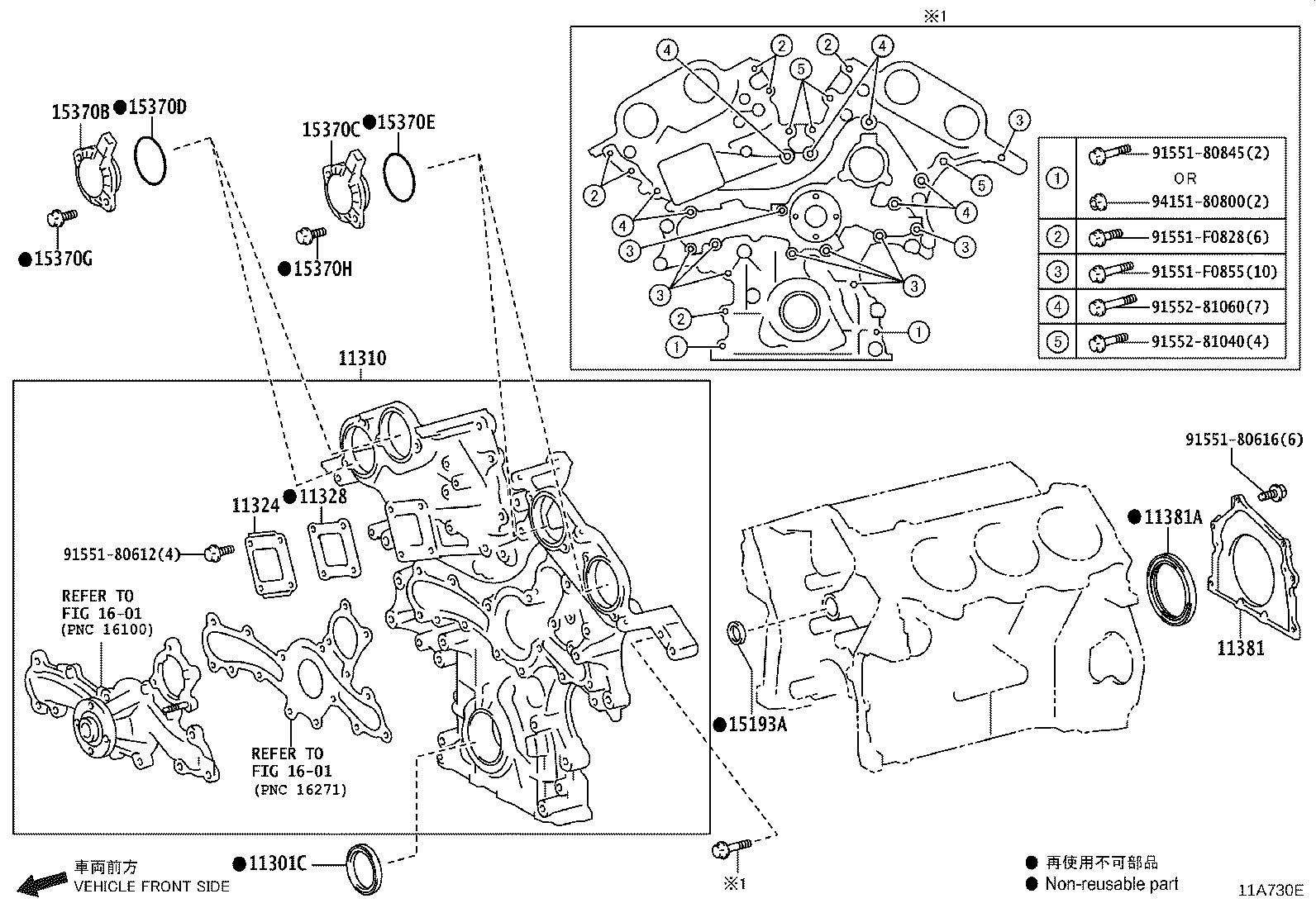

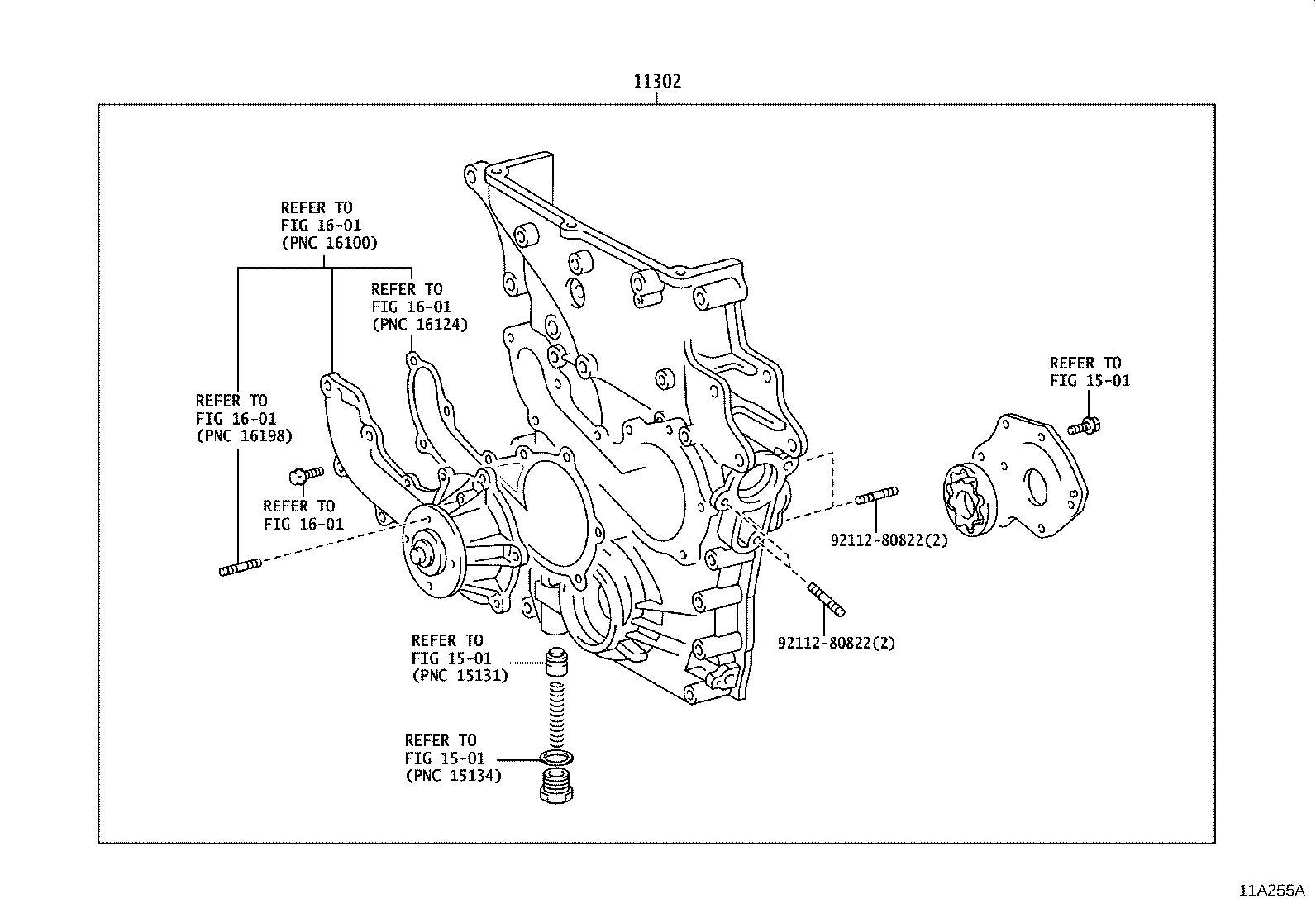

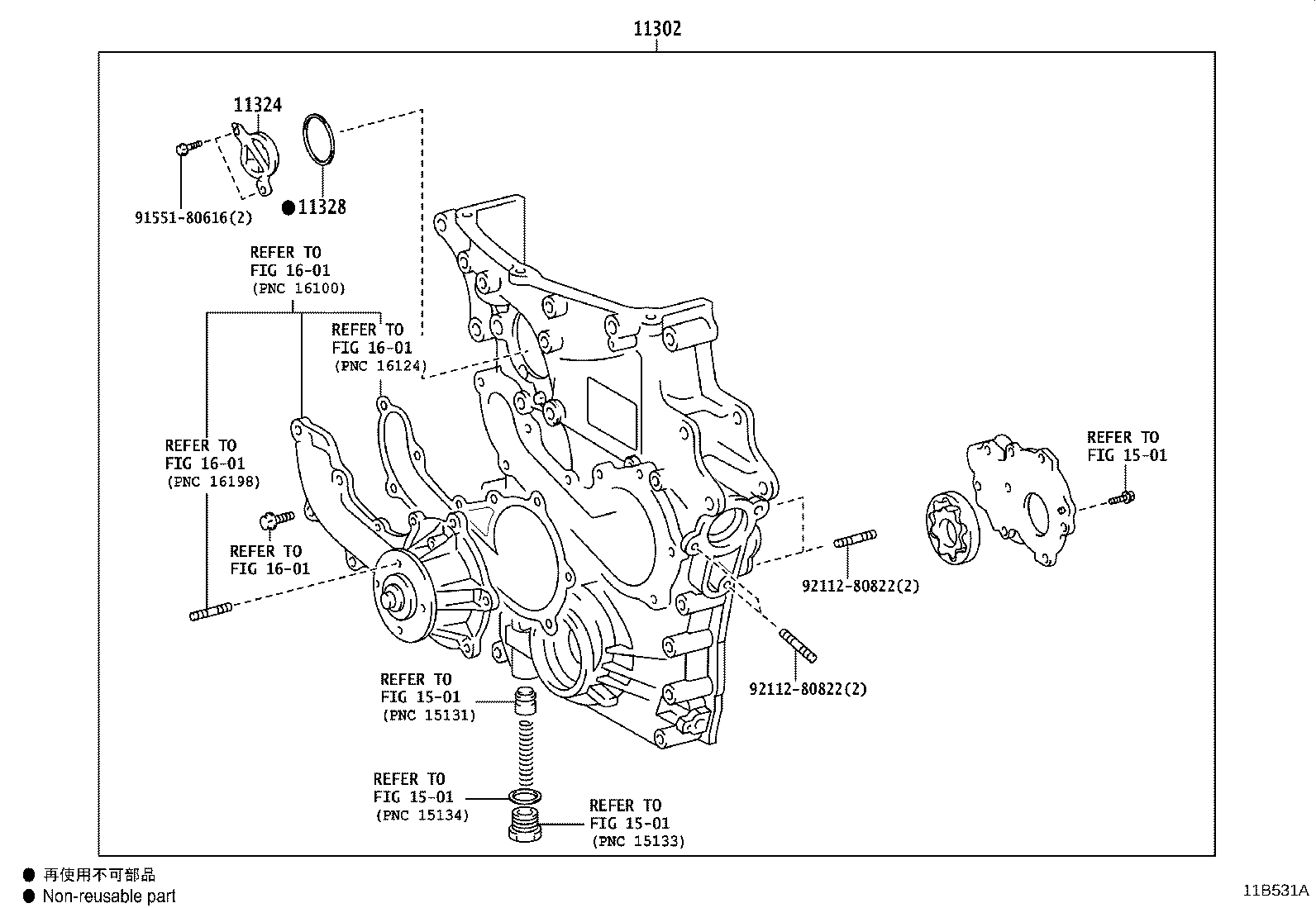

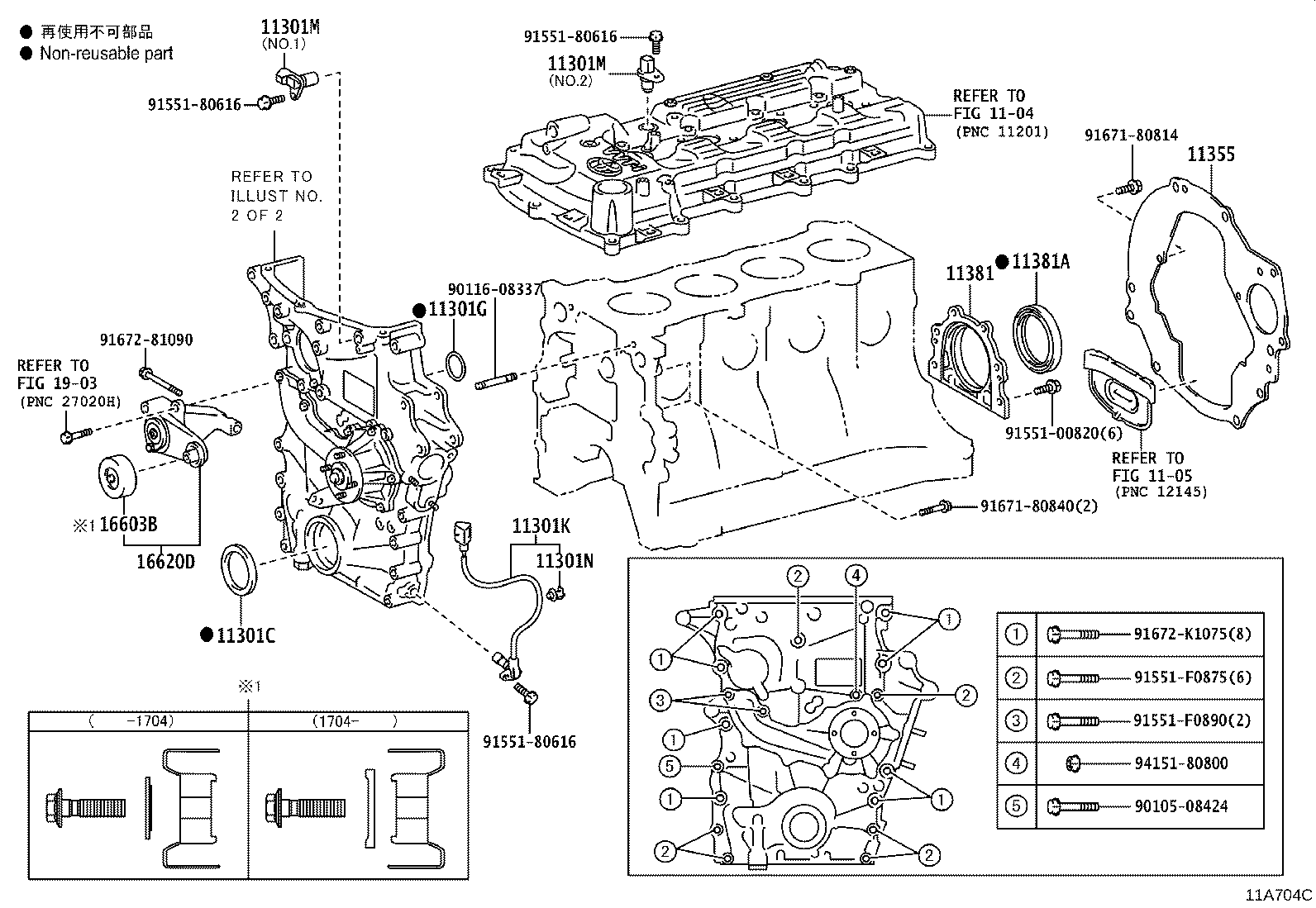

Figure 11D681A 11D681A 2010-05 → — Figure 11A730E 11A730E 2015-09 → — Figure 11A256A 11A256A 2015-03 → 2015-09 Figure 11A255A 11A255A 2015-03 → 2015-09 Figure 11A704C 11A704C 2015-09 → — Figure 11B531A 11B531A 2015-09 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11301N Clamp
11302 Cover Sub-assy, Timing Chain OR Belt
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15193A Gasket, Oil Pump
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370G Bolt(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370H Bolt(FOR CAM TIMING OIL CONTROL SOLENOID LH)
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
