Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

11 part groups · 4 illustrations

Illustrations

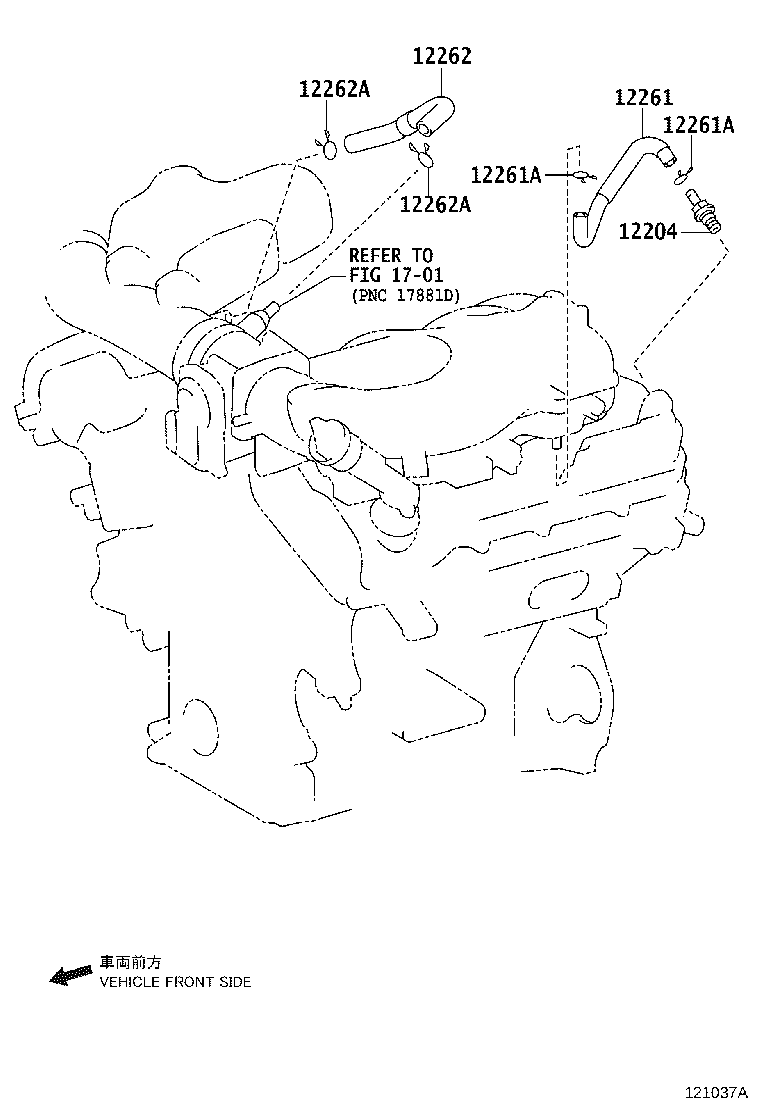

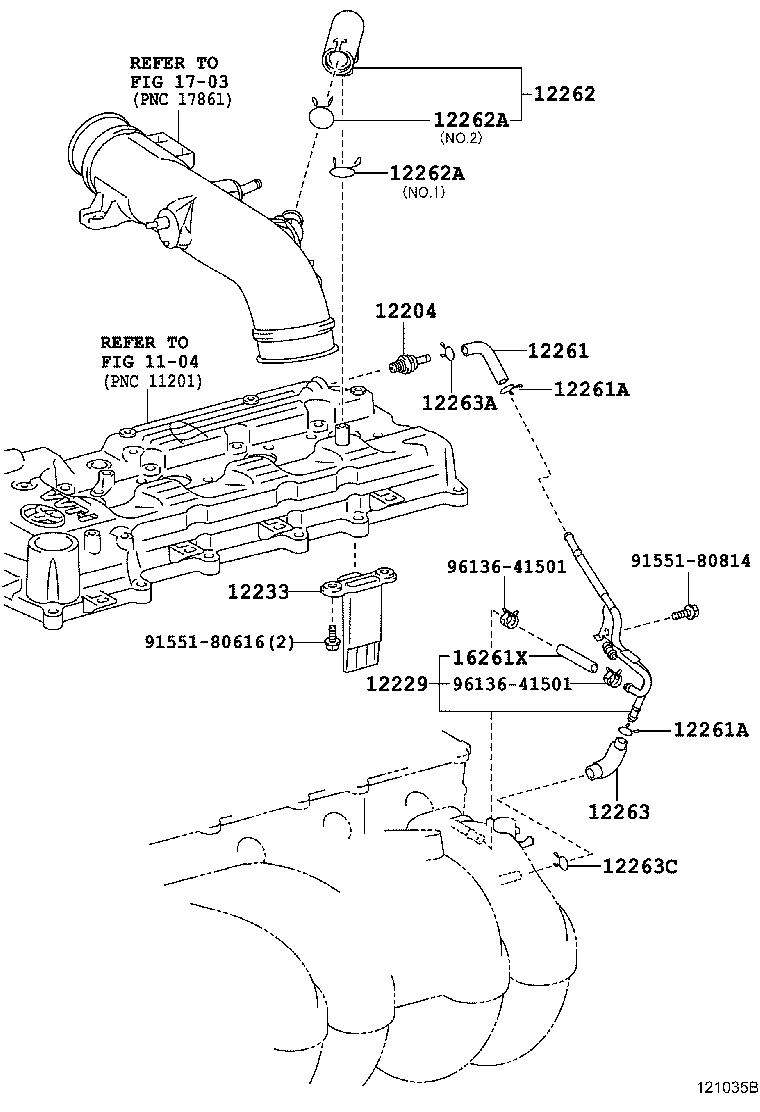

Figure 121268 121268 2010-05 → — Figure 121037A 121037A 2015-08 → — Figure 120991 120991 2015-03 → — Figure 121035B 121035B 2015-09 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12233 Connector, Ventilation NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263C Clip(FOR VENTILATION HOSE)
16261X Hose, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
