Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

11 part groups · 3 illustrations

Illustrations

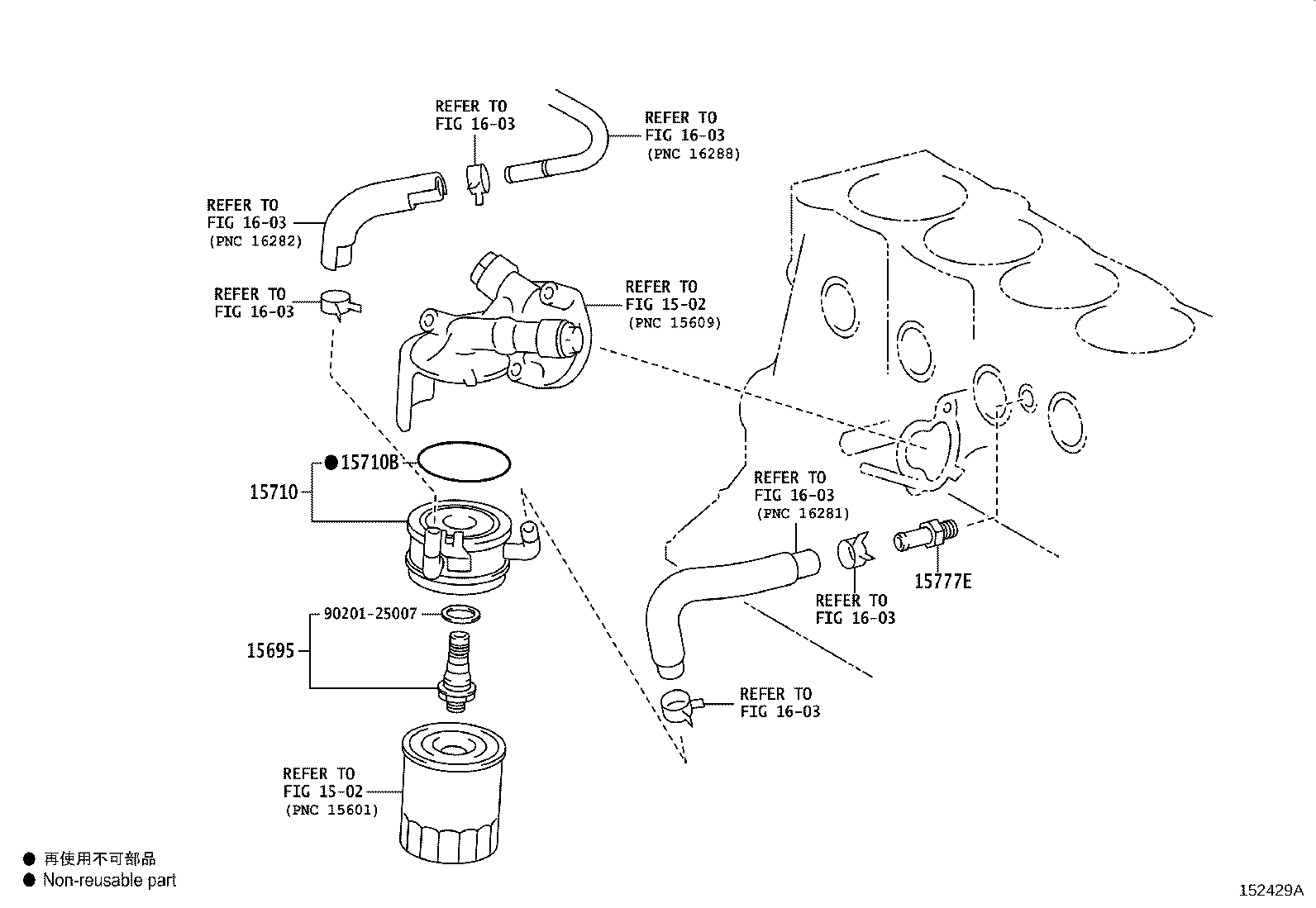

Figure 151742B 151742B 2010-05 → — Figure 152432B 152432B 2015-09 → — Figure 152429A 152429A 2015-09 → —

Part groups

PNCDescription
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15777E Union
15785 Gasket, Oil Cooler
