Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06
Manifold

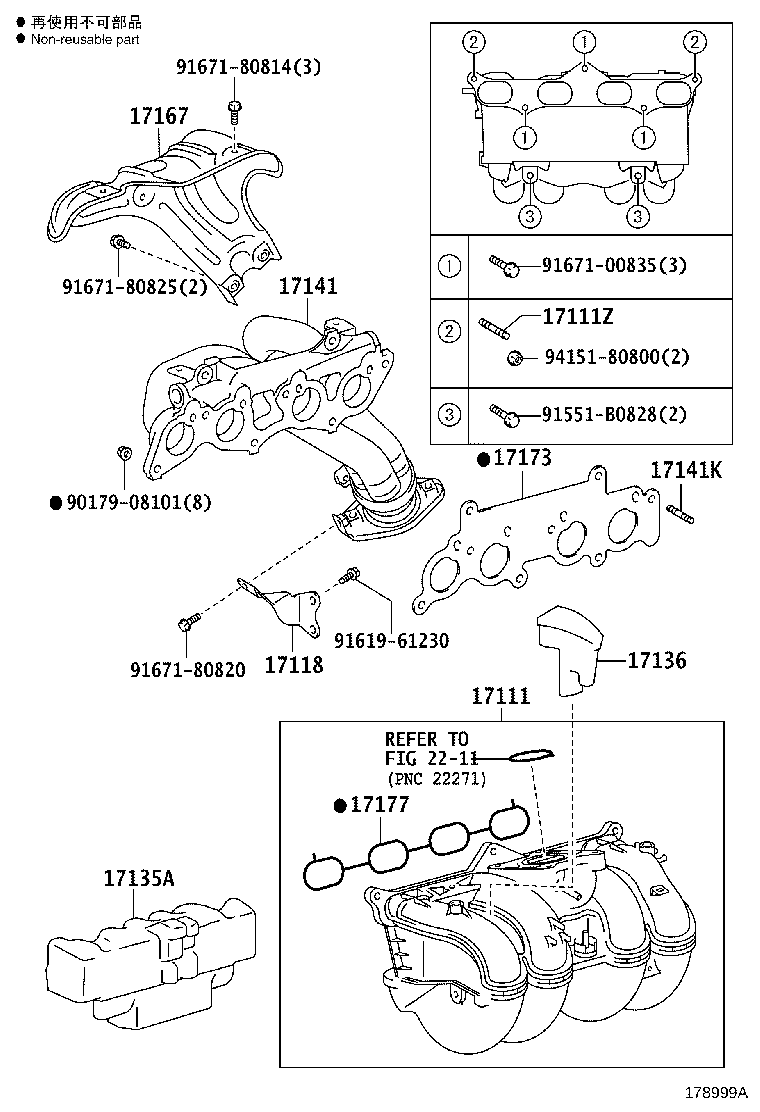

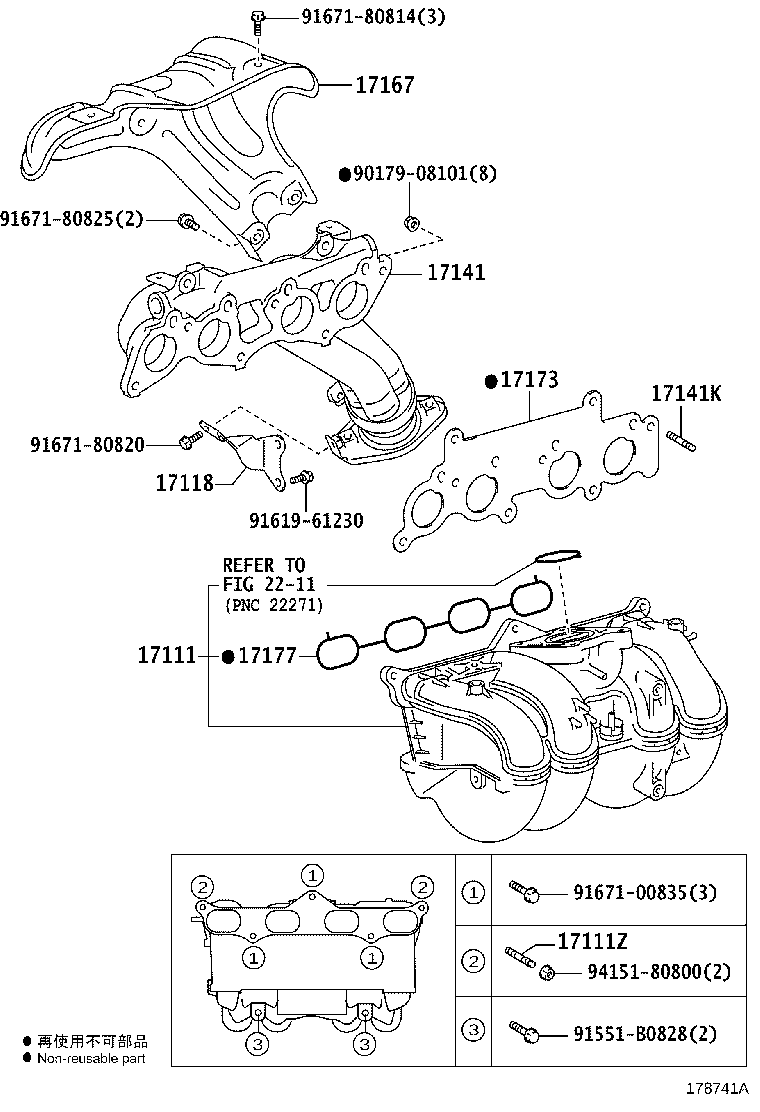

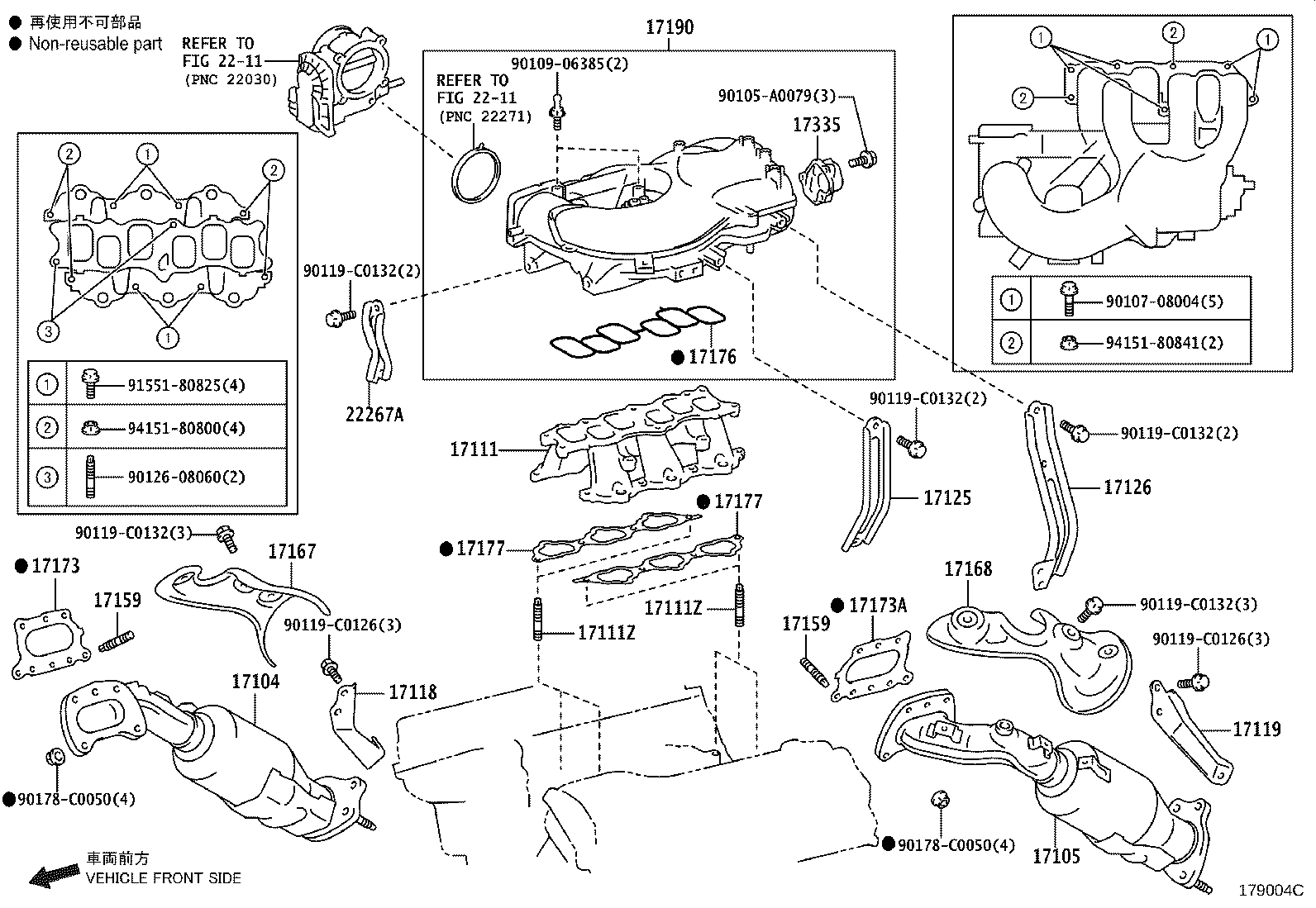

25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17105 | Manifold Sub-assy, Exhaust, LH |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17136 | Insulator, Intake Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17173A | Gasket, Exhaust Manifold TO Head, LH |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17190 | Tank Assy, Intake Air Surge |
| 17335 | Actuator, Intake Air Control Valve |
| 22267A | Bracket, Throttle Body |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
