Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

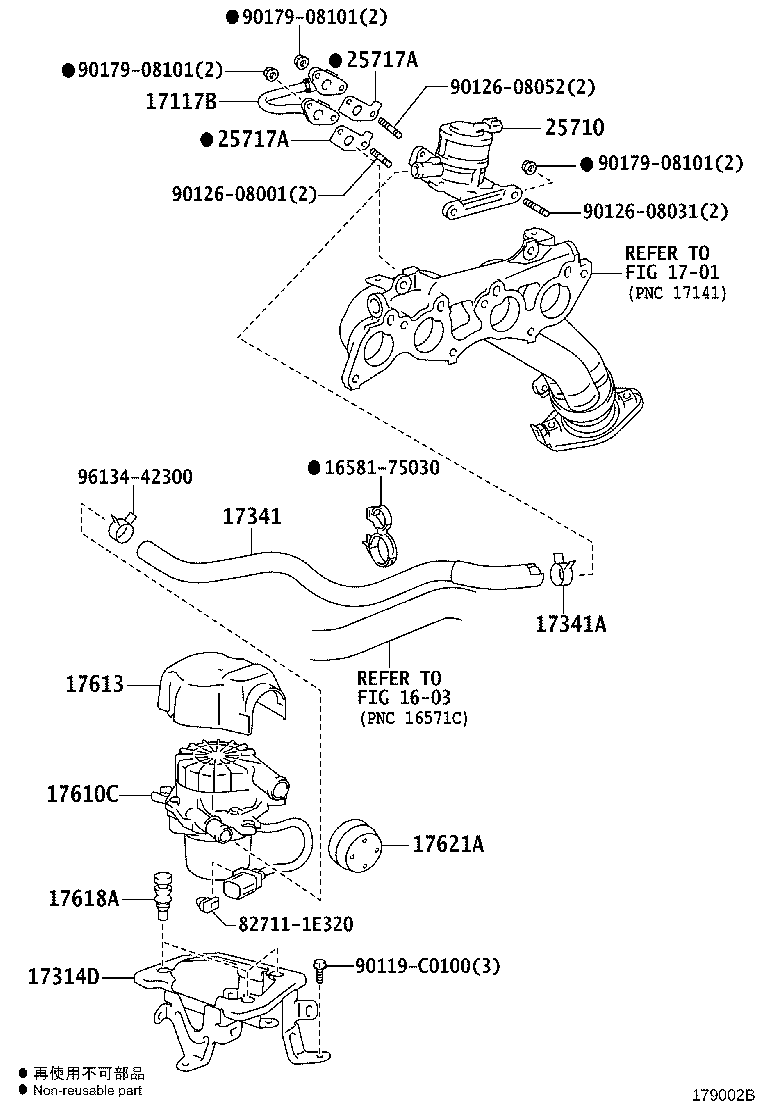

Manifold Air Injection System
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17117B | Pipe, Intake, NO.4 |
| 17314D | Bracket, Air Pump, NO.1 |
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341A | Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| 17610C | Pump Assy, Air |
| 17613 | Cover, Air Pump |
| 17618A | Insulator, Air Pump |
| 17621A | Inlet, Air Pump |
| 25710 | Valve Assy, Air Switching |
| 25717A | Gasket, Air Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
