Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

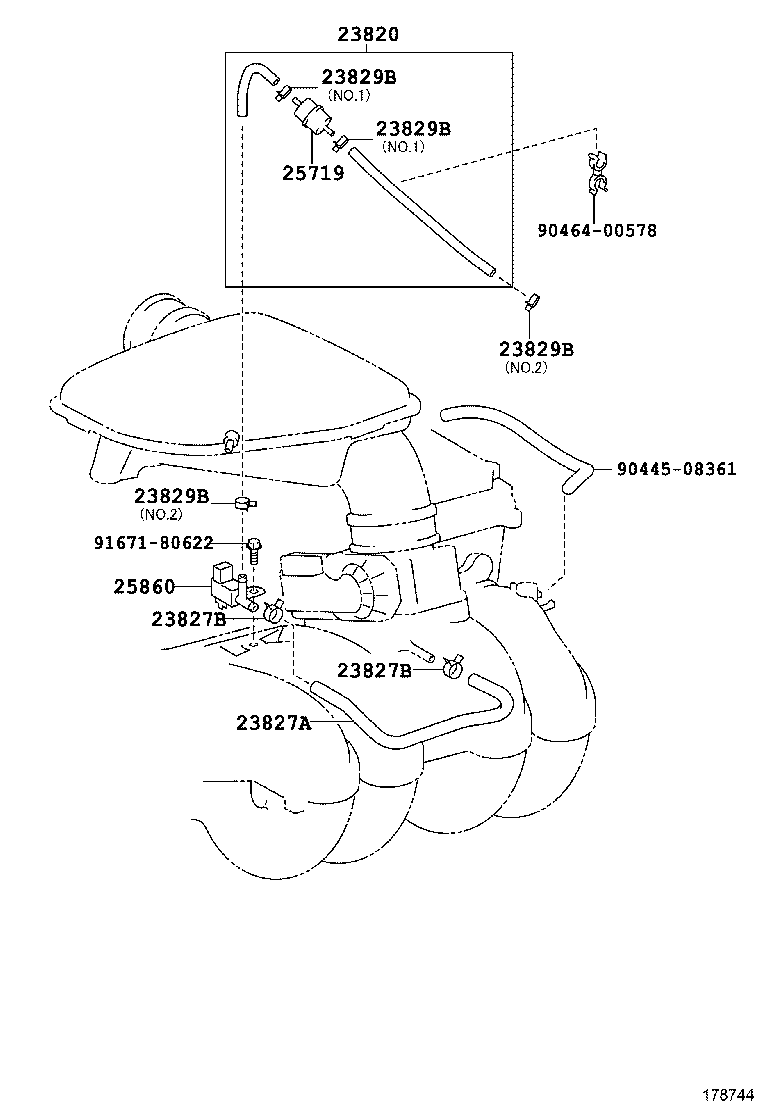

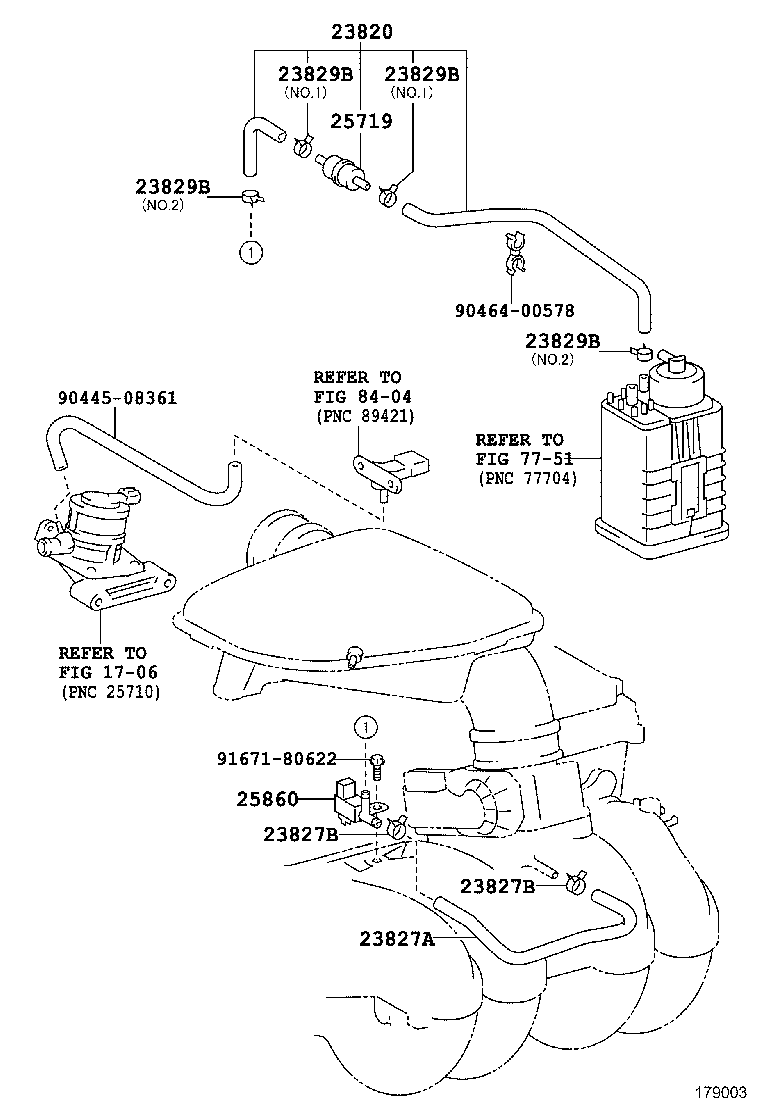

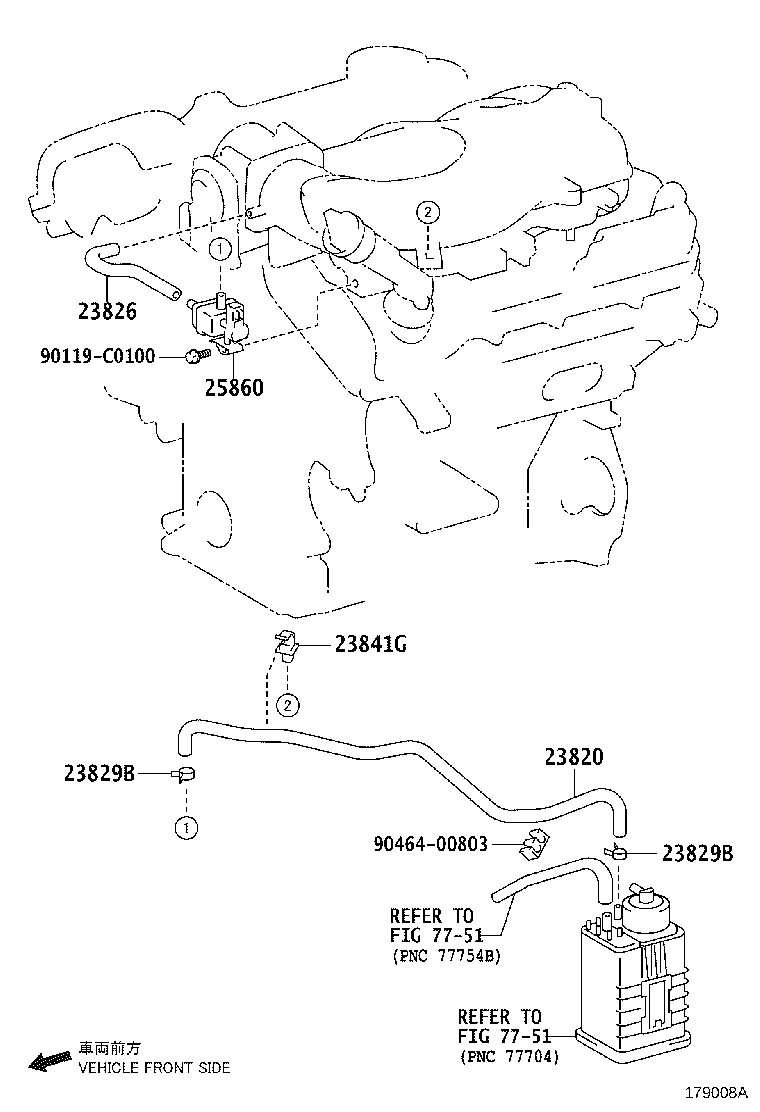

Vacuum Piping
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650G | Valve, Duty Vacuum Switching |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23841G | Clamp, Fuel Hose |
| 25719 | Tank, Vacuum Surge |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
