Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06
Starter
11 part groups · 4 illustrations
Part groups

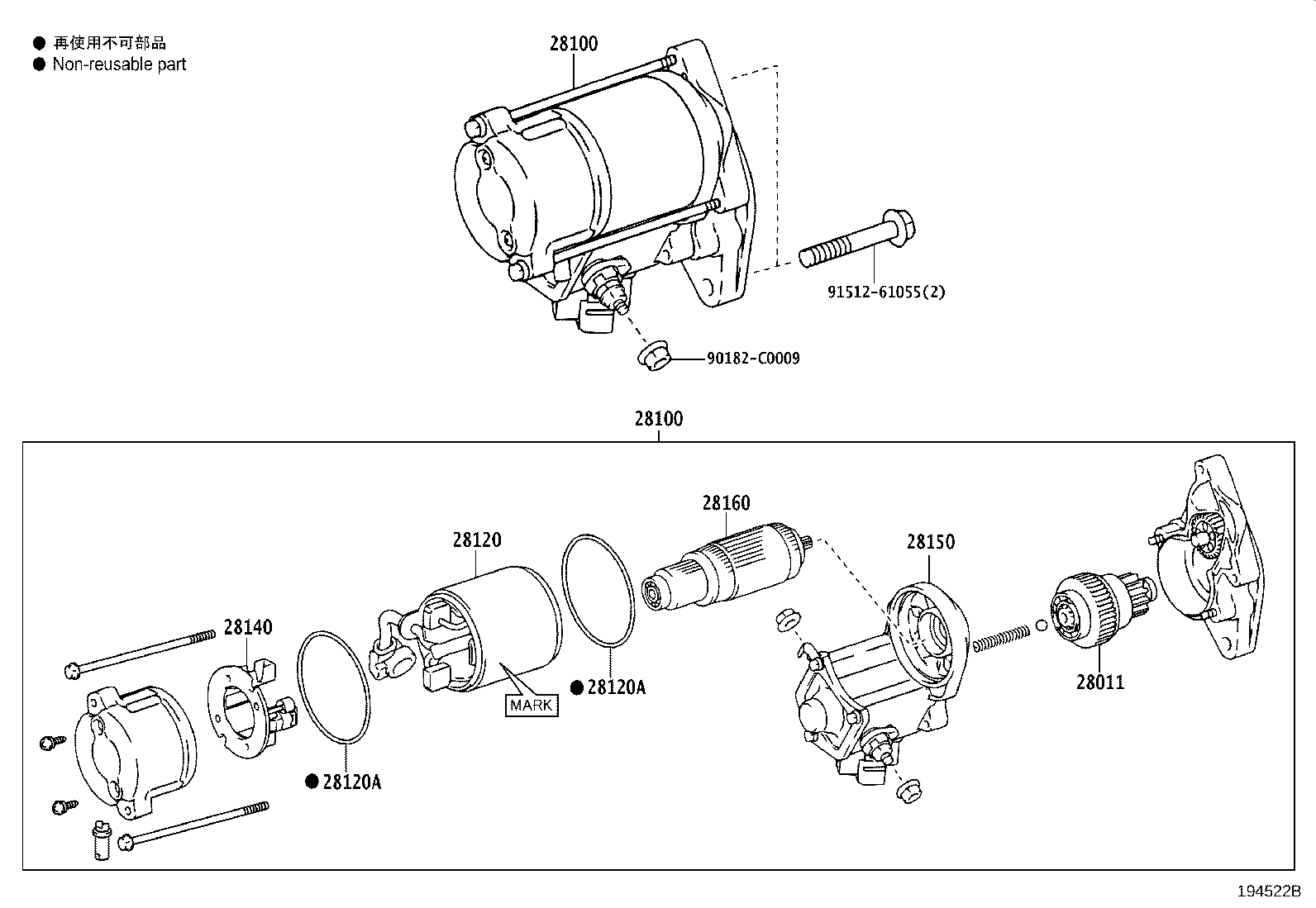

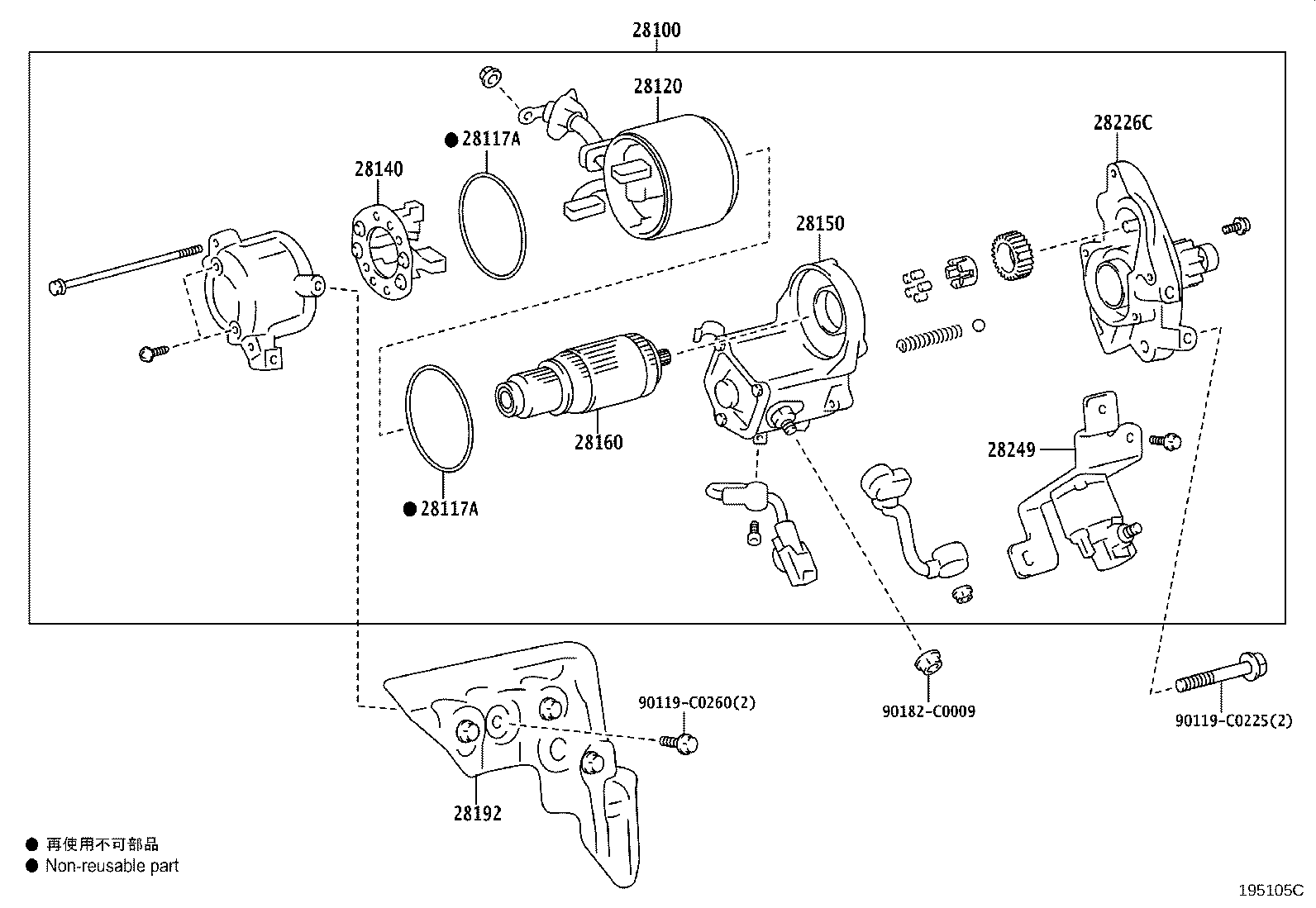

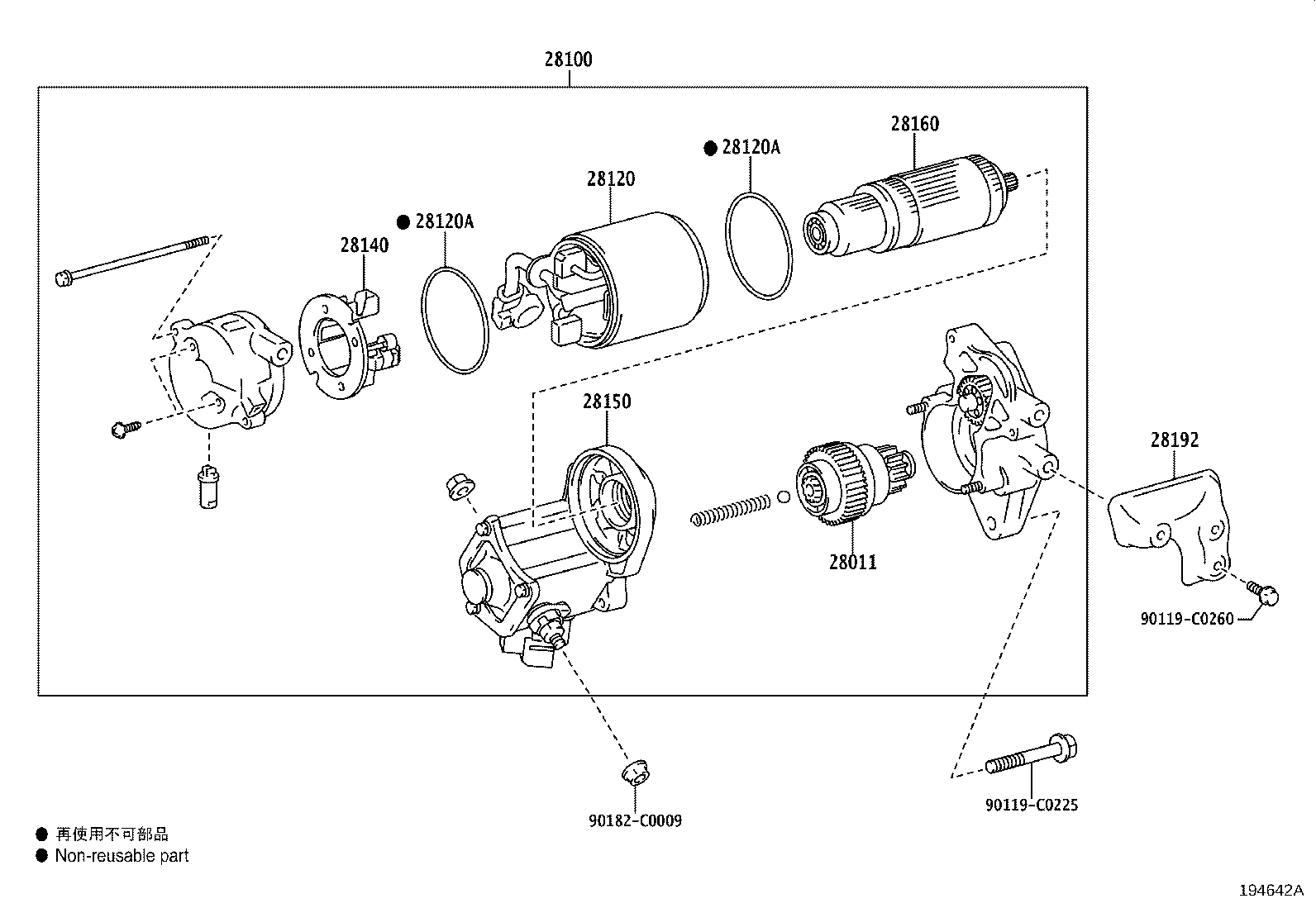

| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28117A | Seal, Rubber |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28192 | Cover, Starter |
| 28226C | Starter Kit, Repair Service, NO.2 |
| 28249 | Relay, Starter Inrush Current Reduction |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
