Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

11 part groups · 7 illustrations

Illustrations

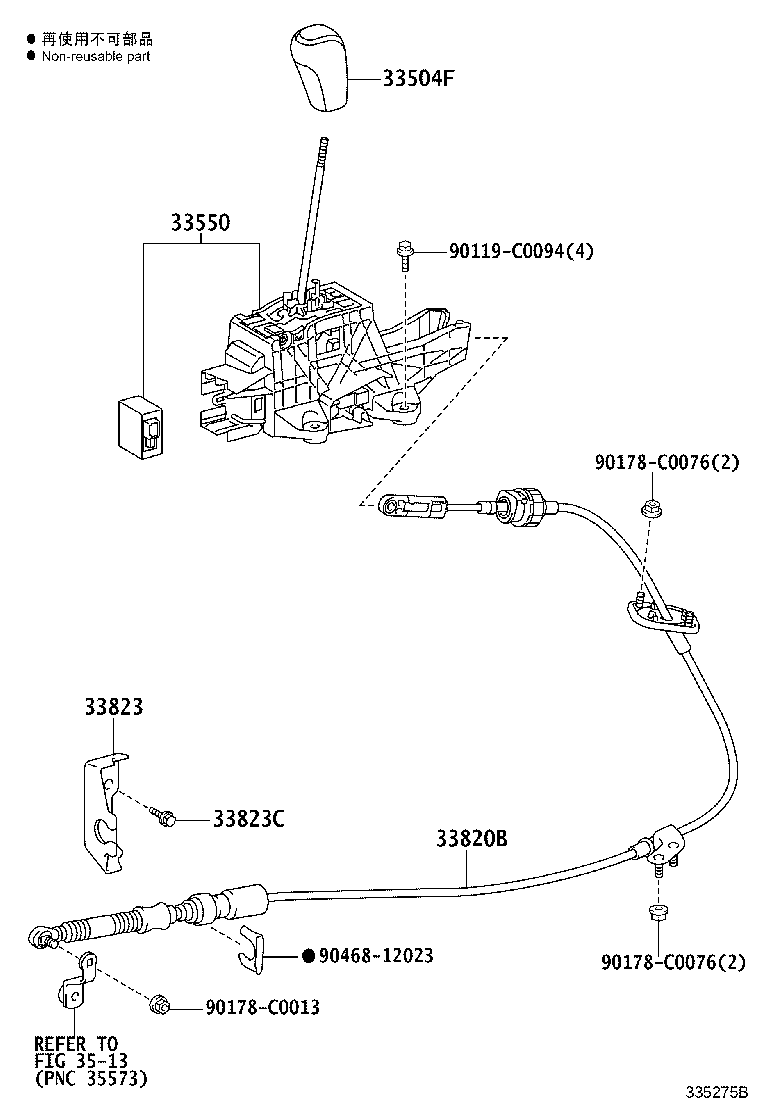

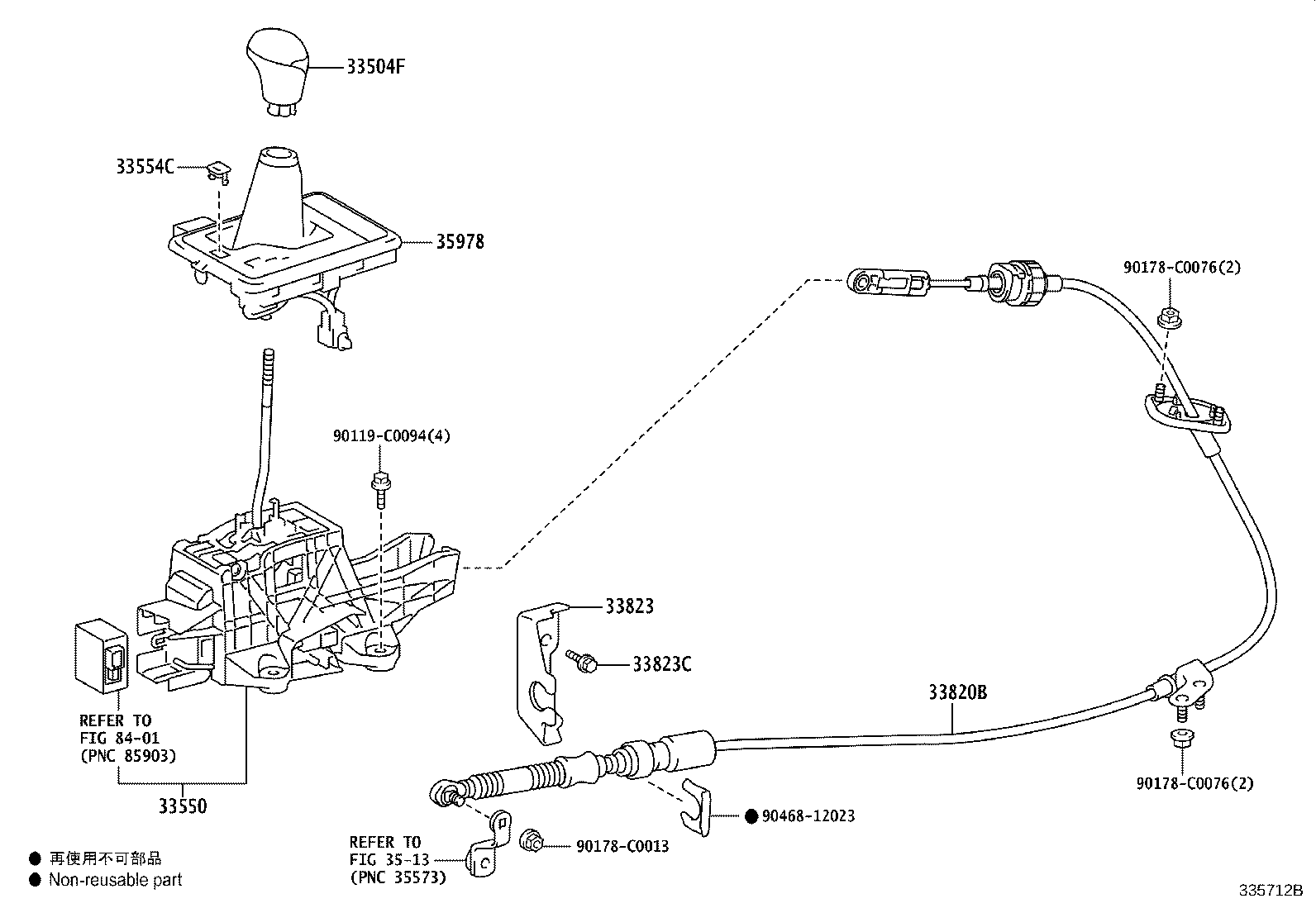

Figure 334076A 334076A 2010-05 → — Figure 334075C 334075C 2010-05 → — Figure 335128C 335128C 2015-03 → — Figure 335129 335129 2015-03 → — Figure 335130B 335130B 2015-03 → — Figure 335275B 335275B 2015-09 → — Figure 335712B 335712B 2017-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
