Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

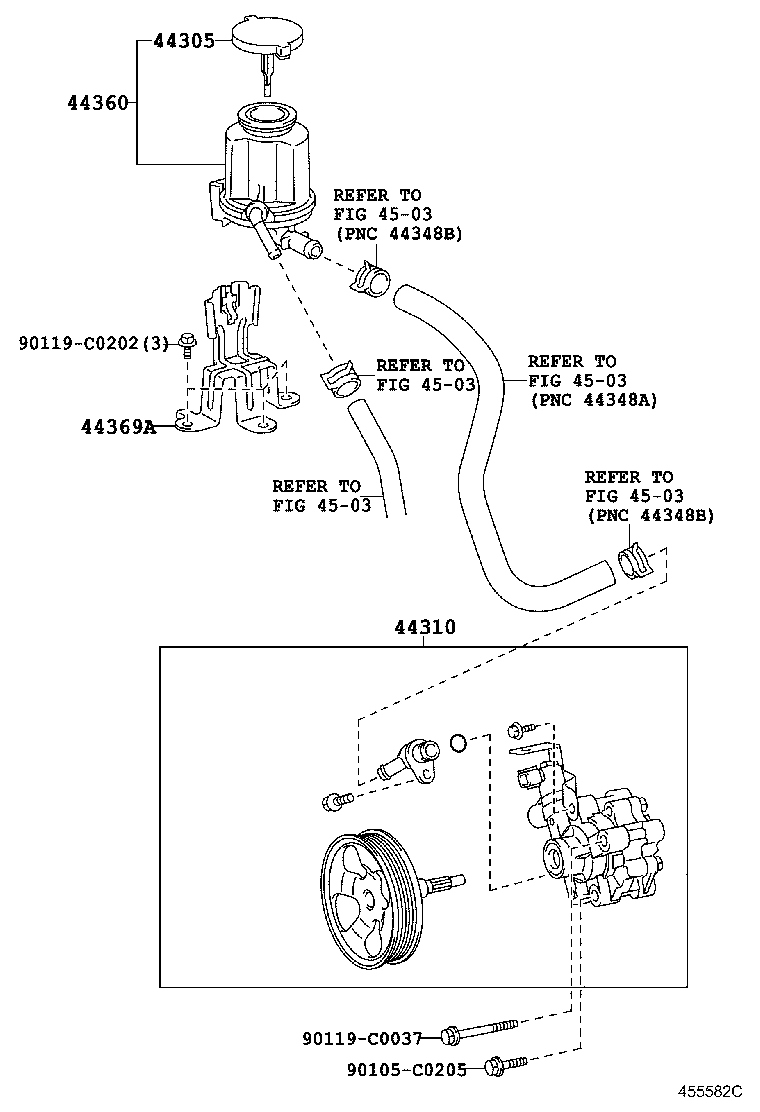

Vane Pump & Reservoir (POWER STEERING)
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44302B | Ring, O, NO.1(FOR VANE PUMP HOUSING) |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44306 | Reservoir Sub-assy, Vane Pump Oil |
| 44310 | Pump Assy, Vane |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44369A | Bracket, Oil Reservoir, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
