Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06
Steering Wheel

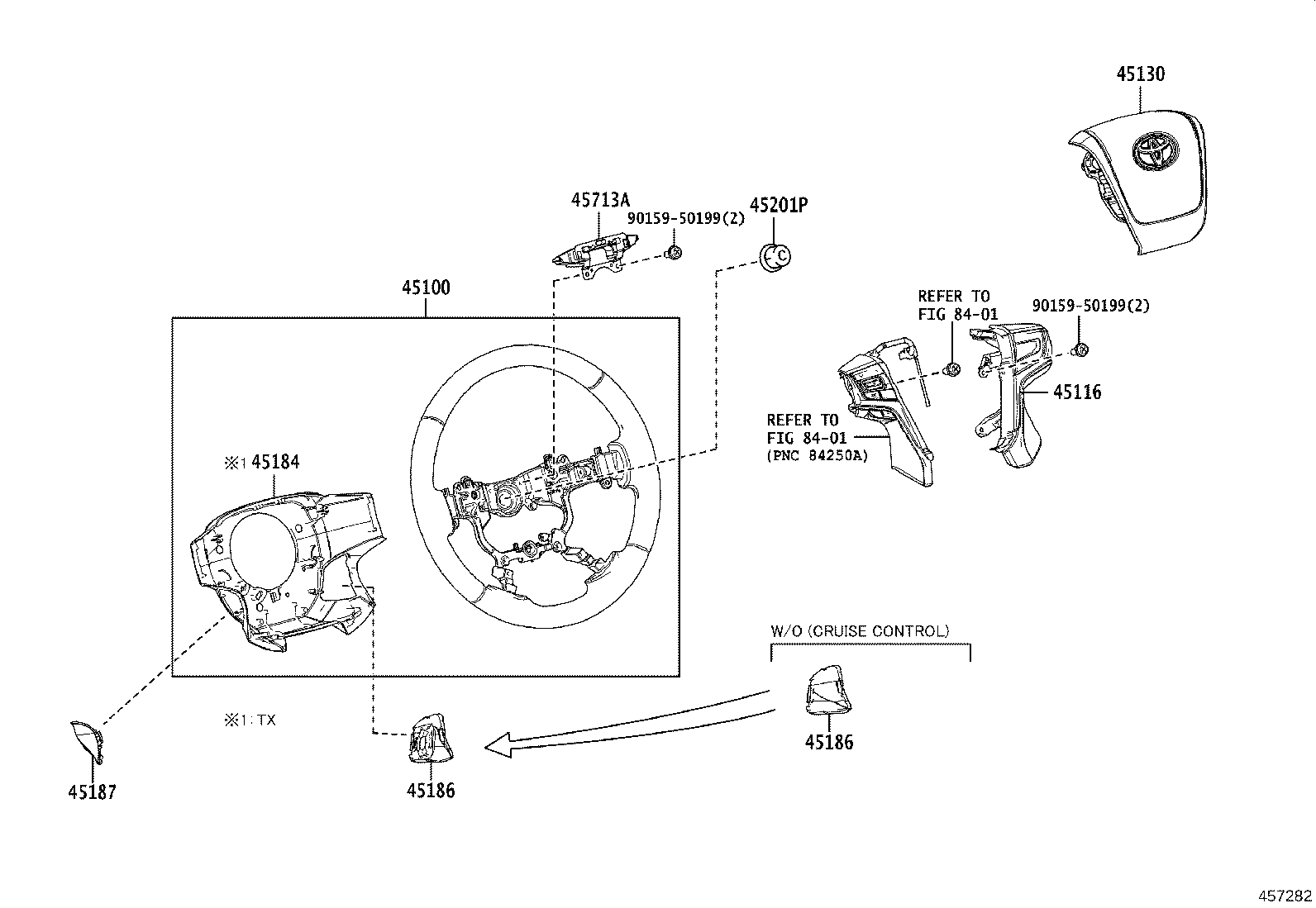

11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45188 | Screw, Steering Wheel Pad Attaching |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
| 45714 | Bracket, Steering Shake Dumper |
| 55910E | Control Assy, Steering Wheel Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
