Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

7 part groups · 3 illustrations

Illustrations

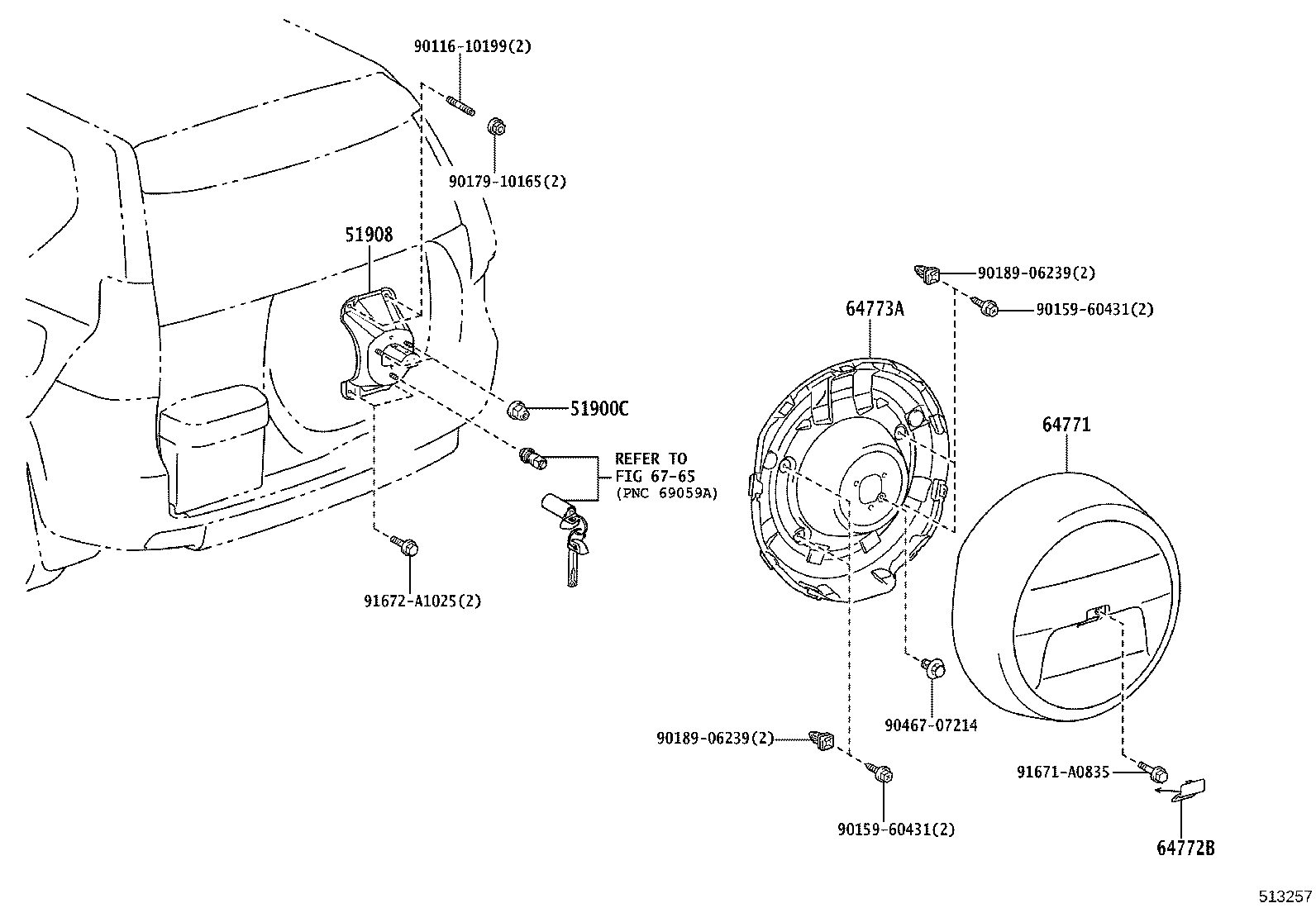

Figure 512045A 512045A 2010-05 → — Figure 512045A 512045A 2015-09 → — Figure 513257 513257 2017-11 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51908 Bracket Sub-assy, Spare Wheel Carrier
51920C Bracket Assy, Spare Wheel Carrier
64771 Cover, Spare Wheel
64772B Pad, Spare Wheel Cover
64773A Cover, Spare Wheel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
