Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

43 part groups · 6 illustrations

Illustrations

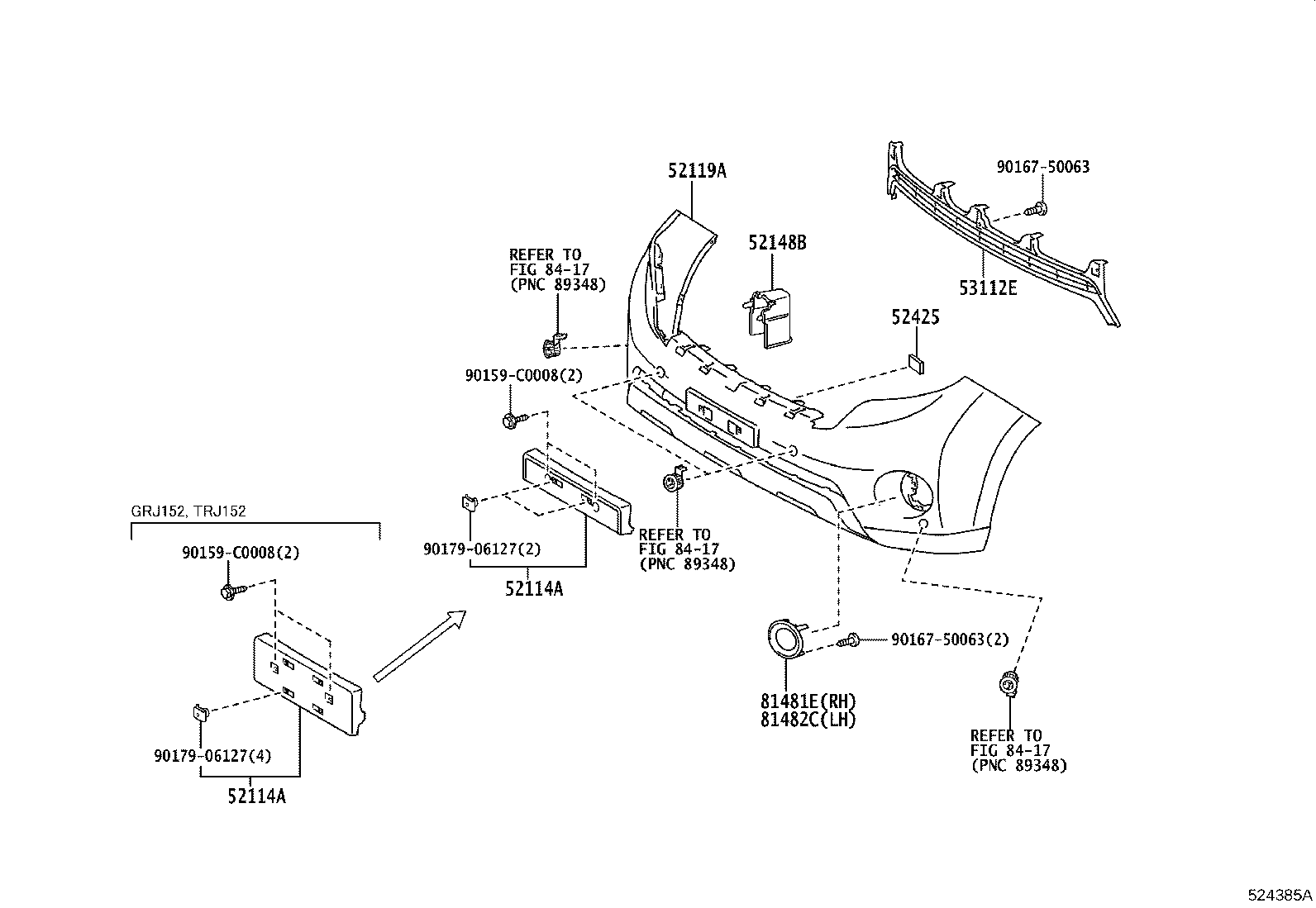

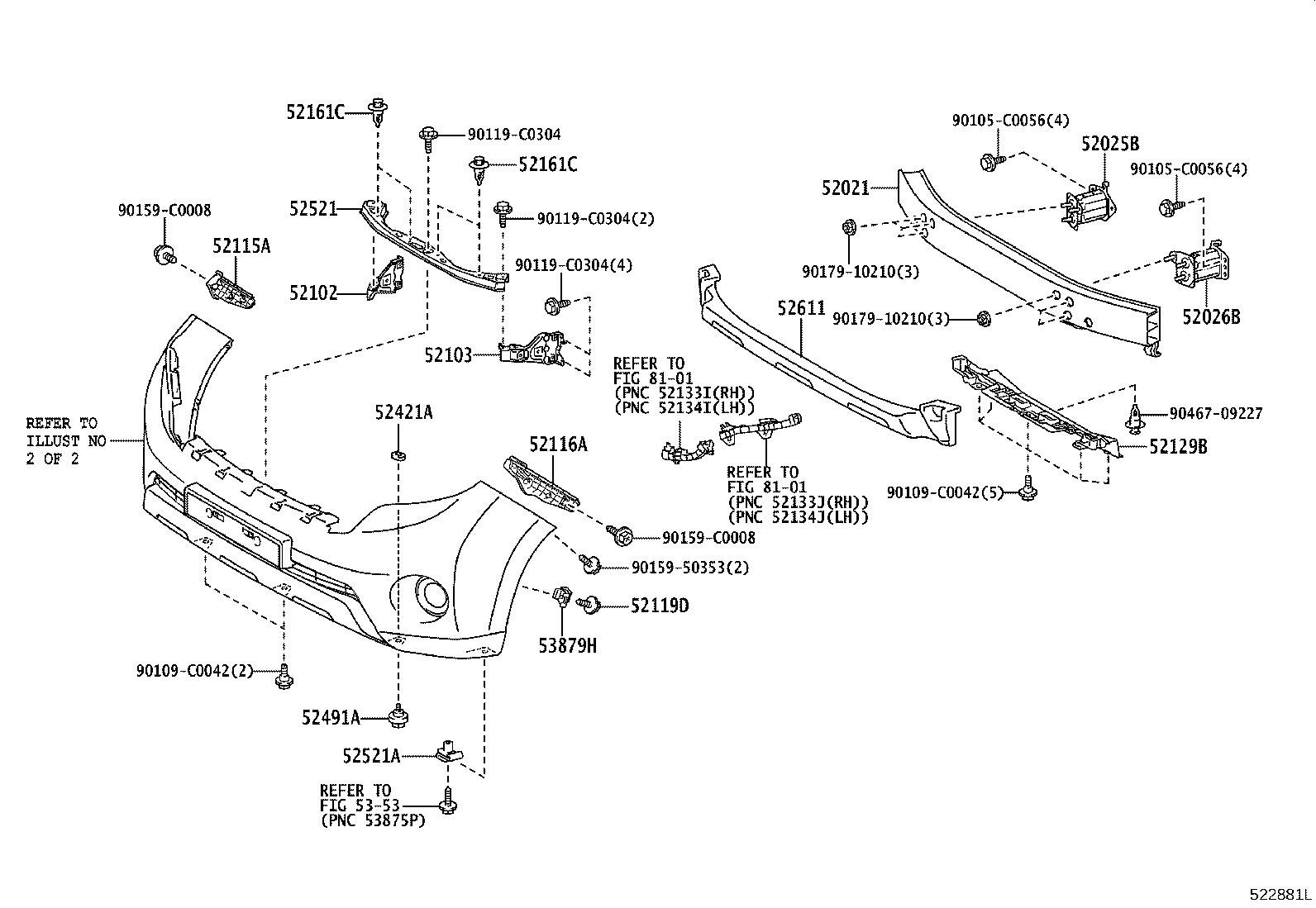

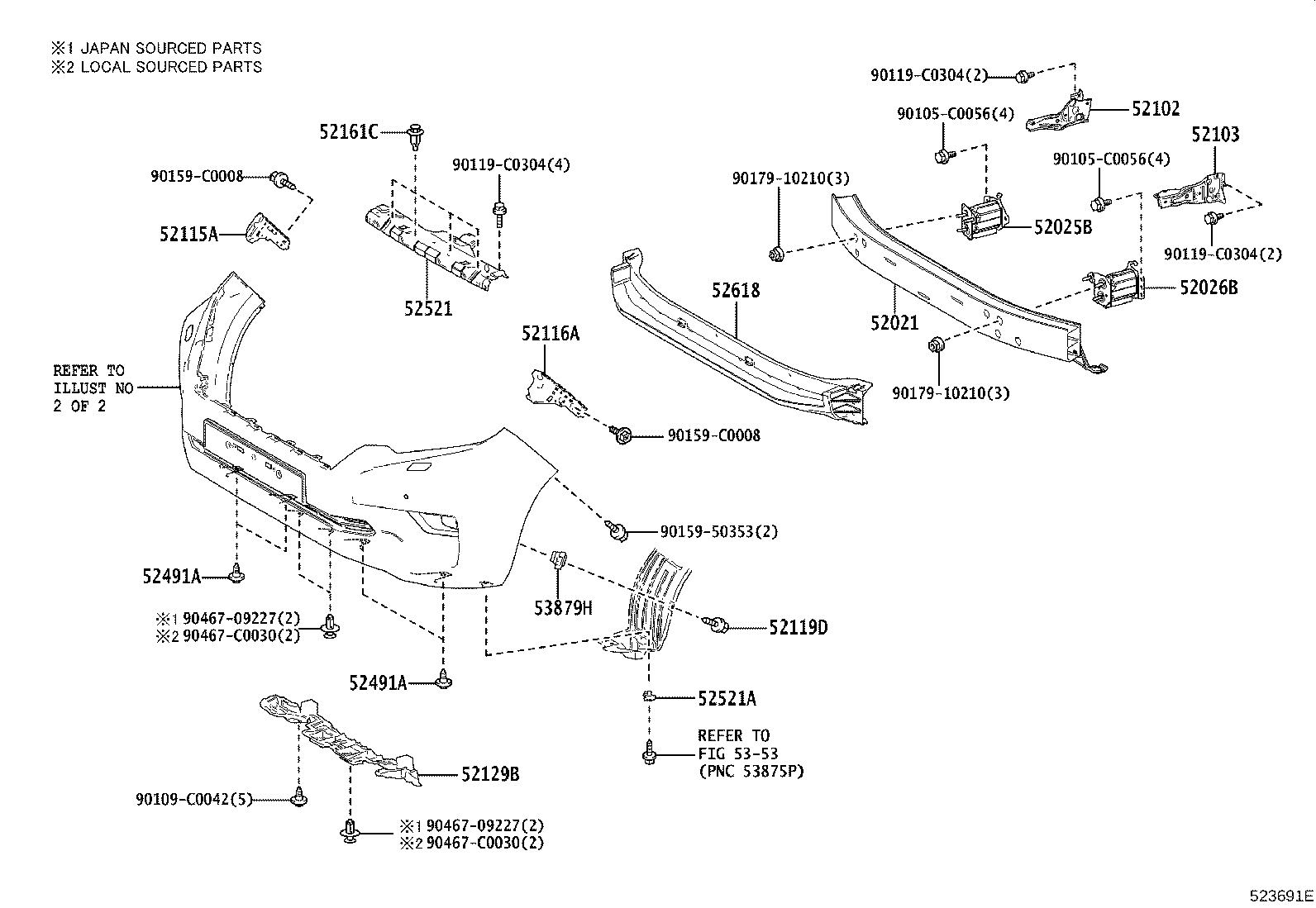

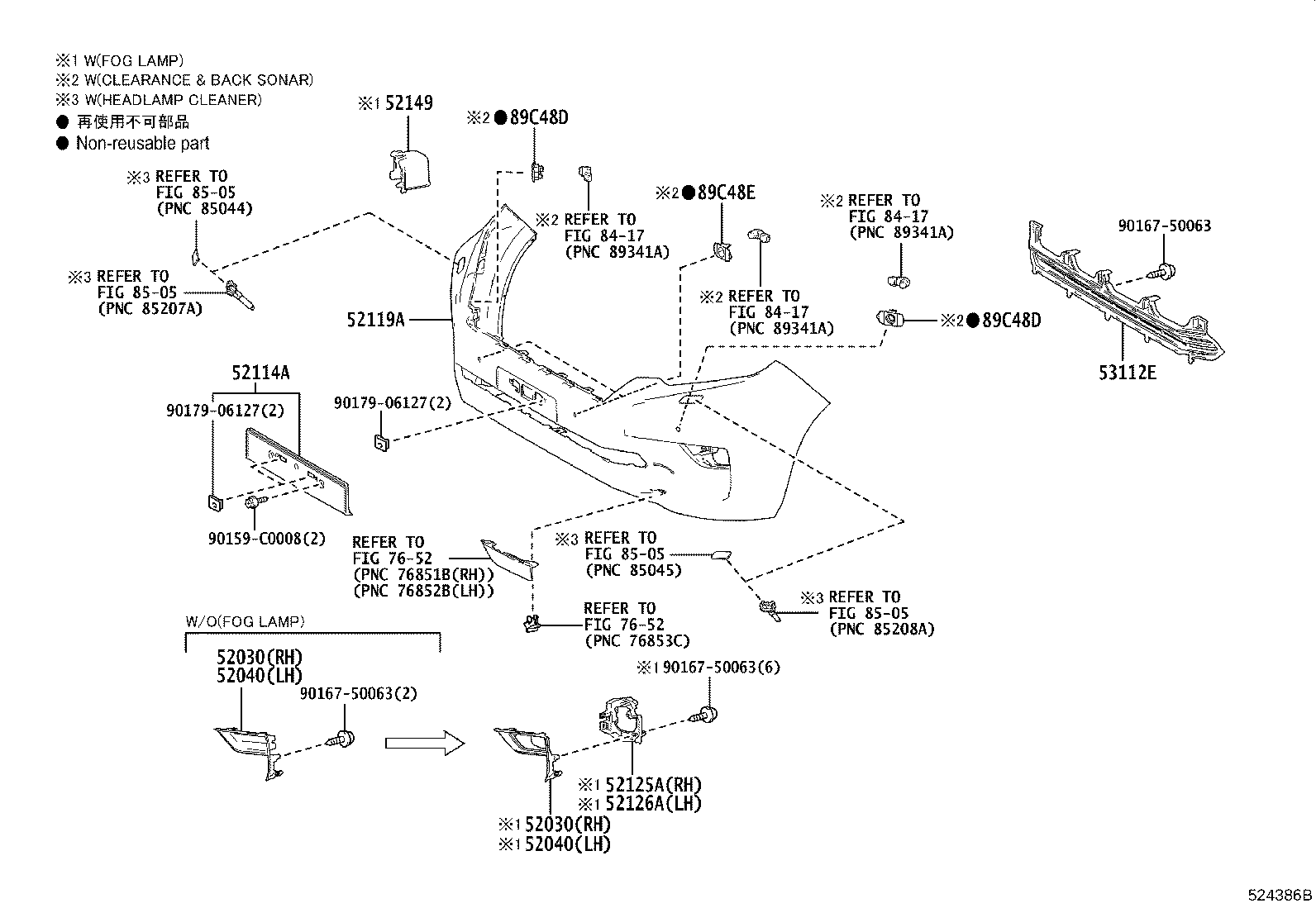

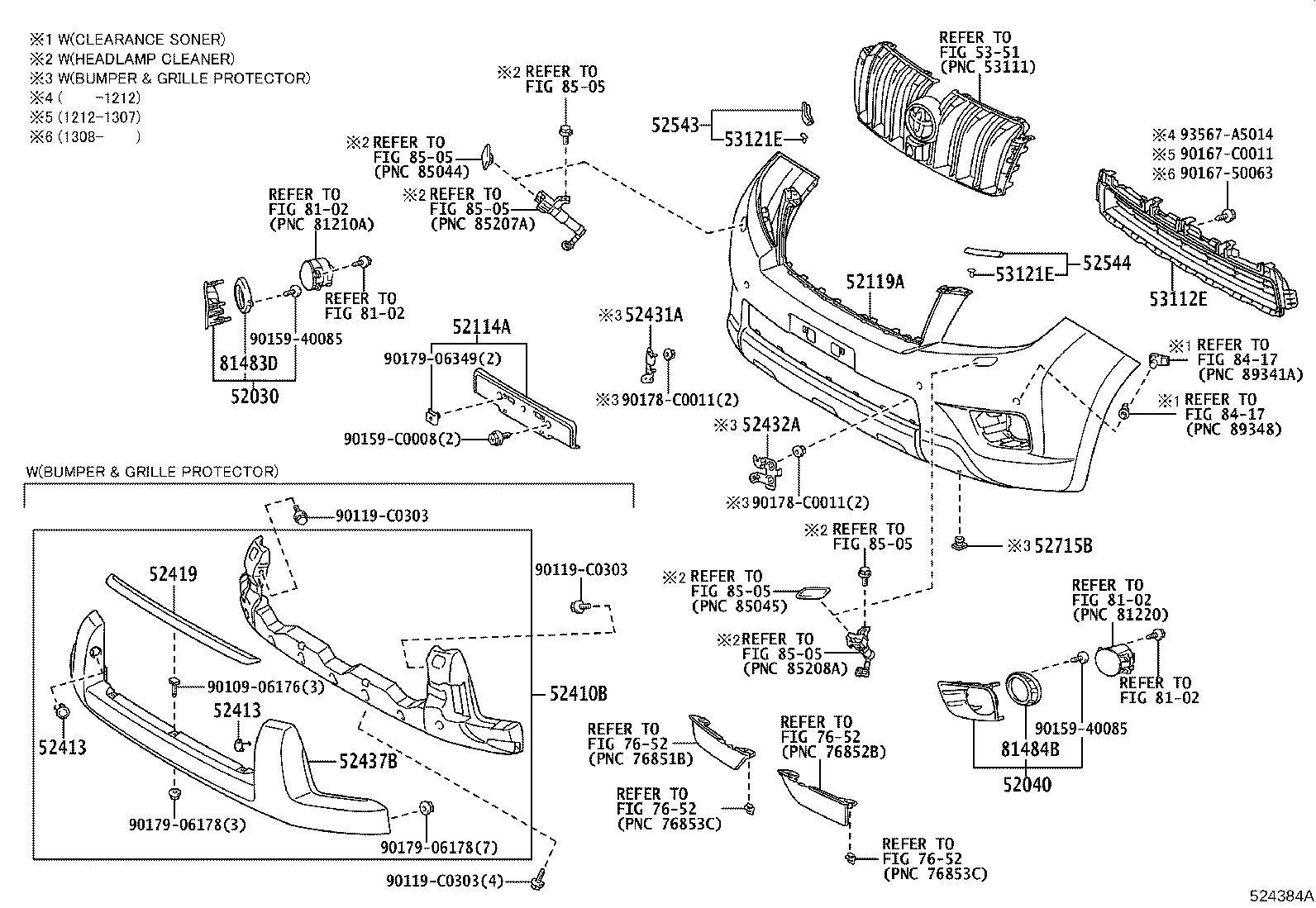

Figure 522266H 522266H 2010-05 → 2013-11 Figure 524384A 524384A 2010-05 → 2013-11 Figure 522881L 522881L 2013-11 → 2017-11 Figure 524385A 524385A 2013-11 → 2017-11 Figure 523691E 523691E 2017-11 → — Figure 524386B 524386B 2017-11 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52102 Bracket Sub-assy, Front Bumper, RH
52103 Bracket Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52148B Stopper, FR Bumper Reinforcement, RH
52149 Bracket, Front Bumper, Inner
52161C Piece, Front Bumper
52410B Guard Assy, Front Bumper
52413 Pad, Front Bumper Guard
52419 Plate, Front Bumper Guard
52421A Pad, Front Bumper
52425 Cushion, Front Bumper
52431A Bracket, Front Bumper Guard, RH
52432A Bracket, Front Bumper Guard, LH
52437B Cover, Front Bumper Guard Base
52491A Bolt, Bumper Pad
52521 Retainer, Front Bumper, Upper Center
52521A Clip(FOR FRONT BUMPER RETAINER)
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52715B Insert, Front Bumper Moulding
53112E Grille, Radiator, Lower NO.1
53121E Clip(FOR FRONT BUMPER), NO.1
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
81483D Protector, Fog Lamp, RH
81484B Protector, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
