Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 6 illustrations

Illustrations

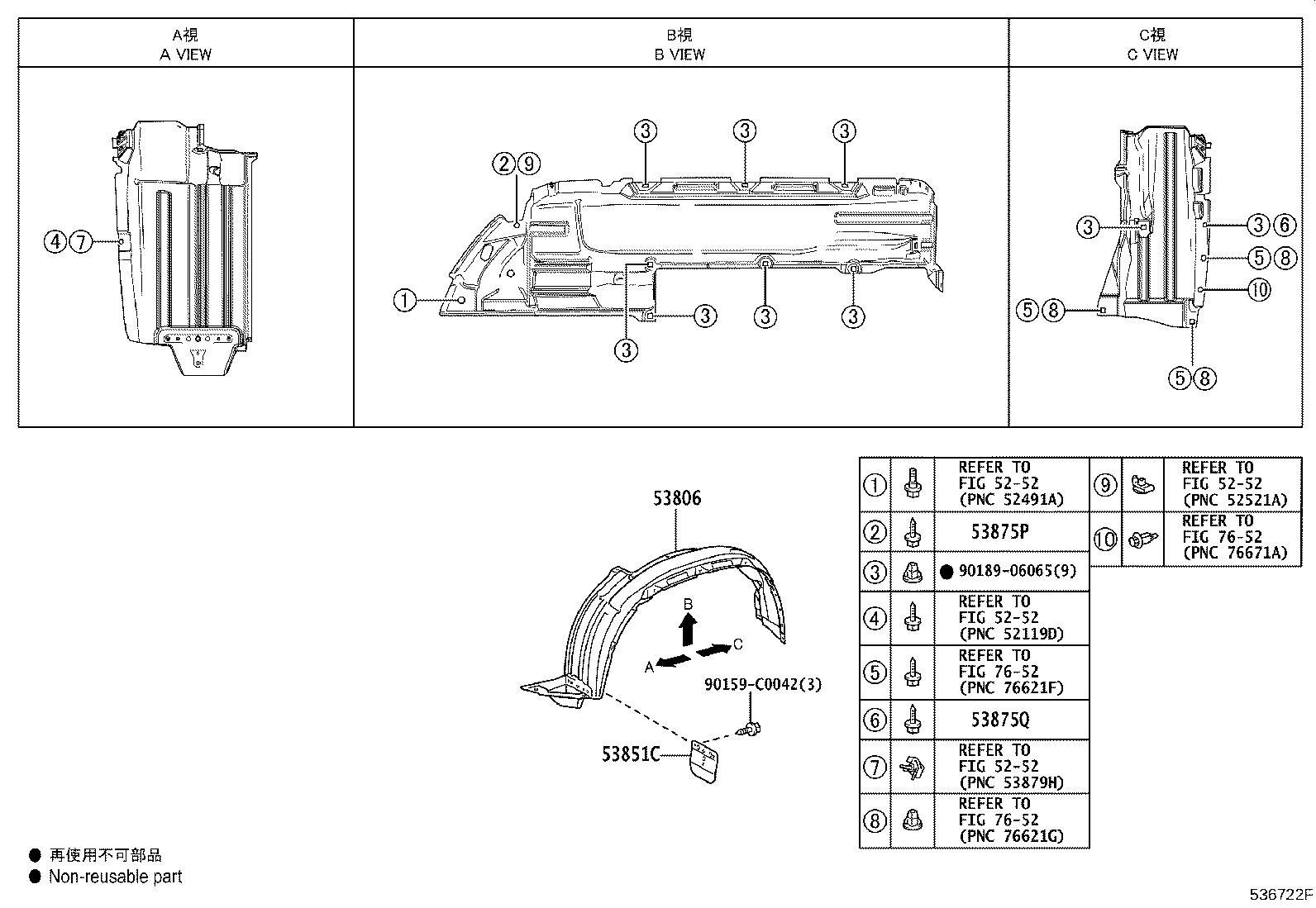

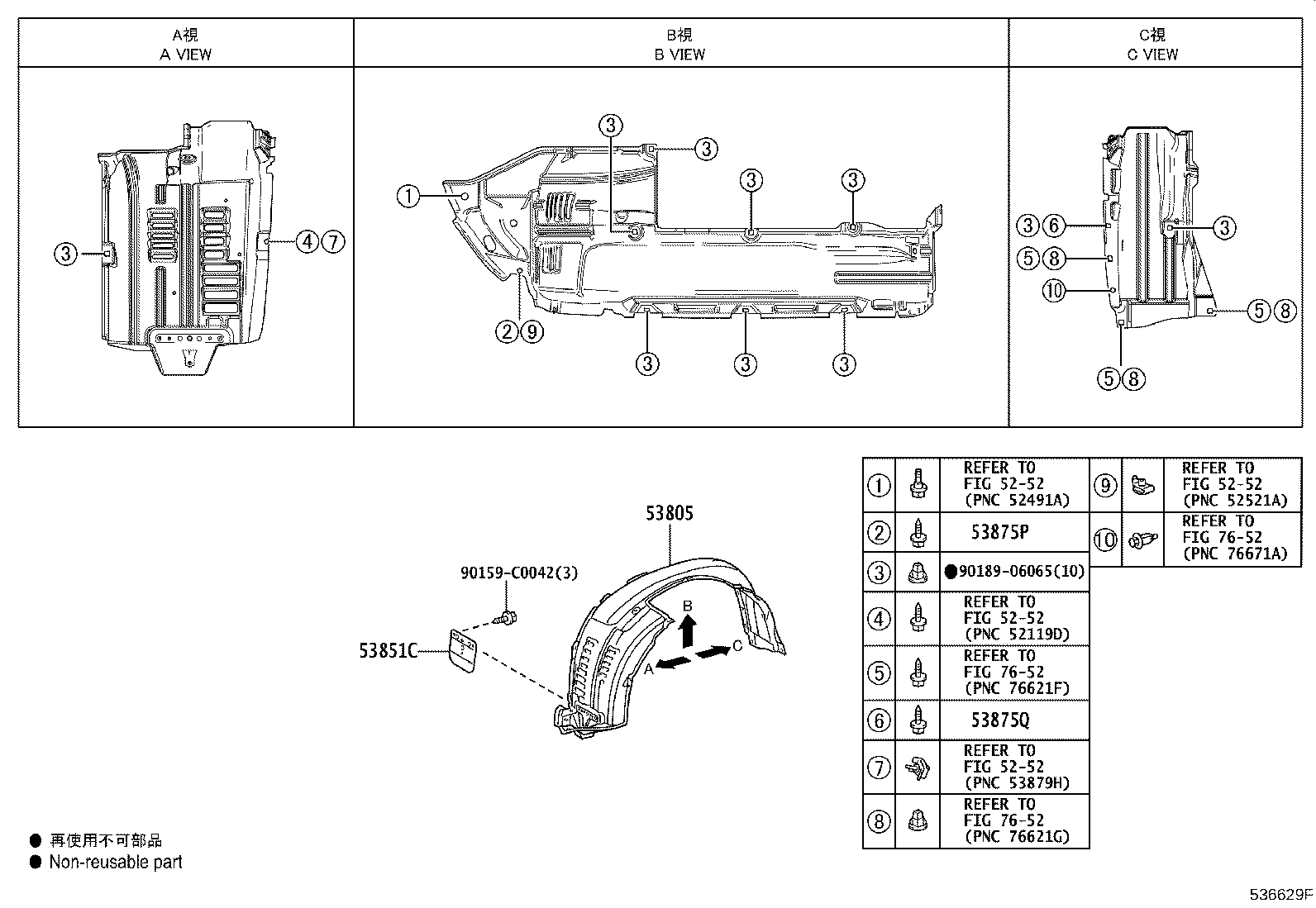

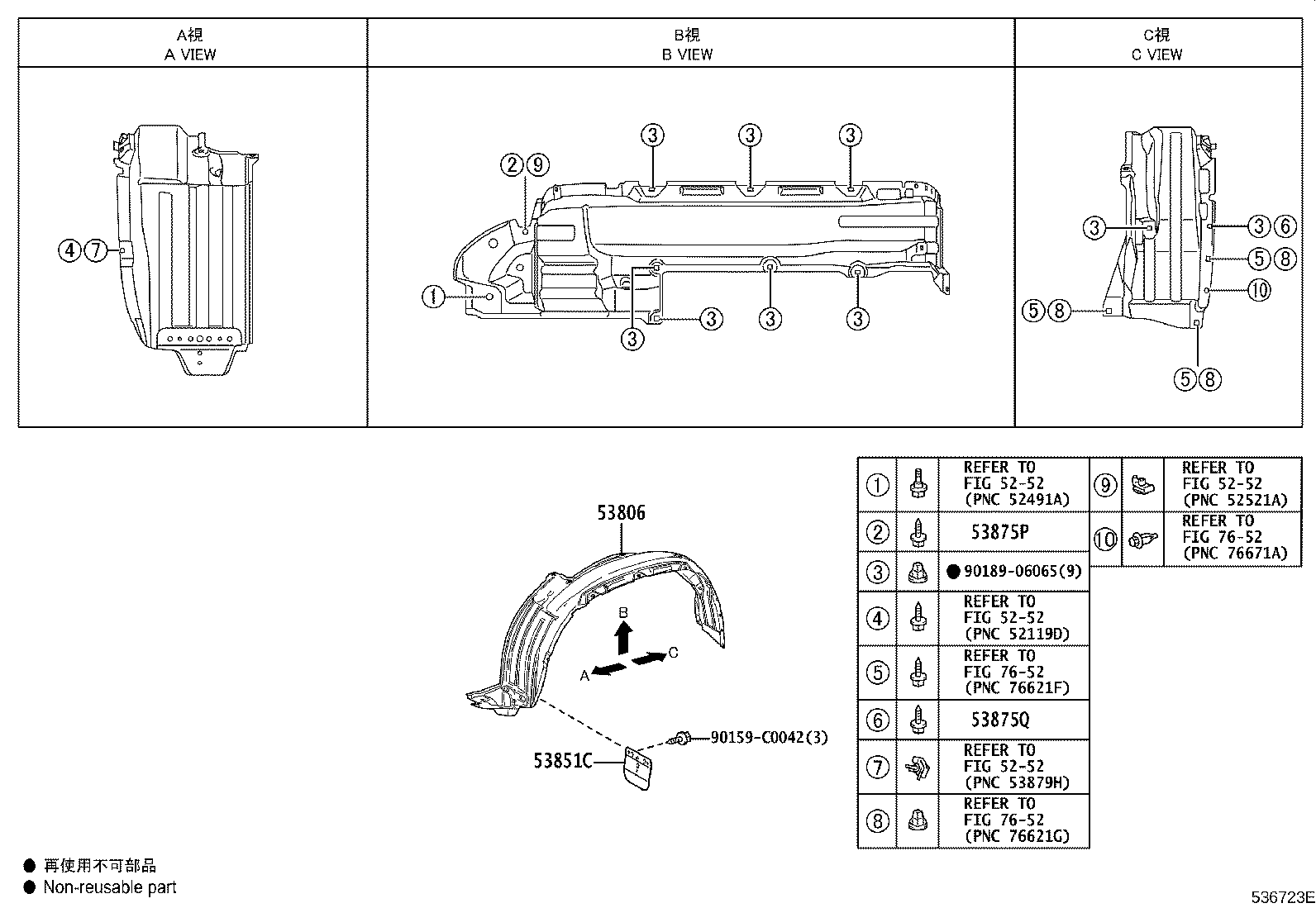

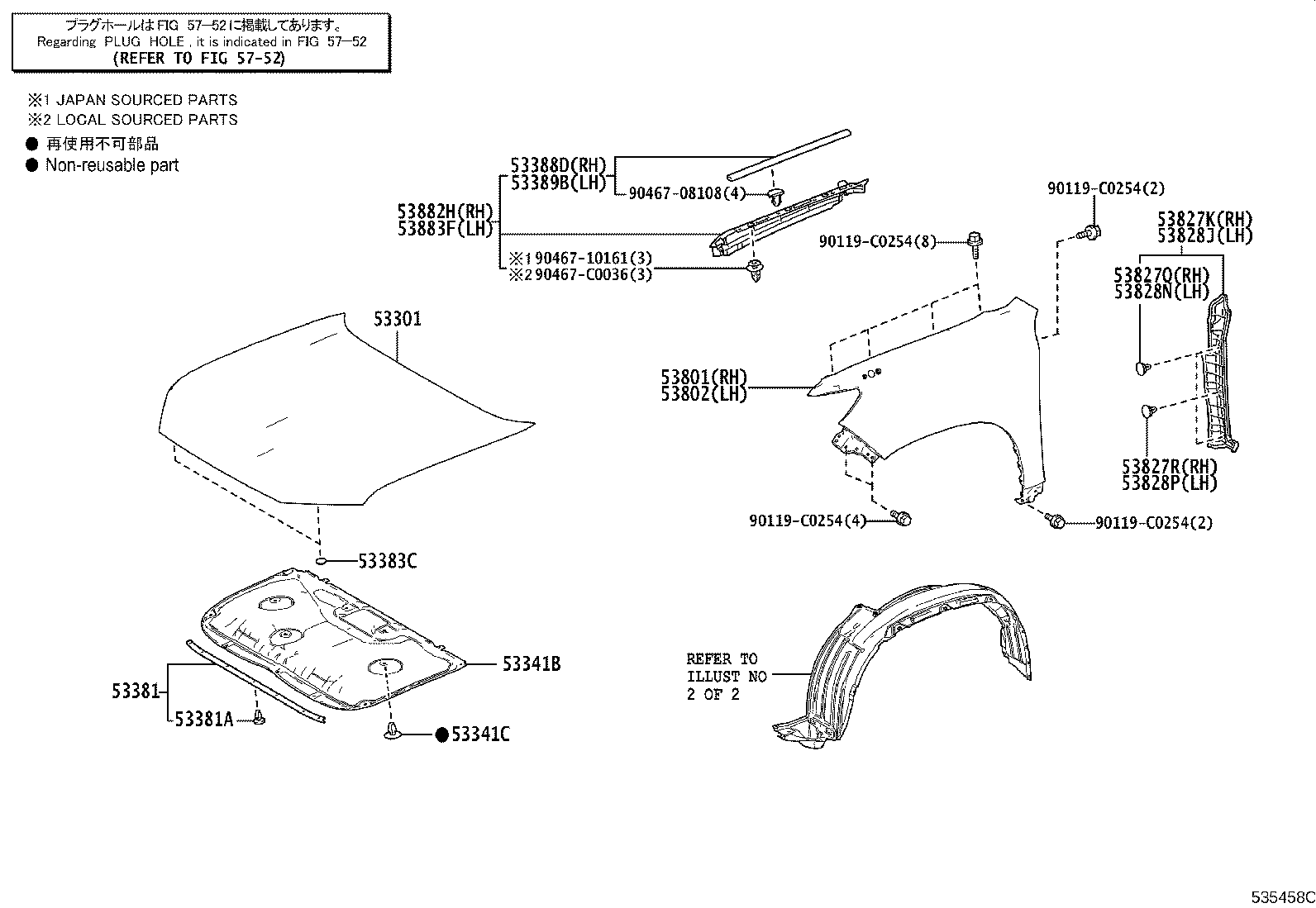

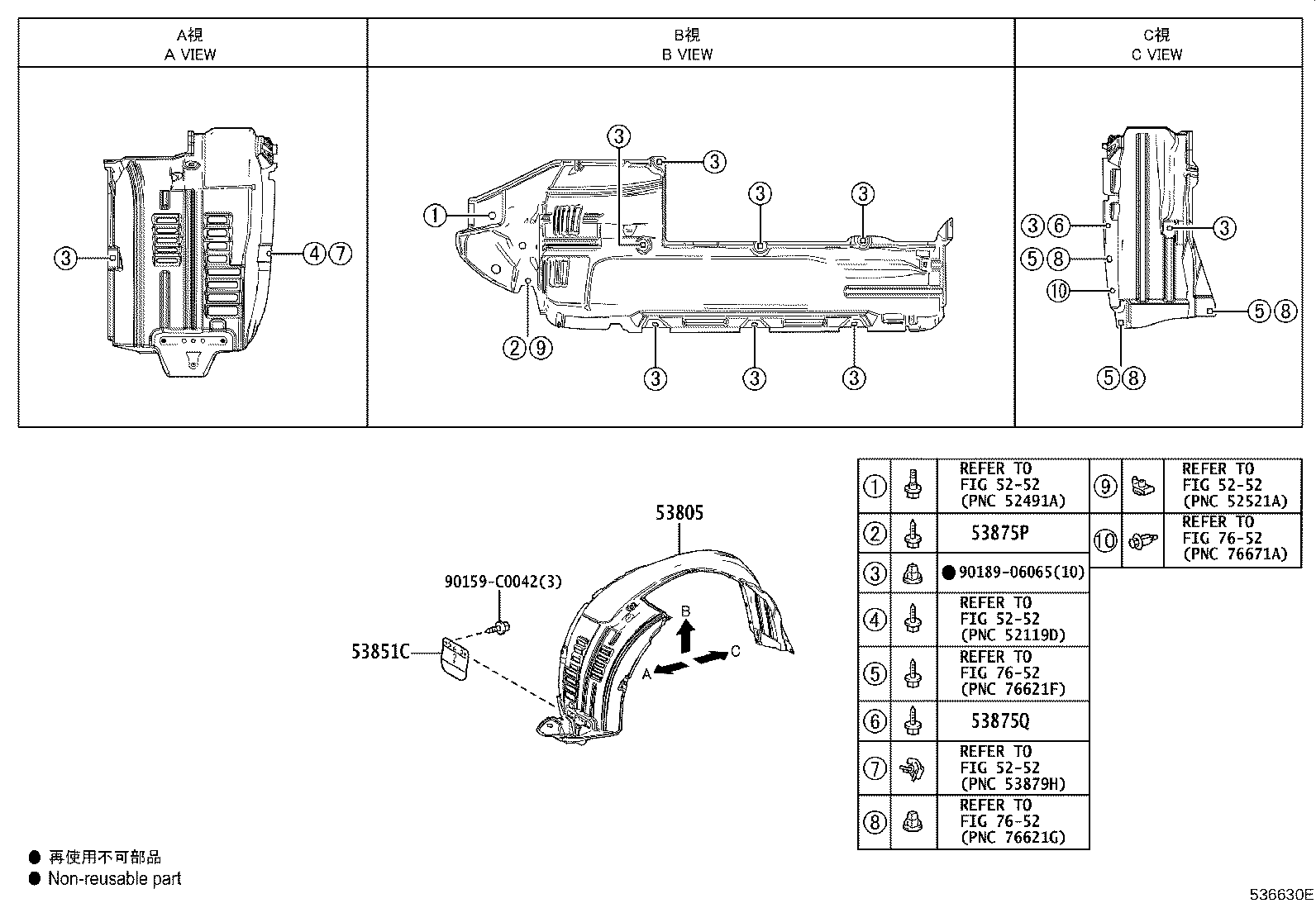

Figure 533245J 533245J 2010-05 → 2017-11 Figure 536629F 536629F 2010-05 → 2017-11 Figure 536722F 536722F 2010-05 → 2017-11 Figure 535458C 535458C 2017-11 → — Figure 536630E 536630E 2017-11 → — Figure 536723E 536723E 2017-11 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383C Seal, Hood TO Cowl Top
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53827K Protector, Front Fender Side Panel, RH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53827R Clip, Front Fender Side Panel Protector, NO.2
53828J Protector, Front Fender Side Panel, LH
53828N Clip, Front Fender Side Panel Protector, NO.1
53828P Clip, Front Fender Side Panel Protector, NO.2
53851C Pad, Front Wheel Opening Extension, NO.1
53875P Screw, NO.1
53875Q Screw, NO.2
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
