Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

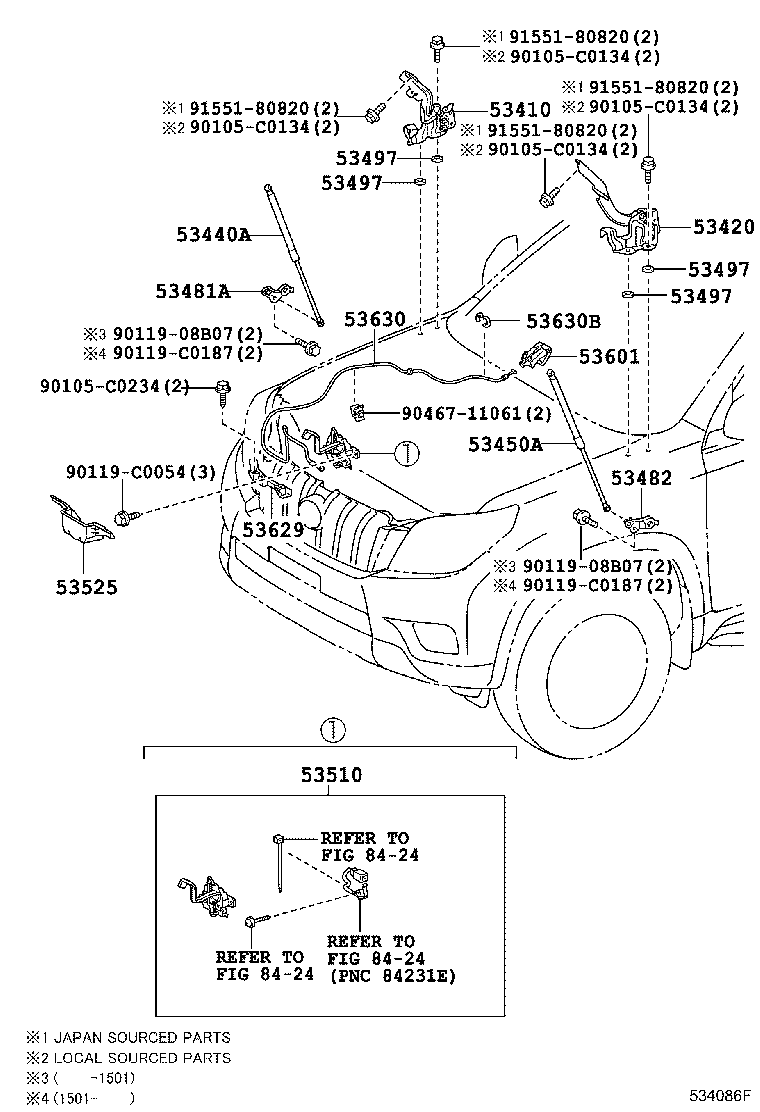

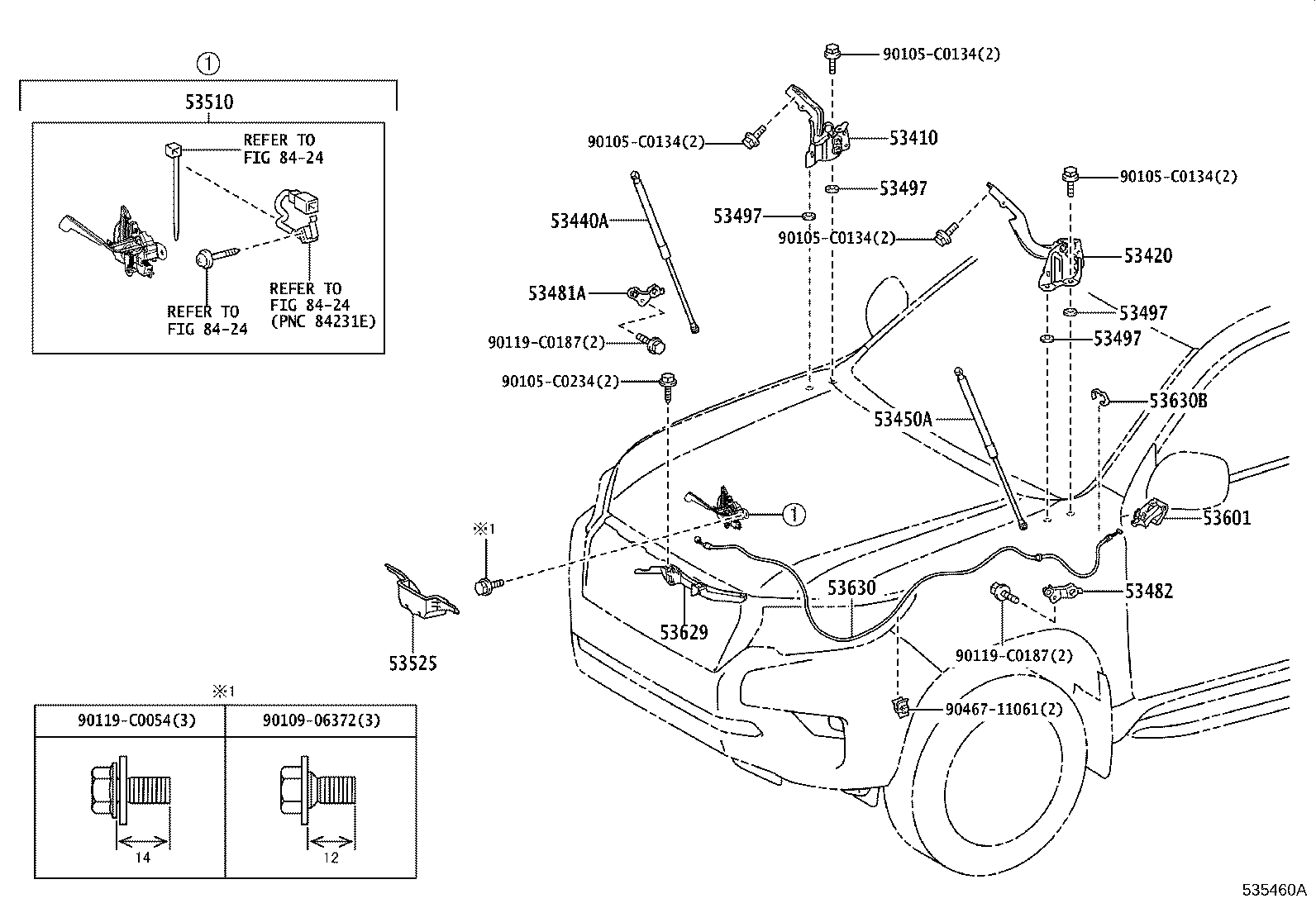

Hood Lock & Hinge
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440A | Support Assy, Hood, RH |
| 53450A | Support Assy, Hood, LH |
| 53481A | Bracket, Hood Support, RH |
| 53482 | Bracket, Hood Support, LH |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53525 | Protector, Hood Lock Release Lever |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53629 | Cover, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
