Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

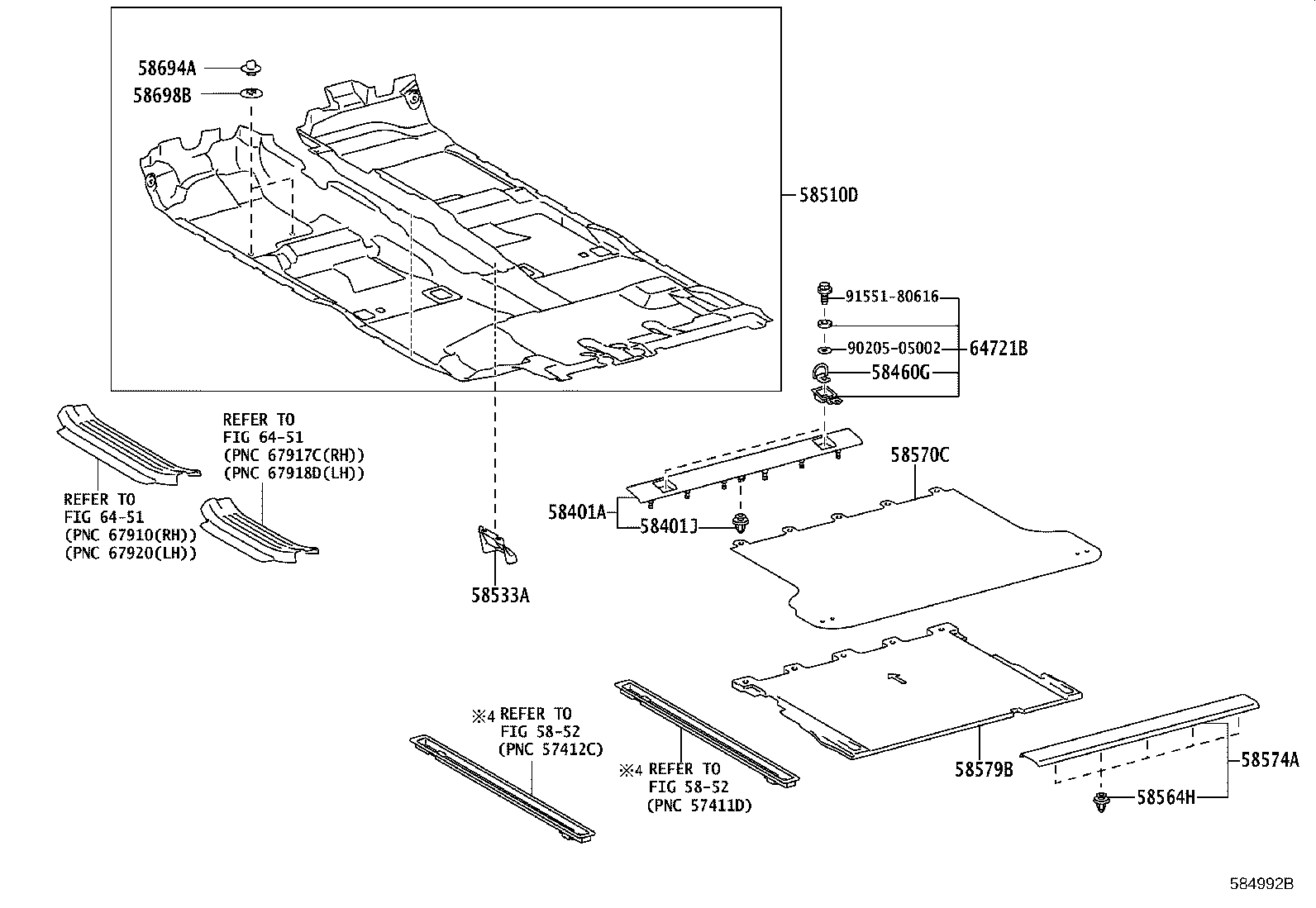

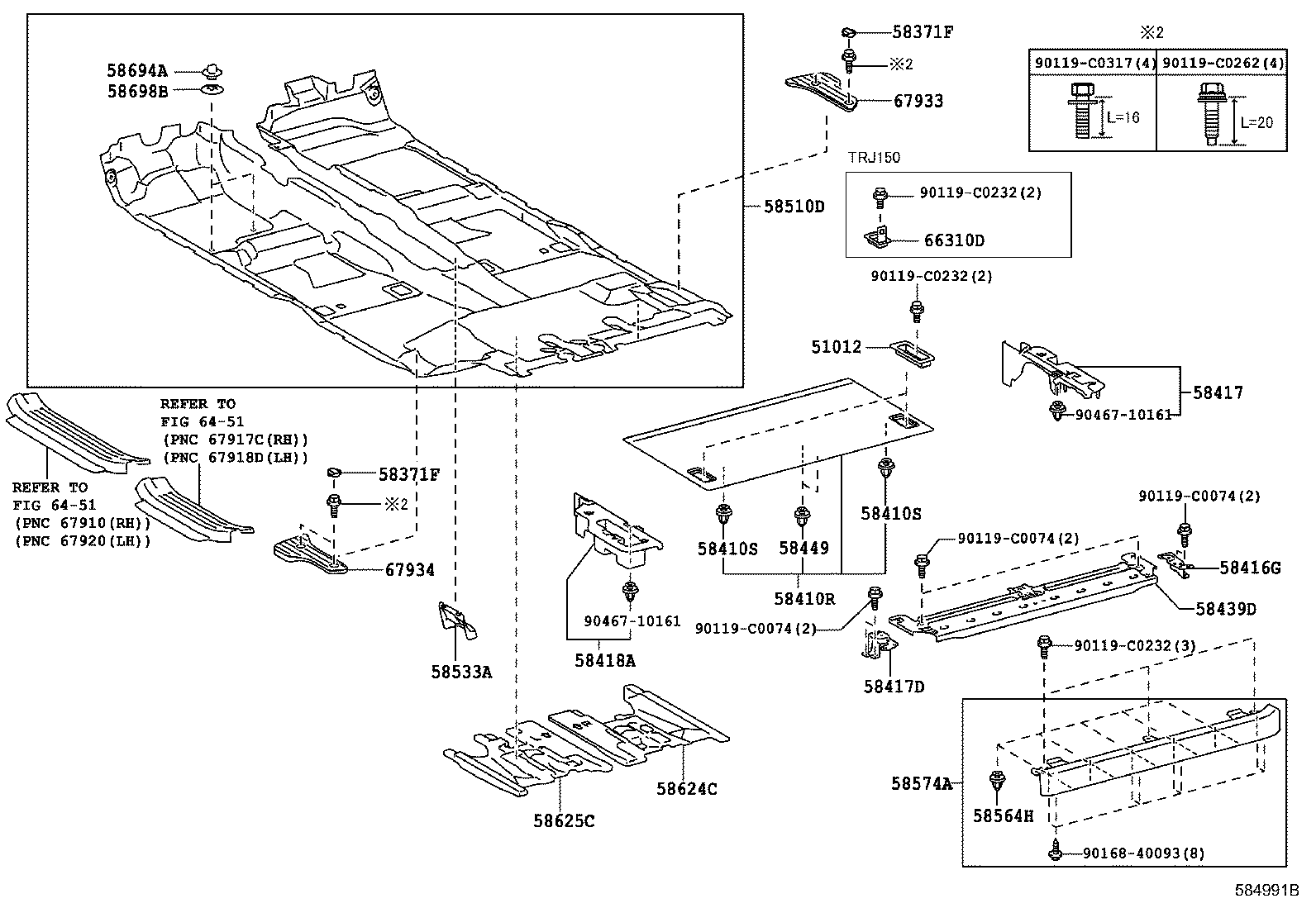

Floor Mat & Silencer Pad
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51012 | Rail Sub-assy, Rear Frame |
| 58371F | Cover, Rear Floor Step, NO.1 |
| 58401A | Board Sub-assy, Deck, NO.1 |
| 58401J | Clip(FOR DECK BOAD) |
| 58410R | Board Assy, Deck |
| 58410S | Clip, Deck Board |
| 58416G | Bracket, Deck Board, NO.1 RH |
| 58417 | Board, Rear Floor, NO.3 |
| 58417D | Bracket, Deck Board, NO.1 LH |
| 58418A | Board, Rear Floor, NO.4 |
| 58439D | Reinforcement, Deck Board Bracket |
| 58449 | Clip, Deck Board |
| 58460G | Striker Assy, Luggage Hold Belt |
| 58510D | Carpet Assy, Floor, Front |
| 58510H | Mat Assy, Floor |
| 58533A | Cover, Floor Carpet, Center RH |
| 58564H | Clip(FOR REAR FLOOR CARPET) |
| 58570C | Carpet Assy, Rear Floor |
| 58574A | Plate, Rear Floor Mat Support, Rear |
| 58579B | Pad, Rear Floor |
| 58624C | Pad, Center Floor Silencer, RH |
| 58625C | Pad, Center Floor Silencer, LH |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 66310D | Hook Assy, Rope |
| 67933 | Plate, Quarter Scuff, Inner RH |
| 67934 | Plate, Quarter Scuff, Inside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
