Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

8 part groups · 3 illustrations

Illustrations

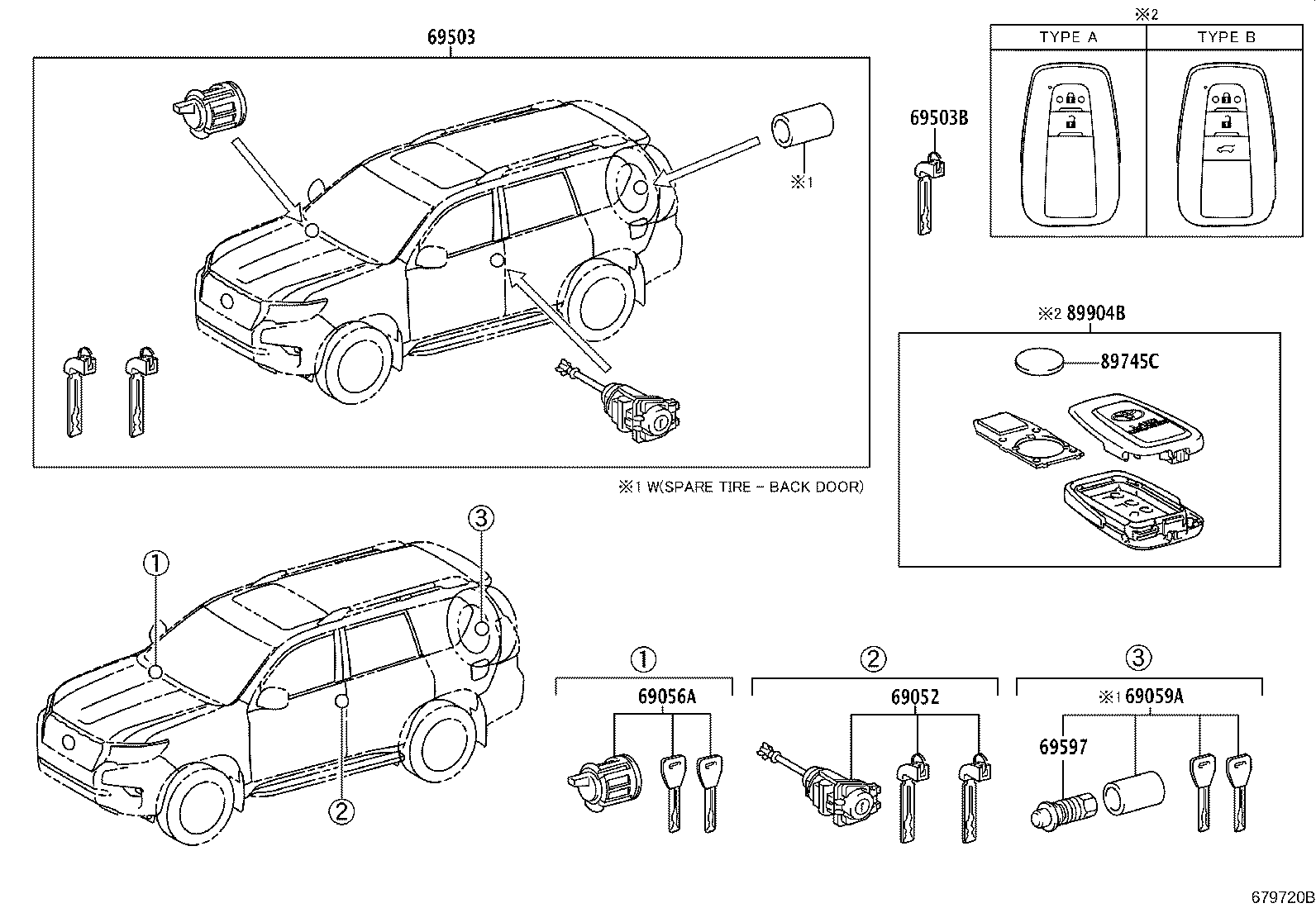

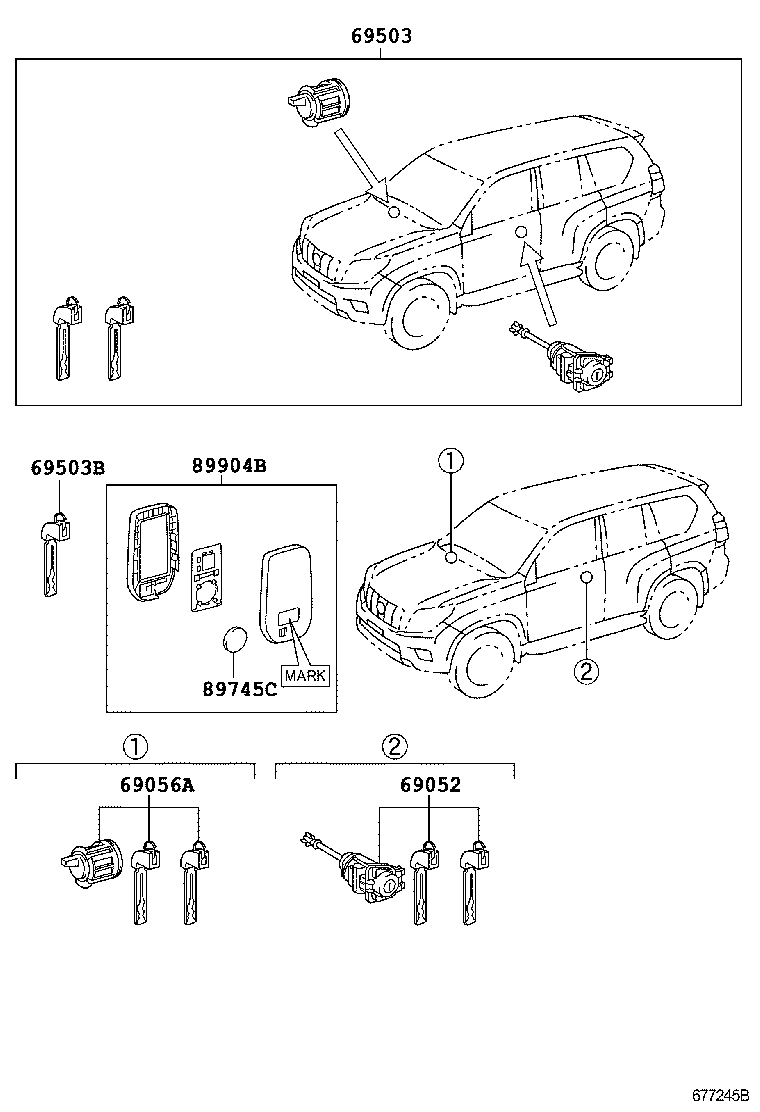

Figure 676515A 676515A 2010-05 → 2012-08 Figure 677245B 677245B 2012-08 → 2017-11 Figure 679720B 679720B 2017-11 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69059A Cylinder & Key Set, Spare Wheel Lock
69503 Cylinder Set, Lock
69503B Key, Cut
69597 Nut, Spare Wheel Lock
89745C Battery, Transmitter
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
