Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06

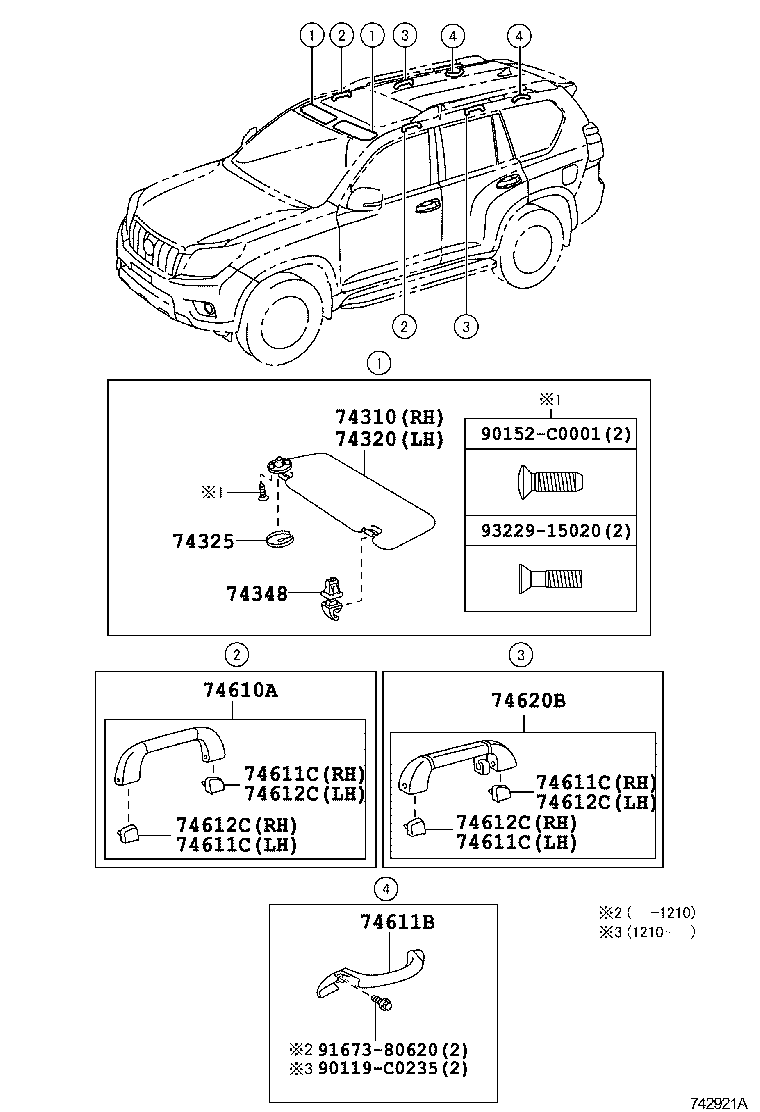

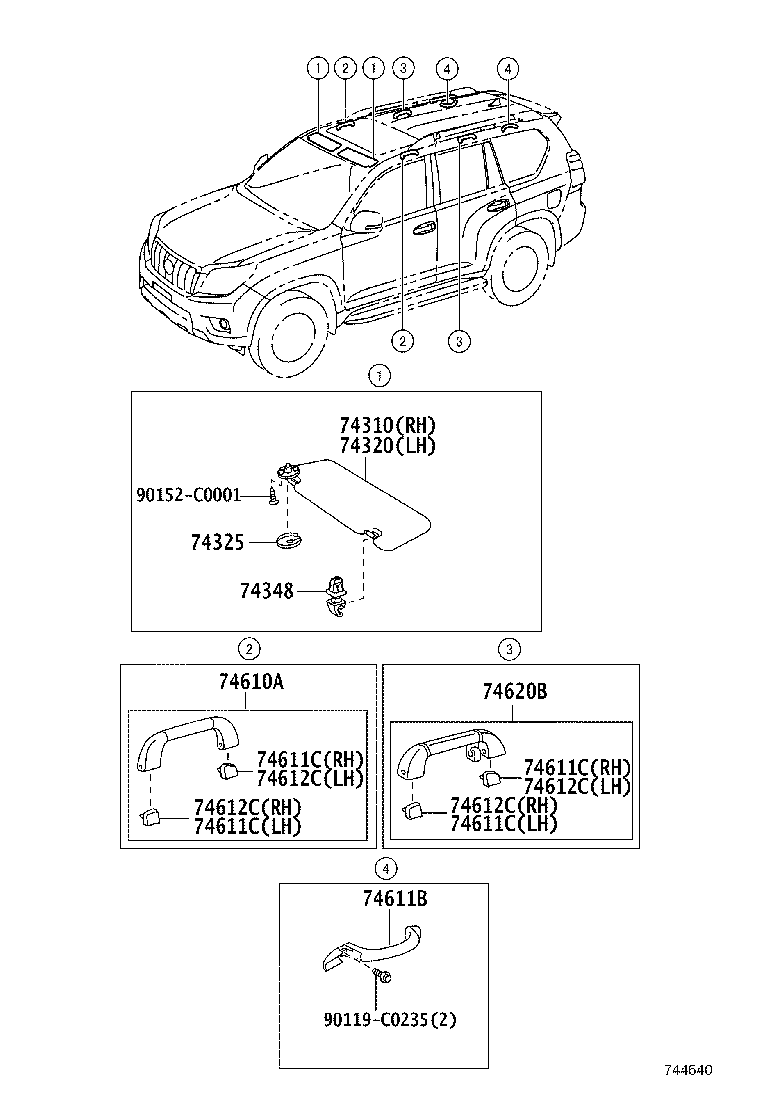

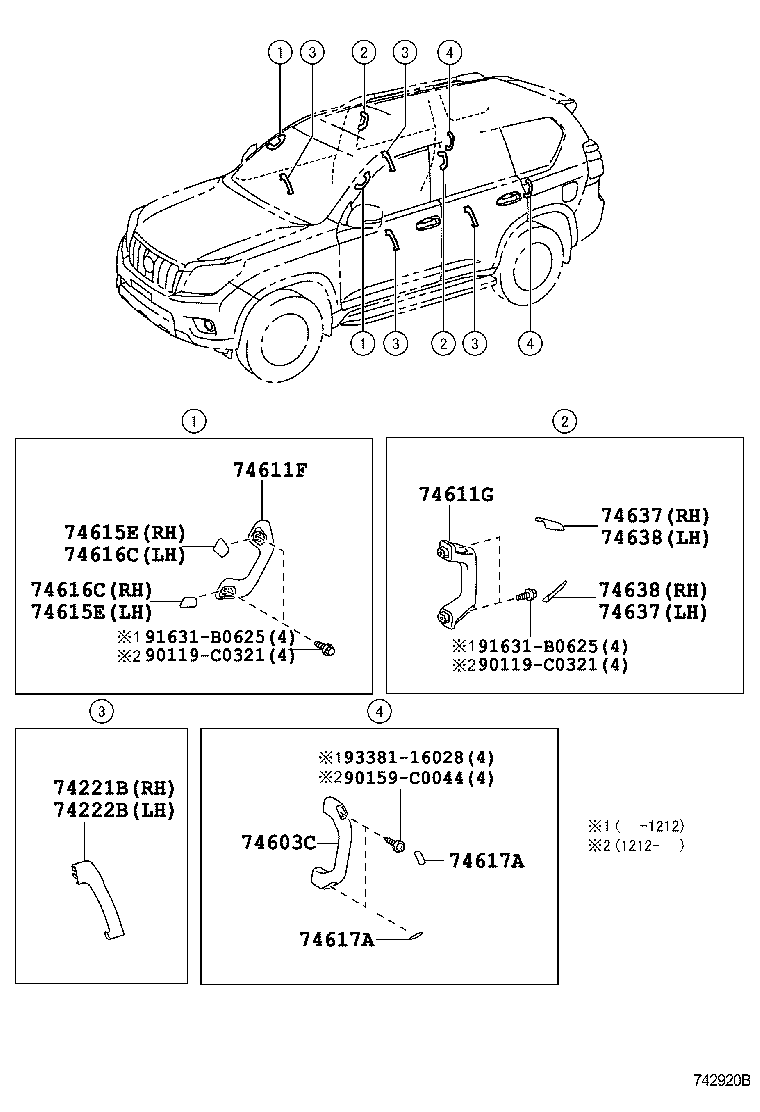

Armrest & Visor
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 74221B | Cover, Door Armrest, RH |
| 74222B | Cover, Door Armrest, LH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74325 | Cover, Visor Bracket |
| 74348 | Holder, Visor |
| 74603C | Grip Sub-assy, Assist |
| 74610A | Grip Sub-assy, Assist |
| 74611B | Grip, Assist |
| 74611C | Cover, Assist Grip, LH |
| 74611F | Grip, Assist, NO.1 |
| 74611G | Grip, Assist, NO.2 |
| 74612C | Cover, Assist Grip, RH |
| 74615E | Plug, Front Assist Grip, NO.1 RH |
| 74616C | Plug, Front Assist Grip, NO.1 LH |
| 74617A | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
| 74637 | Plug, Assist Grip, NO.2 RH |
| 74638 | Plug, Assist Grip, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
