Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

9 part groups · 2 illustrations

Illustrations

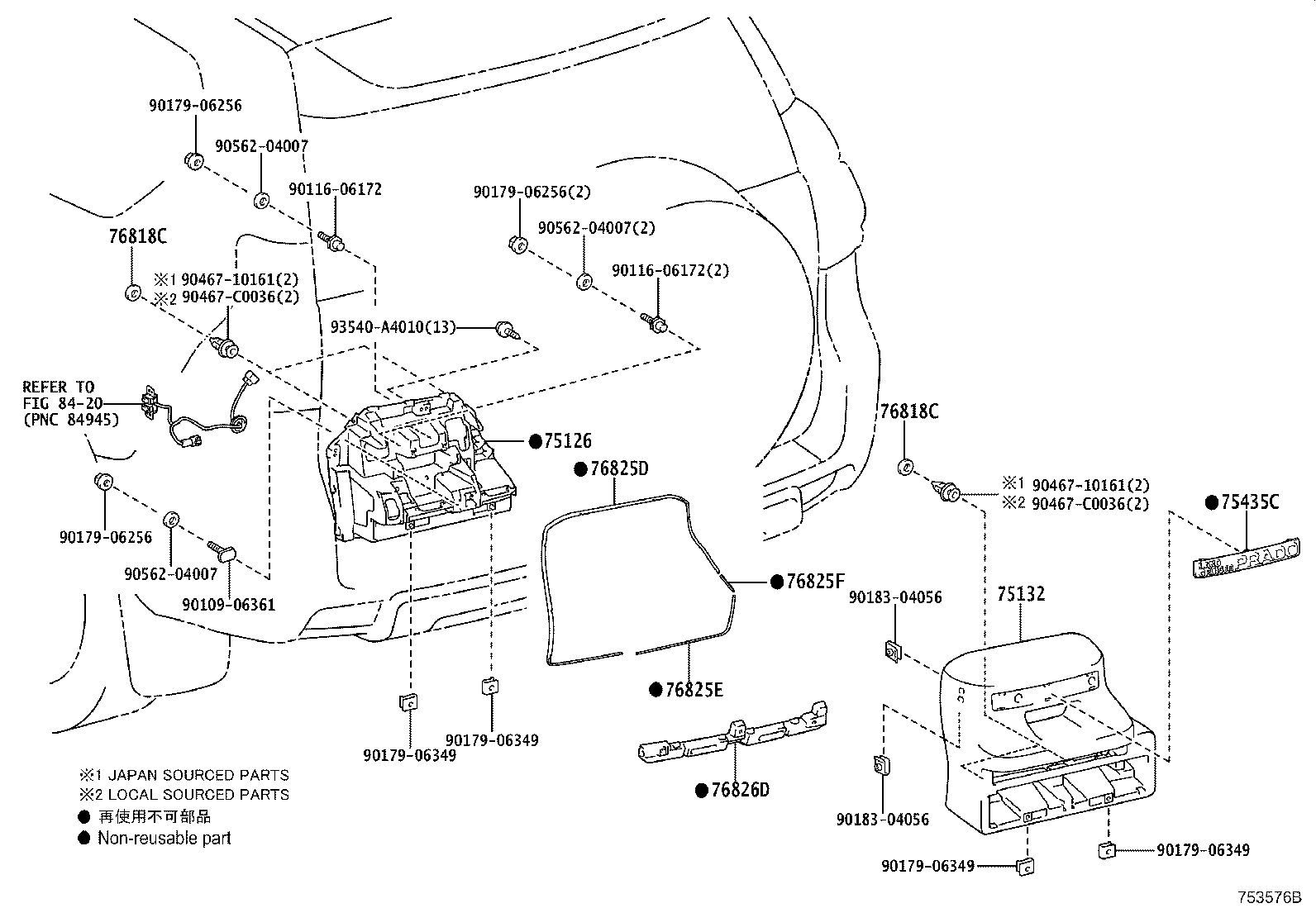

Figure 752327 752327 2010-05 → — Figure 753576B 753576B 2017-11 → —

Part groups

PNCDescription
58780 Band Assy, Tool Box
75126 Stay, Rear License Plate Bracket, Lower
75132 Cover, License Rear Lamp
75435C Ornament, Back Door
76818C Pad, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
76825F Protector, Back Door Outside Garnish, NO.3
76826D Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
