Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

10 part groups · 3 illustrations

Illustrations

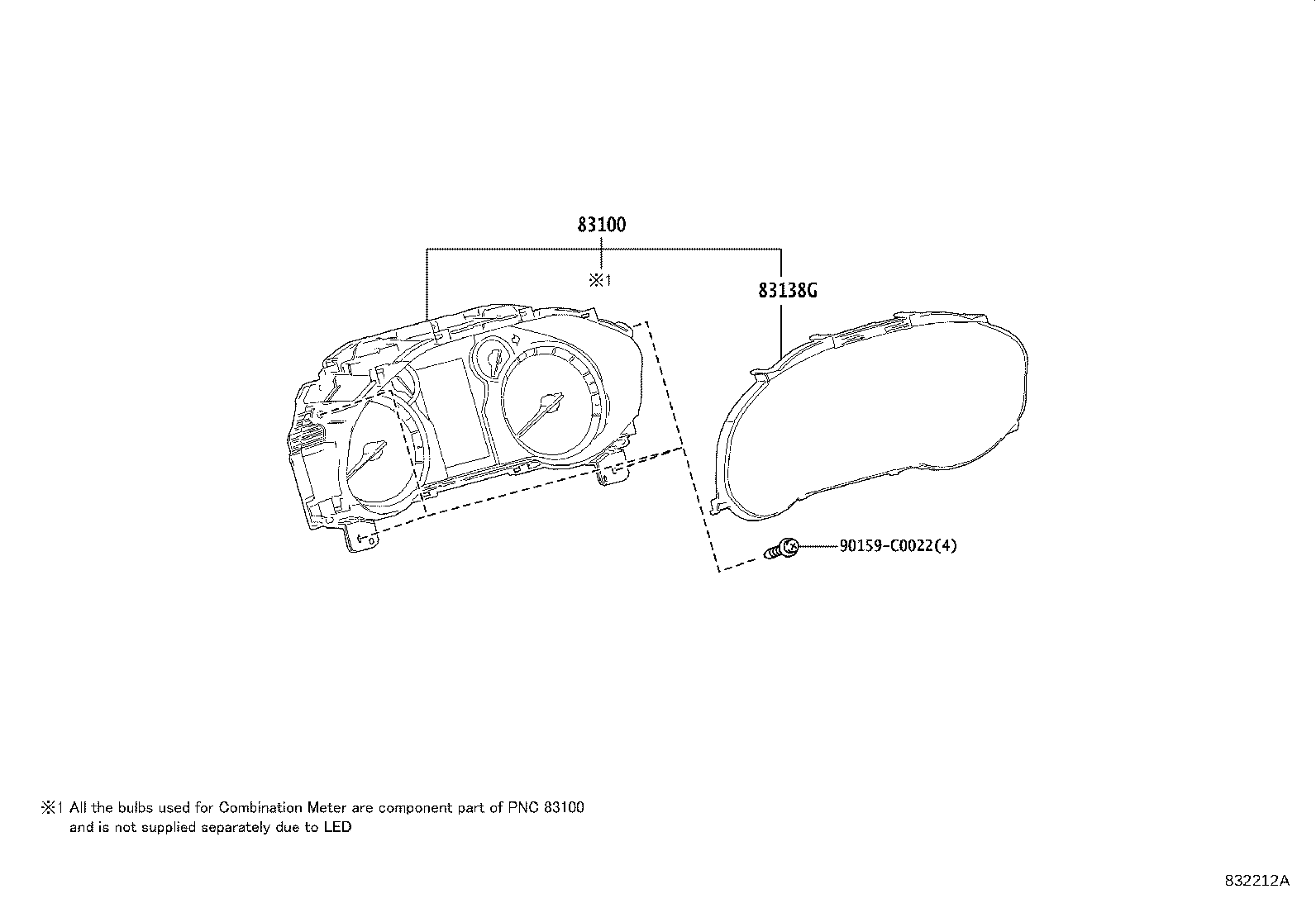

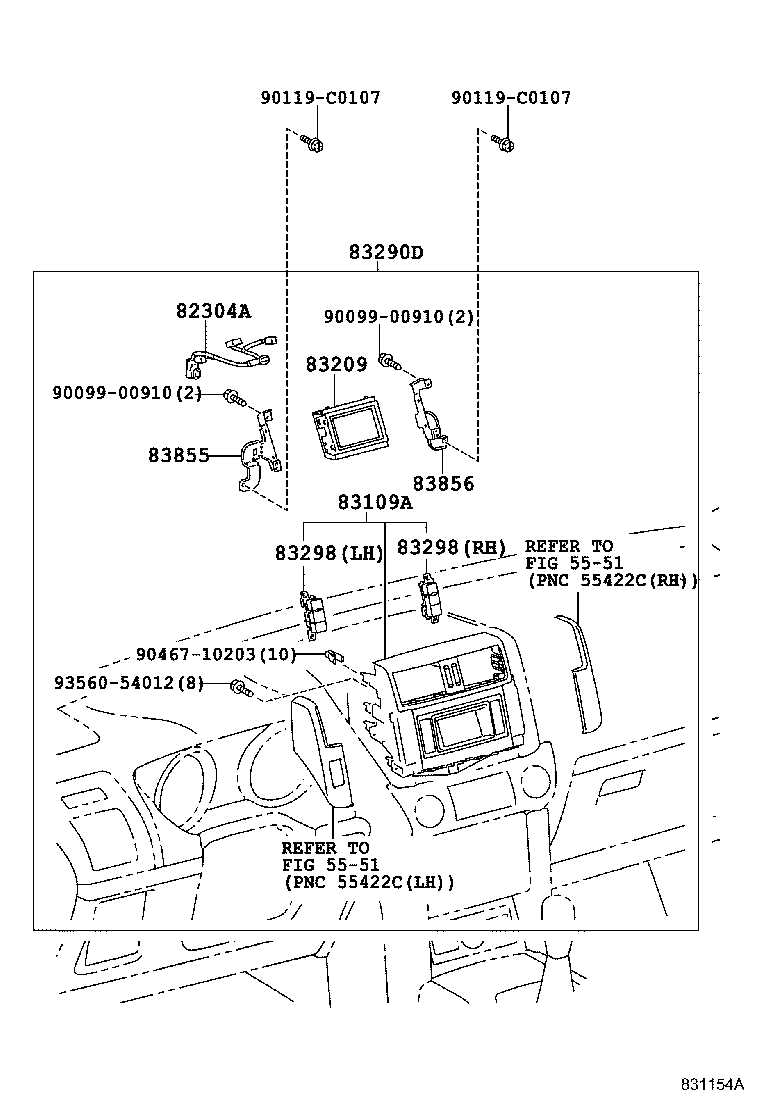

Figure 831553E 831553E 2010-05 → 2017-11 Figure 832212A 832212A 2017-11 → — Figure 831554A 831554A 2010-05 → 2013-11

Part groups

PNCDescription
82304A Wire Sub-assy, Clock
83100 Meter Assy, Combination
83109A Panel Sub-assy, Combination Meter
83138G Glass, Combination Meter
83209 Meter Sub-assy, Accessory
83290D Meter Assy, Accessory
83298 Housing,Accessory Meter Computer
83847 Cushion, Combination Speedometer, NO.1
83855 Bracket, Combination Meter, NO.1
83856 Bracket, Combination Meter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
