Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

8 part groups · 3 illustrations

Illustrations

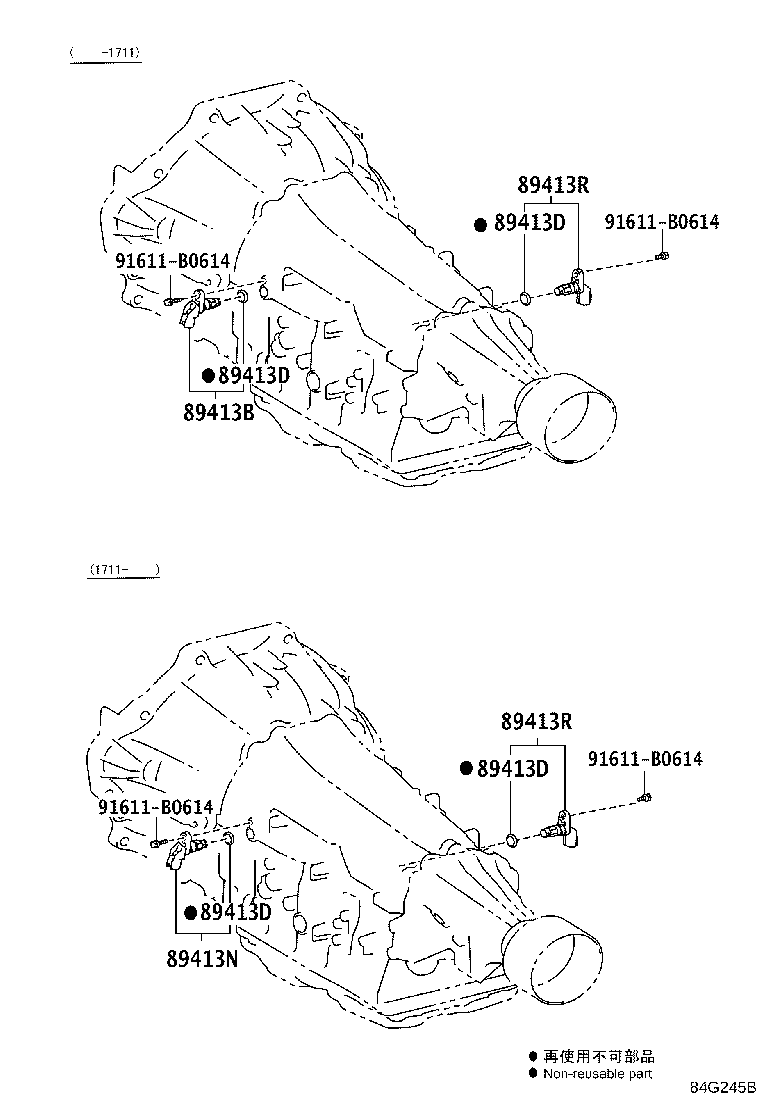

Figure 84A879B 84A879B 2010-05 → — Figure 84F801A 84F801A 2015-03 → — Figure 84G245B 84G245B 2015-09 → —

Part groups

PNCDescription
89411C Sensor, Speed
89411H Ring, O
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413R Sensor, Transmission Revolution (SP2)
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
