Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 3 illustrations

Illustrations

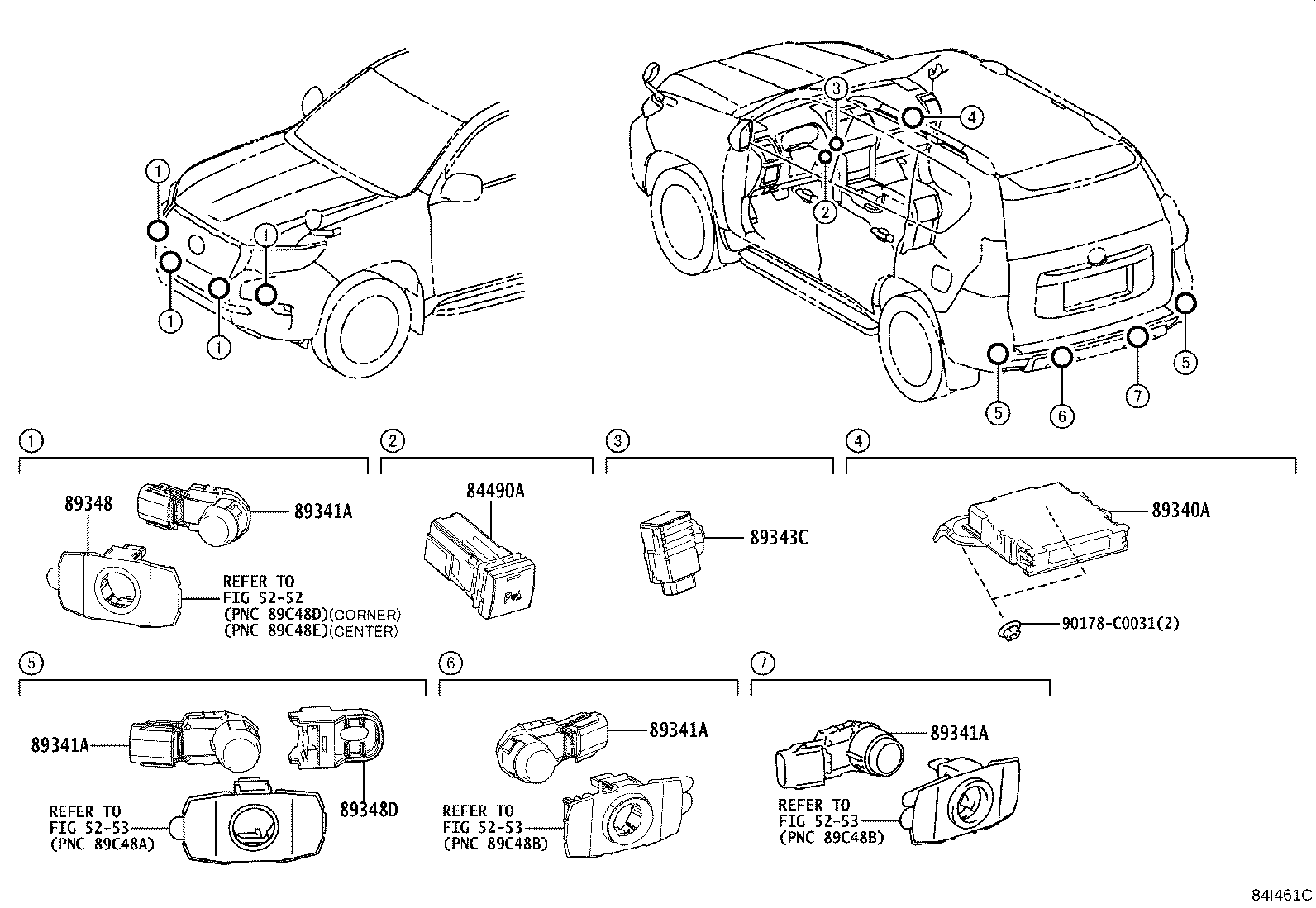

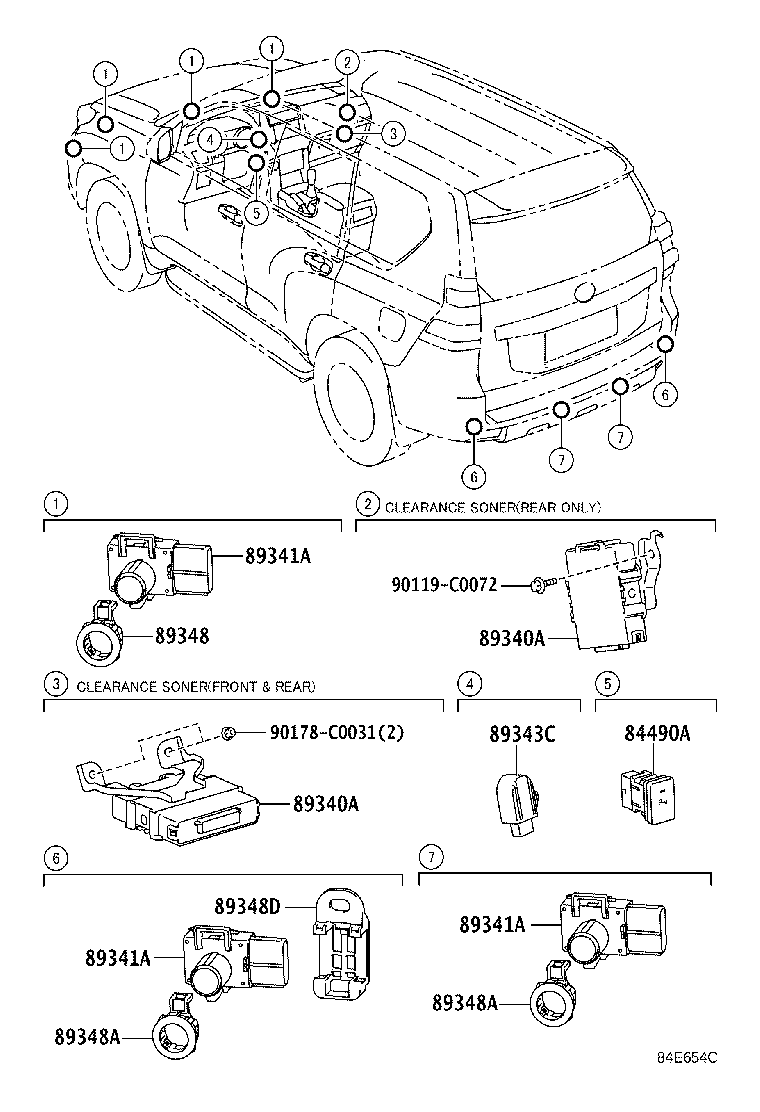

Figure 84B433 84B433 2010-05 → 2013-11 Figure 84E654C 84E654C 2013-11 → 2017-11 Figure 84I461C 84I461C 2017-11 → —

Part groups

PNCDescription
83160 Indicator Assy, Clearance Warning
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89343C Buzzer, Clearance Warning, NO.1
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
