Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

8 part groups · 2 illustrations

Illustrations

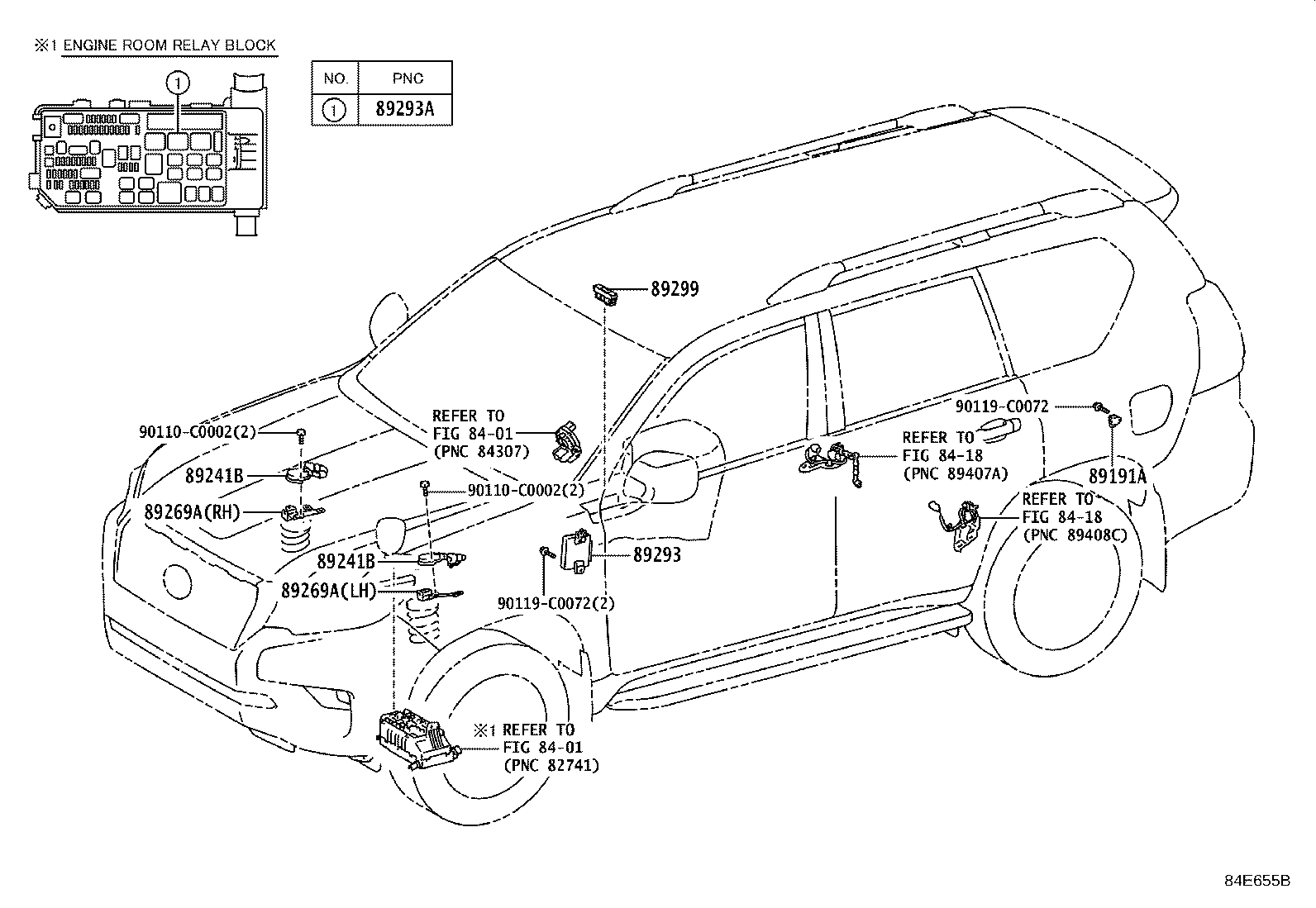

Figure 84B436C 84B436C 2010-05 → 2013-11 Figure 84E655B 84E655B 2013-11 → —

Part groups

PNCDescription
89191A Sensor, Acceleration
89241B Actuator, Absorber Control
89249 Switch, Absorber Control
89249D Switch, Absorber Control NO.2
89269A Bracket, Suspension Control
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89299 Switch, Suspension Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
