Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 5 illustrations

Illustrations

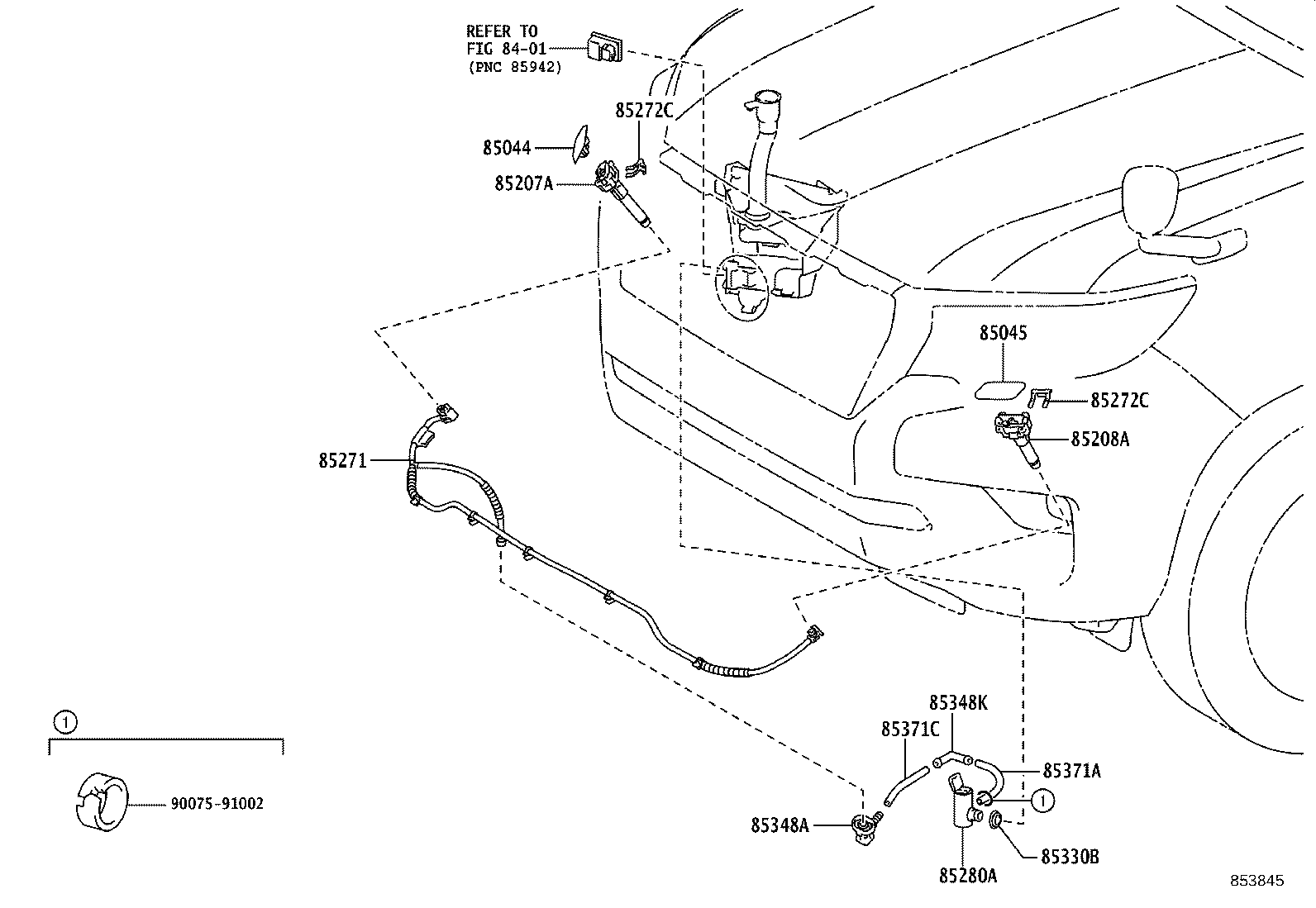

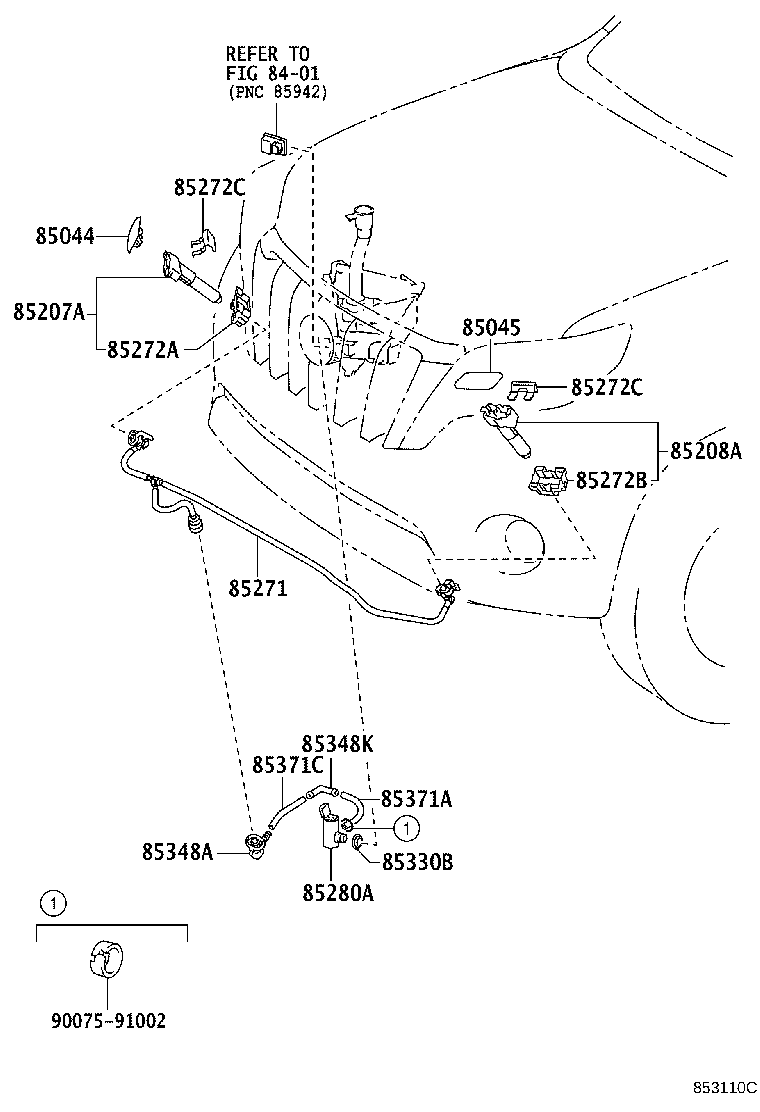

Figure 852497C 852497C 2010-05 → 2013-11 Figure 853110C 853110C 2013-11 → 2017-11 Figure 853110C 853110C 2015-03 → 2017-11 Figure 853110C 853110C 2015-09 → 2017-11 Figure 853845 853845 2017-11 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85272C Clamp, Headlamp Cleaner, NO.3
85280A Motor And Pump Assy, Headlamp Cleaner
85330B Bush, Headlamp Cleaner Washer Jar
85348A Joint, Headlamp Cleaner Hose, NO.1
85348K Joint, Headlamp Cleaner Elbow, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
