Toyota Land Cruiser Prado
2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General
Discontinued model
Data version 2020-06
Camera & Rear Monitor Display
16 part groups · 3 illustrations

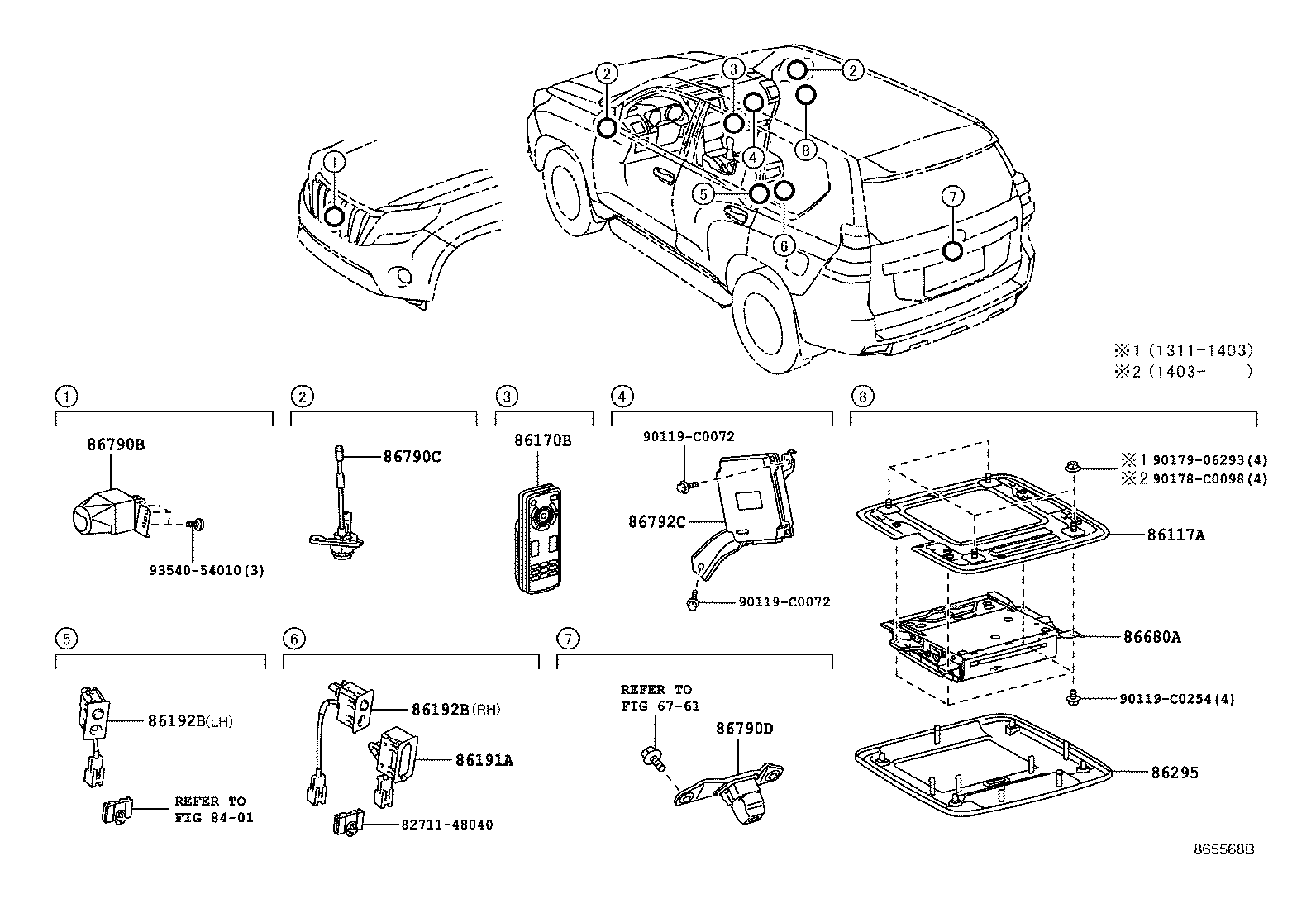

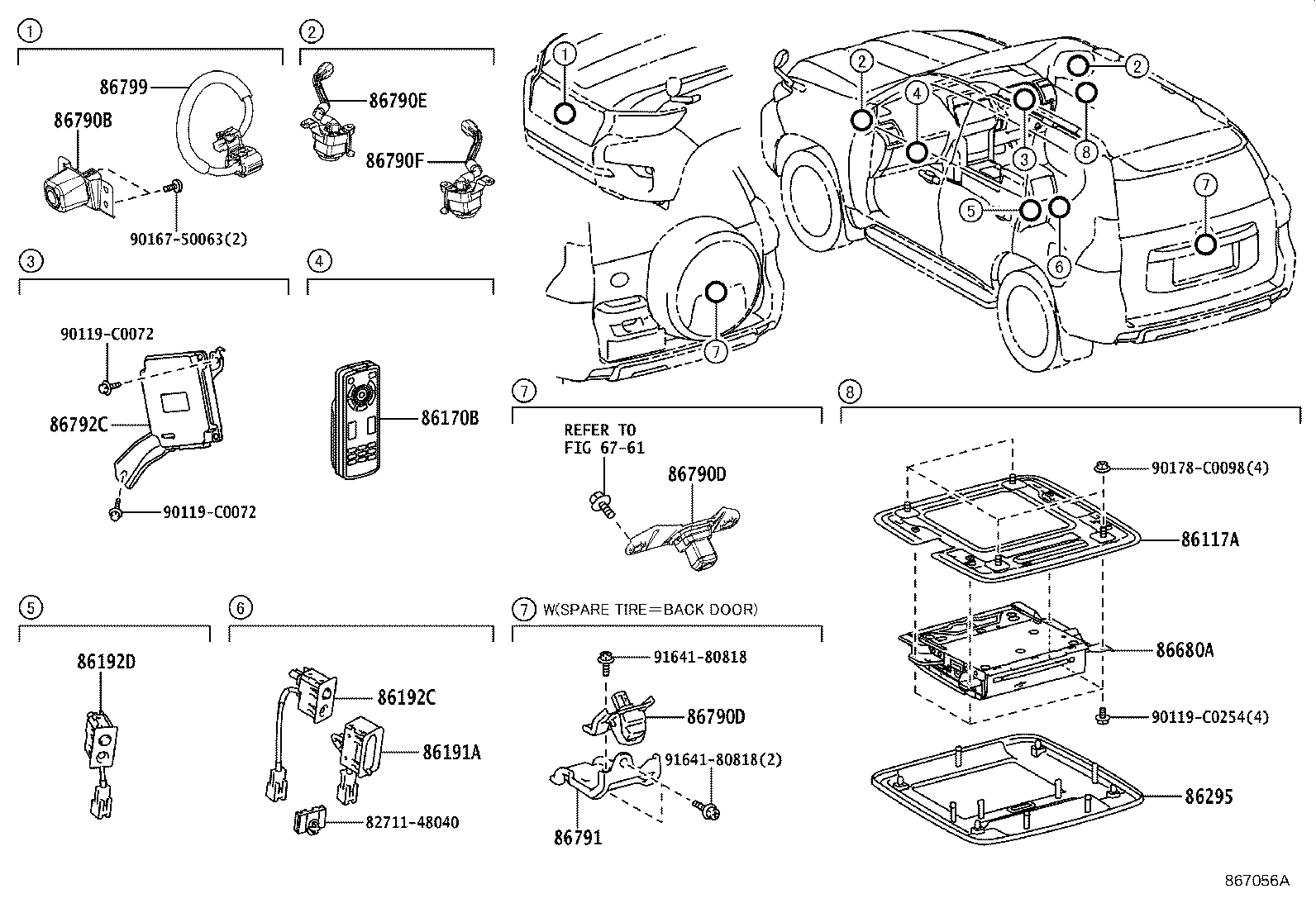

Part groups
| PNC | Description |
|---|---|
| 86117A | Bracket, Television Display, A |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86192B | Terminal, Headphone |
| 86192C | Terminal, Headphone, RH |
| 86192D | Terminal, Headphone, LH |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790C | Camera Assy, Television, Side |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86791 | Bracket, Television Camera |
| 86792C | Computer, Parking Assist |
| 86799 | Wire, Television Camera |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
