Heating & Air Conditioning - Cooler Unit

54 part groups · 13 illustrations

Illustrations

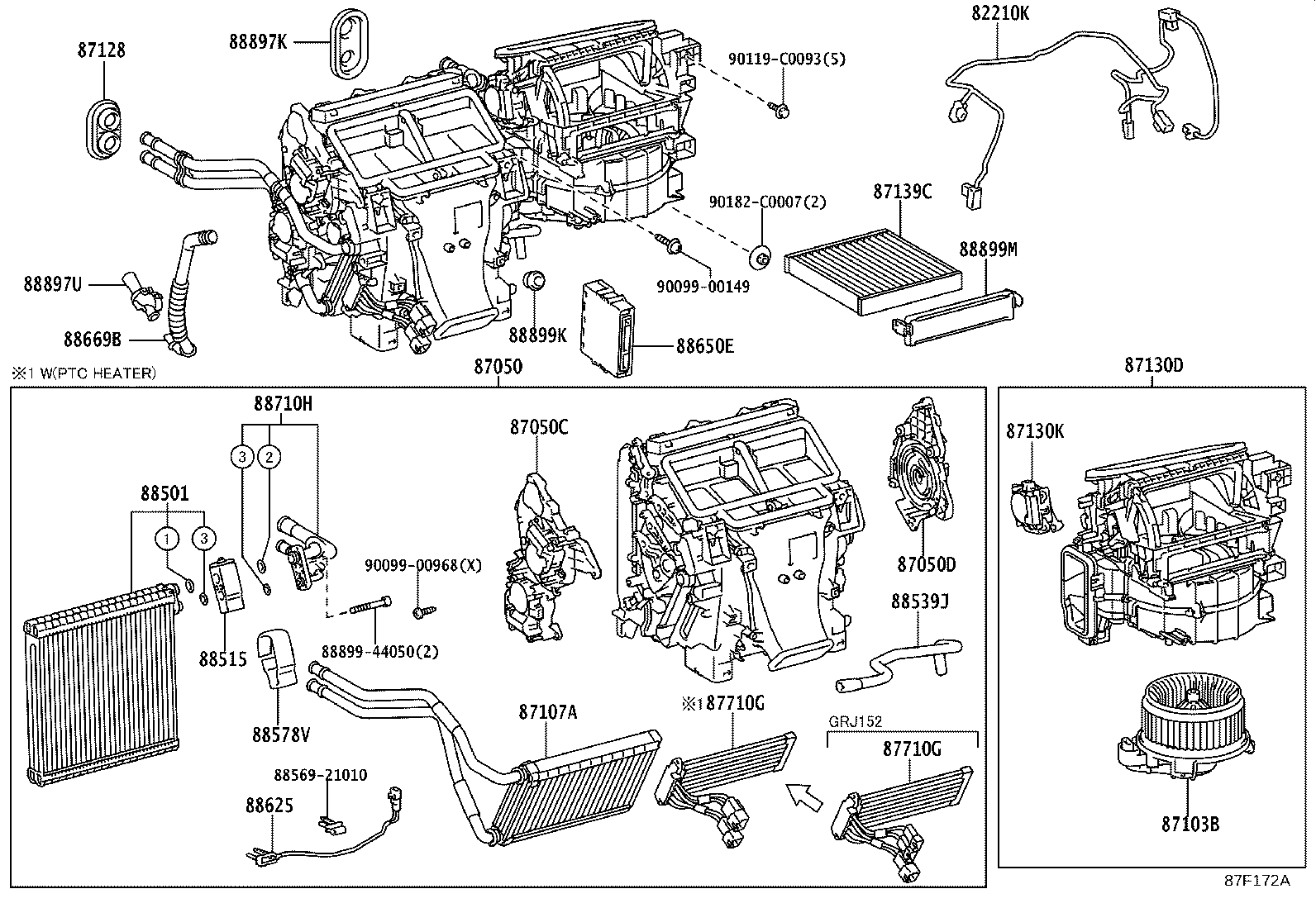

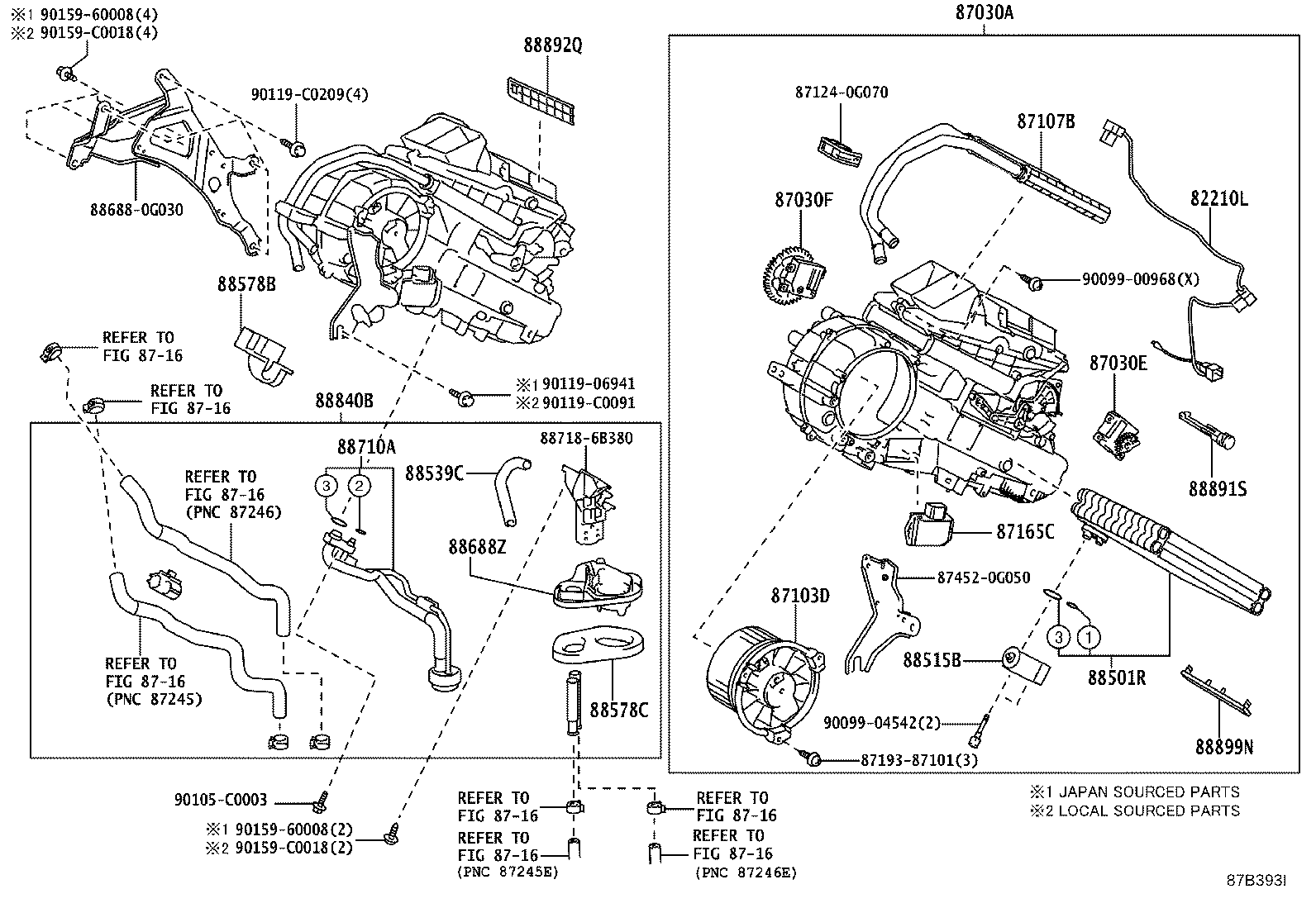

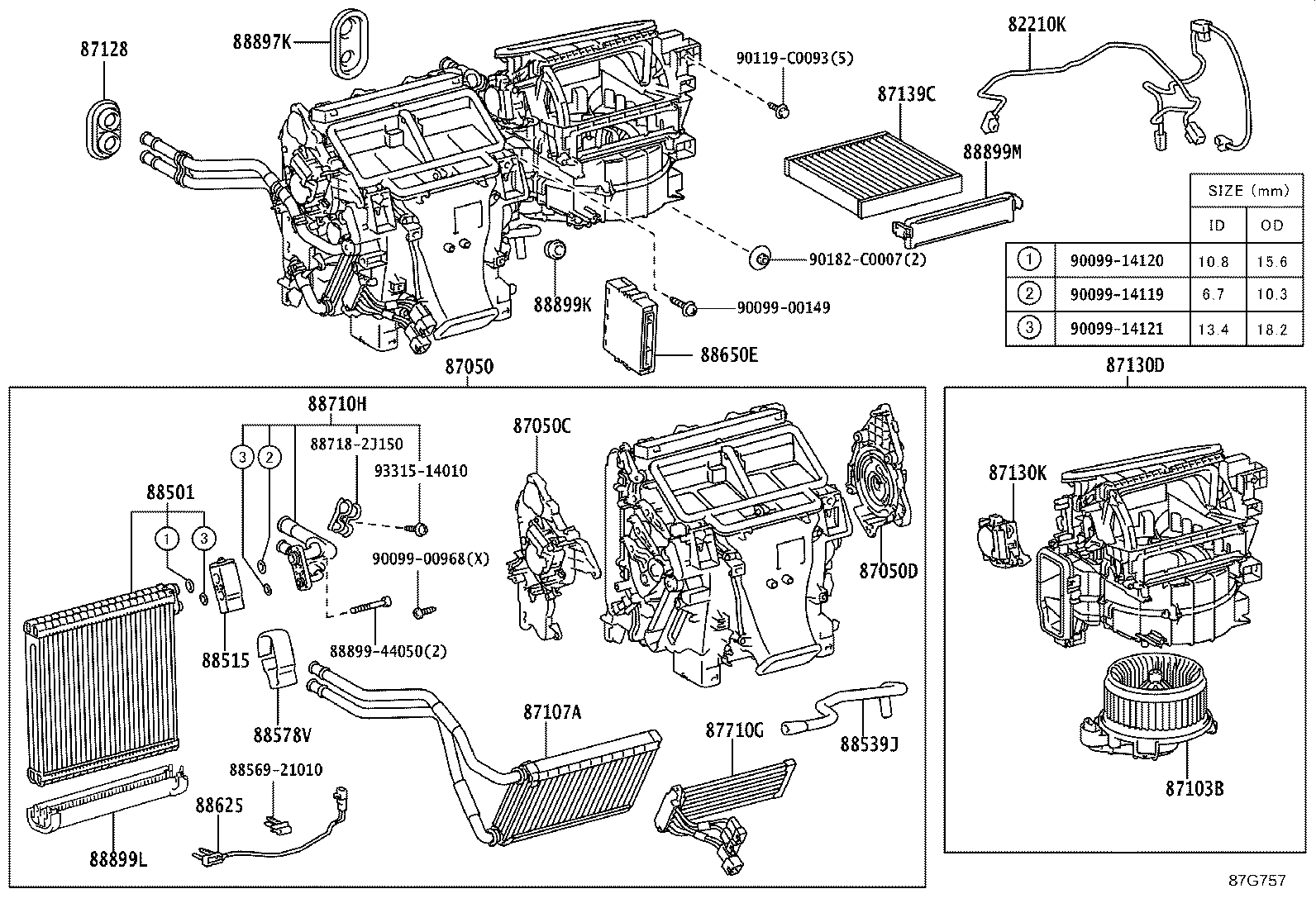

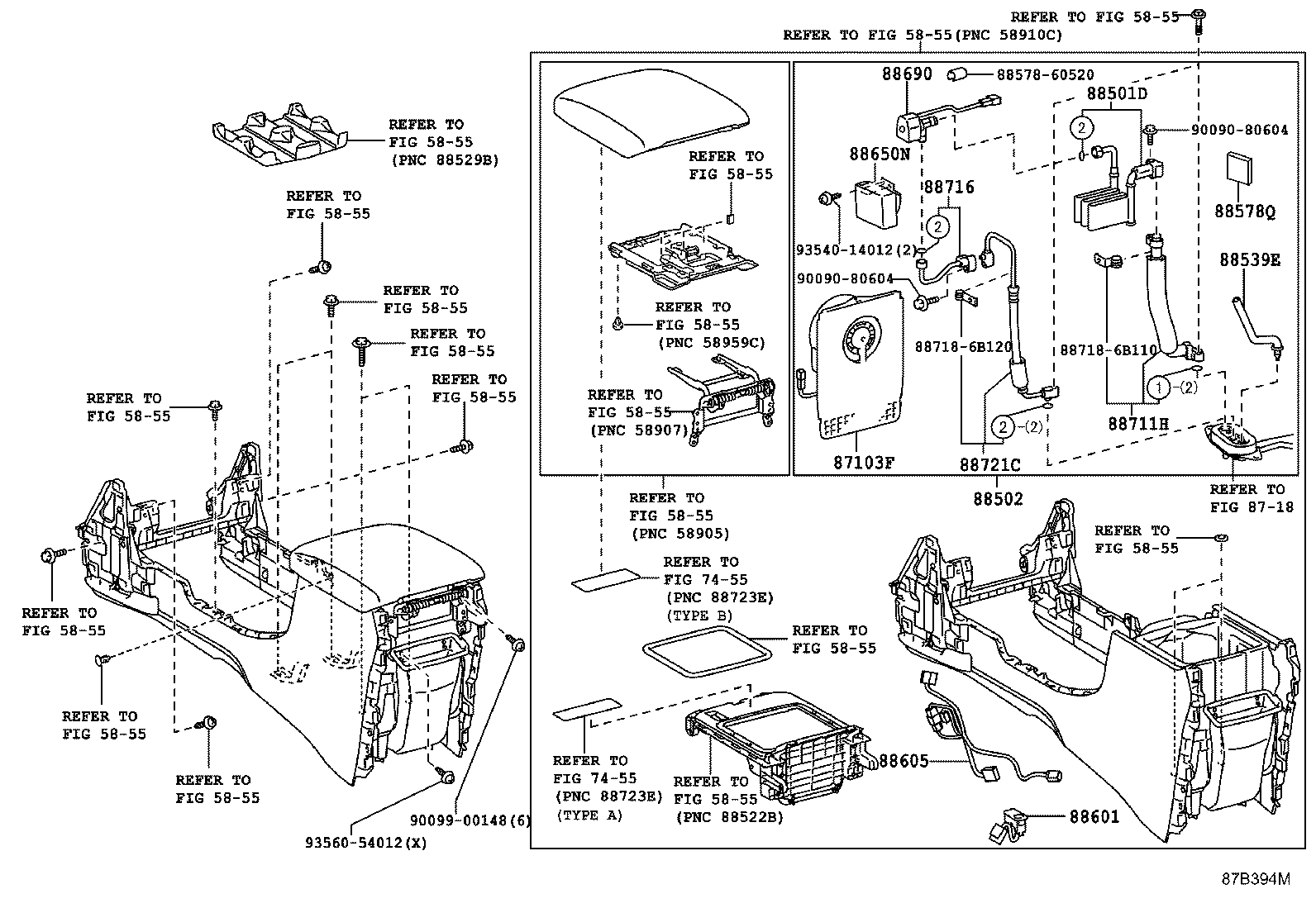

Figure 87B392E 87B392E 2010-05 → 2015-09 Figure 87B392E 87B392E 2015-03 → 2015-09 Figure 87F172A 87F172A 2015-09 → — Figure 87G757 87G757 2017-11 → — Figure 87B393I 87B393I 2010-05 → 2015-09 Figure 87B393I 87B393I 2015-03 → 2015-09 Figure 87B393I 87B393I 2015-09 → — Figure 87B394M 87B394M 2010-05 → 2015-09 Figure 87B394M 87B394M 2015-03 → 2015-09 Figure 87B394M 87B394M 2015-09 → — Figure 874585N 874585N 2010-05 → 2015-09 Figure 874585N 874585N 2015-03 → 2015-09 Figure 874585N 874585N 2015-09 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87030F Damper Servo Sub-assy, Rear Cooling Unit, NO.2
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87103F Motor Sub-assy, Blower W/Fan(FOR COOL BOX)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501D Evaporator Sub-assy, Cooler, NO.2
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578Q Packing, Cool Box, NO.3
88578V Packing, Cooling Unit, NO.3
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88650N Amplifier Assy, Air Conditioner
88669B Hose, Cooler Air
88688Z Bracket
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88711H Hose, Discharge
88716 Tube, Liquid
88721C Hose, Liquid
88840B Accessory Assy, Air Conditioner
88891S Cover, Cooler, NO.1
88892Q Plate, Cooler
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
88899K Plate, Cover
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
88899N Plate, Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
