Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

42 part groups · 16 illustrations

Illustrations

Figure 87B398B 87B398B 2010-05 → 2015-09 Figure 87B398B 87B398B 2015-03 → 2015-09 Figure 87B398B 87B398B 2015-09 → 2017-11 Figure 87G751A 87G751A 2017-11 → — Figure 87G755A 87G755A 2010-05 → 2015-09 Figure 87G755A 87G755A 2015-09 → — Figure 87G756B 87G756B 2017-11 → — Figure 87B400B 87B400B 2010-05 → 2015-09 Figure 87B400B 87B400B 2015-03 → 2015-09 Figure 87B400B 87B400B 2015-09 → — Figure 87B401A 87B401A 2010-05 → 2015-09 Figure 87B401A 87B401A 2015-03 → 2015-09 Figure 87B401A 87B401A 2015-09 → — Figure 87B402A 87B402A 2010-05 → 2015-09 Figure 87B402A 87B402A 2015-03 → 2015-09 Figure 87B402A 87B402A 2015-09 → —

Part groups

PNCDescription

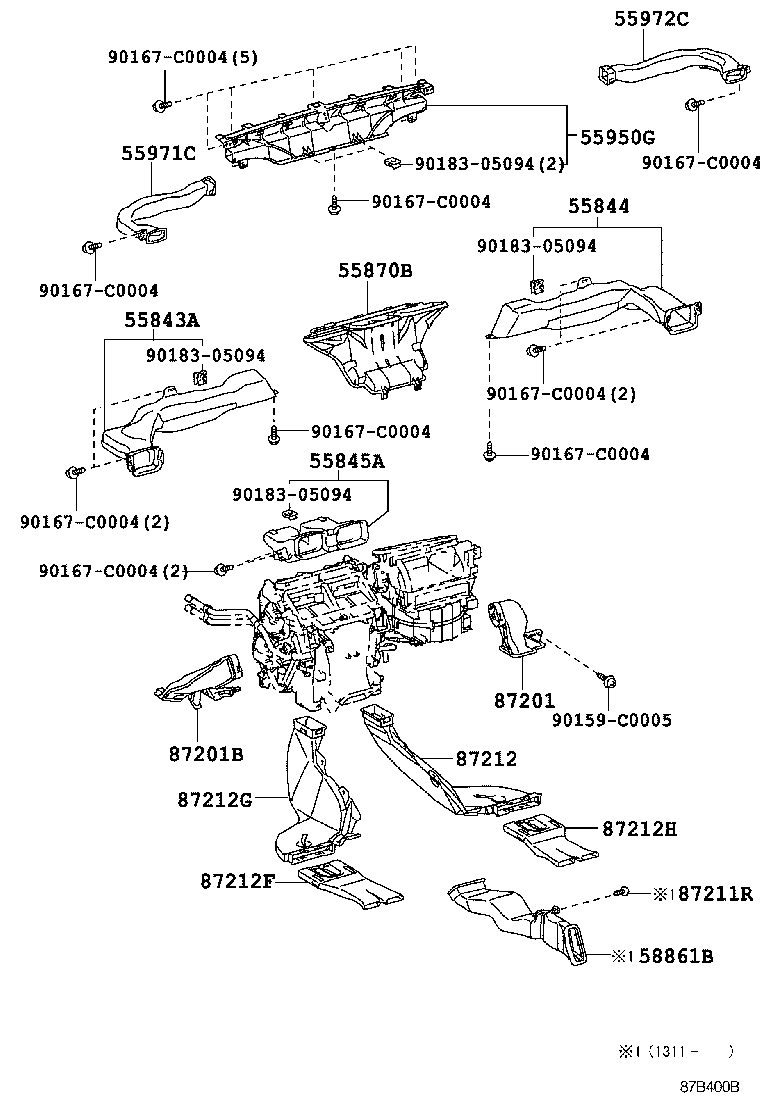

55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55870B Duct Assy, Heater TO Register

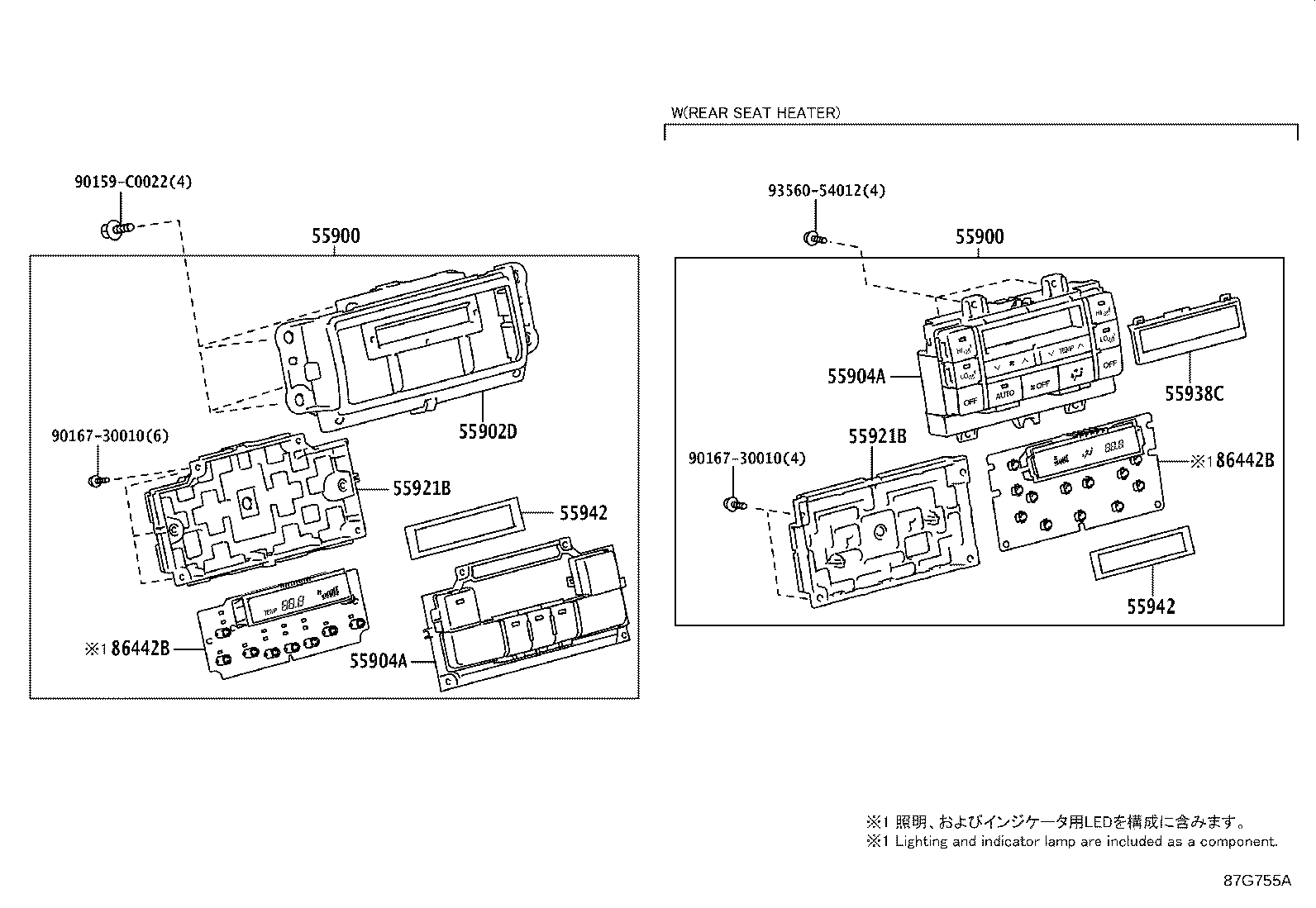

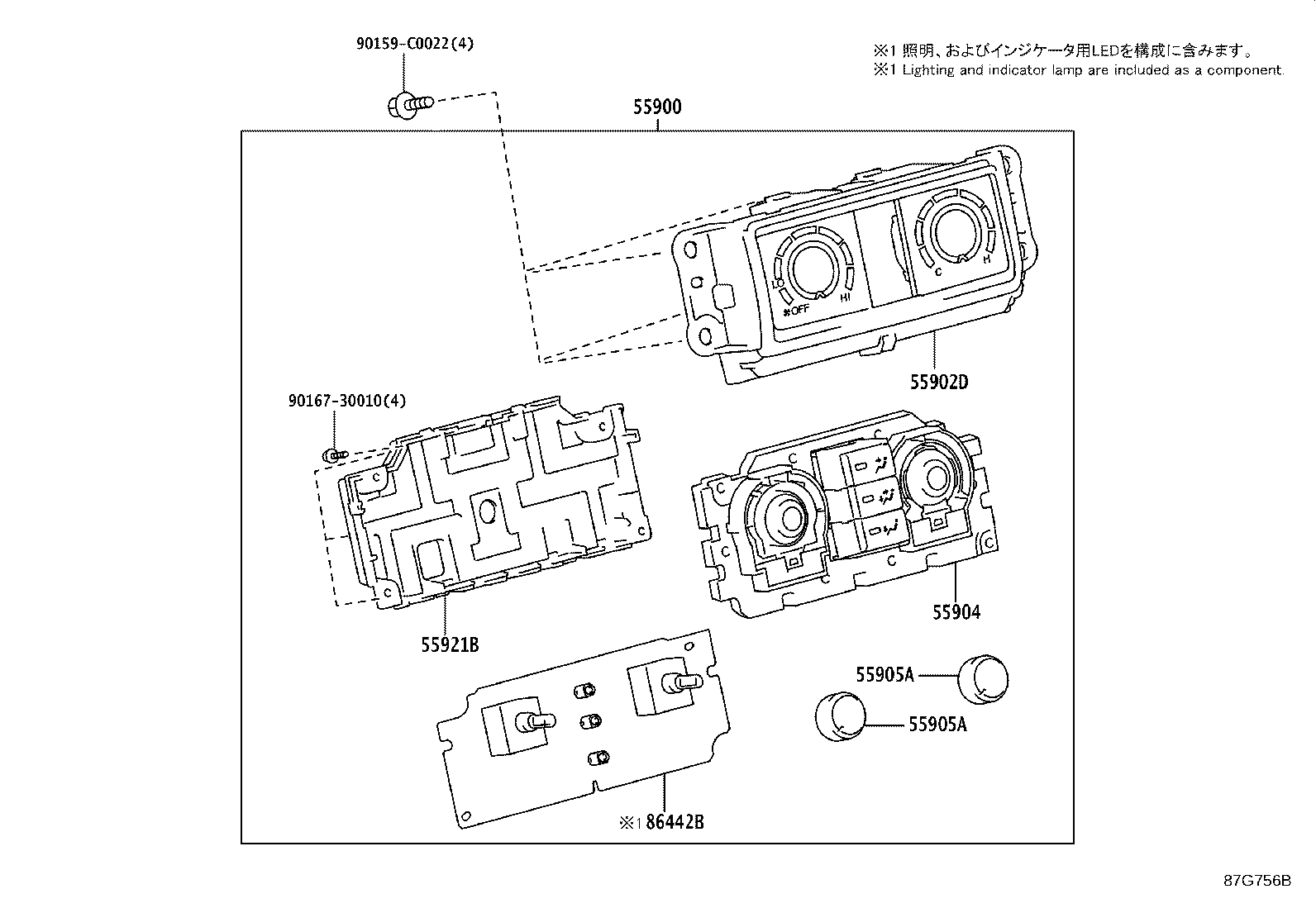

55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55902D Panel Sub-assy, Air Conditioner
55904 Lever Sub-assy, Air Inlet Butterfly Control
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55921A Retainer, Heater Control
55921B Retainer, Heater Control
55938C Lens, Center Cluster Module
55942 Guard, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
84010A Control & Panel Assy, Integration
86442A Board, Heater Control Switch
86442B Board, Rear Heater Control Switch
86442C Board, Heater Control Switch, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87215J Clip (FOR AIR REAR DUCT)
87217D Duct, Air, Rear Side NO.1
87217E Duct, Air, Rear Side NO.2
87217F Duct, Air, Rear Side NO.3

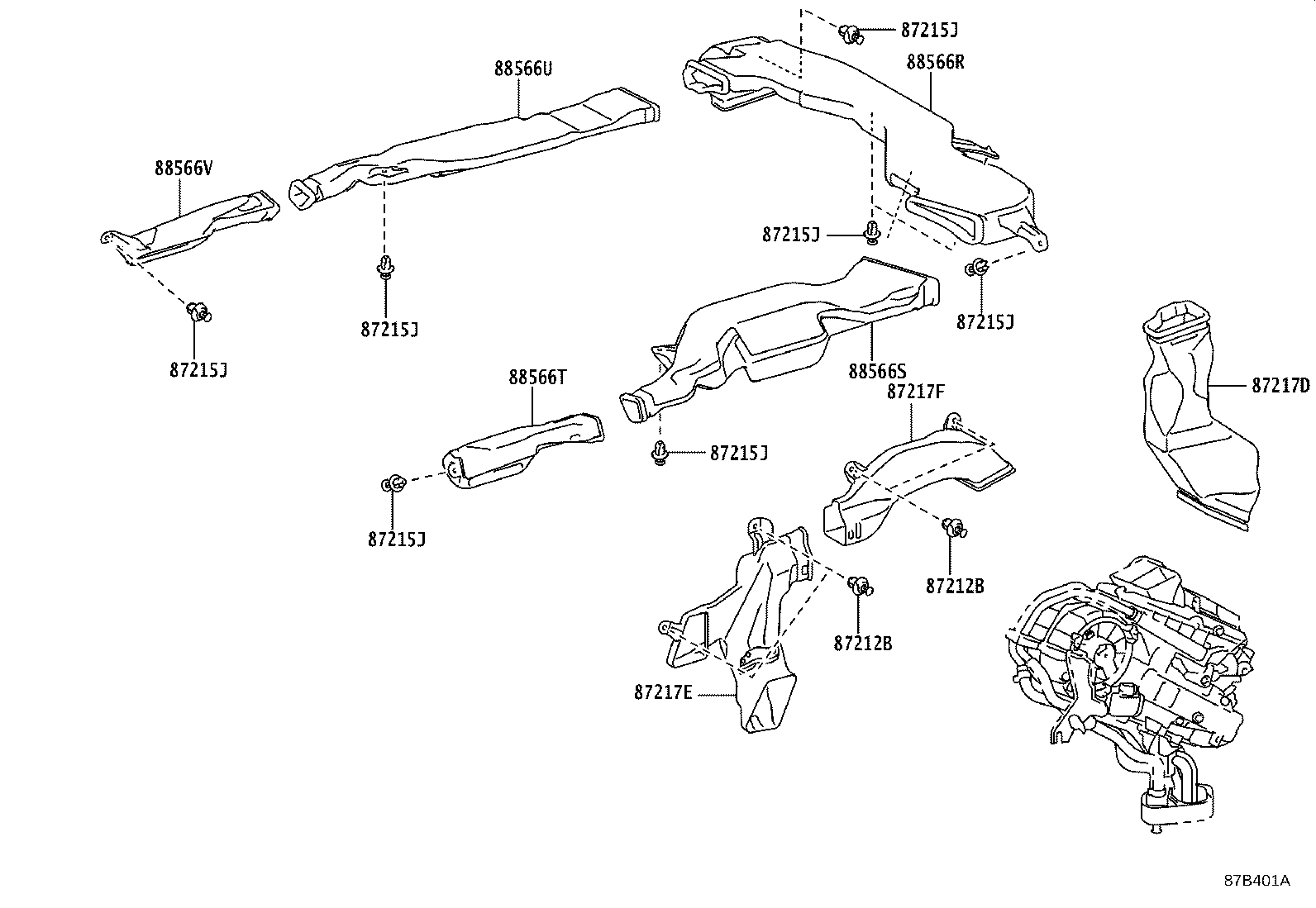

88566R Duct, Air, Rear Roof NO.1
88566S Duct, Air, Rear Roof NO.2
88566T Duct, Air, Rear Roof NO.3
88566U Duct, Air, Rear Roof NO.4
88566V Duct, Air, Rear Roof NO.5

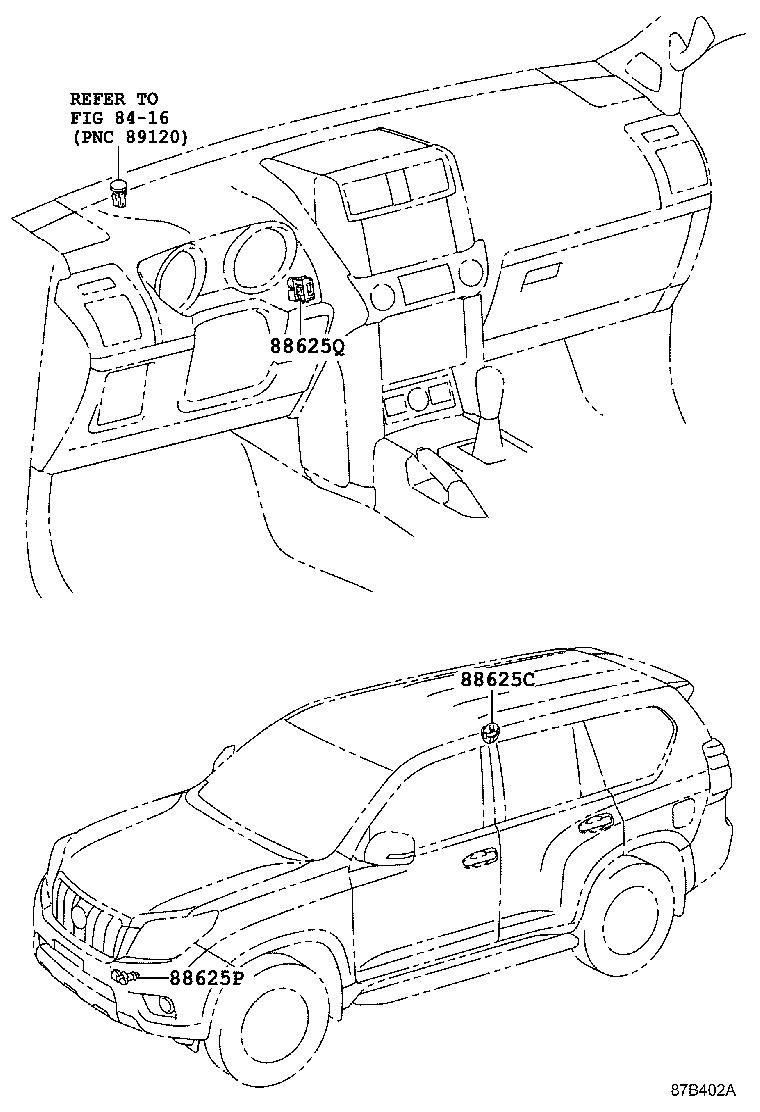

88625C Thermistor, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
