Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

23 part groups · 12 illustrations

Illustrations

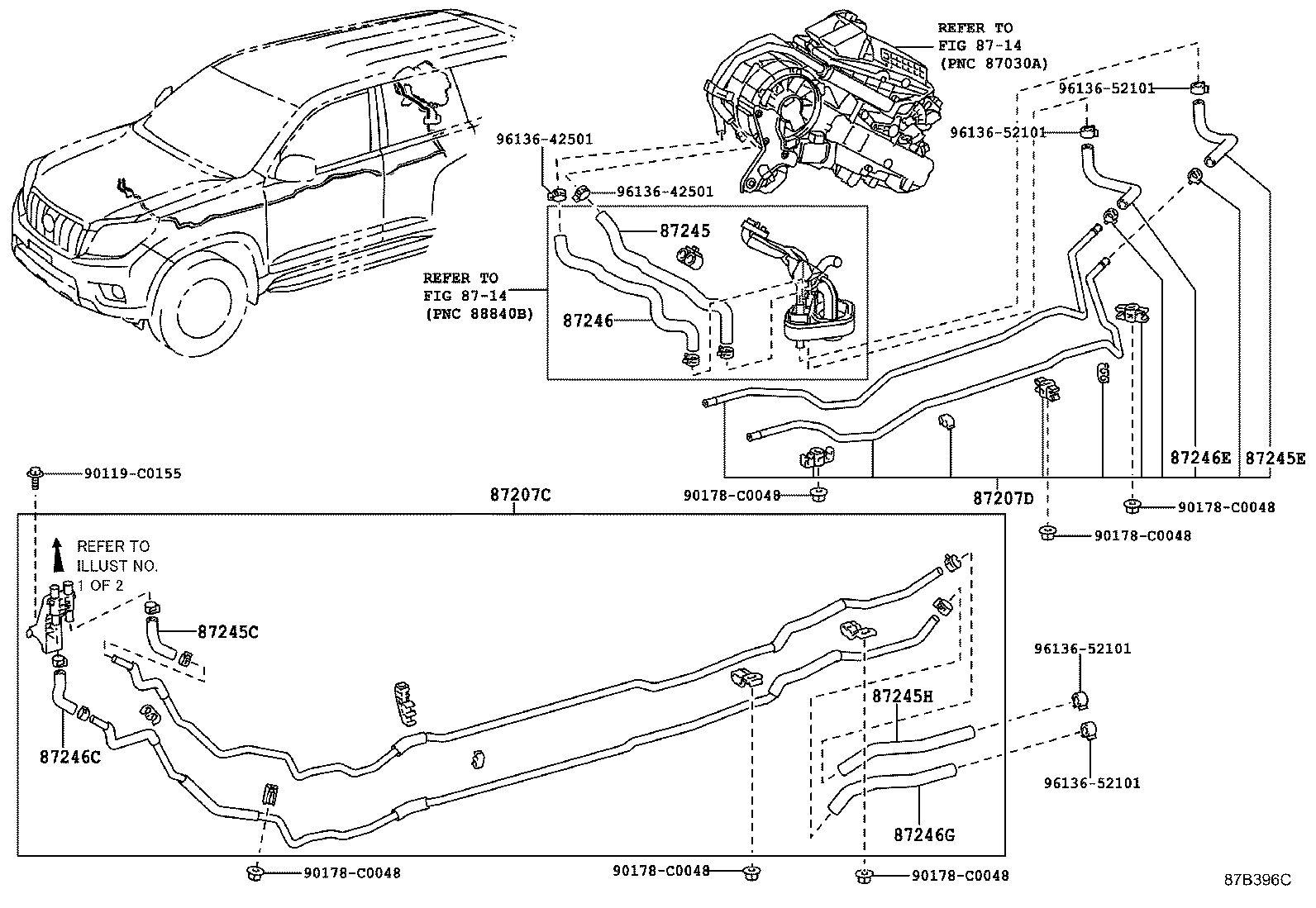

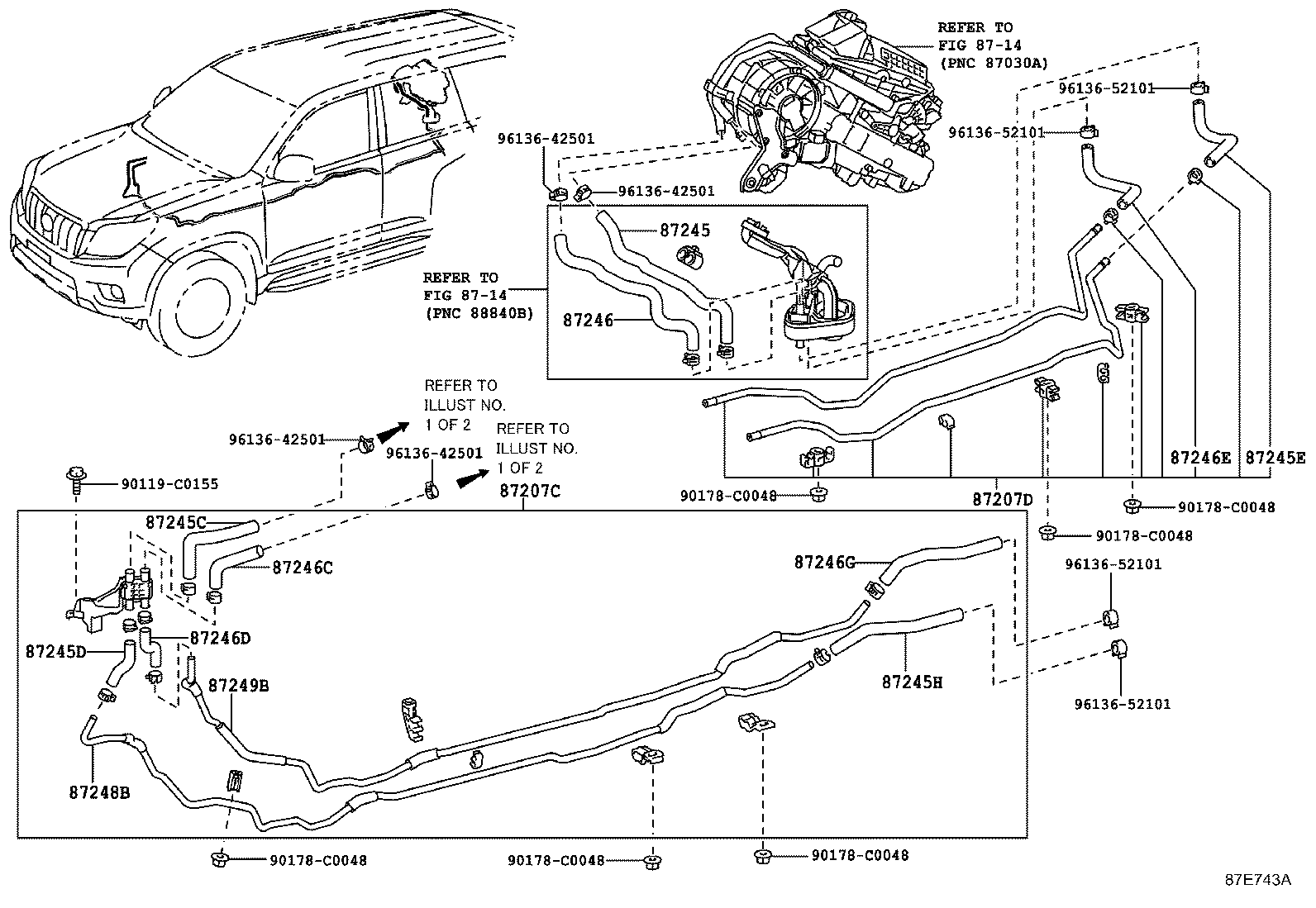

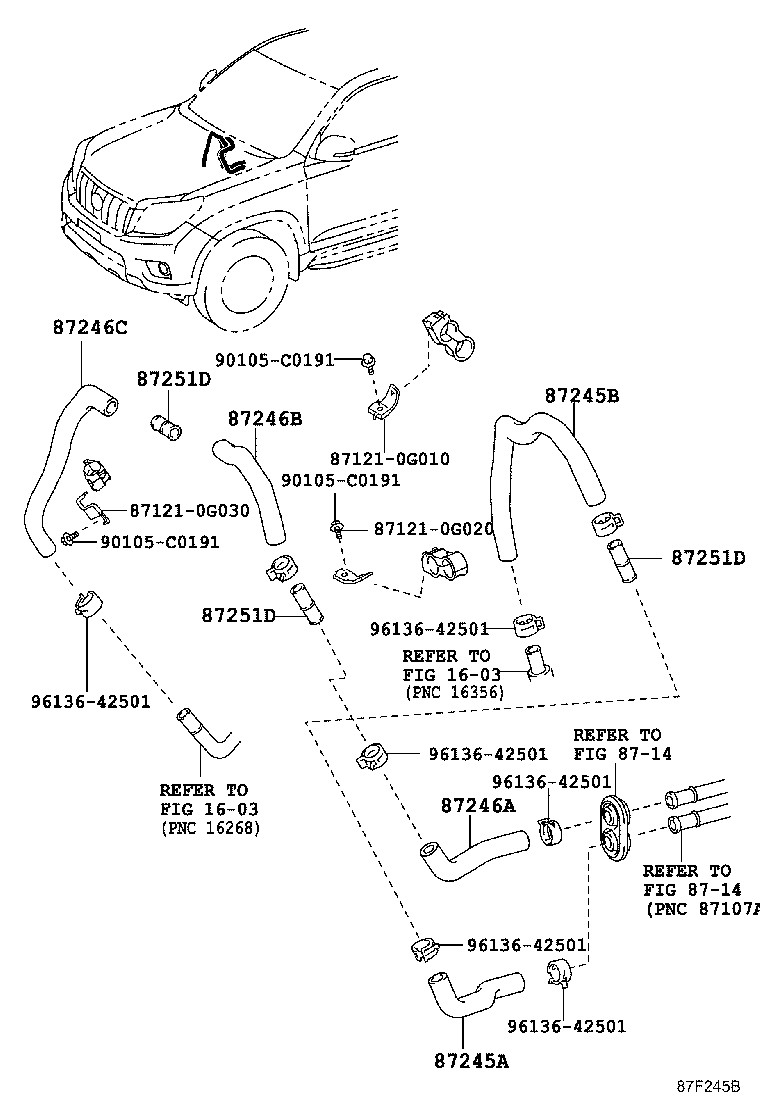

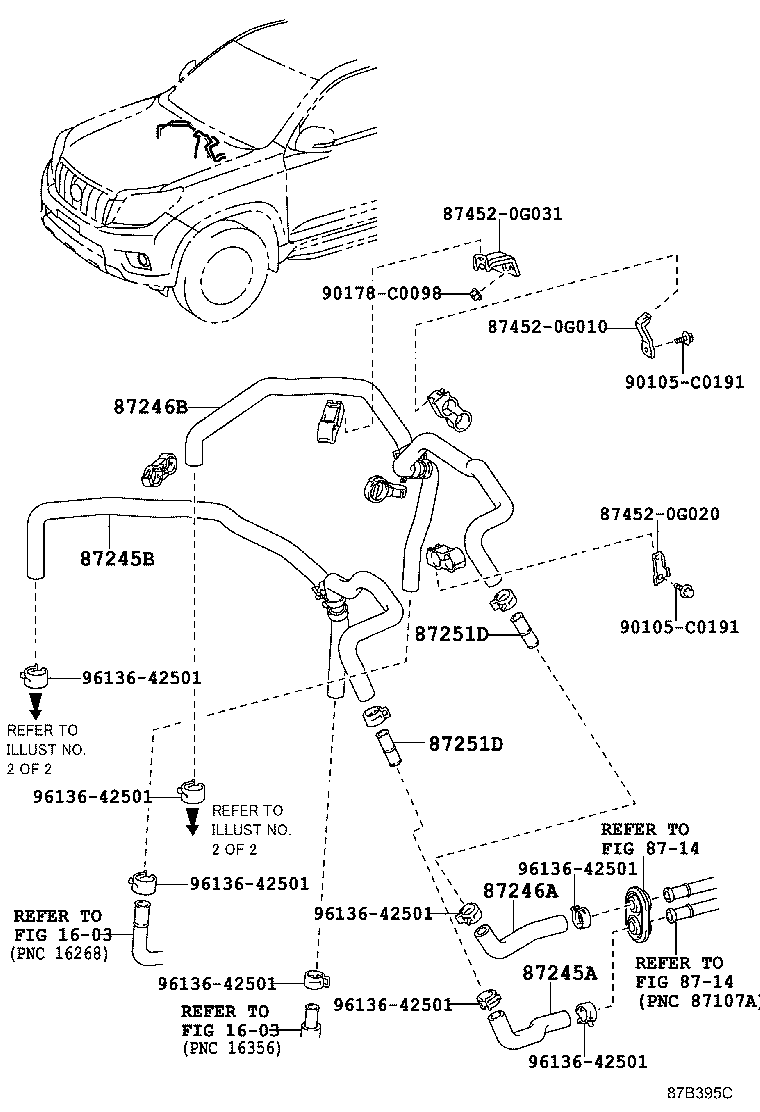

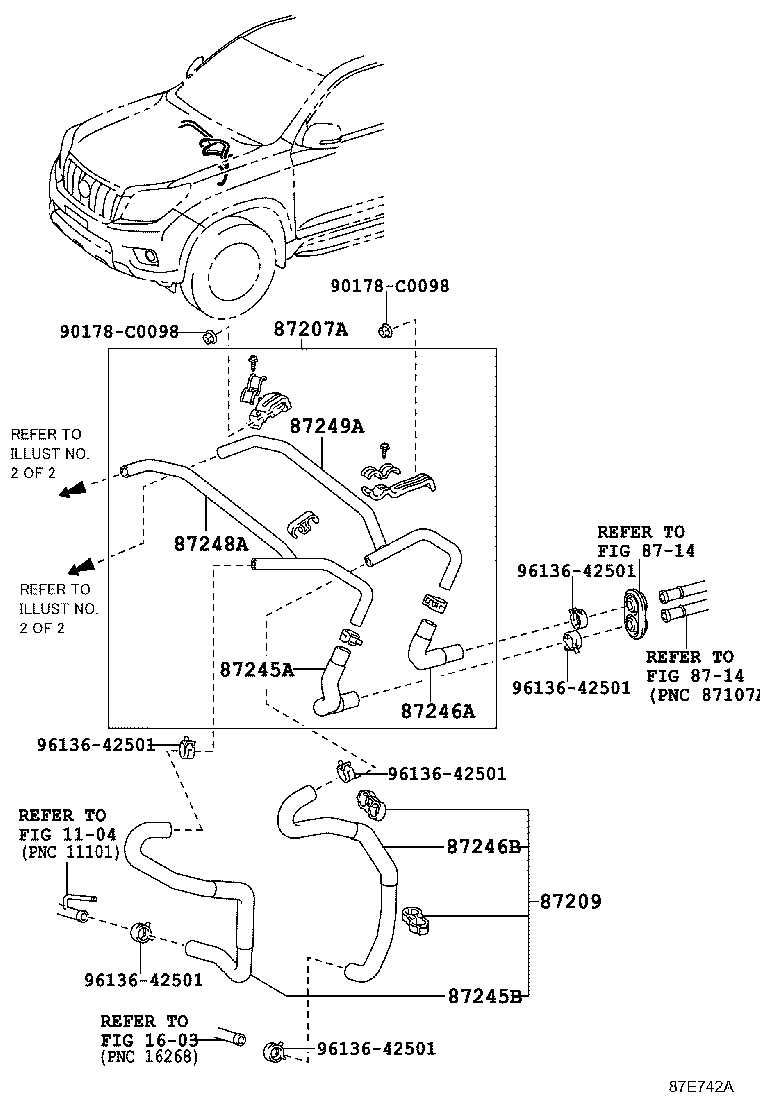

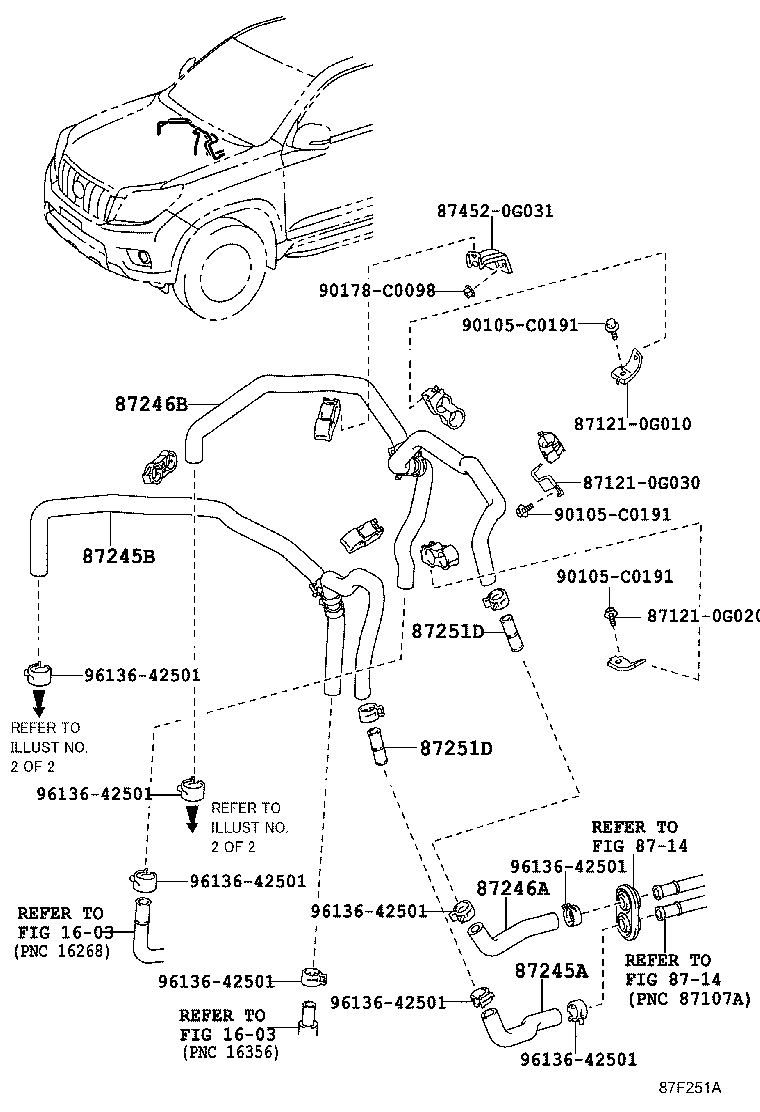

Figure 87E599A 87E599A 2013-11 → 2015-09 Figure 87F245B 87F245B 2015-09 → 2017-11 Figure 87E741A 87E741A 2015-03 → 2015-09 Figure 87E741A 87E741A 2015-09 → 2017-11 Figure 87B395C 87B395C 2010-05 → 2015-09 Figure 87F251A 87F251A 2015-09 → — Figure 87E742A 87E742A 2015-03 → 2015-09 Figure 87E742A 87E742A 2015-09 → 2017-11 Figure 87B396C 87B396C 2010-05 → 2015-09 Figure 87B396C 87B396C 2015-09 → — Figure 87E743A 87E743A 2015-03 → 2015-09 Figure 87E743A 87E743A 2015-09 → 2017-11

Part groups

PNCDescription
87207A Pipe & Hose Sub-assy, Water A
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
