Toyota Land Cruiser Prado

2010-05 → 2020-06 · chassis GRJ150L-GKA*KC,GRJ152,TRJ150L-GK*EKC,TRJ152 · catalogue 780310 · General

Discontinued model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

35 part groups · 19 illustrations

Illustrations

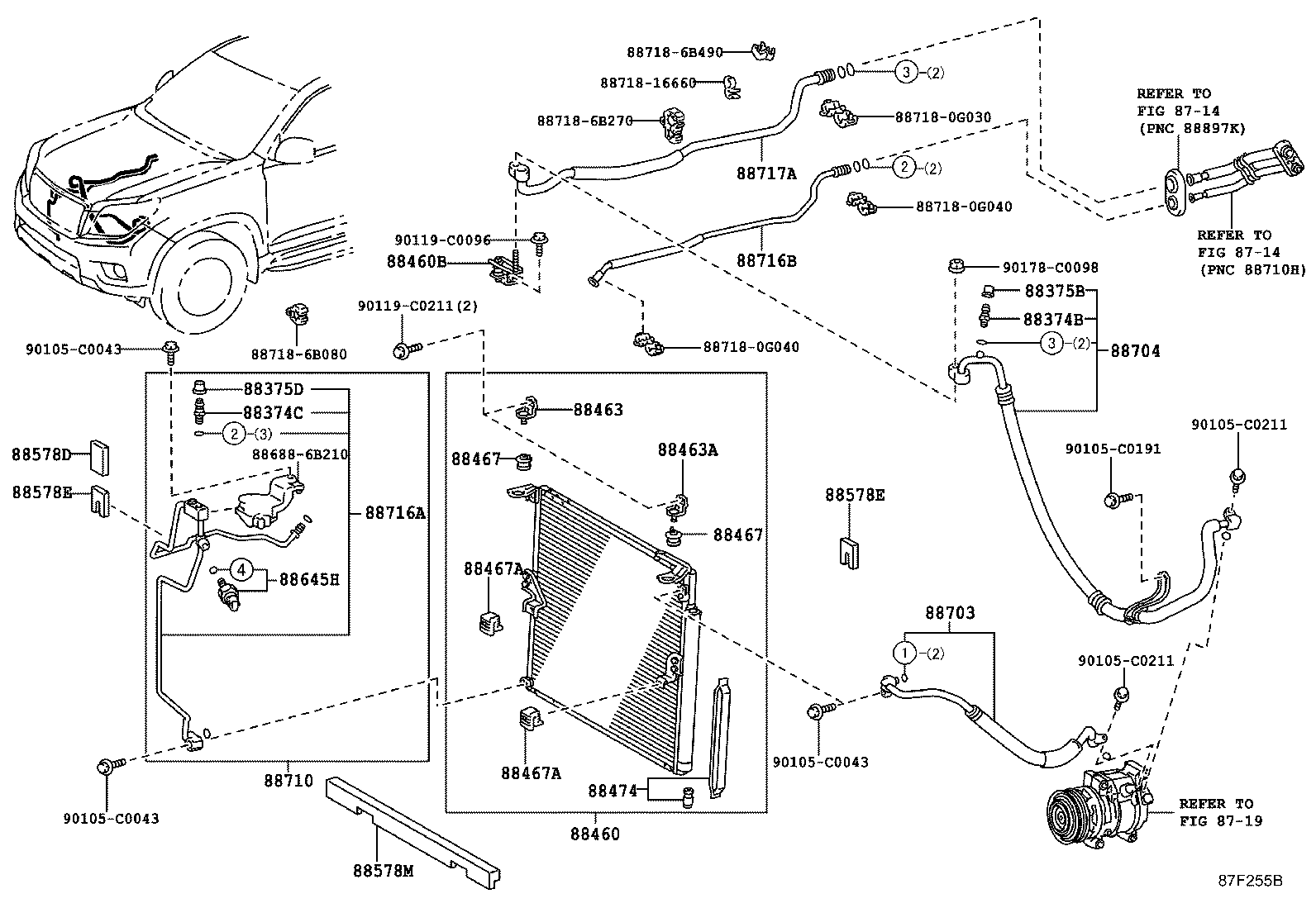

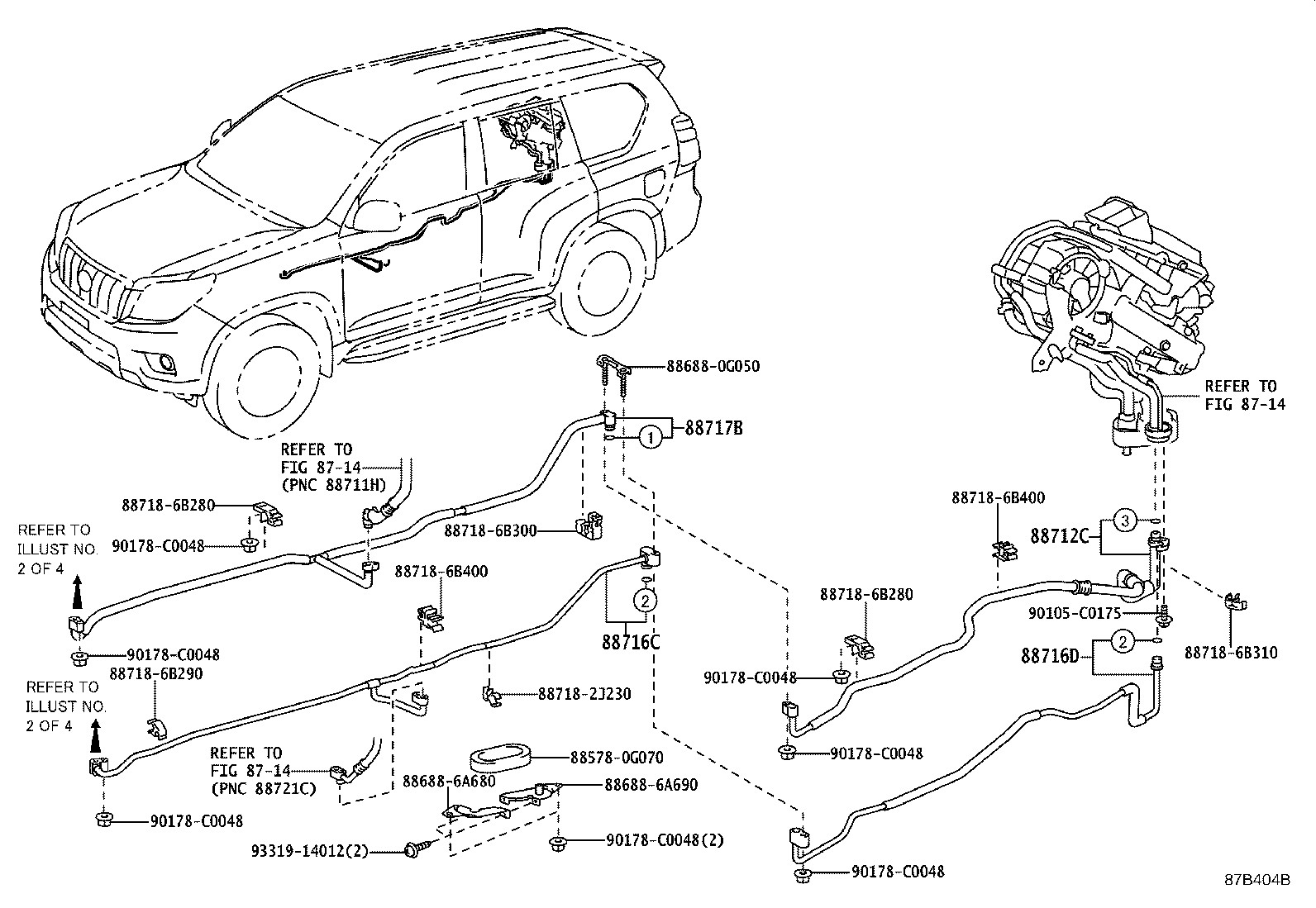

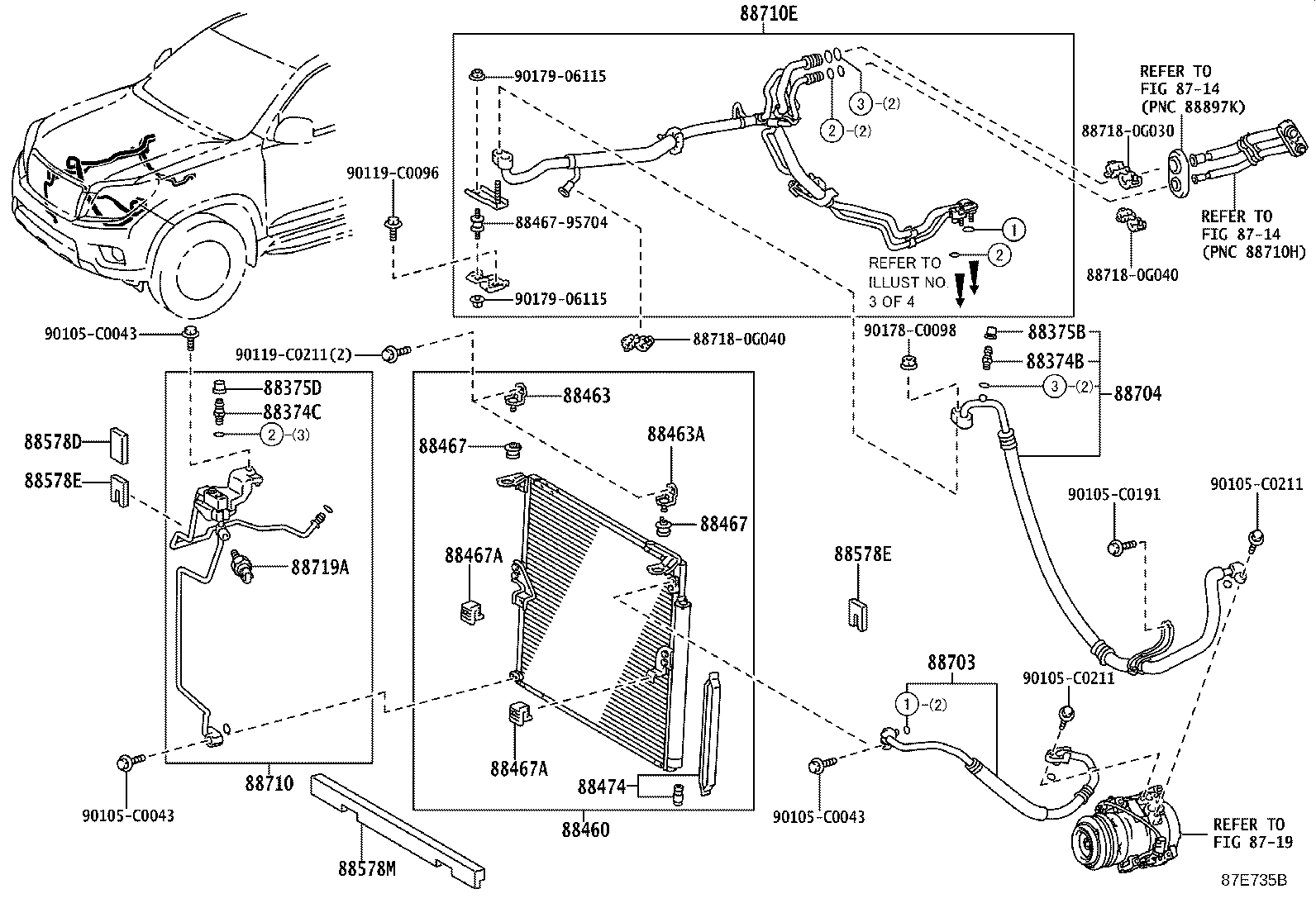

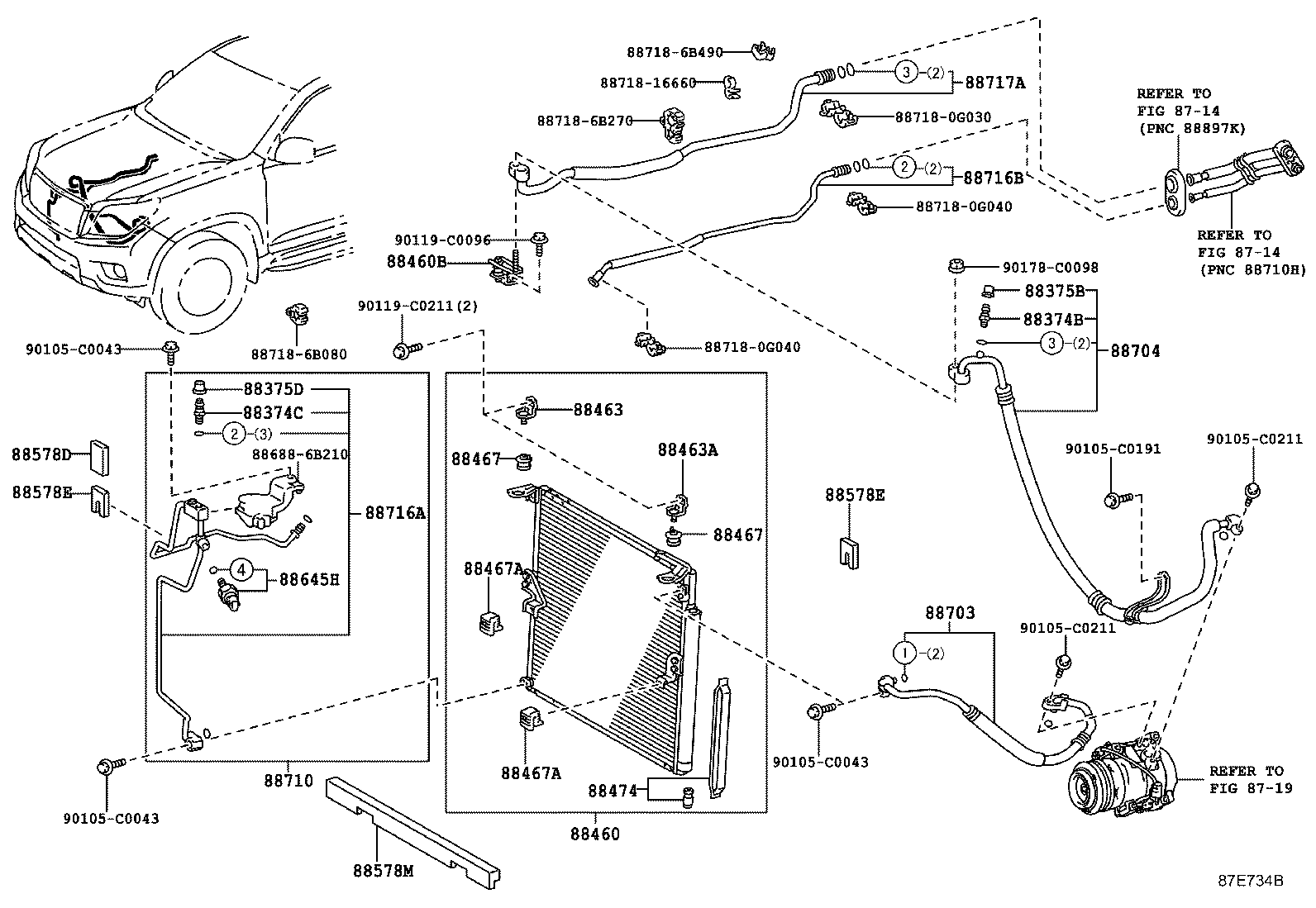

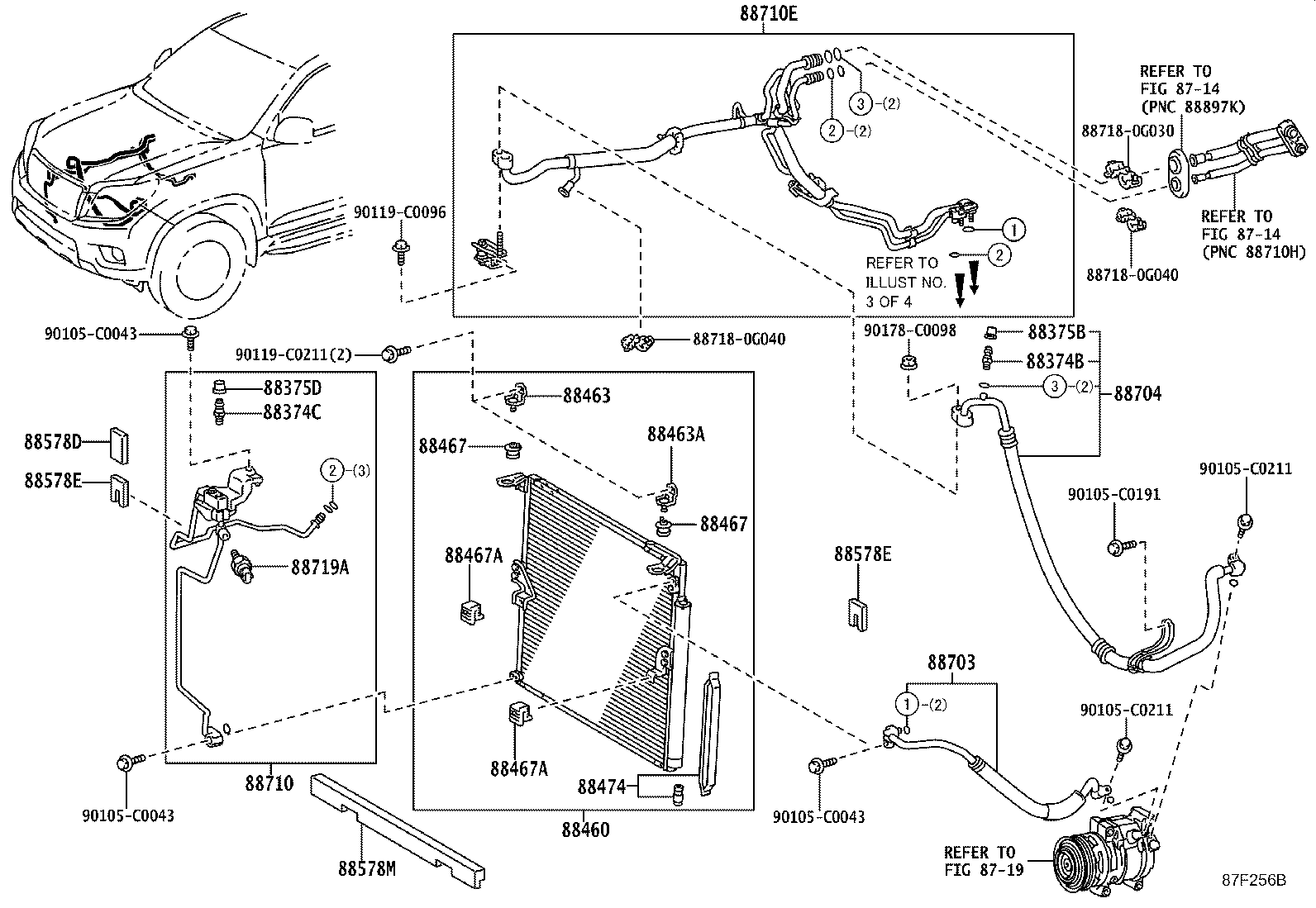

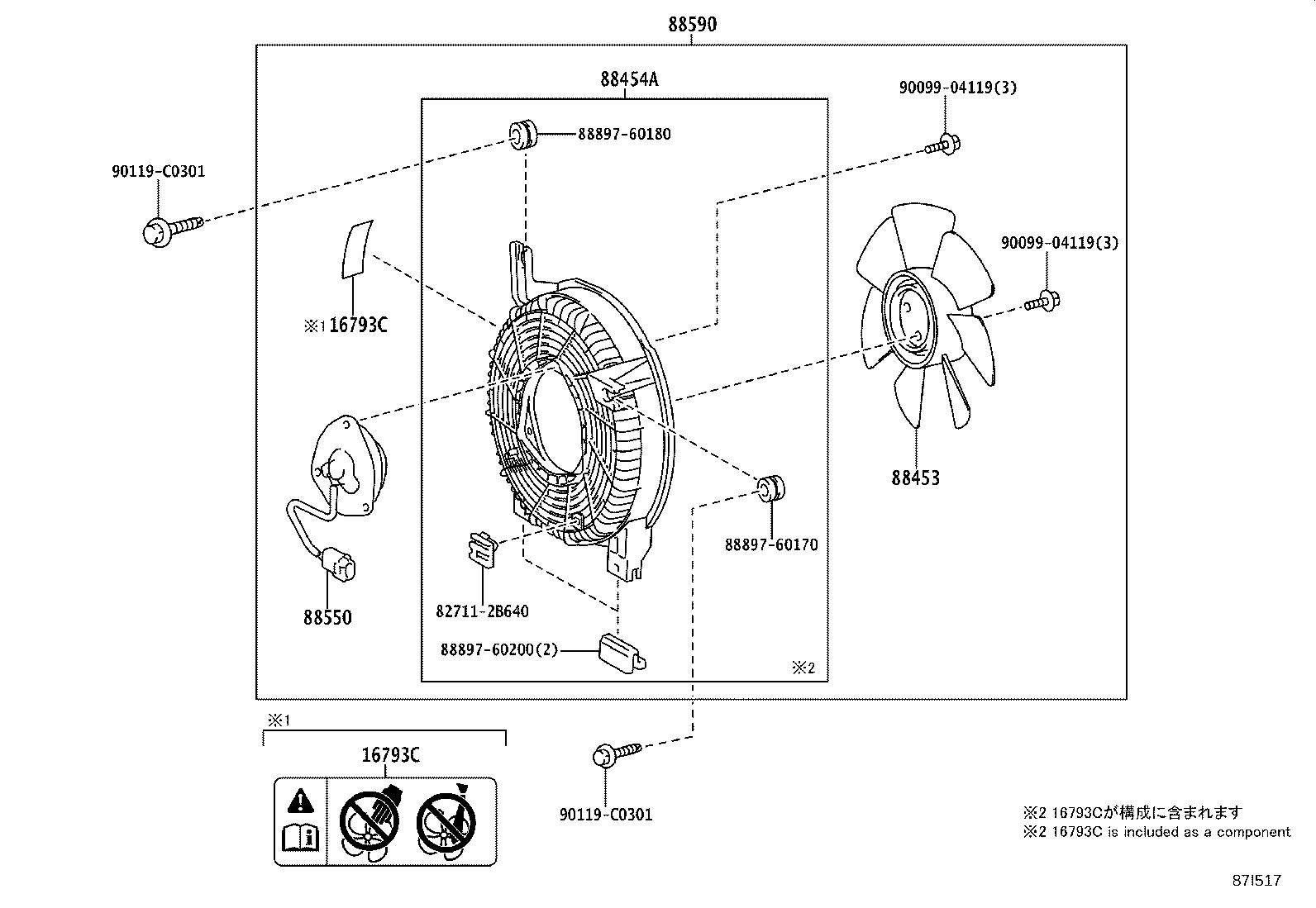

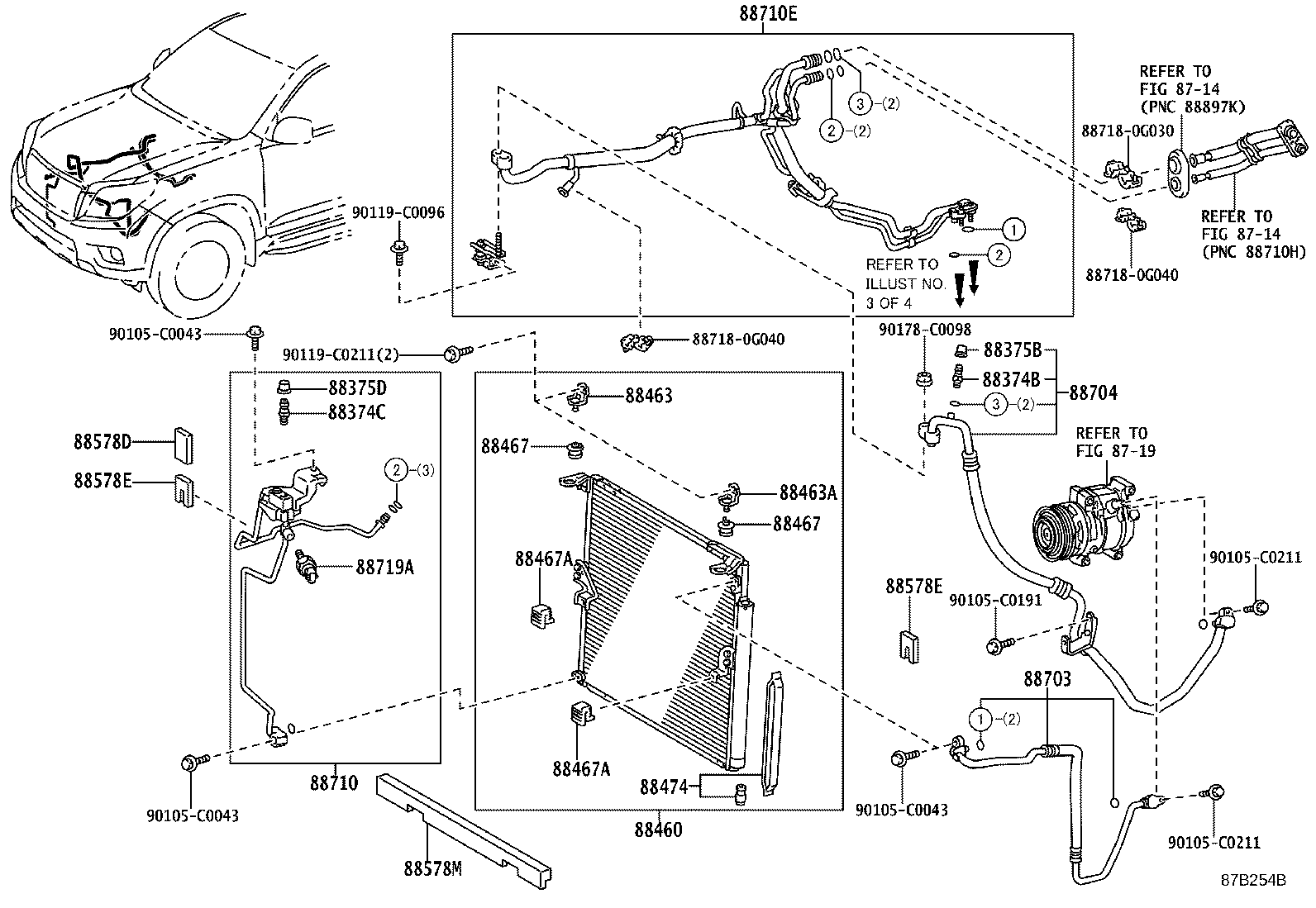

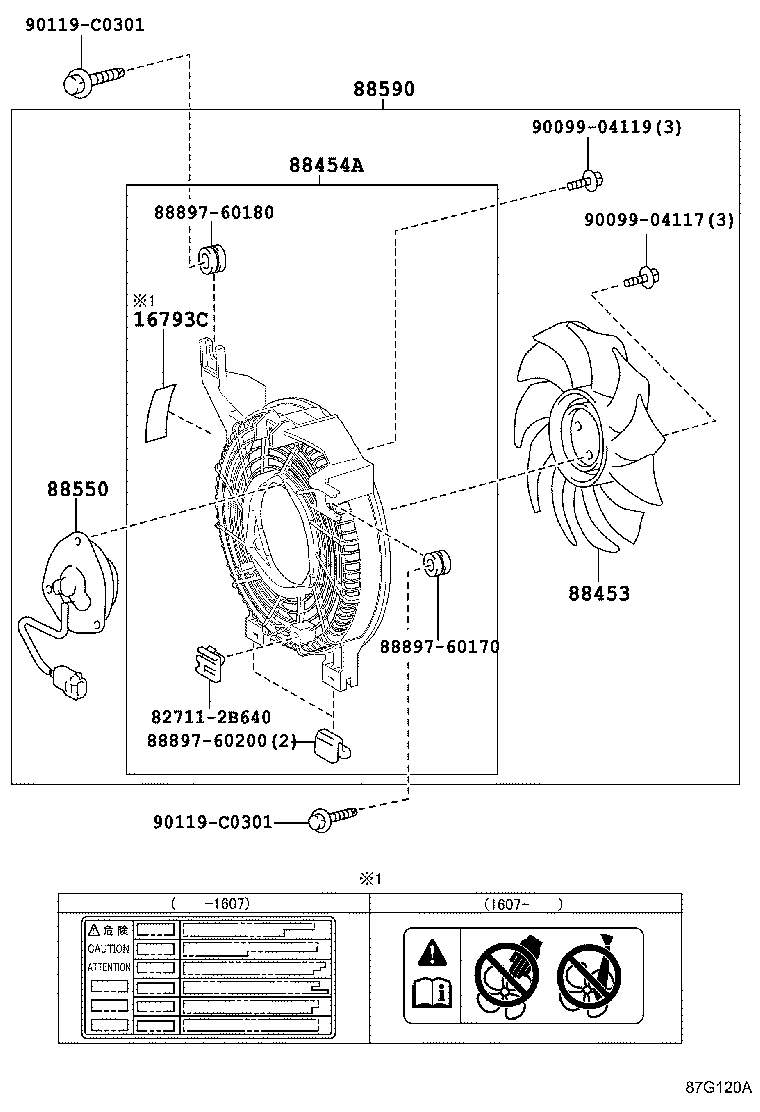

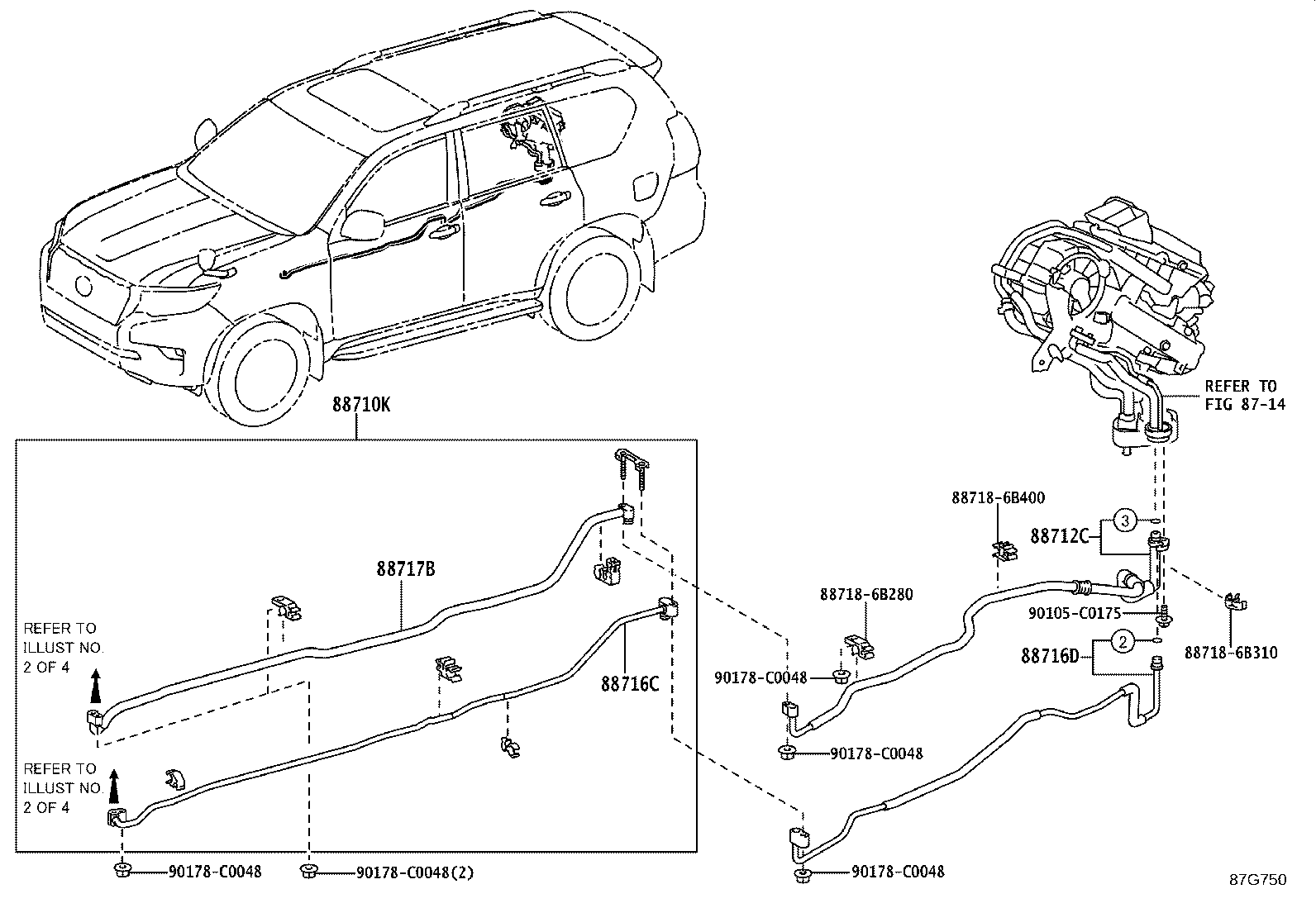

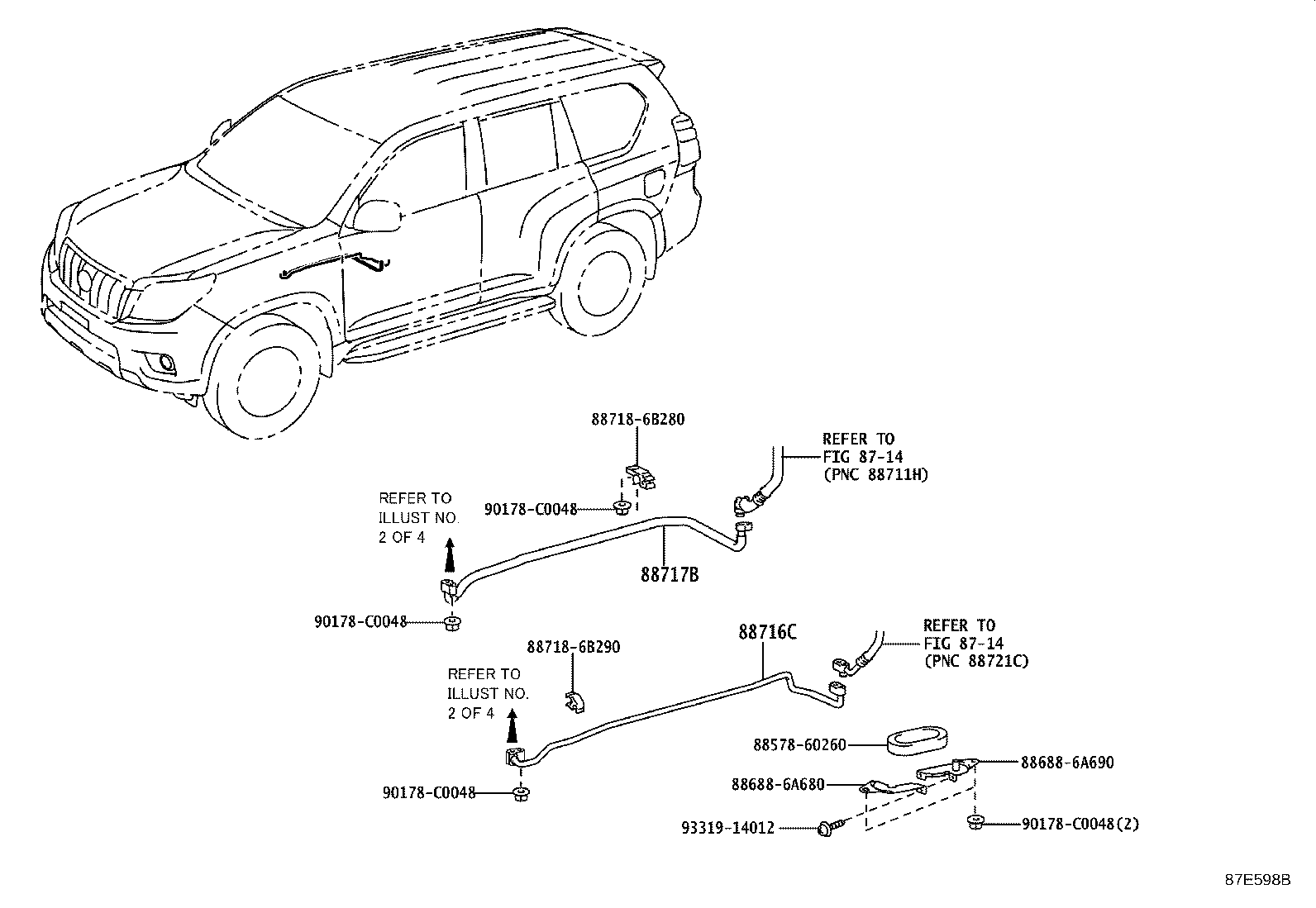

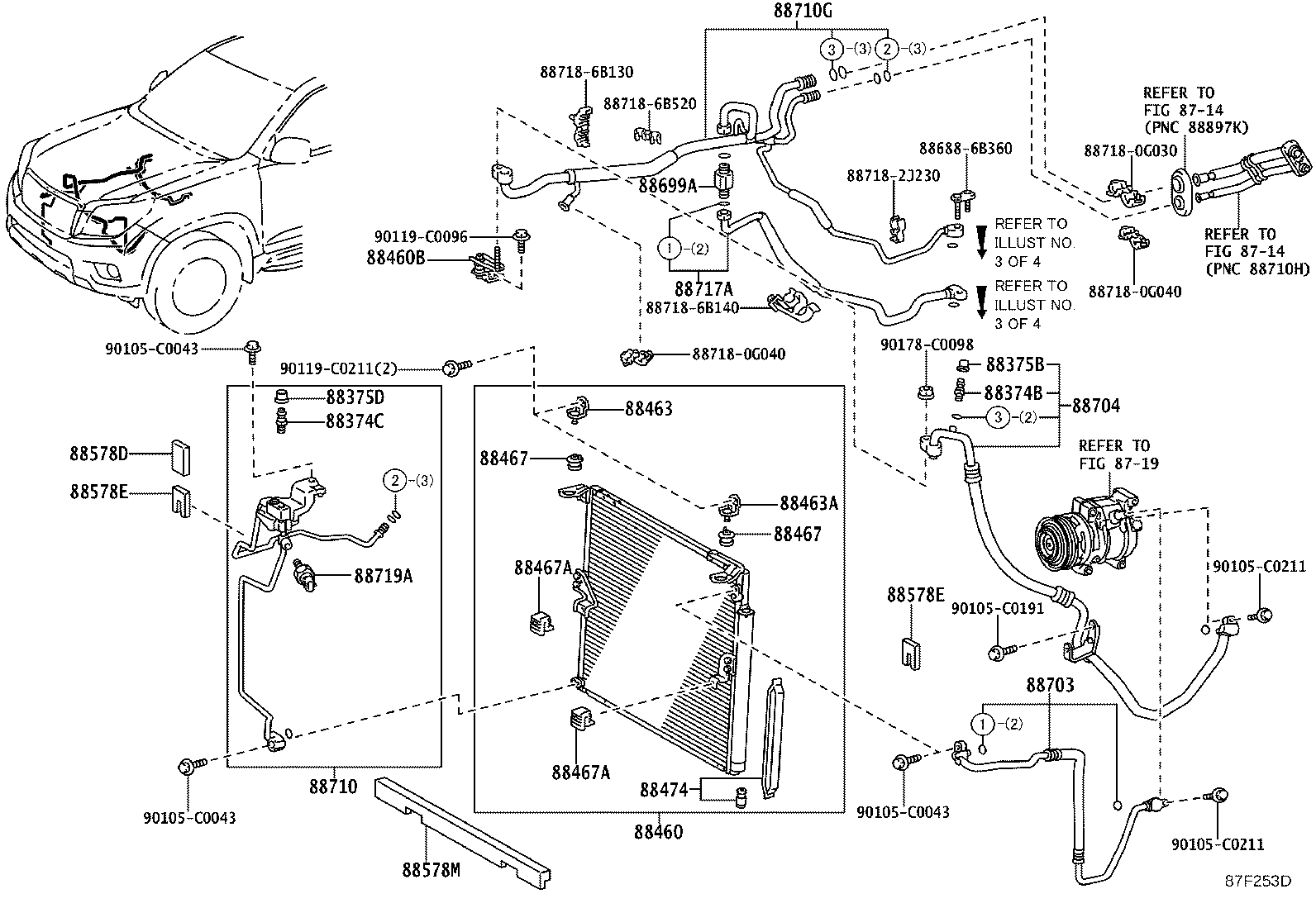

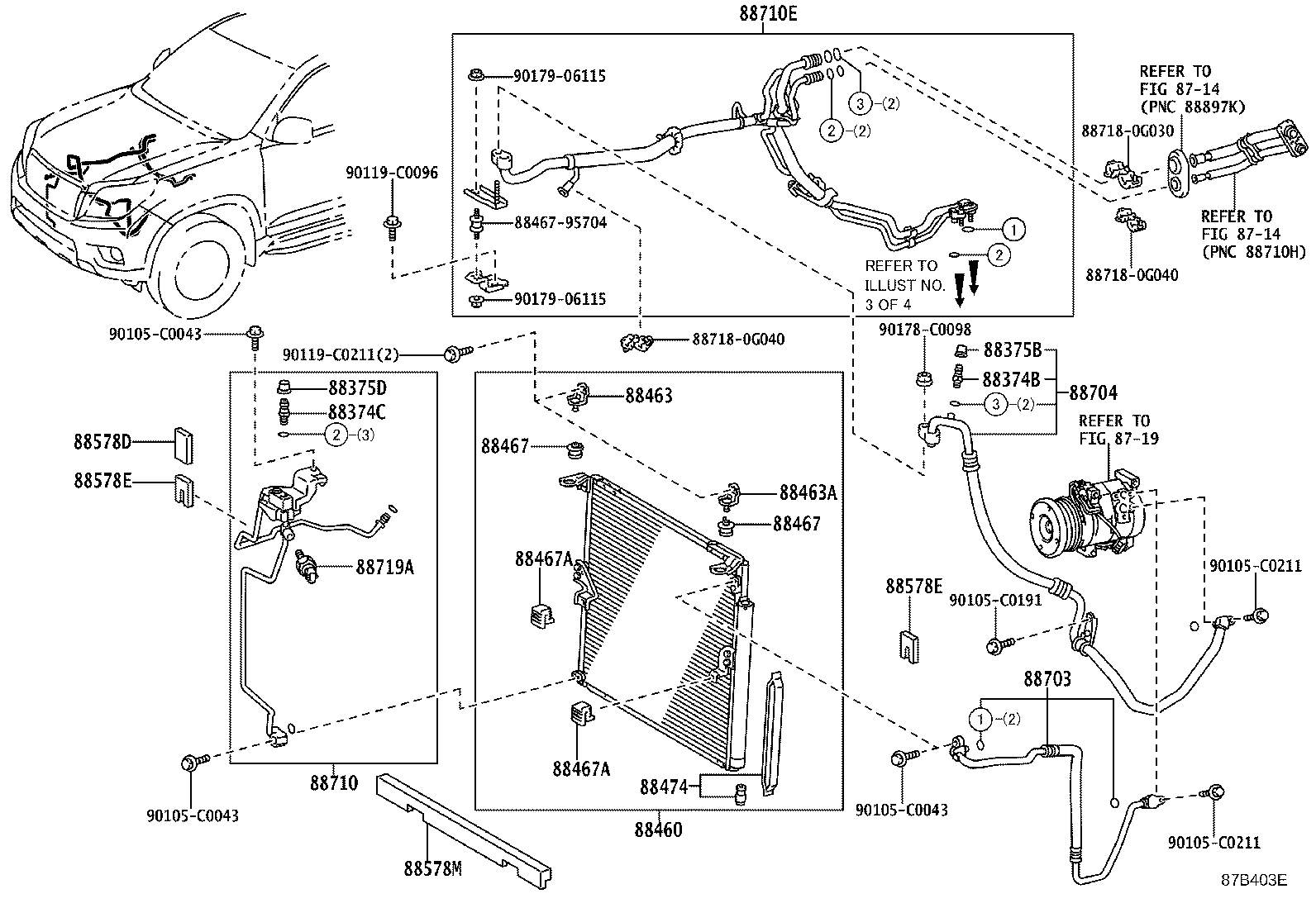

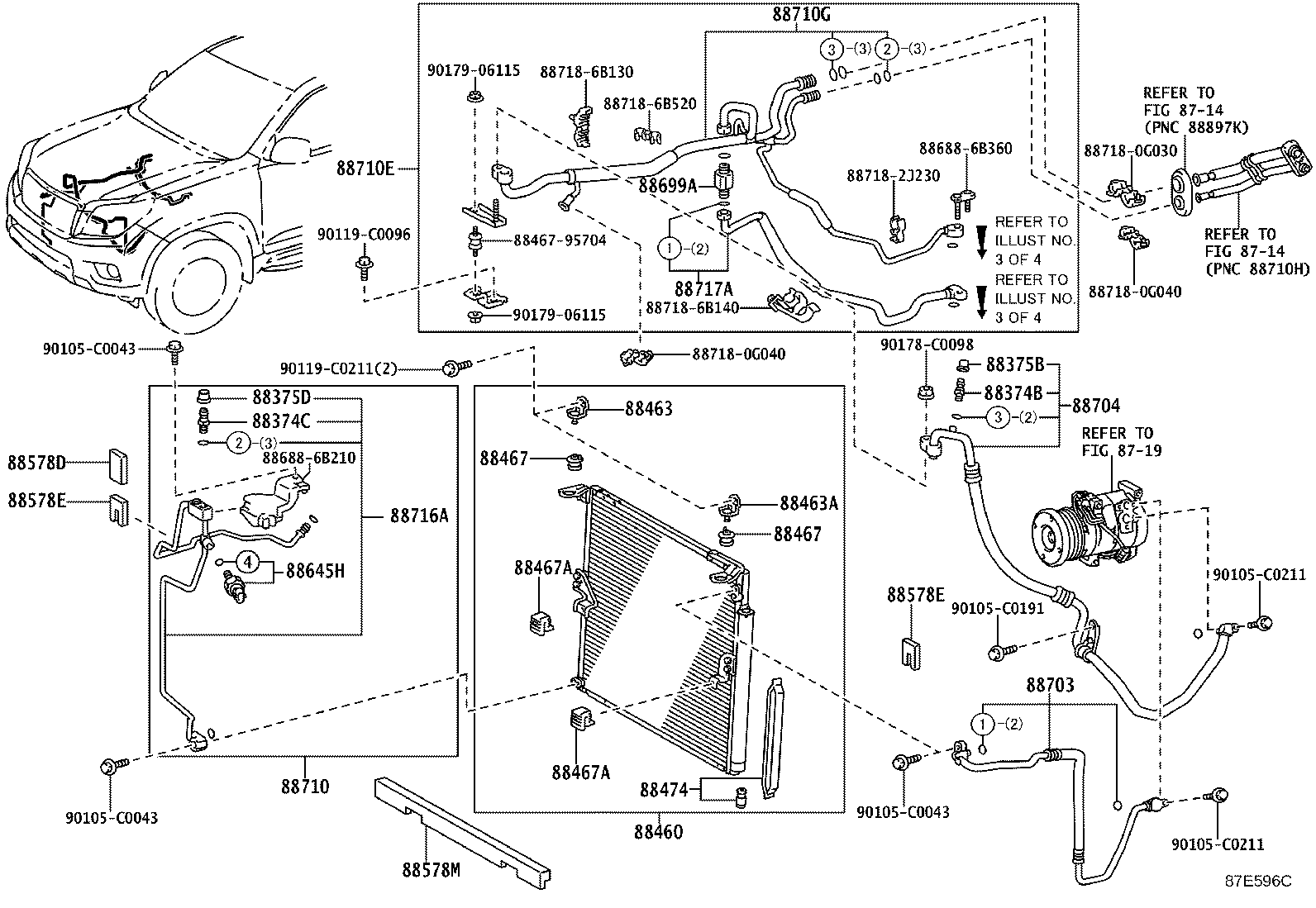

Figure 87F176A 87F176A 2010-05 → 2015-09 Figure 87F176A 87F176A 2015-09 → 2017-11 Figure 87I517 87I517 2017-11 → — Figure 87G120A 87G120A 2015-03 → 2017-11 Figure 87E596C 87E596C 2013-11 → 2015-09 Figure 87E734B 87E734B 2015-03 → 2015-09 Figure 87B403E 87B403E 2010-05 → 2015-09 Figure 87E735B 87E735B 2015-03 → 2015-09 Figure 87F253D 87F253D 2015-09 → 2017-11 Figure 87F254B 87F254B 2015-09 → — Figure 87F255B 87F255B 2015-09 → 2017-11 Figure 87F256B 87F256B 2015-09 → 2017-11 Figure 87E598B 87E598B 2013-11 → 2015-09 Figure 87E598B 87E598B 2015-09 → 2017-11 Figure 87B404B 87B404B 2010-05 → 2015-09 Figure 87B404B 87B404B 2015-03 → 2015-09 Figure 87B404B 87B404B 2015-09 → — Figure 87G750 87G750 2017-11 → — Figure 87E597A 87E597A 2010-05 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88699A Valve, Air
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
