Toyota Land Cruiser
1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · General
Discontinued model
Data version 1987-01

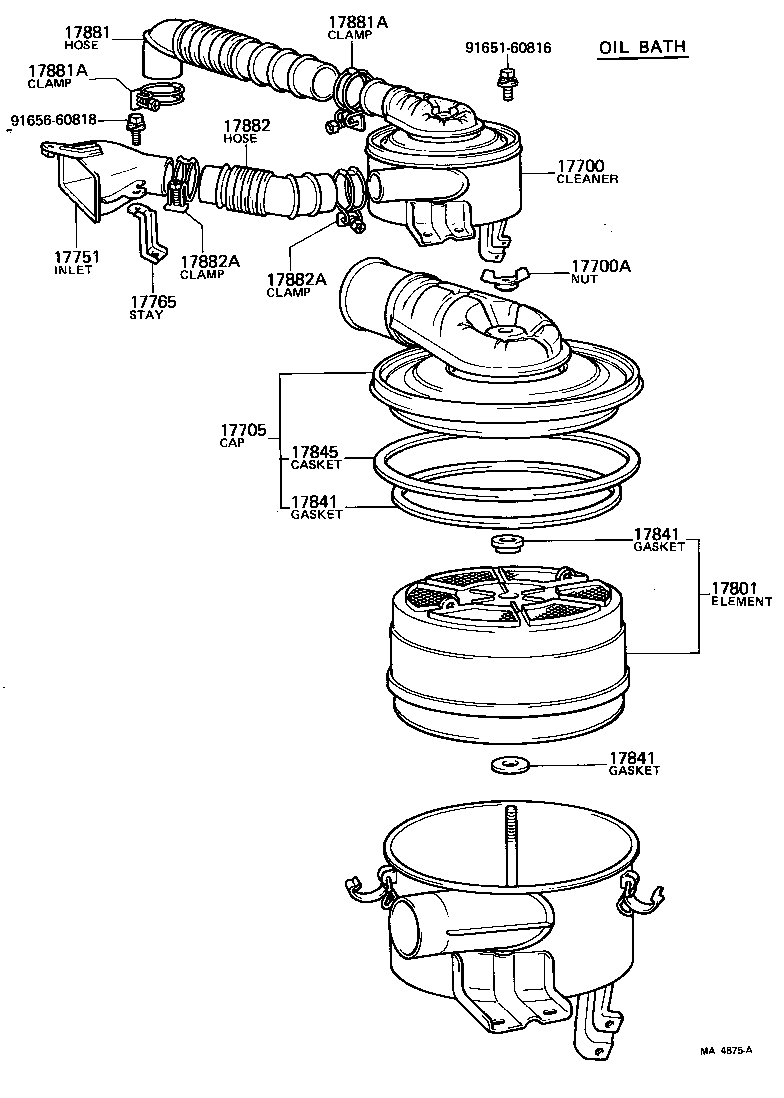

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-58010 note |
Cleaner Assy, Air
1980-08 → 1981-10
ended
|
B,3B BJ4# | — | |
| 17700-58011 note |
Cleaner Assy, Air
1981-10 → 1982-10
ended
|
B,3B BJ4# | — | |
| 17700-58012 note |
Cleaner Assy, Air
1982-10 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17700-58020 note |
Cleaner Assy, Air
1980-08 → 1981-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17700-58021 note |
Cleaner Assy, Air
1981-10 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17700-58030 note |
Cleaner Assy, Air
1980-08 → 1981-10
ended
|
B,3B BJ4# | — | |
| 17700-58031 note |
Cleaner Assy, Air
1981-10 → 1982-10
ended
|
B,3B BJ4# ARL,GEN | — | |
| 17700-58032 note |
Cleaner Assy, Air
1982-10 → 1984-10
ended
|
B,3B BJ40,42,43,45 ARL,GEN | — | |
| 17700-61023 note |
Cleaner Assy, Air
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17700-61023 note |
Cleaner Assy, Air
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17700-61023 |
Cleaner Assy, Air
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17700-61023 note |
Cleaner Assy, Air
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17700-61081 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2F FJ4# GEN | — | |
| 17700-61082 note |
Cleaner Assy, Air
1982-10 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17700-61090 note |
Cleaner Assy, Air
1981-10 → 1982-10
ended
|
2F FJ4# GEN | — | |
| 17700-61090 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2F FJ40,45 ARL | — | |
| 17700-61091 note |
Cleaner Assy, Air
1982-10 → —
|
2F FJ4# GEN | — | |
| 17700-61091 note |
Cleaner Assy, Air
1982-10 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17700-61131 note |
Cleaner Assy, Air
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17700-68040 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2H HJ47 RHD GEN | — | |
| 17700-68041 note |
Cleaner Assy, Air
1982-10 → 1985-06
ended
|
2H HJ47 RHD GEN | — | |
| 17700-68050 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2H HJ47 LHD | — | |
| 17700-68051 note |
Cleaner Assy, Air
1982-10 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 17700-68060 note |
Cleaner Assy, Air
1980-08 → 1985-06
ended
|
2H HJ47 RHD GEN | — | |
| 17700-68070 note |
Cleaner Assy, Air
1980-08 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 17700-68080 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2H HJ47 RHD | — | |
| 17700-68081 note |
Cleaner Assy, Air
1982-10 → 1985-06
ended
|
2H HJ47 RHD | — | |
| 17700-68090 note |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2H HJ47 LHD | — | |
| 17700-68091 note |
Cleaner Assy, Air
1982-10 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 17700-68170 note |
Cleaner Assy, Air
1984-07 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1986-04
ended
|
2F FJ4# ARL,GEN | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1986-04
ended
|
2H HJ47 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1981-10 → 1984-10
ended
|
B,3B BJ4# | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1981-10
ended
|
B,3B BJ4# | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-47021 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1981-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17705-56071 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1981-10
ended
|
B,3B BJ4# | — | |
| 17705-56290 note |
Cap Sub-assy, Air Cleaner
1981-10 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17705-58060 note |
Cap Sub-assy, Air Cleaner
1981-10 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17705-61011 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17705-61023 note |
Cap Sub-assy, Air Cleaner
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17705-61023 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1986-04
ended
|
2F FJ40 ARL | — | |
| 17705-61023 |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17705-61023 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17705-61060 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-10
ended
|
2F FJ40,45 ARL | — | |
| 17705-61060 note |
Cap Sub-assy, Air Cleaner
1981-10 → —
|
2F FJ4# GEN | — | |
| 17705-61070 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17705-68040 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17705-68050 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17705-68060 note |
Cap Sub-assy, Air Cleaner
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-61021 note |
Inlet, Air Cleaner, NO.1
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17751-61021 |
Inlet, Air Cleaner, NO.1
1980-08 → 1983-09
ended
|
2F FJ40,45 EUR | — | |
| 17751-61021 note |
Inlet, Air Cleaner, NO.1
1980-08 → 1981-10
ended
|
2F FJ40 ARL | — | |
| 17751-61040 |
Inlet, Air Cleaner, NO.1
1983-09 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17751-68010 |
Inlet, Air Cleaner, NO.1
1980-08 → 1981-10
ended
|
2H HJ47 | — | |
| 17751-68010 |
Inlet, Air Cleaner, NO.1
1981-10 → 1985-06
ended
|
2H HJ47 GEN | — | |
| 17751-68020 |
Inlet, Air Cleaner, NO.1
1981-10 → 1984-10
ended
|
2H HJ47 ARL | — | |
| 17765 — Stay, Air Cleaner, NO.1 | ||||
| 17754-68010 |
Stay, Air Cleaner, NO.1
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-47030 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17801-61010 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17801-61010 note |
Element Sub-assy, Air Cleaner Filter
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17801-61010 |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17801-61010 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17801-61020 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
2F FJ40,45 ARL | — | |
| 17801-61020 note |
Element Sub-assy, Air Cleaner Filter
1981-10 → 1982-10
ended
|
2F FJ4# GEN | — | |
| 17801-66020 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
B,3B BJ4# | — | |
| 17801-66020 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
2H HJ47 | — | |
| 17801-66020 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
2F FJ4# GEN | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1985-06
ended
|
2F FJ4# GEN | — | |
| 17801-68020 note |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17801-68020 note |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1984-10
ended
|
2F FJ40,45 ARL | — | |
| 17801-68020 note |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1985-06
ended
|
B,3B BJ4# | — | |
| 17801-68020 note |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1985-06
ended
|
2H HJ47 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-56020 note |
Gasket, Filter Element
1980-08 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17841-60011 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-61011 note |
Gasket, Filter Element
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17841-61011 note |
Gasket, Filter Element
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17841-61011 |
Gasket, Filter Element
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17841-61011 note |
Gasket, Filter Element
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17841-68010 note |
Gasket, Filter Element
1981-10 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-68010 note |
Gasket, Filter Element
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17841-68010 note |
Gasket, Filter Element
1980-08 → 1985-06
ended
|
2F FJ40,45 ARL | — | |
| 17841-68010 note |
Gasket, Filter Element
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17841-68010 note |
Gasket, Filter Element
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 17841-68030 note |
Gasket, Filter Element
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17841-68030 note |
Gasket, Filter Element
1980-08 → 1985-06
ended
|
2F FJ40,45 ARL | — | |
| 17841-68030 note |
Gasket, Filter Element
1981-10 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-68040 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2H HJ47 | — | |
| 17841-68040 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-68050 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-68050 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2H HJ47 | — | |
| 17841-68060 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2F FJ4# GEN | — | |
| 17841-68060 note |
Gasket, Filter Element
1980-08 → 1986-04
ended
|
2H HJ47 | — | |
| 90430-10164 note |
Gasket, Filter Element
1980-08 → 1984-10
ended
|
B,3B BJ4# EUR,GEN | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-56040 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
B,3B BJ4# | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1986-04
ended
|
2F FJ4# ARL,GEN | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1986-04
ended
|
2H HJ47 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1984-10
ended
|
B,3B BJ4# | — | |
| 17845-61011 |
Gasket, Air Cleaner Cap
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
2F FJ4# ARL,GEN | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
2H HJ47 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-56030 |
Hose, Air Cleaner, NO.1
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 17881-61010 note |
Hose, Air Cleaner, NO.1
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17881-61010 note |
Hose, Air Cleaner, NO.1
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17881-61010 note |
Hose, Air Cleaner, NO.1
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17881-61010 |
Hose, Air Cleaner, NO.1
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17881-68020 |
Hose, Air Cleaner, NO.1
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 96111-10650 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 96111-10650 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 96111-10650 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 96111-10670 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17881-61020 note |
Hose, Air Cleaner, NO.2
1981-10 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 17881-61020 note |
Hose, Air Cleaner, NO.2
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 17882-56020 |
Hose, Air Cleaner, NO.2
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 17882-61011 note |
Hose, Air Cleaner, NO.2
1980-08 → 1981-10
ended
|
2F FJ40 ARL | — | |
| 17882-61011 note |
Hose, Air Cleaner, NO.2
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 17882-61011 |
Hose, Air Cleaner, NO.2
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 17882-68010 |
Hose, Air Cleaner, NO.2
1980-08 → 1985-06
ended
|
2H HJ47 RHD | — | |
| 17882-68020 |
Hose, Air Cleaner, NO.2
1980-08 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 59131-90800 note |
Hose, Air Cleaner, NO.2
1984-07 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01007 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1981-10
ended
|
2F FJ40 ARL | — | |
| 90460-01007 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 90460-01007 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 96111-10670 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 96111-10750 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10
ended
|
B,3B BJ4# | — | |
| 96111-10750 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-07 → 1984-10
ended
|
2H HJ47 LHD | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1982-02
ended
|
2F FJ40 RHD VKC +3 | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1983-09
ended
|
2F FJ40 ARL | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-10
ended
|
2F FJ40,45 EUR | — | |
| 96111-10800 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-01 → 1984-10
ended
|
2F FJ40 ARL | — | |
| 96111-10830 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1985-06
ended
|
2H HJ47 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
