Toyota Land Cruiser

1980-08 → 1986-04 · chassis BJ4#,HJ47,FJ4# · catalogue 781210 · General

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

21 part groups · 2 illustrations

Illustrations

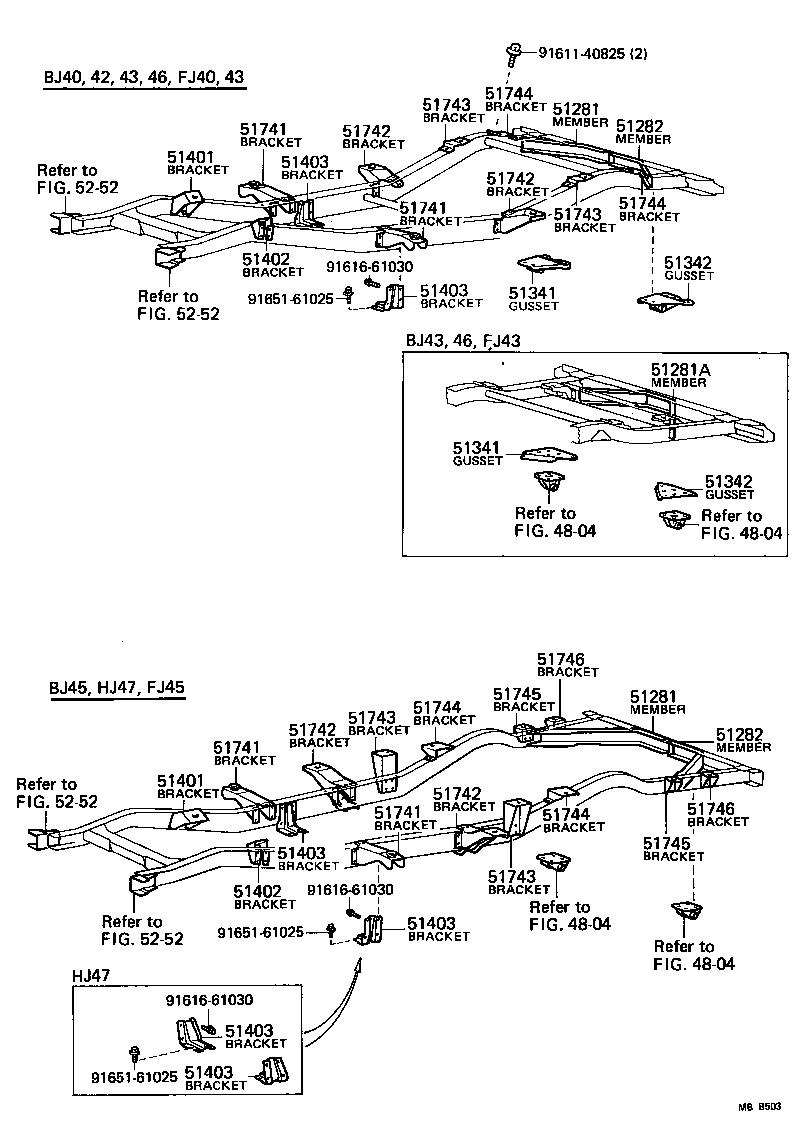

Figure MBB502 MBB502 1980-08 → — Figure MBB503 MBB503 1980-08 → —

Part groups

PNCDescription
51100 Frame Assy
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51281 Member, Rear Diagonal, RH
51281A Member, Rear Diagonal
51282 Member, Rear Diagonal, LH
51341 Gusset, Frame NO.4 Crossmember, RH
51342 Gusset, Frame NO.4 Crossmember, LH
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51403 Bracket Sub-assy, Engine Rear Mounting
51431 Member, Engine Rear Mounting
51609 Crossmember Sub-assy, Rear Shock Absorber Support
51741 Bracket, Rear Body Mounting, NO.1
51742 Bracket, Body Mounting, NO.2
51743 Bracket, Body Mounting, NO.3
51744 Bracket, Body Mounting, NO.4
51745 Bracket, Body Mounting, NO.5
51746 Bracket, Body Mounting, NO.6
