Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General
Discontinued model
Data version 1990-06

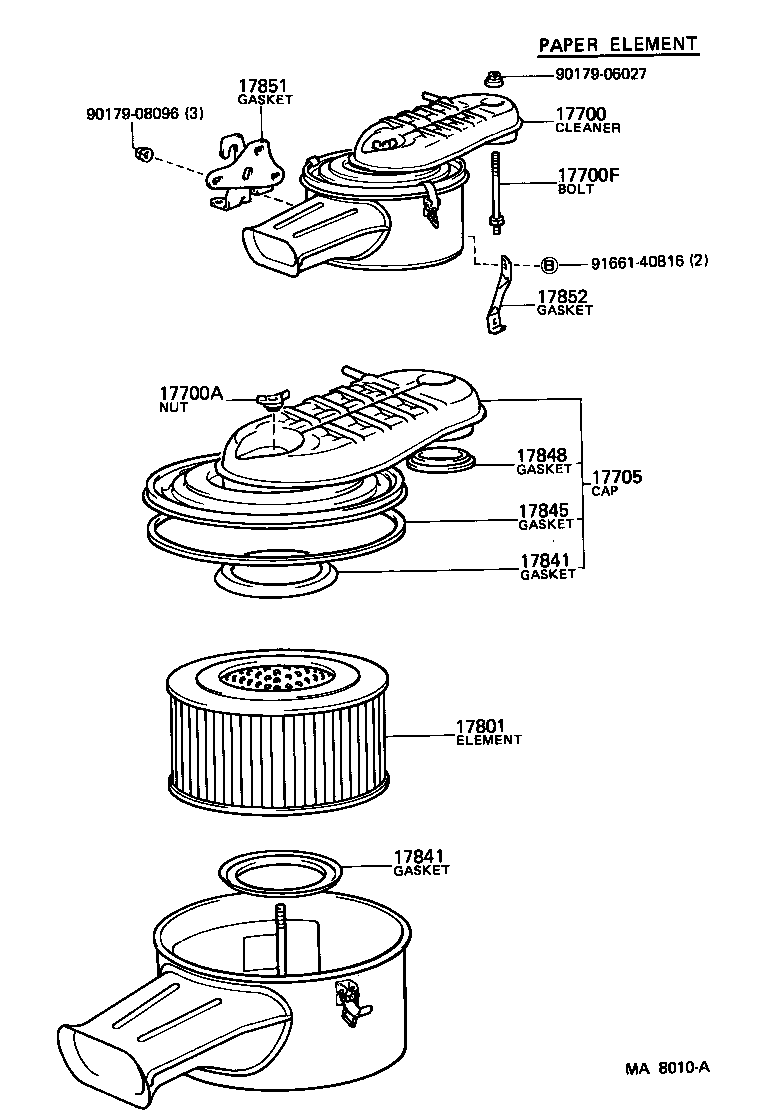

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-35180 note |
Cleaner Assy, Air
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17700-35190 |
Cleaner Assy, Air
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17700-35200 note |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
22R RJ70 | — | |
| 17700-35270 note |
Cleaner Assy, Air
1985-10 → 1986-08
ended
|
22R RJ70 | — | |
| 17700-35271 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
22R RJ70 | — | |
| 17700-54320 |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
2L LJ70 | — | |
| 17700-54321 |
Cleaner Assy, Air
1985-10 → 1986-08
ended
|
2L# LJ70 | — | |
| 17700-54400 |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
2L# LJ70 | — | |
| 17700-58160 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3B BJ70,75 GEN | — | |
| 17700-58170 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
13BT,3B BJ7# | — | |
| 17700-58180 note |
Cleaner Assy, Air
1984-11 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17700-58200 |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17700-58210 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17700-61150 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3F FJ7# MTM GEN | — | |
| 17700-61151 |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17700-61160 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3F FJ7# | — | |
| 17700-61160 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
2H HJ75 | — | |
| 17700-61161 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
2H HJ75 | — | |
| 17700-61161 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3F FJ7# | — | |
| 17700-61170 note |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
3F FJ7# ME | — | |
| 17700-61170 note |
Cleaner Assy, Air
1984-11 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17700-61170 note |
Cleaner Assy, Air
1984-11 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17700-61180 note |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
3F FJ7# MTM (ARL,GEN) | — | |
| 17700-61180 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
2H HJ75 ARL,GEN | — | |
| 17700-61180 note |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
3F FJ7# 5F ME | — | |
| 17700-61180 note |
Cleaner Assy, Air
1985-10 → 1986-08
ended
|
3F FJ7# MTM (ARL,GEN,ME) | — | |
| 17700-61180 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
13BT,3B BJ7# | — | |
| 17700-61181 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17700-61181 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
2H HJ75 ARL,GEN | — | |
| 17700-61181 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3F FJ7# MTM (ARL,GEN,ME) | — | |
| 17700-61190 note |
Cleaner Assy, Air
1988-08 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17700-61190 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17700-61190 note |
Cleaner Assy, Air
1984-11 → 1988-08
ended
|
2H HJ75 GEN | — | |
| 17700-61190 note |
Cleaner Assy, Air
1984-11 → 1988-08
ended
|
3B BJ70,73,75 GEN,ME | — | |
| 17700-61190 note |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
3F FJ7# 5F ME | — | |
| 17700-61190 note |
Cleaner Assy, Air
1988-08 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17700-61190 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3F FJ7# MTM (ARL,GEN) | — | |
| 17700-61200 note |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3F FJ7# GEN | — | |
| 17700-61201 note |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17700-68130 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
2H HJ75 GEN | — | |
| 17700-68131 |
Cleaner Assy, Air
1986-08 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
2H HJ75 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
3F FJ7# | — | |
| 94271-00800 note |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
2L# LJ70 | — | |
| 94271-00800 note |
Nut, Wing(FOR AIR CLEANER)
1984-11 → 1990-01
ended
|
22R RJ70 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 90116-06021 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1990-01
ended
|
22R RJ70 | — | |
| 90116-06024 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1988-05 → 1990-01
ended
|
3F FJ7# ME | — | |
| 90116-06024 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1990-01
ended
|
3F FJ70 4FC GEN | — | |
| 90116-06024 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1988-05
ended
|
3F FJ7# ARL,ME,SA | — | |
| 90116-06024 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1988-05
ended
|
3F FJ7# MTM GEN | — | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1988-05 → 1990-01
ended
|
3F FJ7# ARL,SA | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1988-05 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-35060 |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17705-61080 |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17705-61090 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
3F FJ7# | — | |
| 17705-61090 |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
2H HJ75 | — | |
| 17705-61090 |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17705-61100 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17705-61100 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17705-61100 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17705-61100 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1985-10
ended
|
3F FJ7# ME | — | |
| 17705-61110 note |
Cap Sub-assy, Air Cleaner
1984-11 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-31050 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1986-08
ended
|
2L# LJ70 | — | |
| 17801-31050 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1986-08
ended
|
22R RJ70 | — | |
| 17801-37010 |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17801-54080 note |
Element Sub-assy, Air Cleaner Filter
1986-08 → 1990-01
ended
|
2L# LJ70 | — | |
| 17801-54080 note |
Element Sub-assy, Air Cleaner Filter
1986-08 → 1990-01
ended
|
22R RJ70 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1986-08 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1986-08 → 1990-01
ended
|
2H HJ75 | — | |
| 17801-61030 |
Element Sub-assy, Air Cleaner Filter
1986-08 → 1990-01
ended
|
3F FJ7# | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1988-08
ended
|
3B BJ70,73,75 GEN,ME | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1988-08
ended
|
2H HJ75 GEN | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1985-10
ended
|
3F FJ7# ME | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1988-08 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17801-68010 note |
Element Sub-assy, Air Cleaner Filter
1988-08 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1986-08
ended
|
2H HJ75 | — | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1986-08
ended
|
3F FJ7# | — | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1984-11 → 1986-08
ended
|
13BT,3B BJ7# | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-41050 |
Gasket, Filter Element
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17841-60011 |
Gasket, Filter Element
1984-11 → 1987-08
ended
|
3F FJ7# MTM GEN | — | |
| 17841-68010 |
Gasket, Filter Element
1984-11 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17841-68010 |
Gasket, Filter Element
1984-11 → 1990-01
ended
|
2H HJ75 | — | |
| 17841-68010 note |
Gasket, Filter Element
1984-11 → 1990-01
ended
|
3F FJ7# | — | |
| 17841-68010 |
Gasket, Filter Element
1987-08 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17841-68040 note |
Gasket, Filter Element
1984-11 → 1988-08
ended
|
3B BJ70,73,75 GEN,ME | — | |
| 17841-68040 note |
Gasket, Filter Element
1988-08 → 1990-01
ended
|
3B BJ70,73,75 GEN | — | |
| 17841-68040 note |
Gasket, Filter Element
1988-08 → 1990-01
ended
|
2H HJ75 GEN | — | |
| 17841-68040 note |
Gasket, Filter Element
1984-11 → 1990-01
ended
|
3F FJ7# GEN | — | |
| 17841-68040 note |
Gasket, Filter Element
1984-11 → 1985-10
ended
|
3F FJ7# ME | — | |
| 17841-68040 note |
Gasket, Filter Element
1984-11 → 1988-08
ended
|
2H HJ75 GEN | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 note |
Gasket, Air Cleaner Cap
1984-11 → 1990-01
ended
|
22R RJ70 LHD GEN | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1984-11 → 1990-01
ended
|
13BT,3B BJ7# | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1984-11 → 1990-01
ended
|
3F FJ7# | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1984-11 → 1990-01
ended
|
2H HJ75 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-35010 |
Gasket, Air Cleaner TO Carburetor
1984-11 → 1990-01
ended
|
22R RJ70 | — | |
| 17848-61020 |
Gasket, Air Cleaner TO Carburetor
1984-11 → 1990-01
ended
|
3F FJ7# | — | |
| 17851 — Bracket, Air Cleaner Support | ||||
| 17850-61020 |
Bracket, Air Cleaner Support
1984-11 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
| 17852 — Bracket, Air Creaner Support, NO.2 | ||||
| 17852-61030 |
Bracket, Air Creaner Support, NO.2
1984-11 → 1990-01
ended
|
3F FJ7# MTM GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
