Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

40 part groups · 8 illustrations

Illustrations

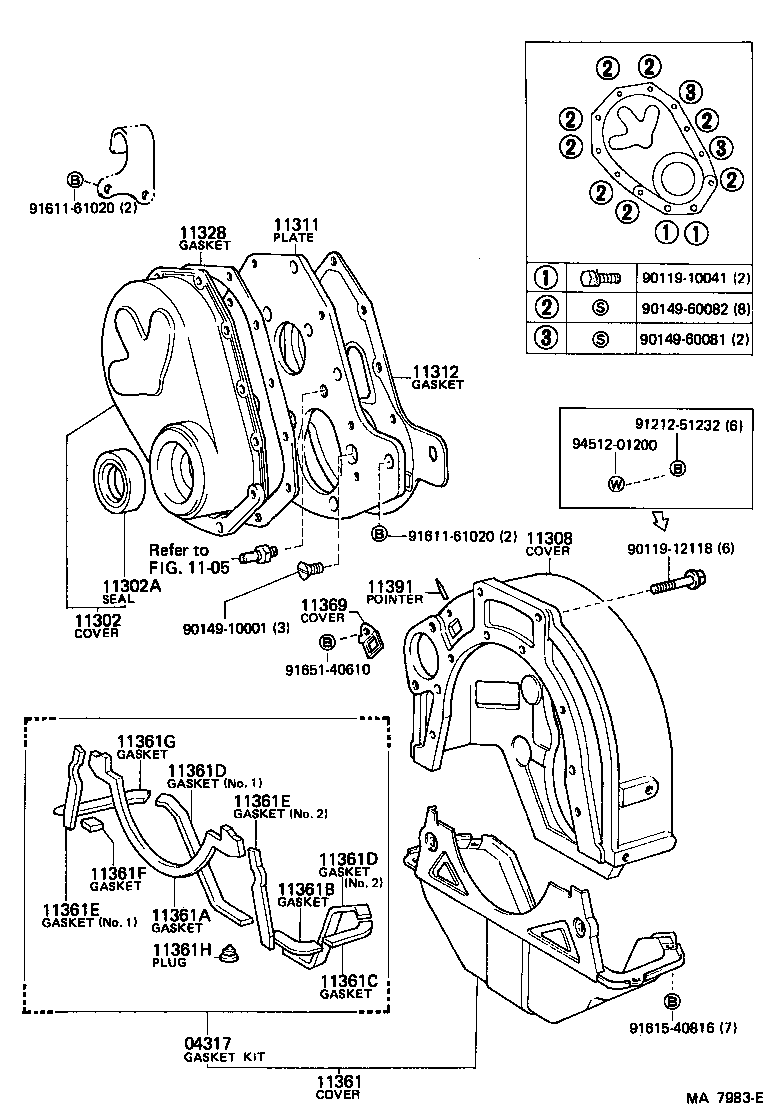

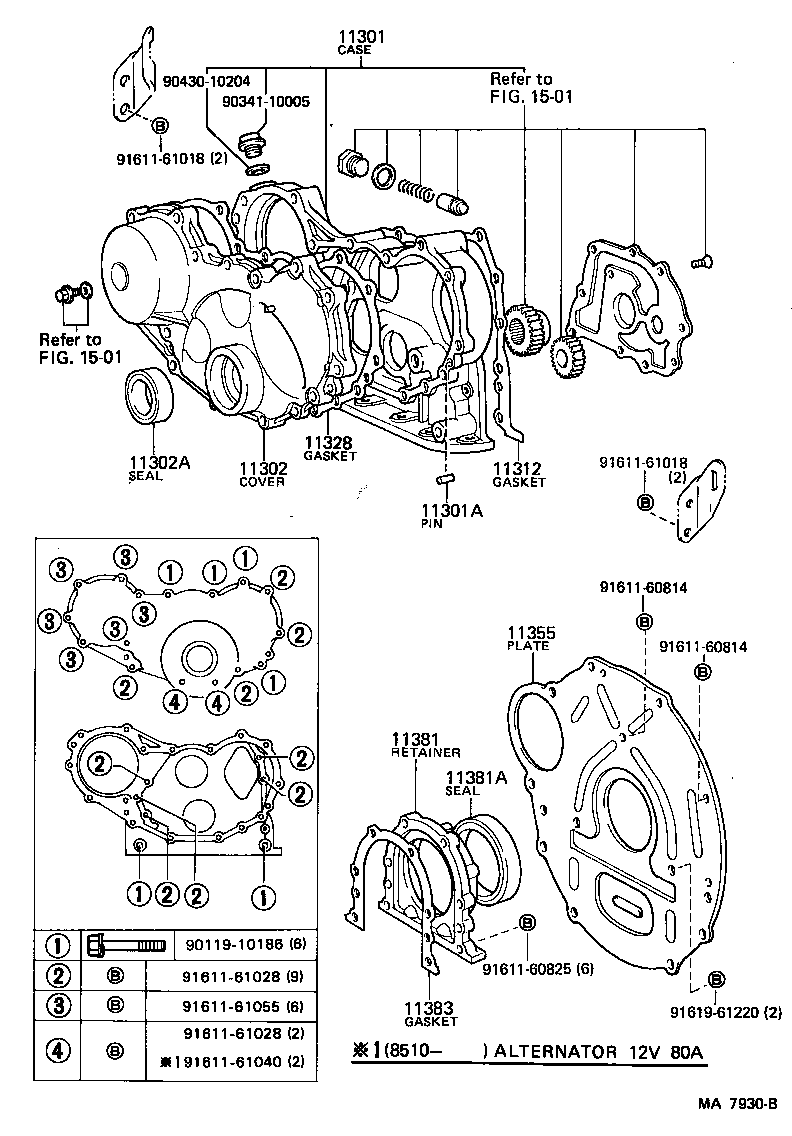

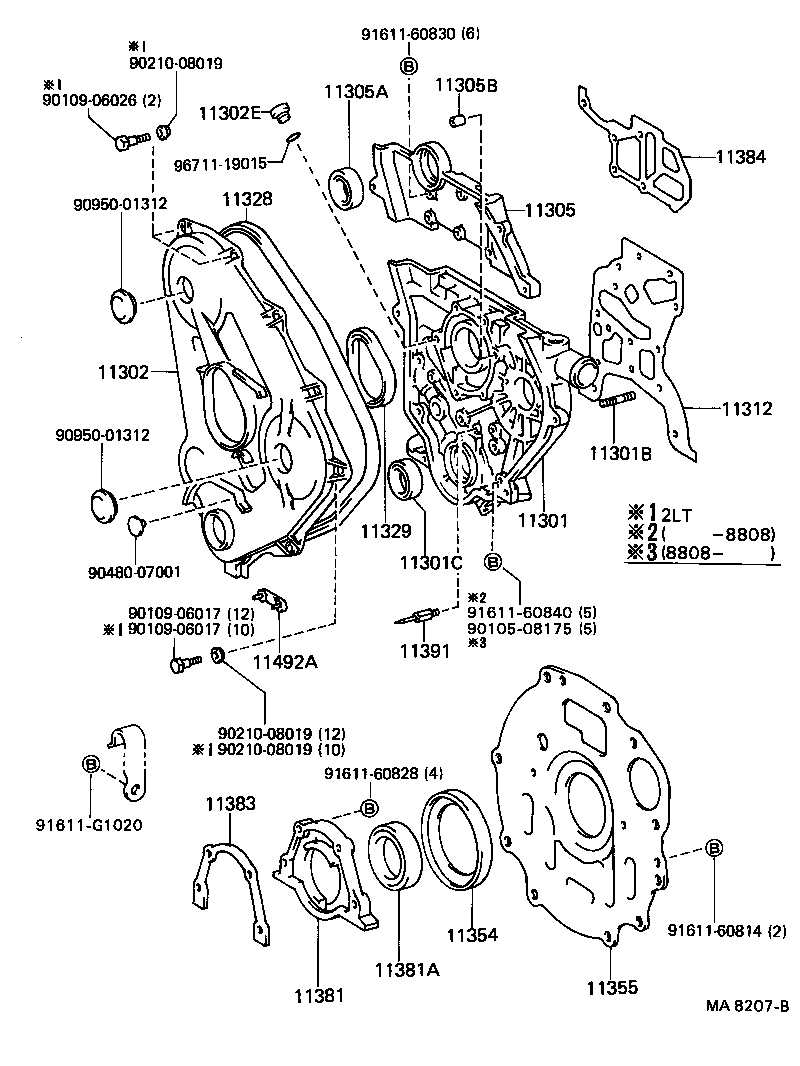

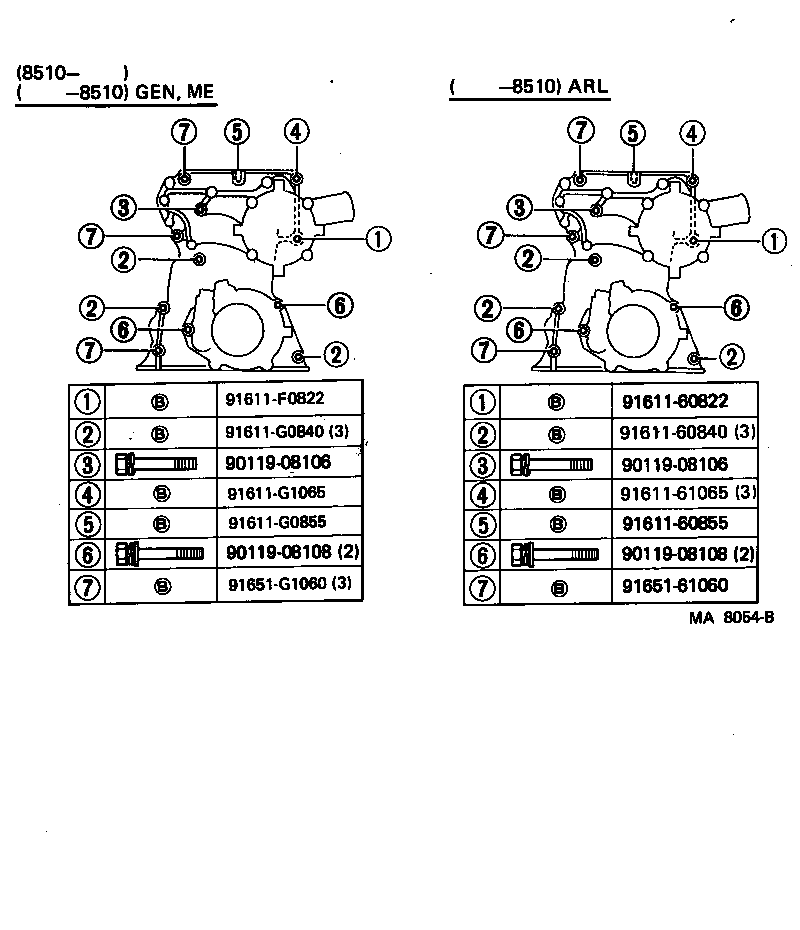

Figure MA8693A MA8693A 1984-11 → — Figure MAB254 MAB254 1984-11 → — Figure MA8694 MA8694 1985-10 → — Figure MA7983E MA7983E 1984-11 → — Figure MA7930B MA7930B 1984-11 → — Figure MA8207B MA8207B 1984-11 → — Figure MA7778A MA7778A 1984-11 → — Figure MA8054B MA8054B 1984-11 → —

Part groups

PNCDescription
04317 Gasket Kit, Clutch Under Cover
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302C Spacer(FOR TIMING GEAR COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11305 Retainer, Oil Seal, NO.2
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11308 Cover Sub-assy, Flywheel Housing
11311 Plate, Front End
11312 Gasket, Front End Plate
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11345 Bearing, Injection Pump Gear Thrust
11348 Spacer, Timing Gear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11361A Gasket, Clutch Under Cover, NO.1
11361B Gasket, Clutch Under Cover, NO.2
11361C Gasket, Clutch Under Cover, NO.3
11361D Gasket, Clutch Under Cover, NO.4
11361E Gasket, Clutch Under Cover, NO.5
11361F Gasket, Clutch Under Cover, NO.6
11361G Gasket, Clutch Under Cover, NO.7
11361H Plug, Hole(FOR CLUTCH UNDER COVER)
11369 Cover, Flywheel Housing Front
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11391 Pointer, Timing
11492A Plate, Water Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
