Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 5 illustrations

Illustrations

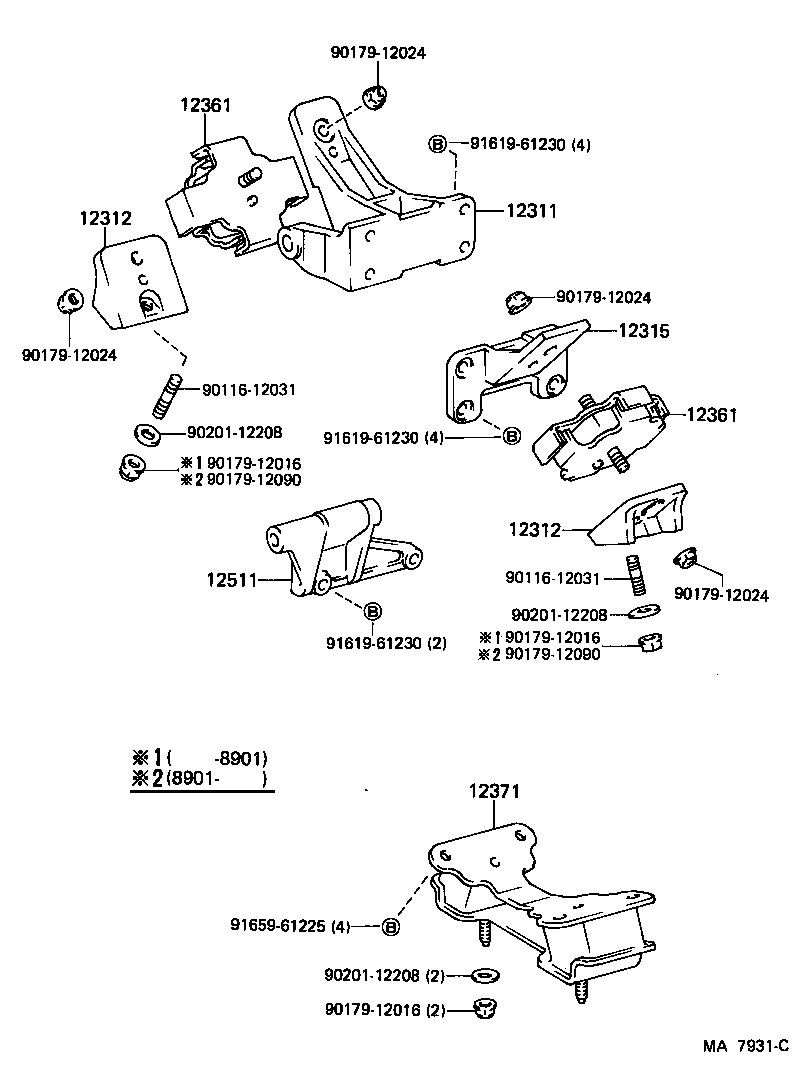

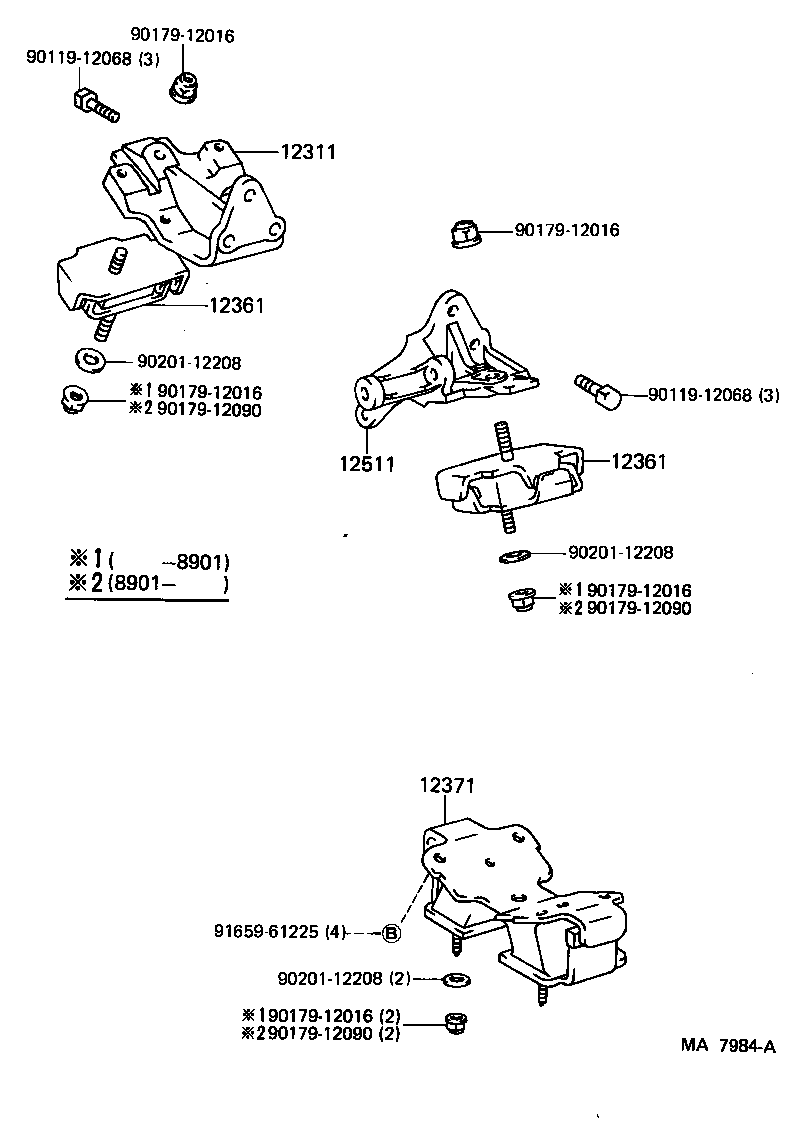

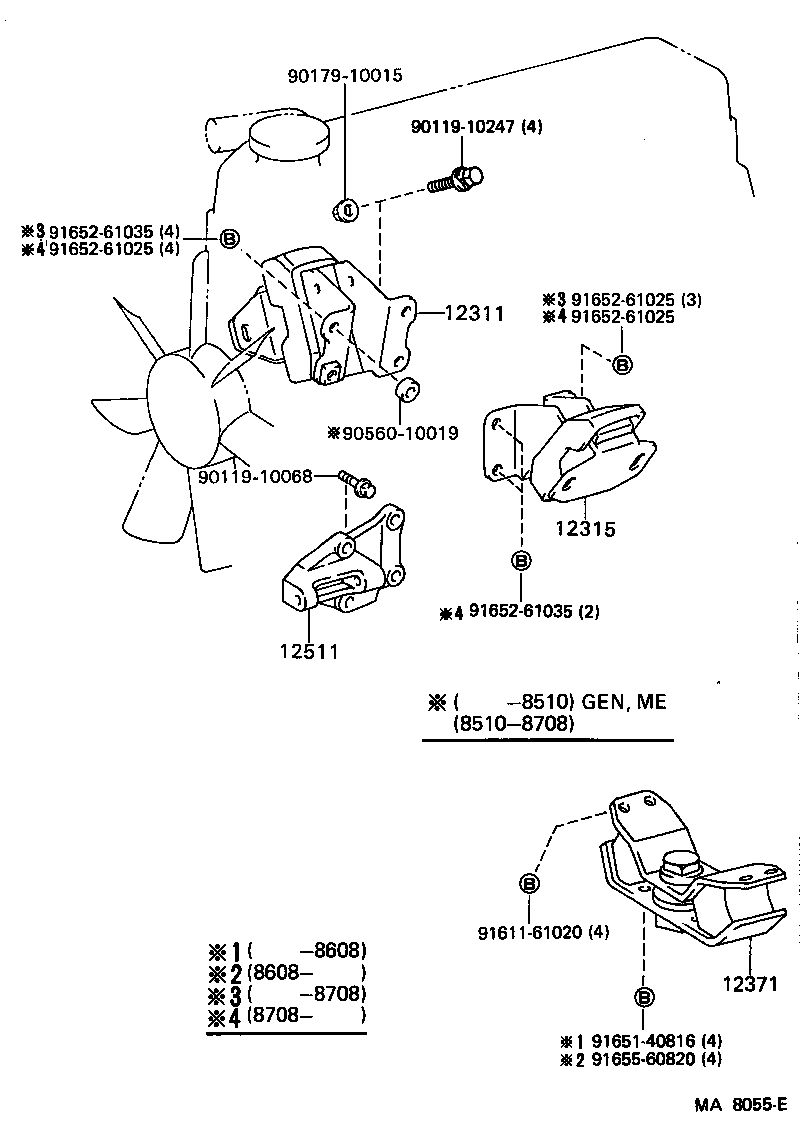

Figure MA8695E MA8695E 1984-11 → — Figure MA7984A MA7984A 1984-11 → — Figure MA7931C MA7931C 1984-11 → — Figure MA8028D MA8028D 1984-11 → — Figure MA8055E MA8055E 1984-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
