Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

34 part groups · 5 illustrations

Illustrations

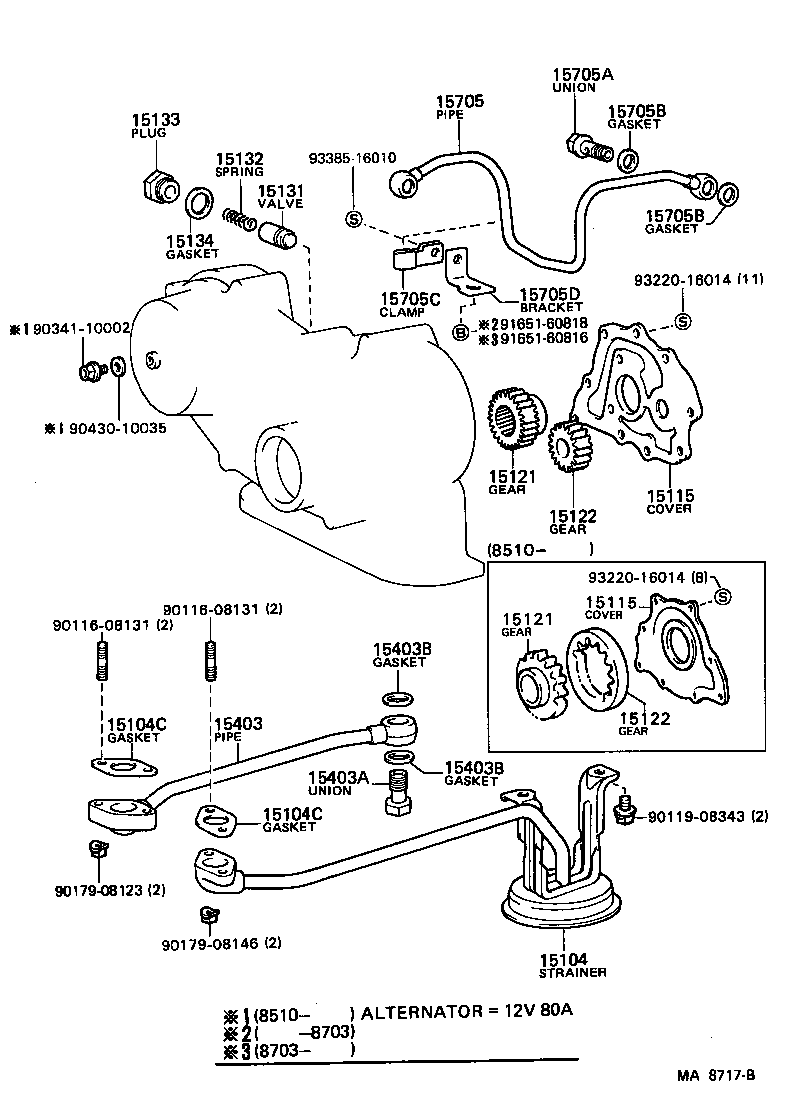

Figure MA8705B MA8705B 1984-11 → — Figure MA2324A MA2324A 1984-11 → — Figure MA8717B MA8717B 1984-11 → — Figure MA7379C MA7379C 1984-11 → — Figure MA8004C MA8004C 1984-11 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100H Bolt, Seal
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15115A Ring, O(FOR OIL PUMP COVER)
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15126 Shaft, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D Gasket(FOR OIL PUMP OUTLET PIPE)
15413F Bolt, Union(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
15705C Clamp(FOR INJECTION PUMP INLET PIPE)
15705D Bracket(FOR INJECTION PUMP INLET PIPE)
15706 Pipe Sub-assy, Oil, Injection Pump Outlet
15706A Union(FOR INJECTION PUMP OUTLET PIPE)
15706B Gasket(FOR INJECTION PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
