Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General
Discontinued model
Data version 1990-06

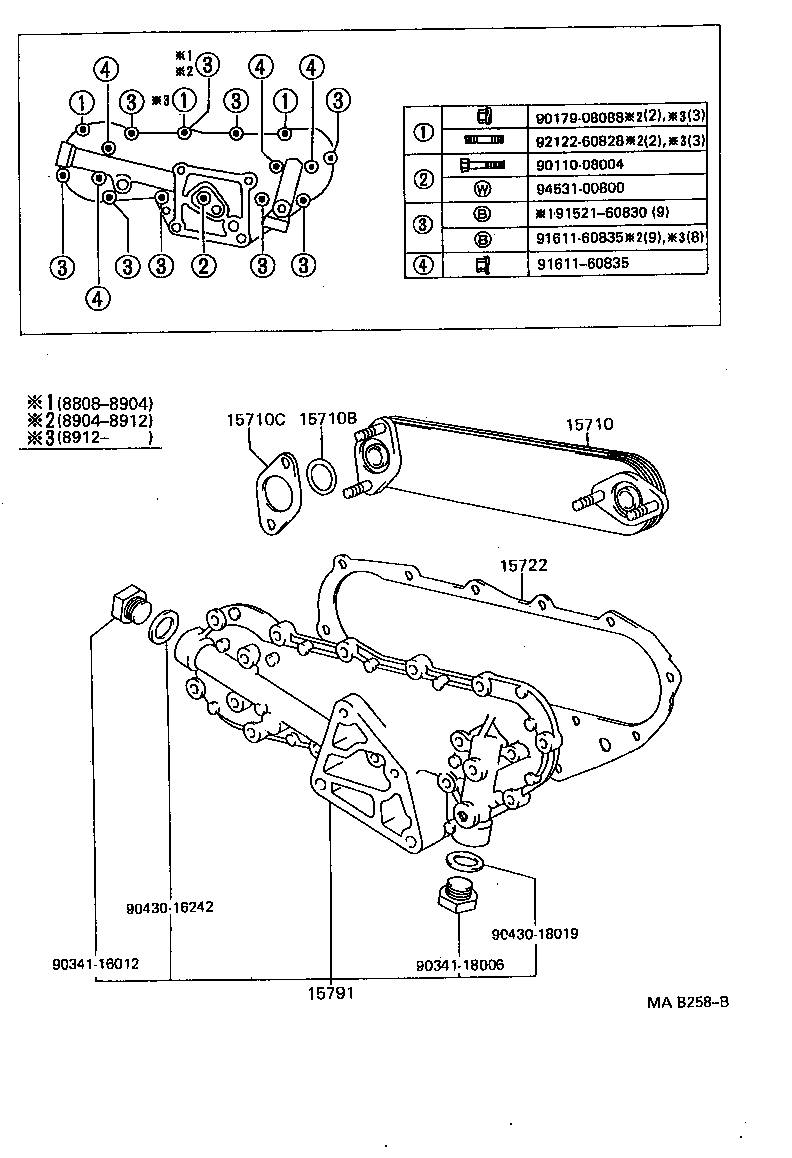

Engine Oil Cooler
11 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 15710 | Cooler Assy, Oil |
| 15710A | Bolt, Union(FOR OIL COOLER) |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15722 | Gasket, Oil Cooler |
| 15777 | Hose, Oil Cooler |
| 15777A | Hose, Oil Cooler |
| 15777B | Pipe, Oil Cooler |
| 15777C | Hose, Oil Cooler |
| 15777D | Clamp OR Clip, Hose(FOR OIL COOLER HOSE) |
| 15791 | Case, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
