Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

52 part groups · 19 illustrations

Illustrations

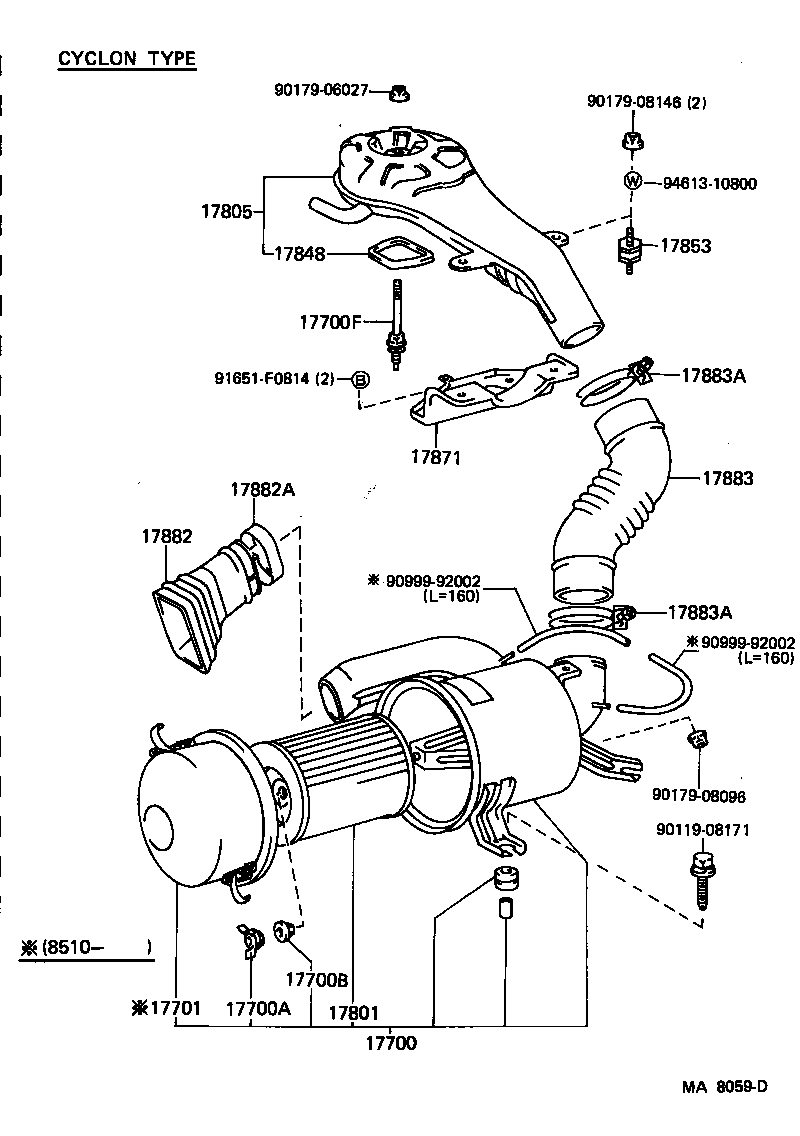

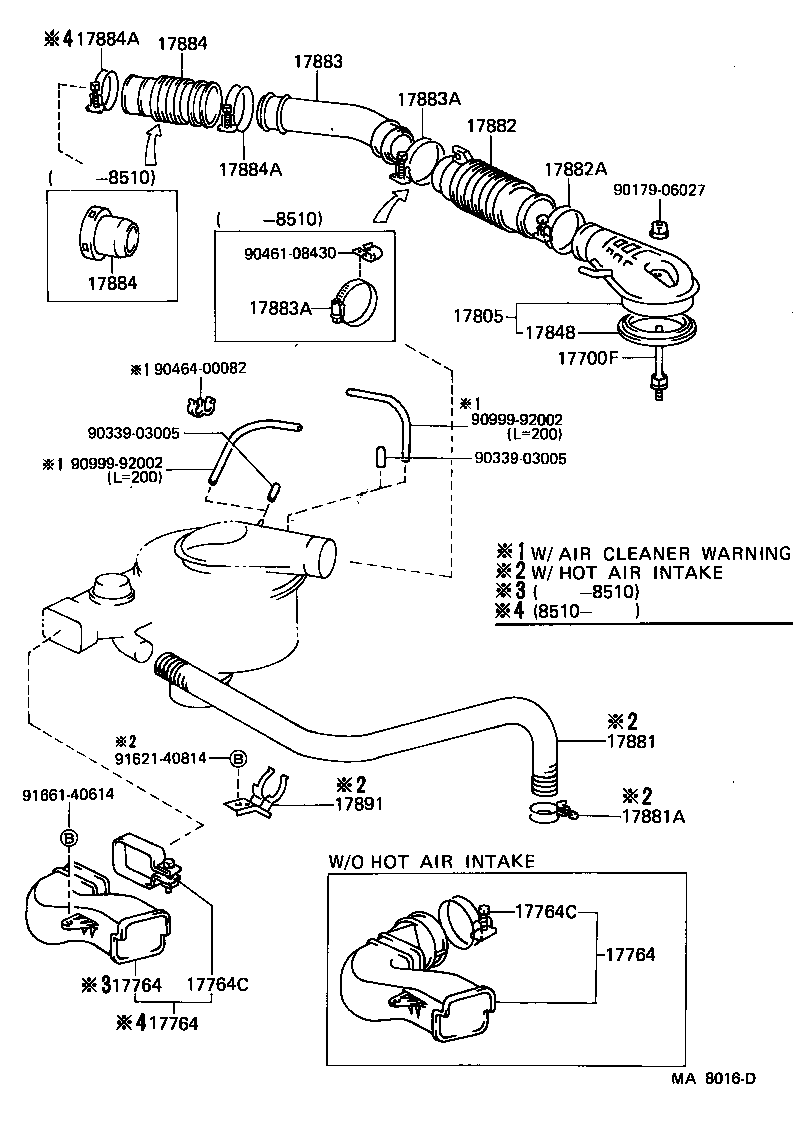

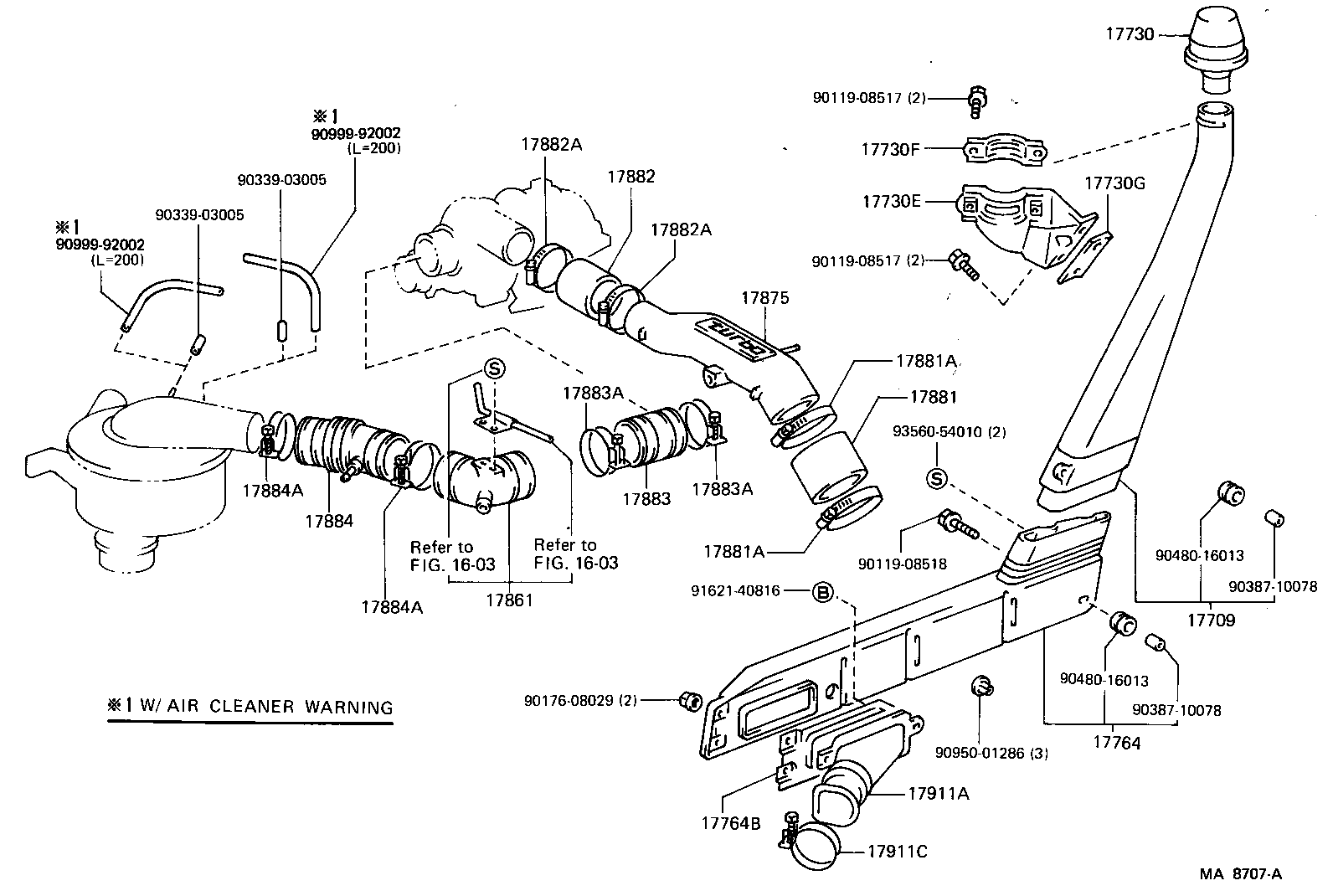

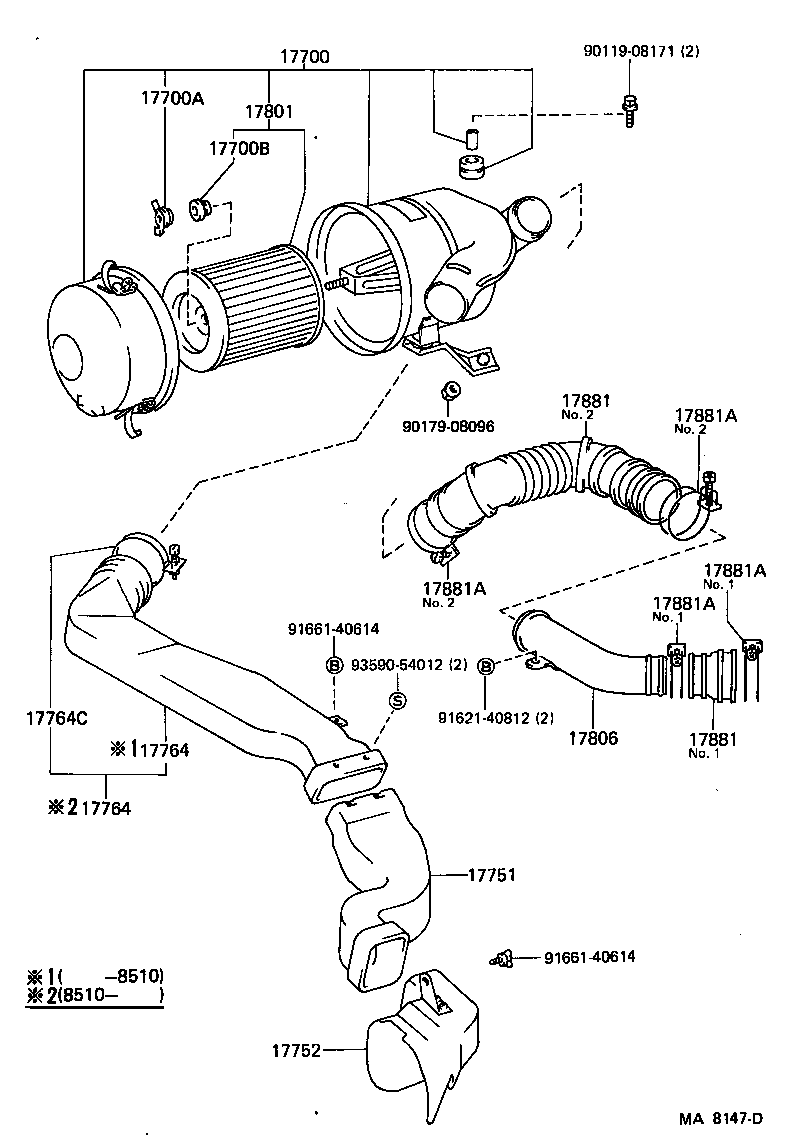

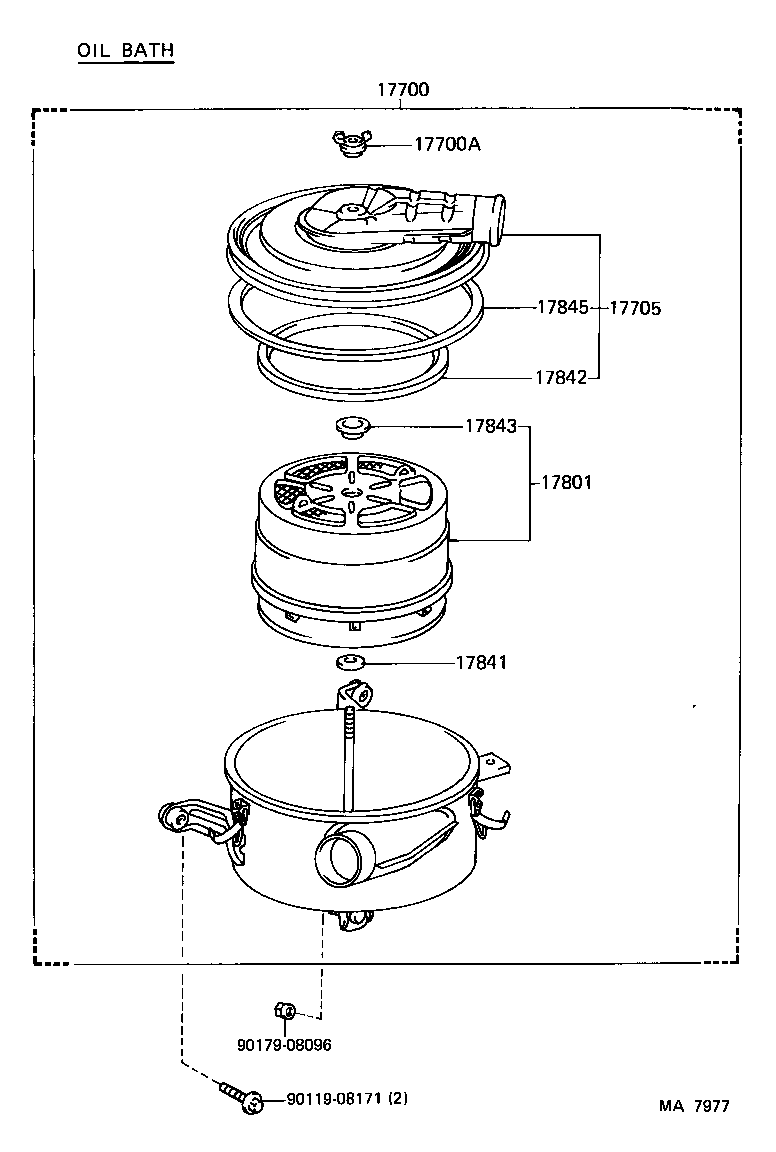

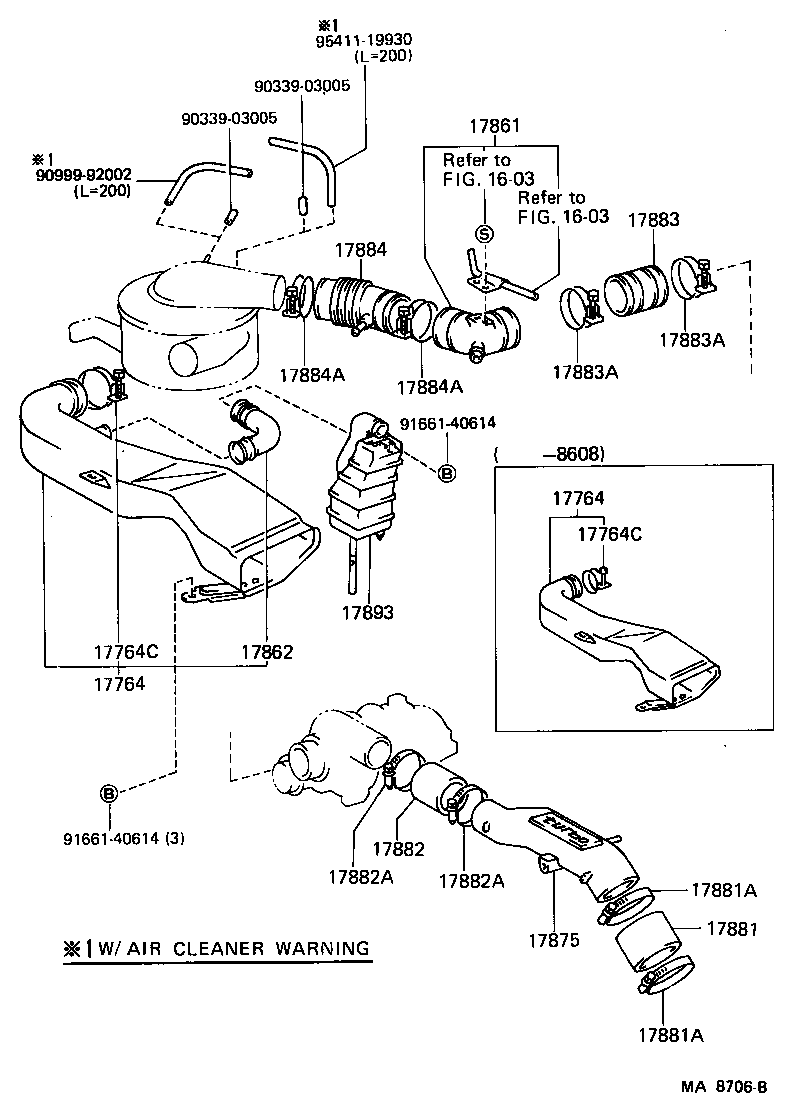

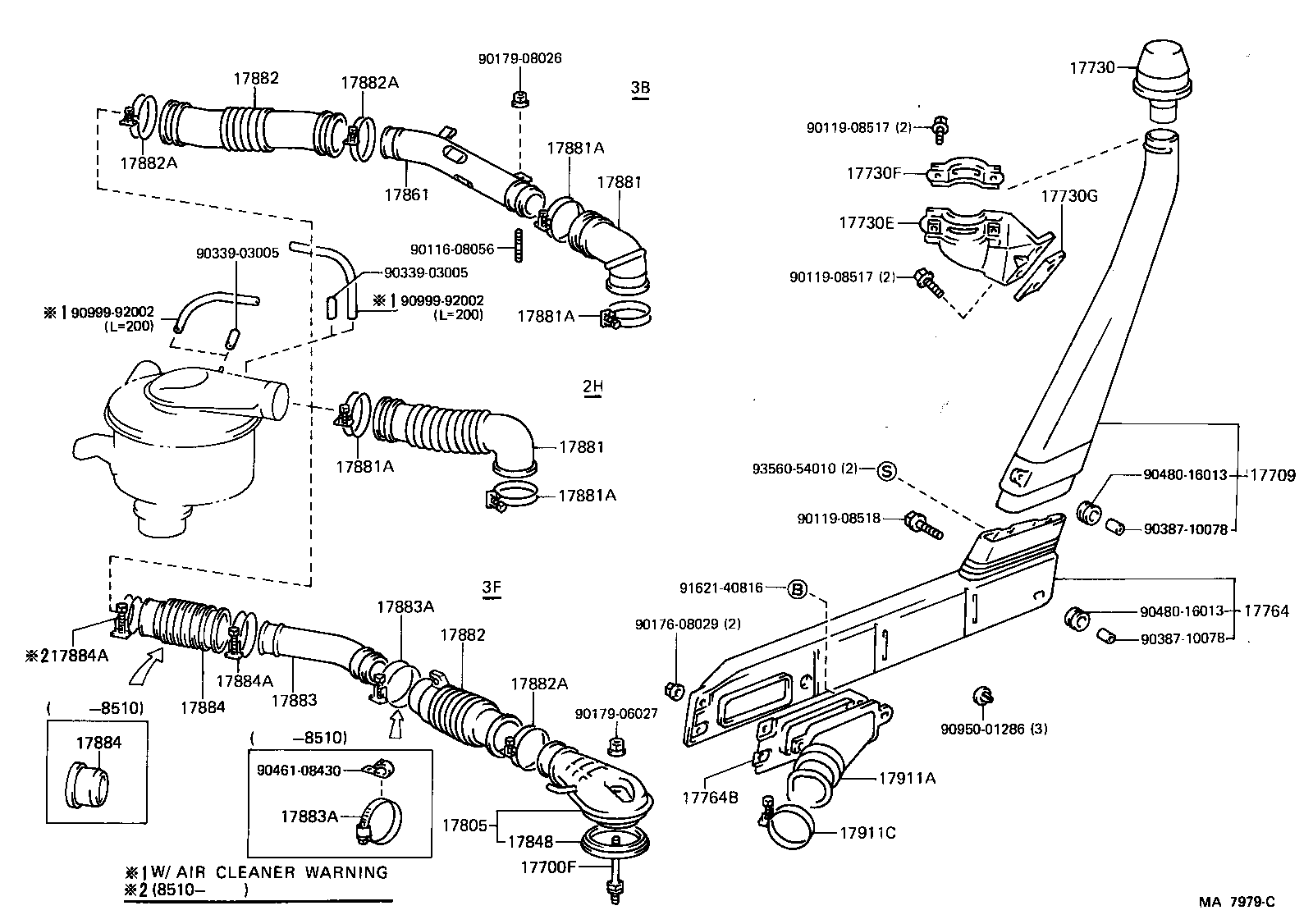

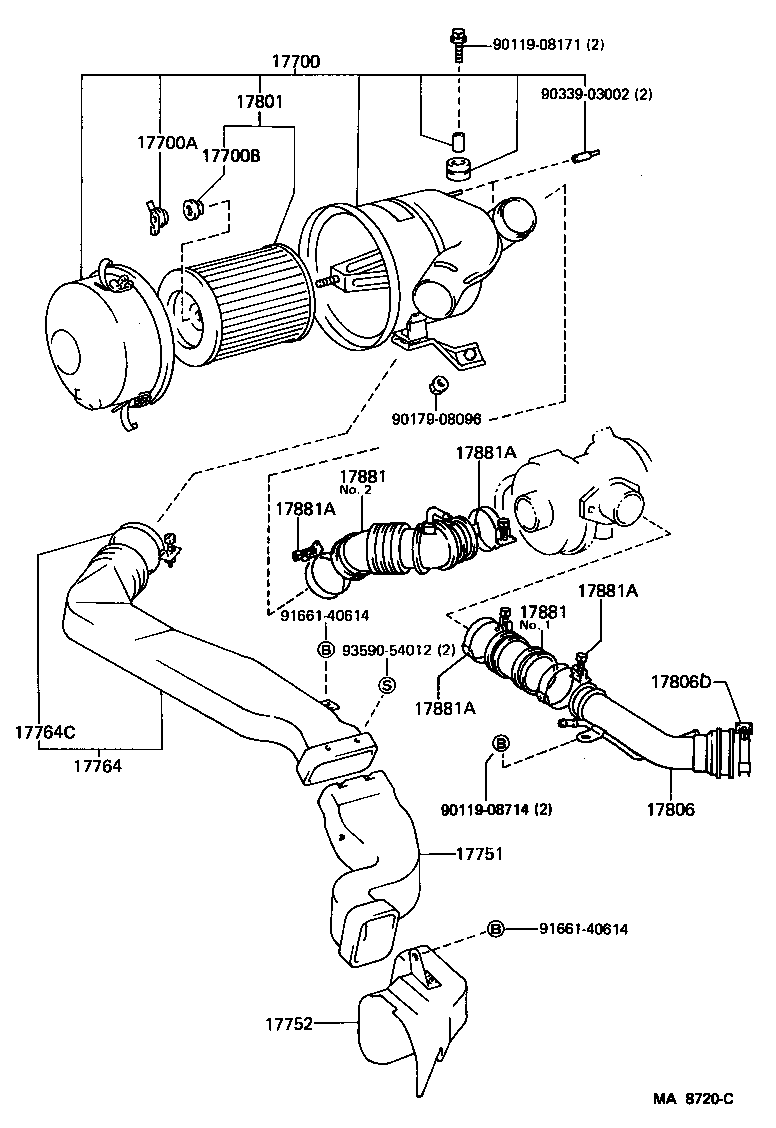

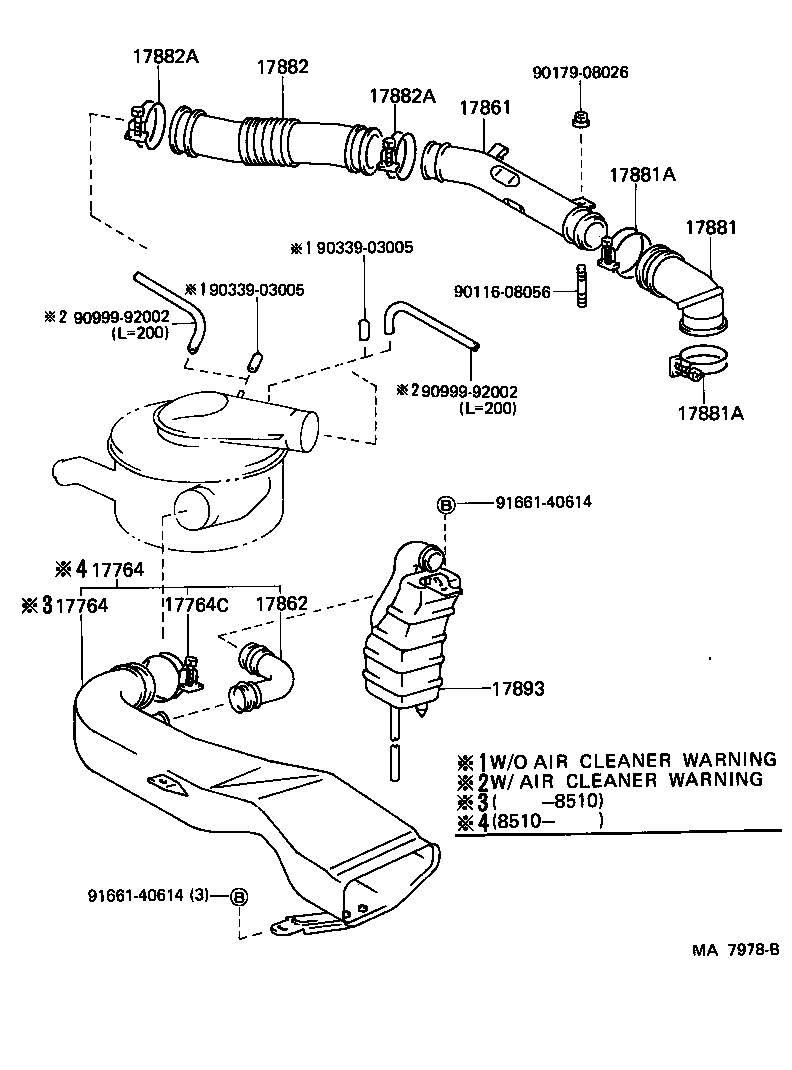

Figure MA7976A MA7976A 1984-11 → — Figure MA7977 MA7977 1984-11 → — Figure MA7978B MA7978B 1984-11 → — Figure MA8706B MA8706B 1985-10 → — Figure MA7979C MA7979C 1984-11 → — Figure MA8707A MA8707A 1985-10 → — Figure MA8010A MA8010A 1984-11 → — Figure MA7976A MA7976A 1984-11 → — Figure MA7977 MA7977 1984-11 → — Figure MA8016D MA8016D 1984-11 → — Figure MA7979C MA7979C 1984-11 → — Figure MA7976A MA7976A 1984-11 → — Figure MA7977 MA7977 1984-11 → — Figure MA8037B MA8037B 1984-11 → — Figure MA7979C MA7979C 1984-11 → — Figure MA8147D MA8147D 1984-11 → — Figure MA8720C MA8720C 1985-10 → — Figure MA8058A MA8058A 1984-11 → — Figure MA8059D MA8059D 1984-11 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700T Bolt, Stud(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17730 Precleaner Assy, Air W/Hose
17730E Bracket, Precleaner, NO.1
17730F Bracket, Precleaner, NO.2
17730G Pad, Precleaner
17749 Support, Thermostat Valve
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17764 Duct, Air Cleaner
17764B Plate, Air Cleaner Seald
17764C Clamp, Hose(FOR AIR CLEANER DUCT)
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17841 Gasket, Filter Element
17842 Gasket, Filter Element, NO.2
17843 Gasket, Filter Element, NO.3
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17862 Connector, Intake Air, NO.2
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17891 Clamp(FOR HOT AIR HOSE)
17893 Resonator, Intake Air
17911A Hose, Cool Air Intake, NO.1
17911C Clamp, Cool Air Intake Duct, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
