Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

18 part groups · 2 illustrations

Illustrations

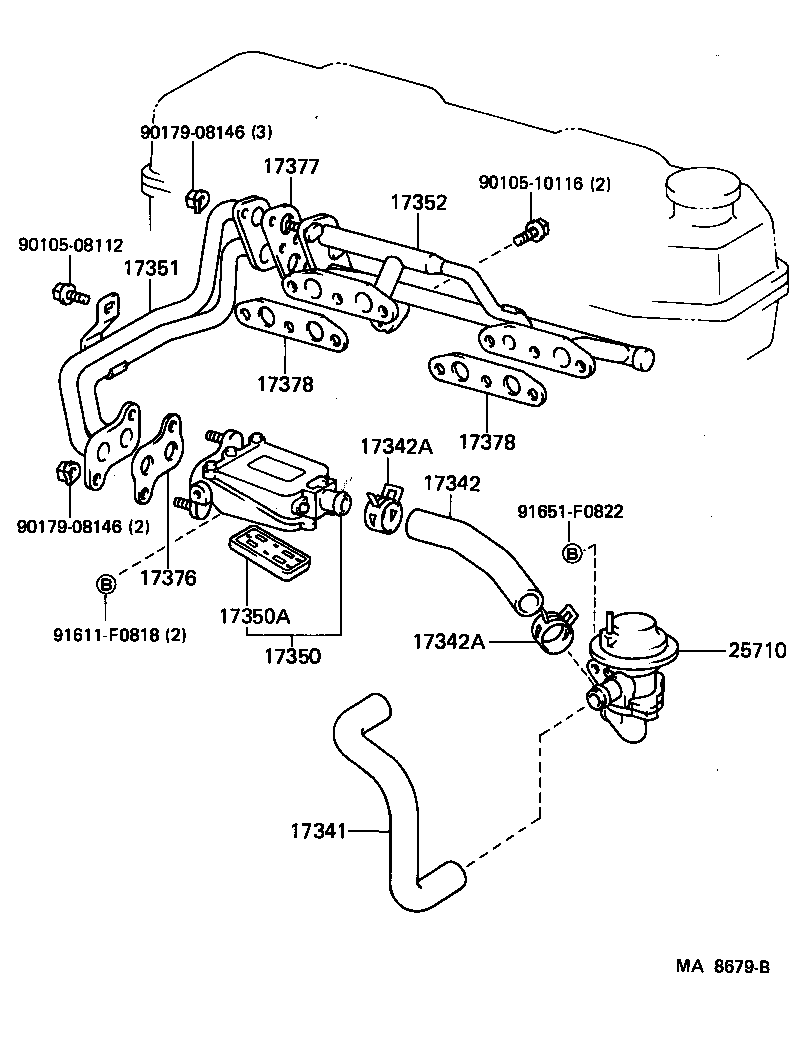

Figure MA8062A MA8062A 1984-11 → 1985-10 Figure MA8679B MA8679B 1985-10 → —

Part groups

PNCDescription
17301B Silencer Sub-assy, Air Suction
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17350 Valve Assy, Reed
17350A Valve Sub-assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17361 Tube, Air
17367 Gasket, Air Tube
17376 Gasket, Air Tube, NO.1
17377 Gasket, Air Tube, NO.2
17378 Gasket Air Tube, NO.3
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
25710 Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
