Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 15 illustrations

Illustrations

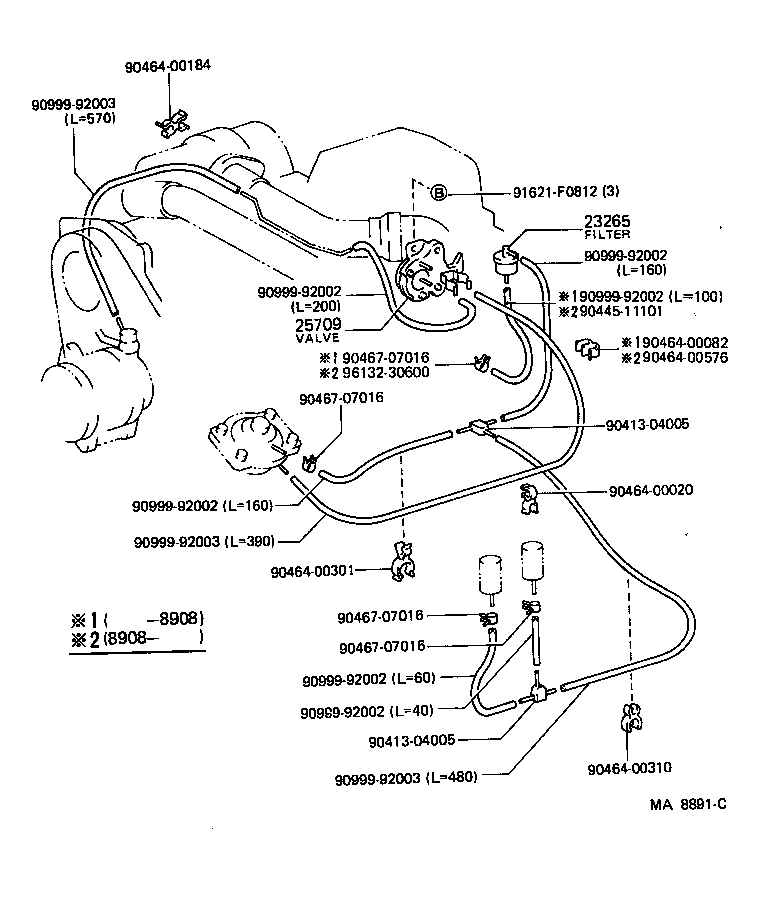

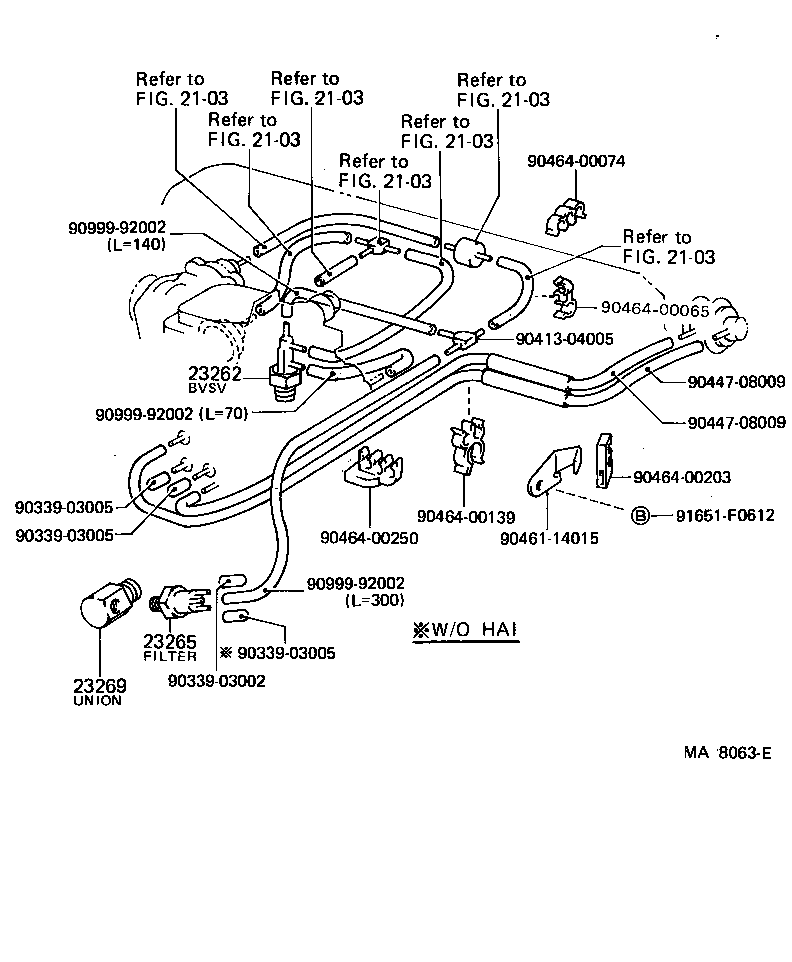

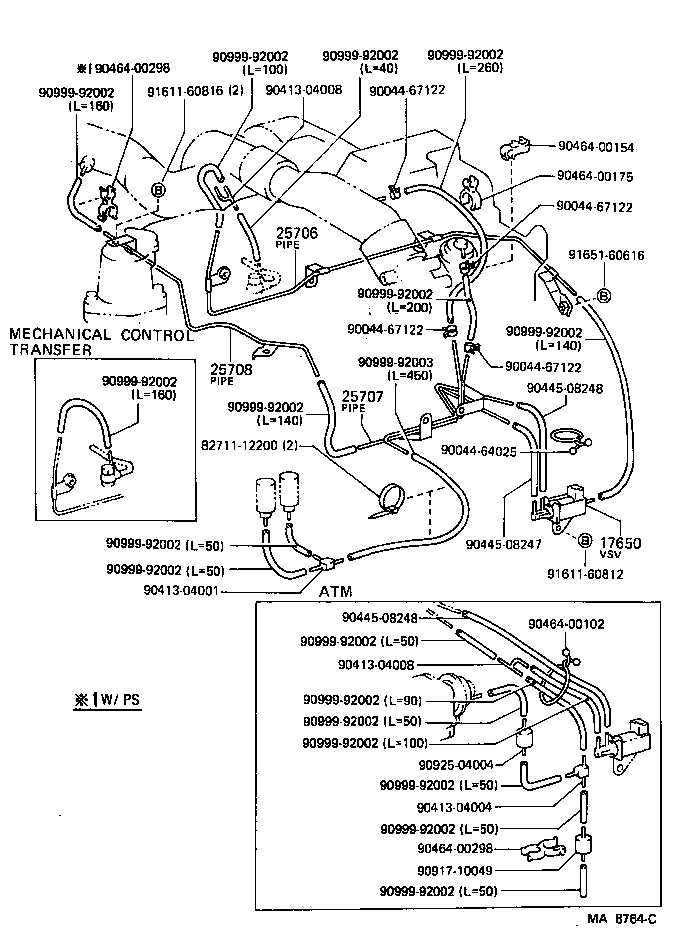

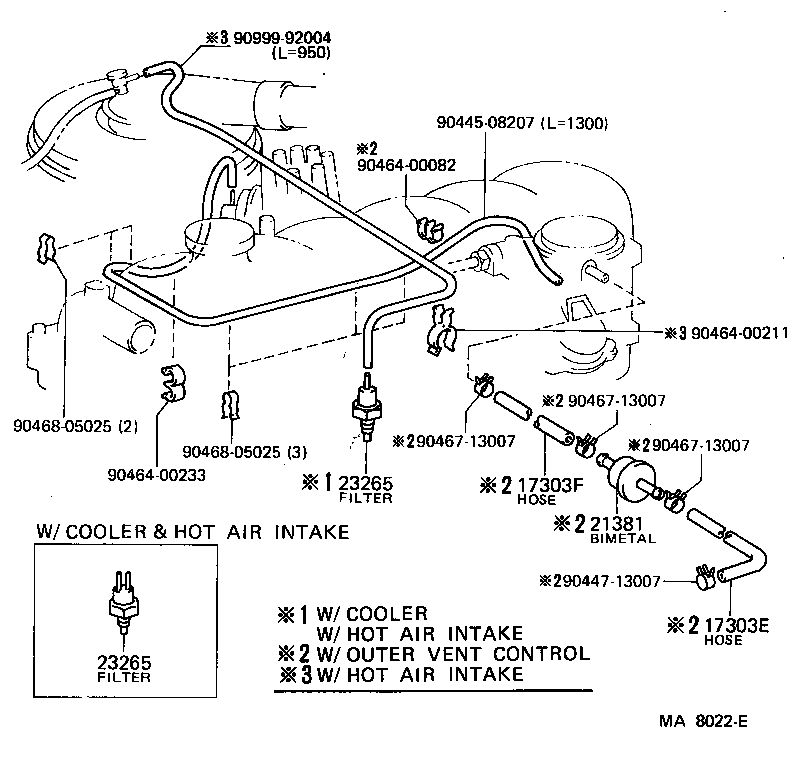

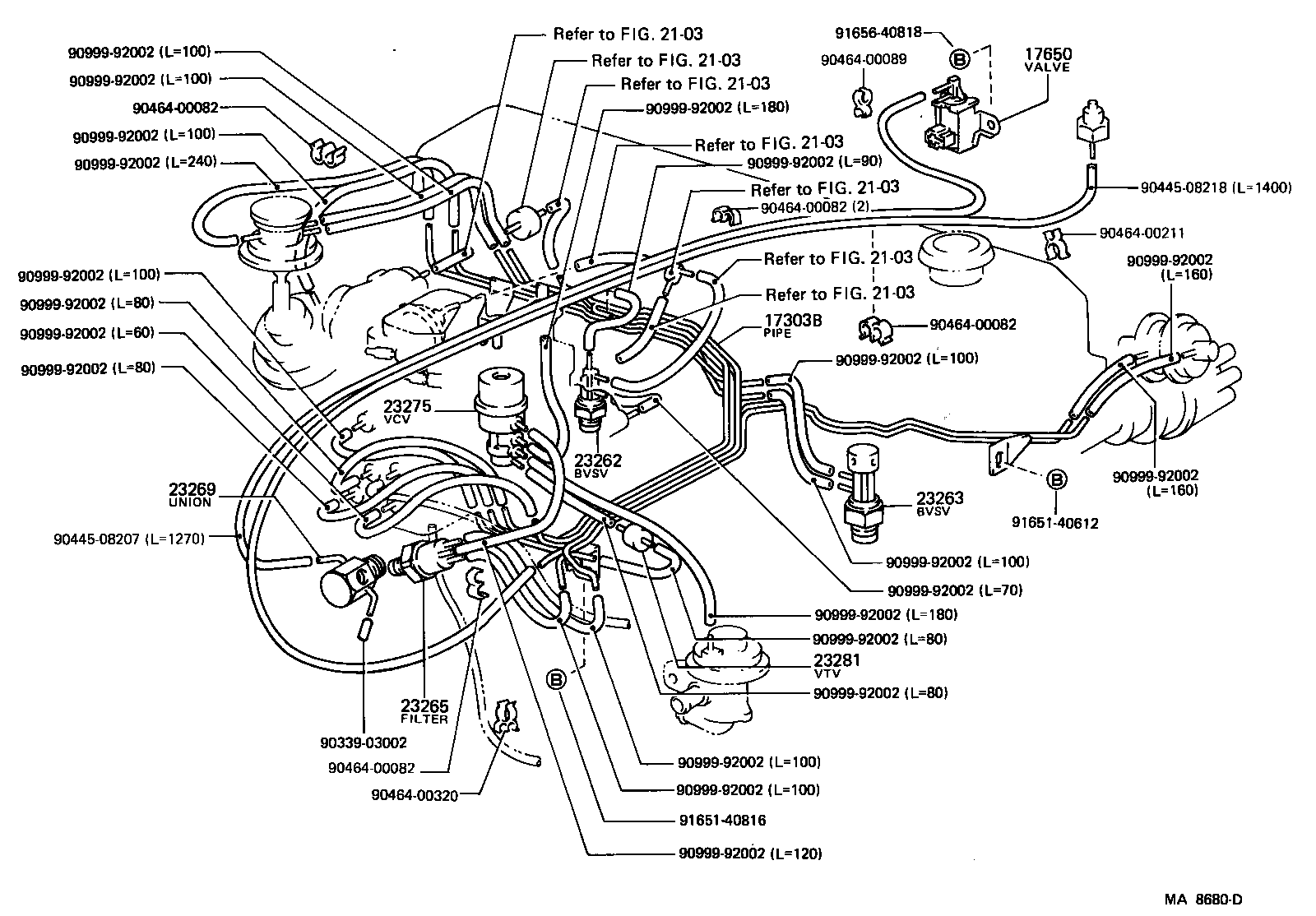

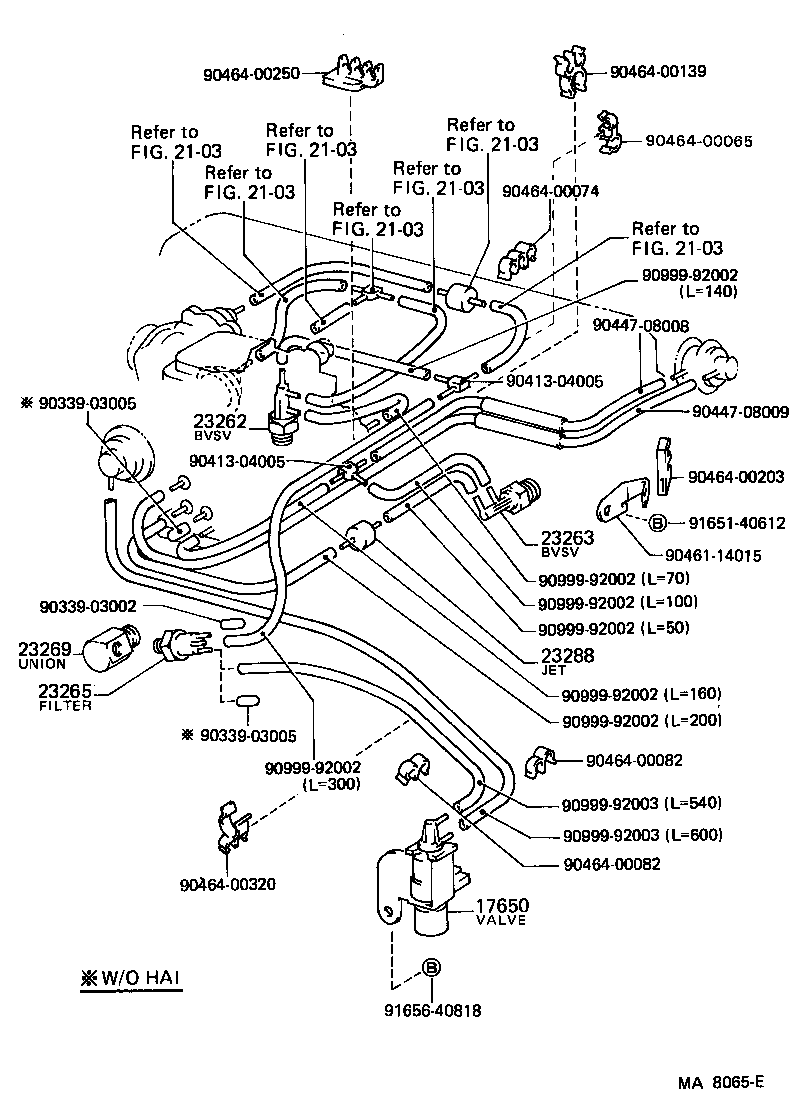

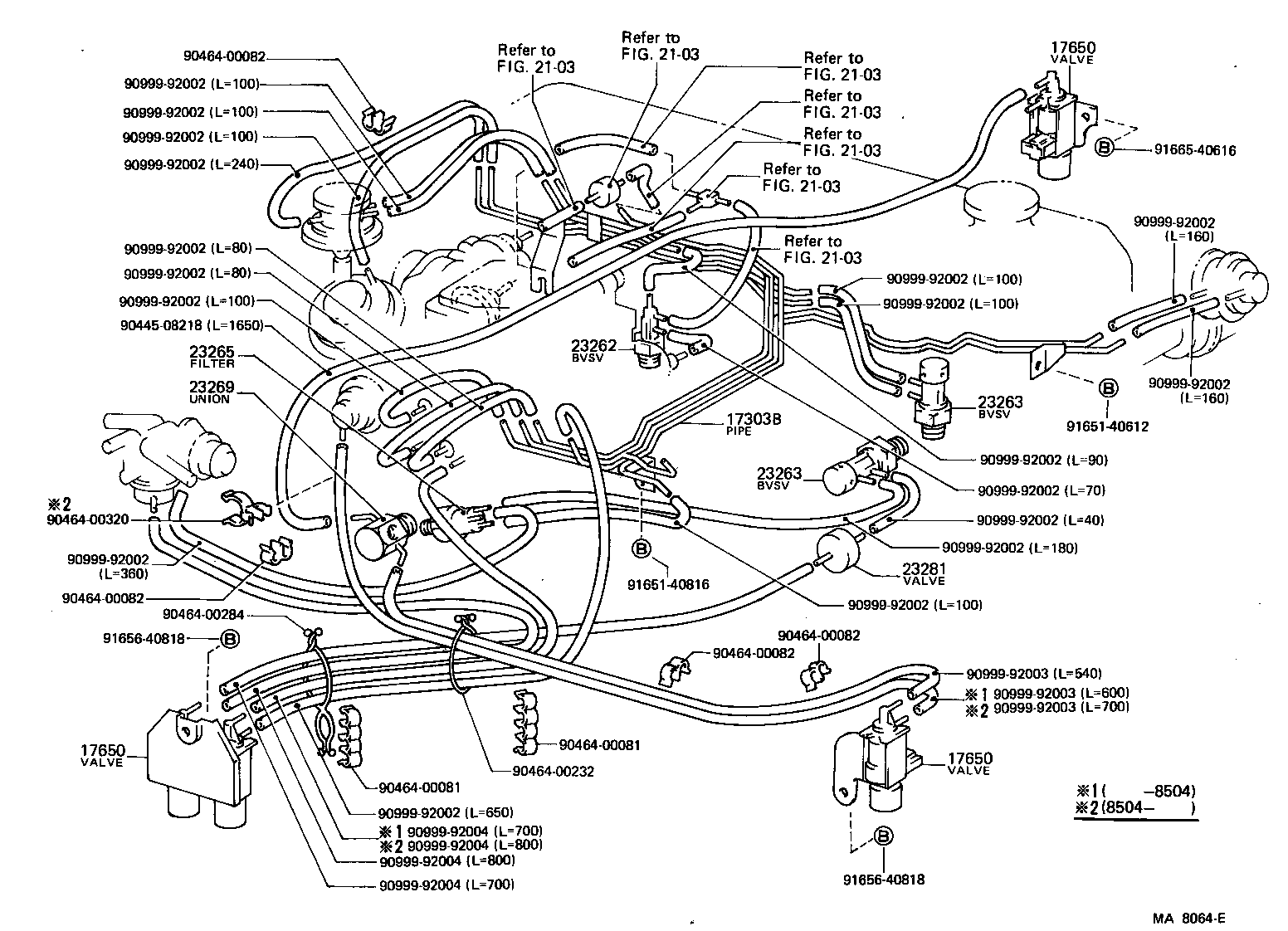

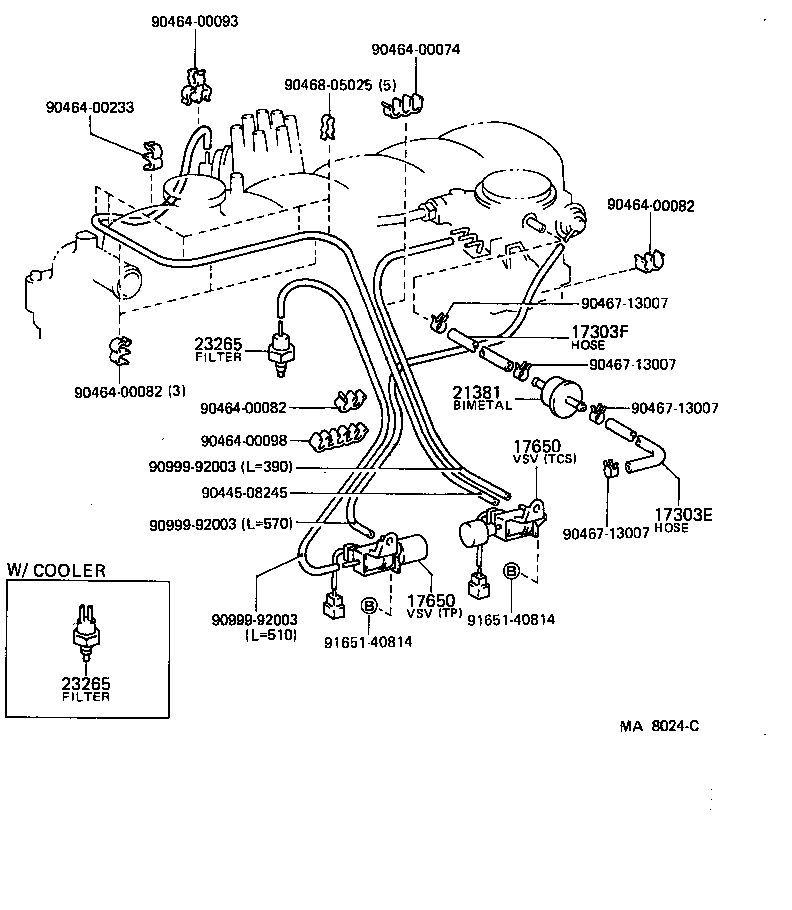

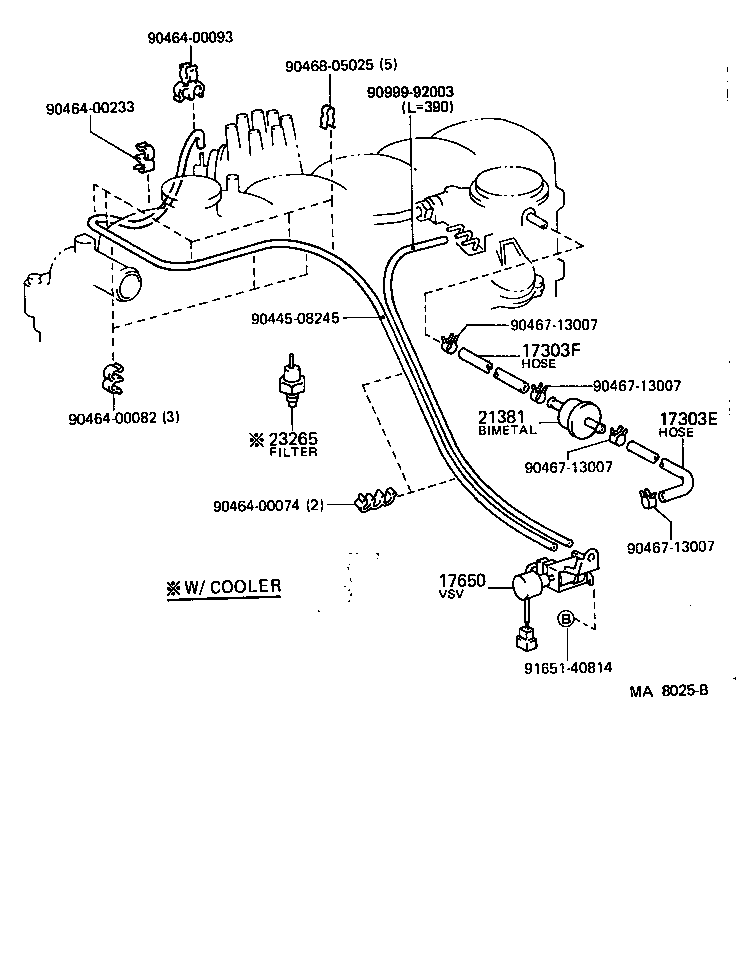

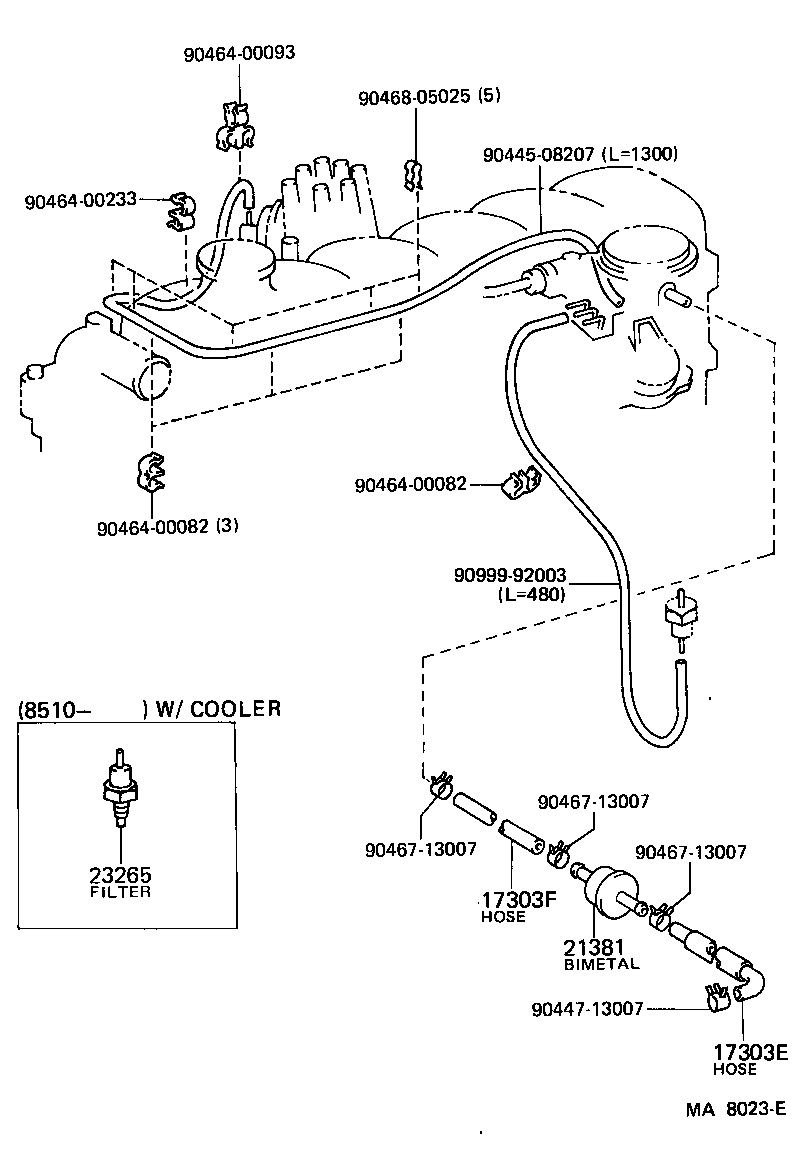

Figure MA9504B MA9504B 1984-11 → — Figure MA8764C MA8764C 1985-10 → — Figure MA9504B MA9504B 1984-11 → — Figure MA8022E MA8022E 1984-11 → — Figure MA8023E MA8023E 1984-11 → — Figure MA8024C MA8024C 1984-11 → — Figure MA8025B MA8025B 1984-11 → — Figure MA9504B MA9504B 1984-11 → — Figure MA8721D MA8721D 1985-10 → — Figure MA8891C MA8891C 1985-10 → — Figure MA9504B MA9504B 1984-11 → — Figure MA8063E MA8063E 1984-11 → — Figure MA8064E MA8064E 1984-11 → 1985-10 Figure MA8680D MA8680D 1985-10 → — Figure MA8065E MA8065E 1984-11 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709 Valve Sub-assy, High Altitude Compensator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
