Toyota Land Cruiser
1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General
Discontinued model
Data version 1990-06
Ignition Coil & Spark Plug / Glow Plug
25 part groups · 6 illustrations
Part groups

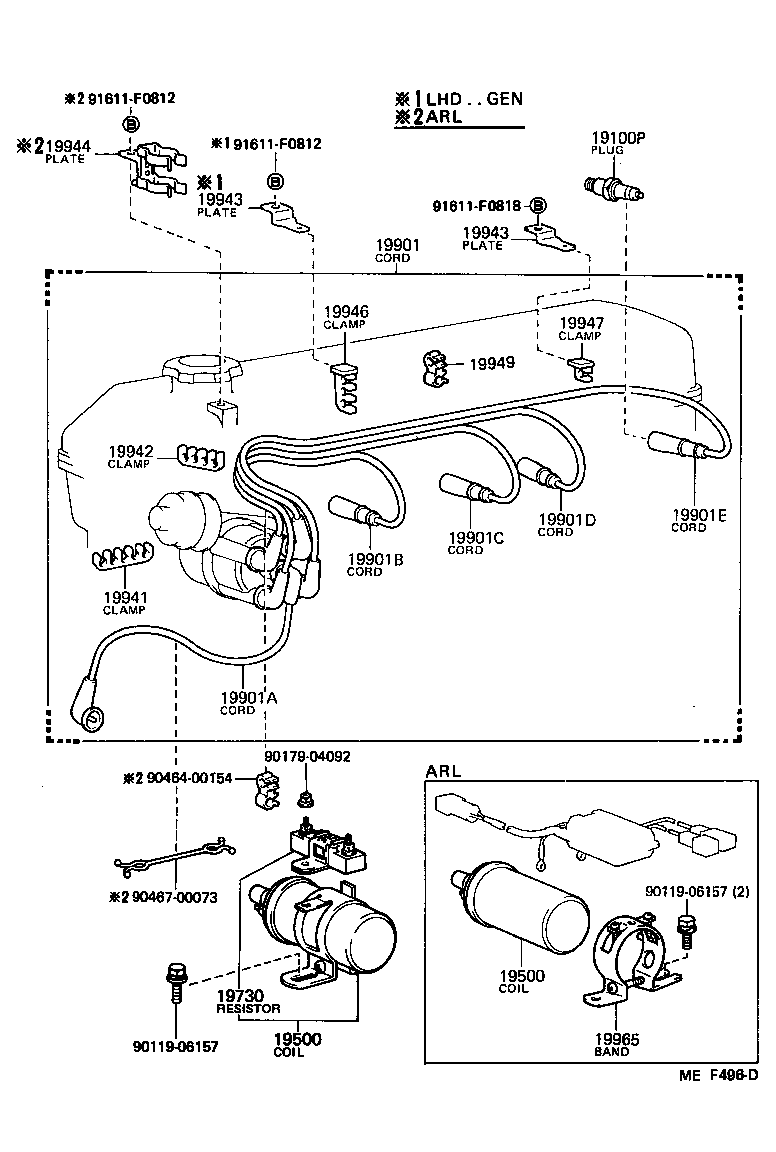

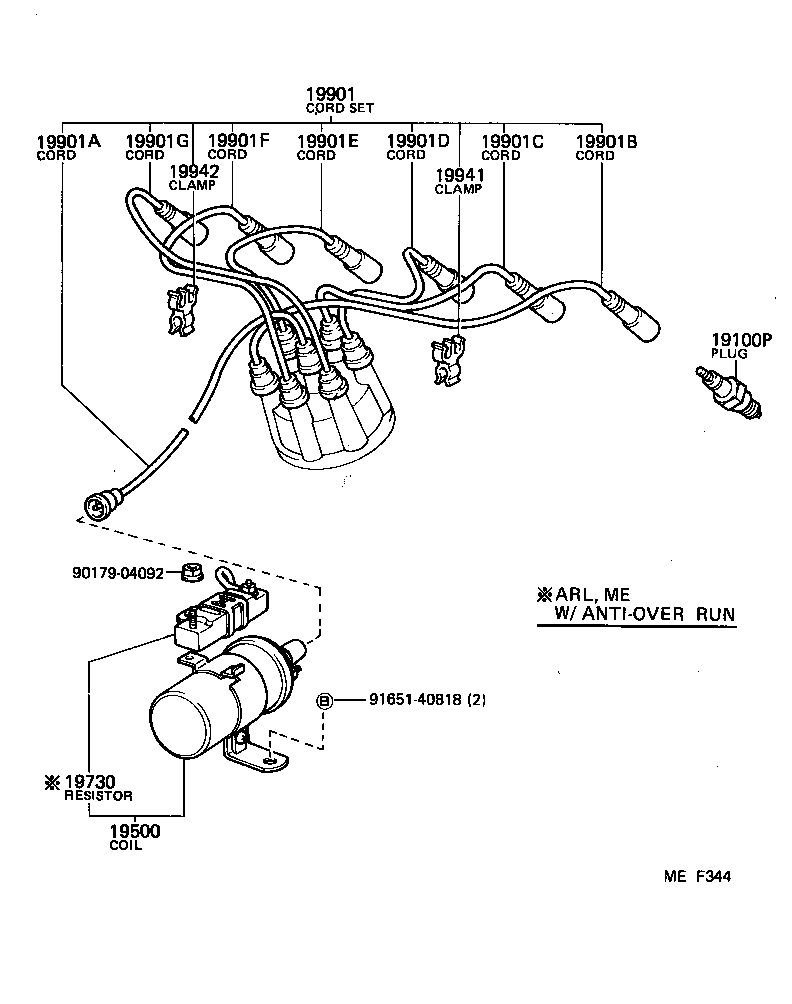

| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19730 | Resistor, Ignition Coil |
| 19810 | Heater Assy, Intake |
| 19850 | Plug Assy, Glow |
| 19850B | Grommet, Screw(FOR GLOW PLUG) |
| 19856 | Nut, Connecting(FOR GLOW PLUG) |
| 19871 | Connector, Glow Plug NO.1 |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901F | Cord, Spark Plug Resistive, NO.5 |
| 19901G | Cord, Spark Plug Resistive, NO.6 |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 19943 | Plate, Resistive Cord Clamp Support NO.1 |
| 19944 | Plate, Resistive Cord Clamp Support, NO.2 |
| 19946 | Clamp, Resistive Cord, NO.3 |
| 19947 | Clamp, Resistive Cord, NO.4 |
| 19949 | Clamp, Resistive Cord, NO.5 |
| 19965 | Band, Ignition Coil, NO.1 |
| 22560 | Magnet Assy, Over Injection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
