Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 2 illustrations

Illustrations

Figure MF3568C

MF3568C 1985-11 → —

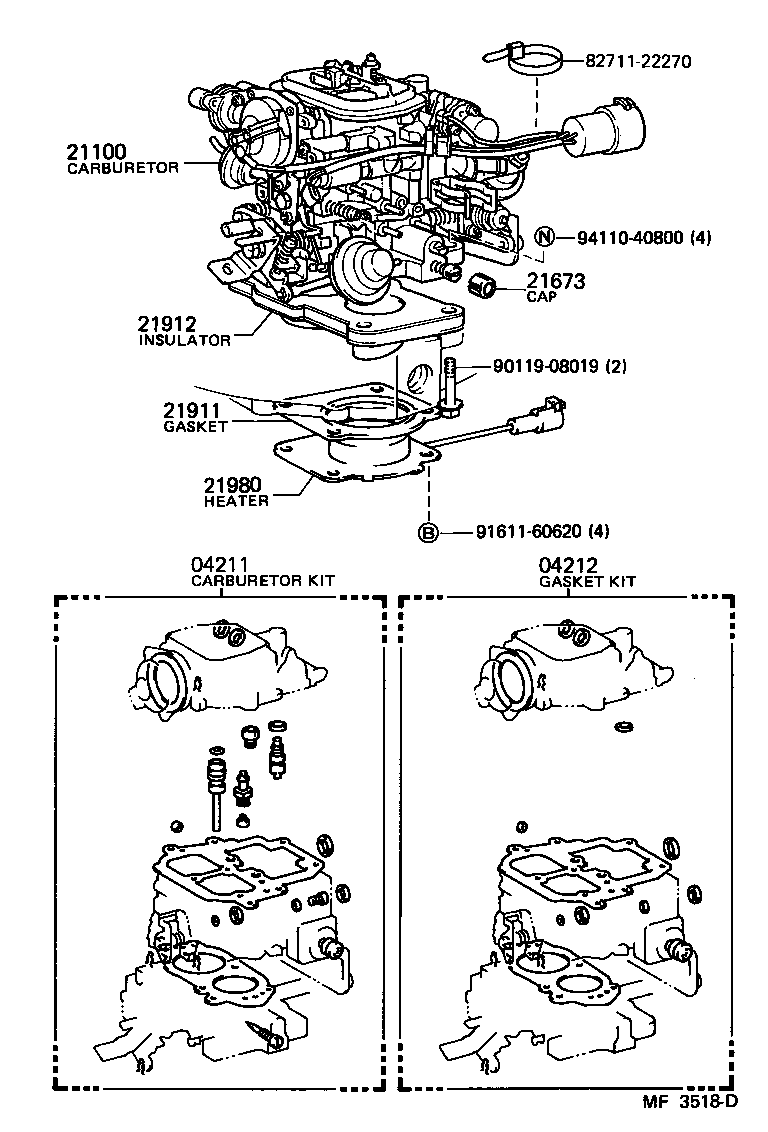

Figure MF3518D

MF3518D 1984-11 → —

Part groups

PNC	Description
04211	Carburetor Kit
04212	Gasket Kit, Carburetor
21100	Carburetor Assy
21673	Cap, Idle Limit
21911	Gasket, Carburetor
21912	Insulator, Carburetor Heat
21980	Heater Assy, Cold Mixture

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
