Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

18 part groups · 10 illustrations

Illustrations

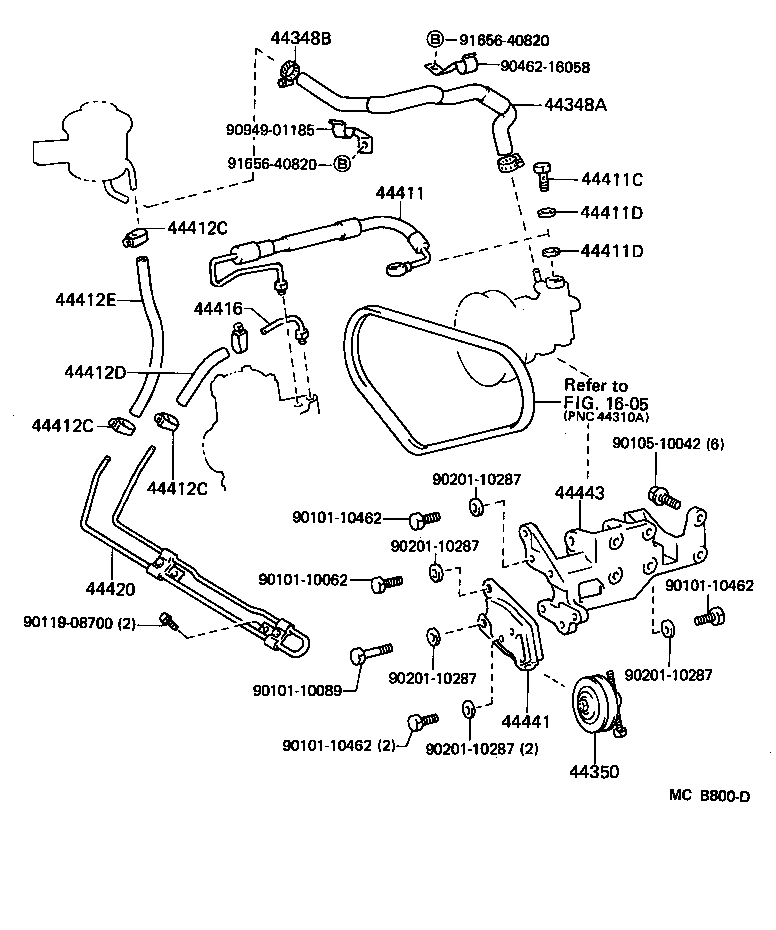

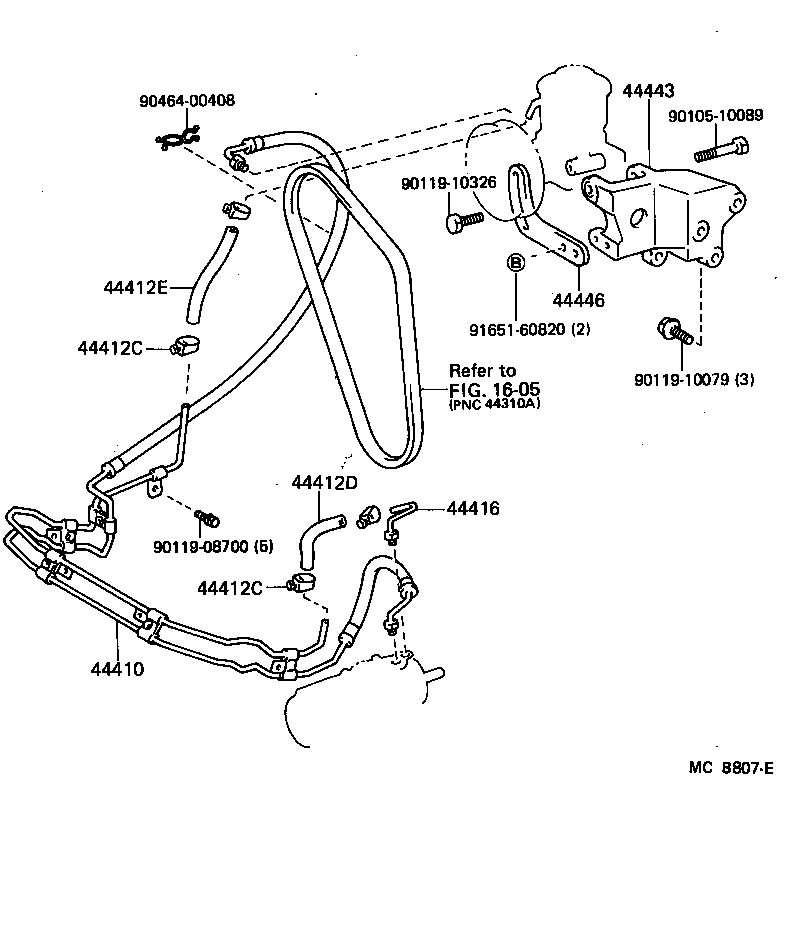

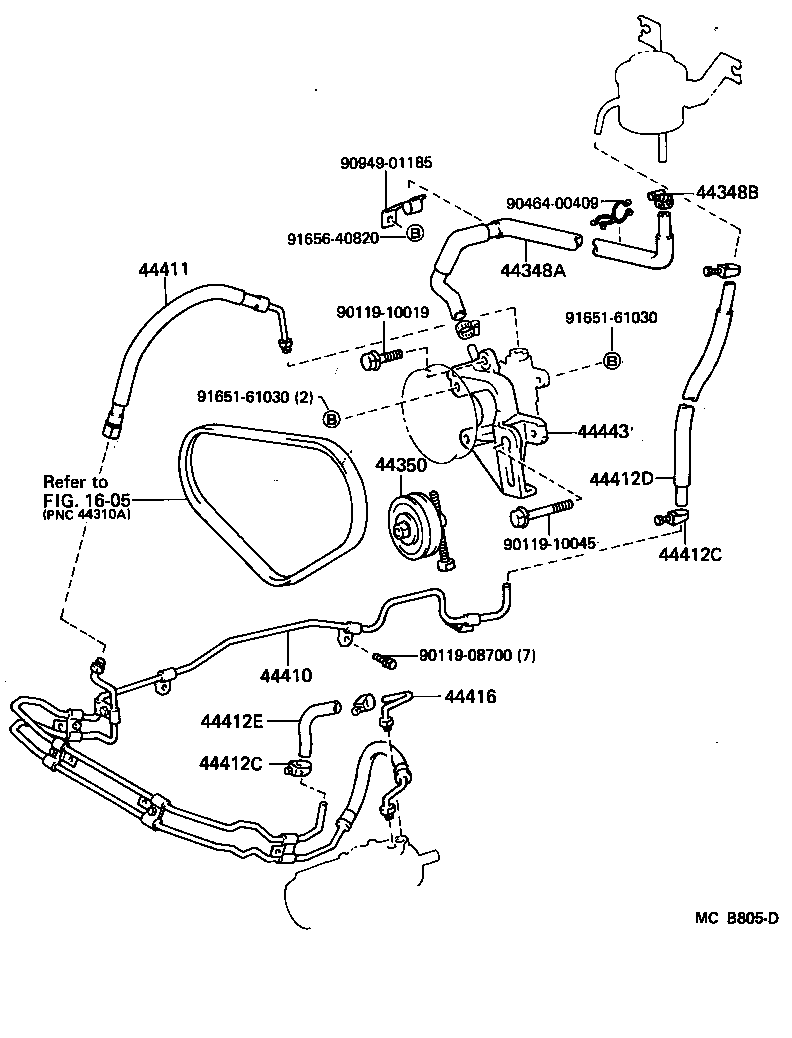

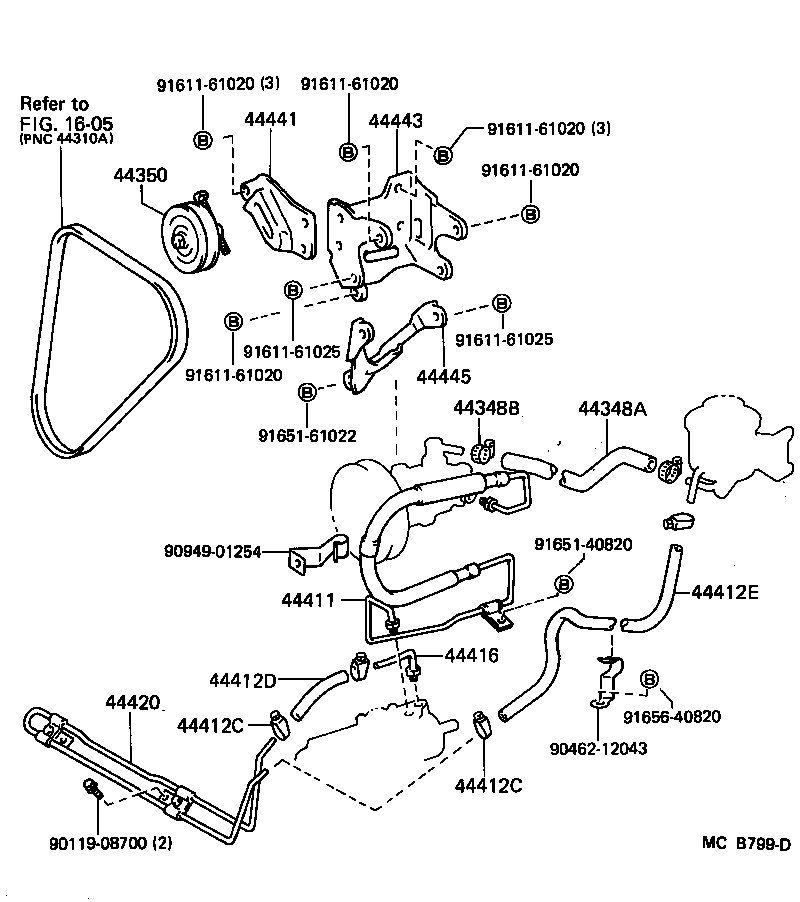

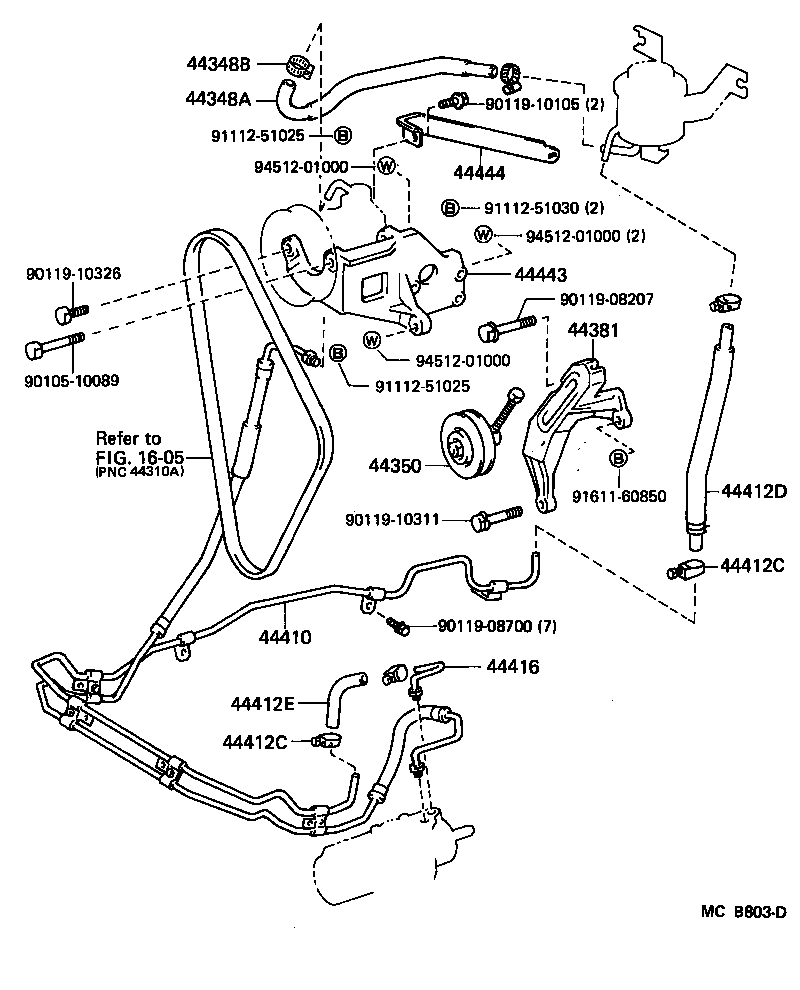

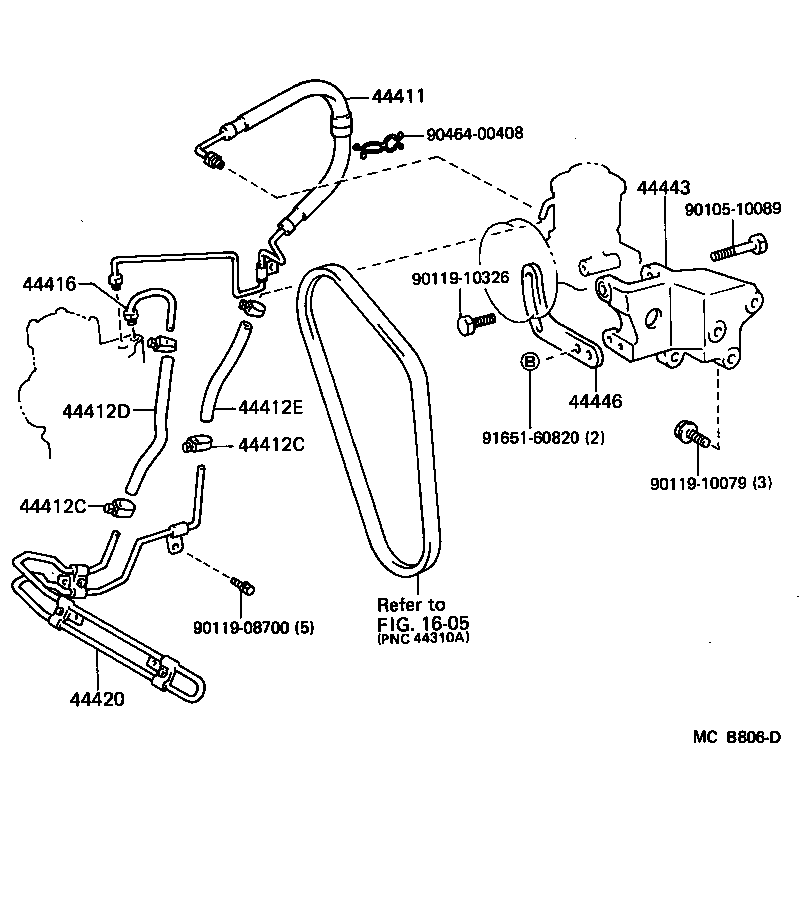

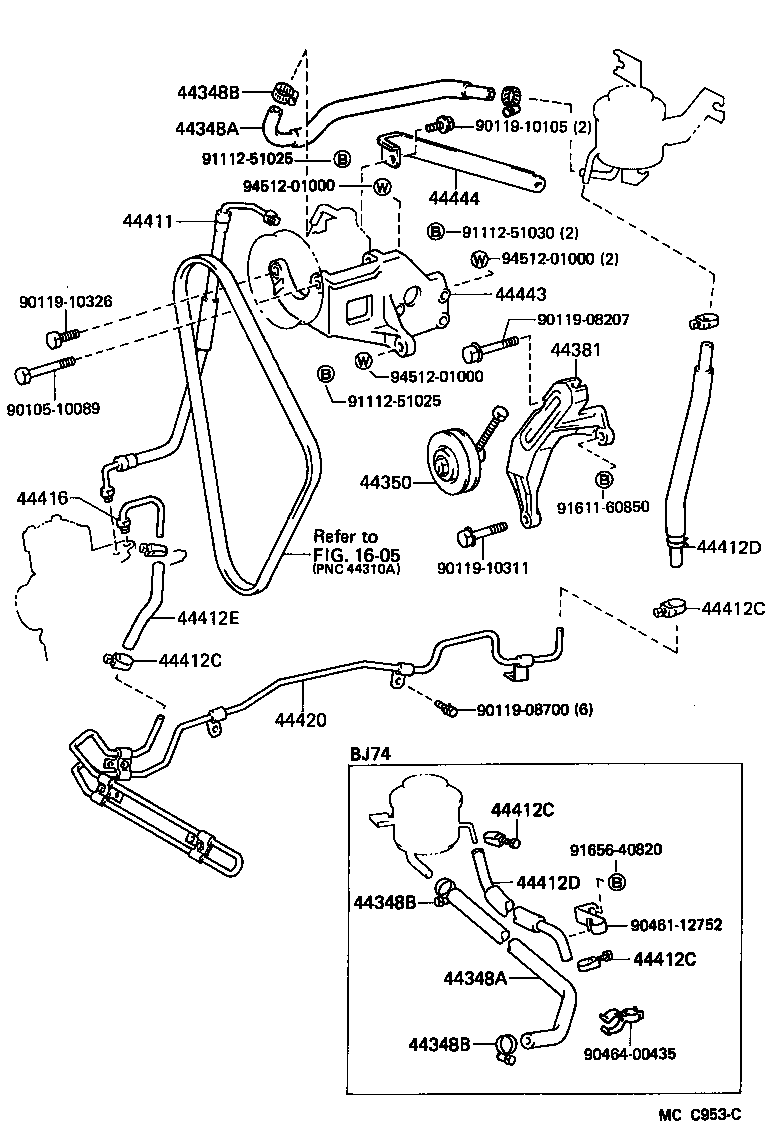

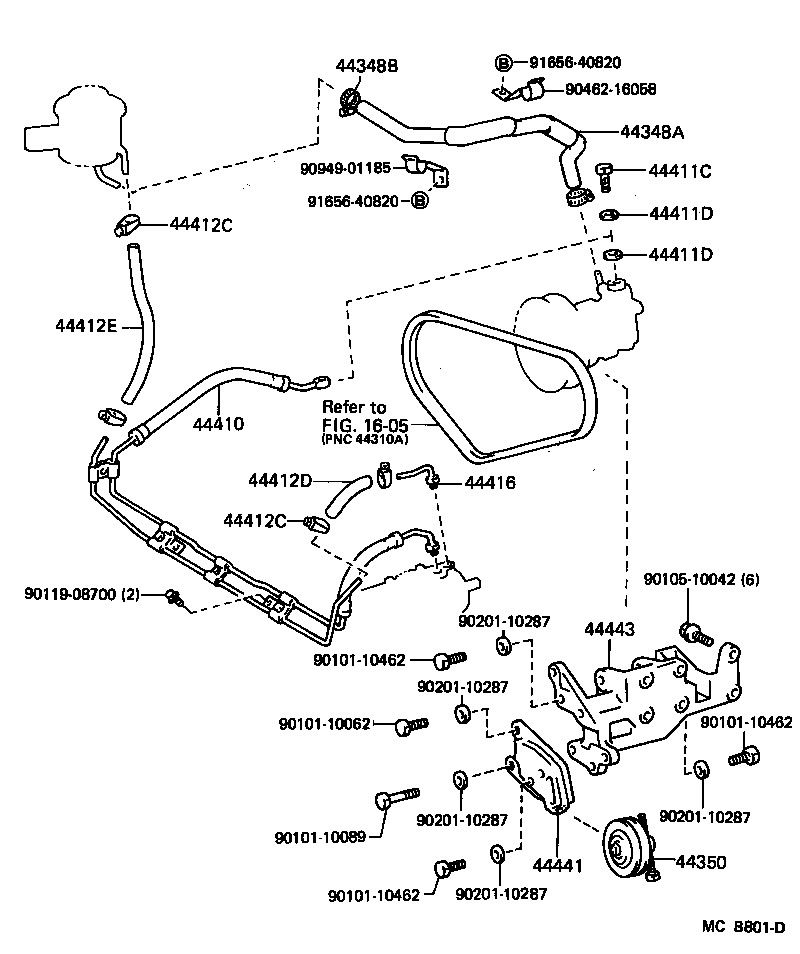

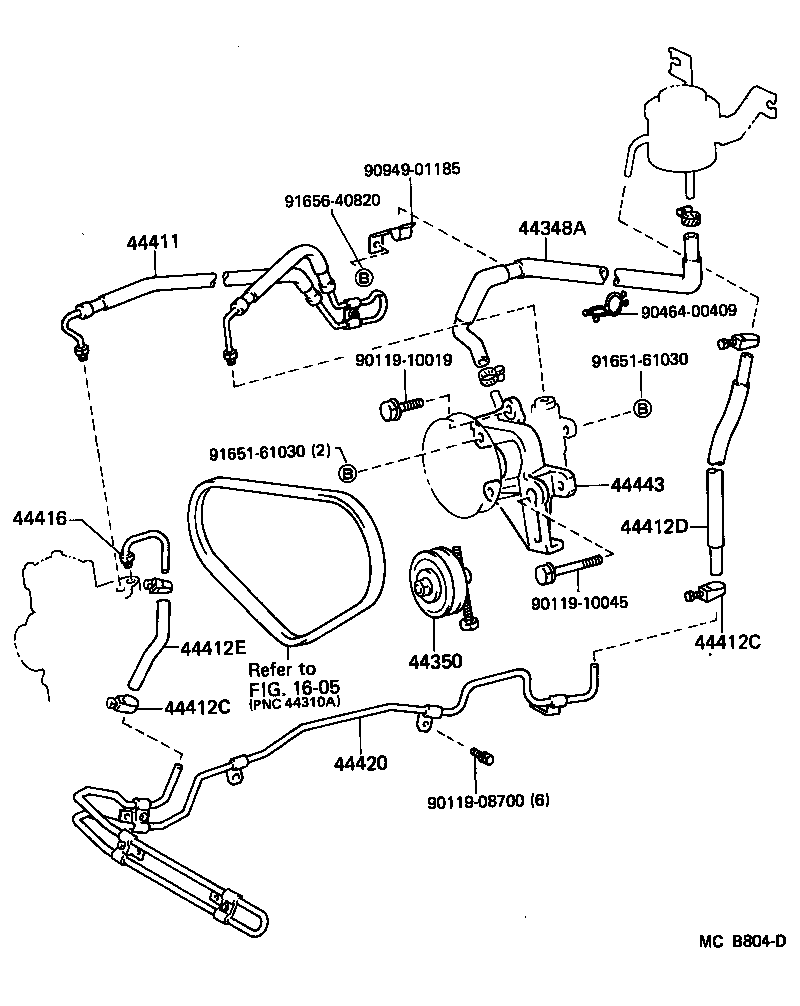

Figure MCB798D MCB798D 1984-11 → — Figure MCB799D MCB799D 1984-11 → — Figure MCB800D MCB800D 1984-11 → — Figure MCB801D MCB801D 1984-11 → — Figure MCC953C MCC953C 1984-11 → — Figure MCB803D MCB803D 1984-11 → — Figure MCB804D MCB804D 1984-11 → — Figure MCB805D MCB805D 1984-11 → — Figure MCB806D MCB806D 1984-11 → — Figure MCB807E MCB807E 1984-11 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
