Toyota Land Cruiser

1984-11 → 1990-01 · chassis RJ70,LJ70,BJ7#,HJ75,FJ7# · catalogue 781320 · General

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 4 illustrations

Illustrations

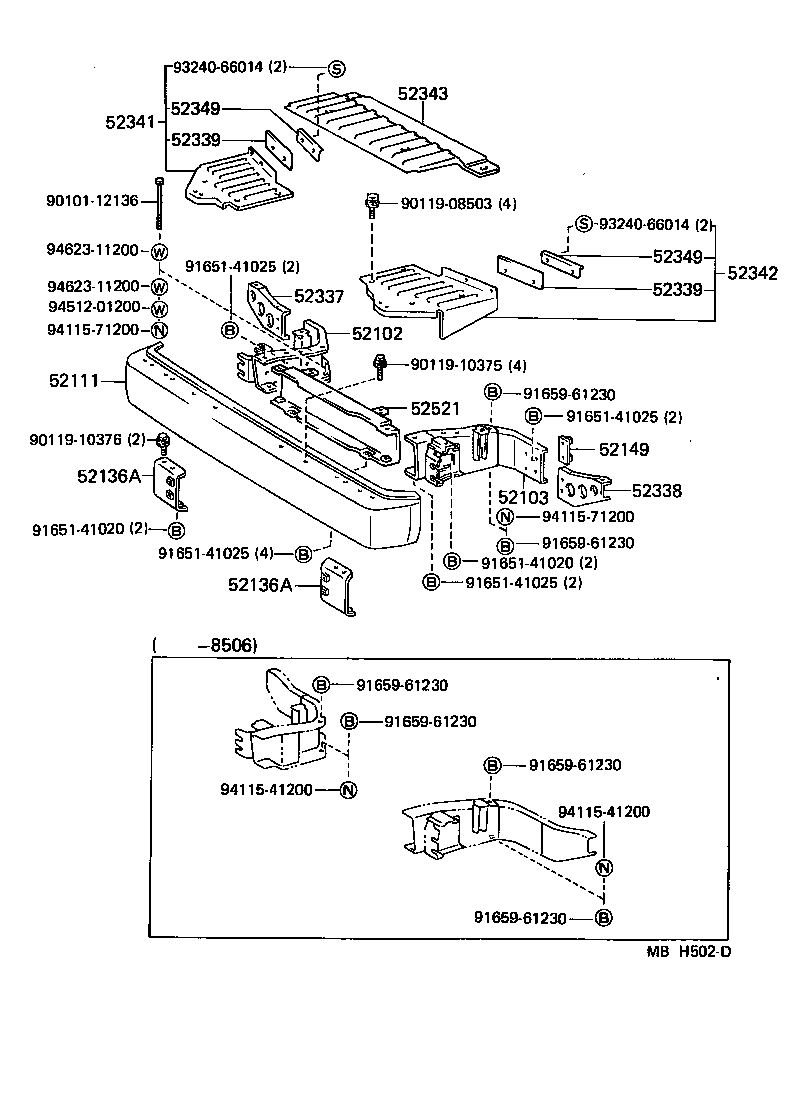

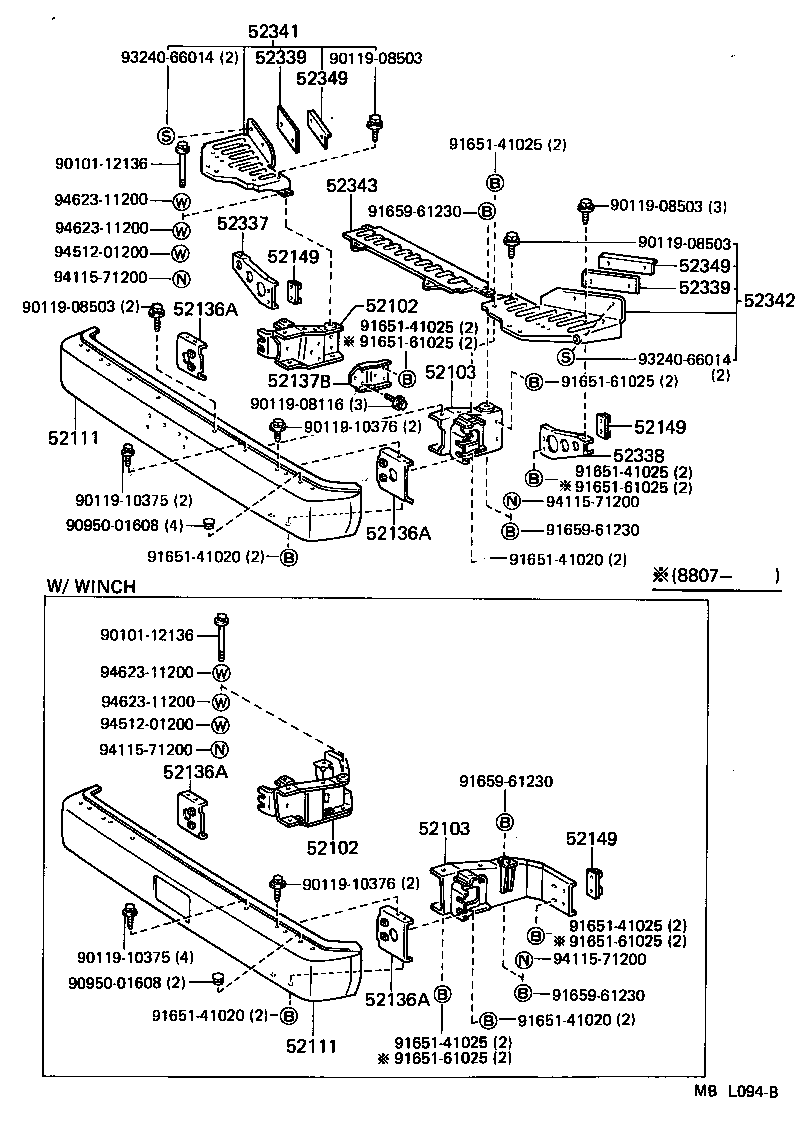

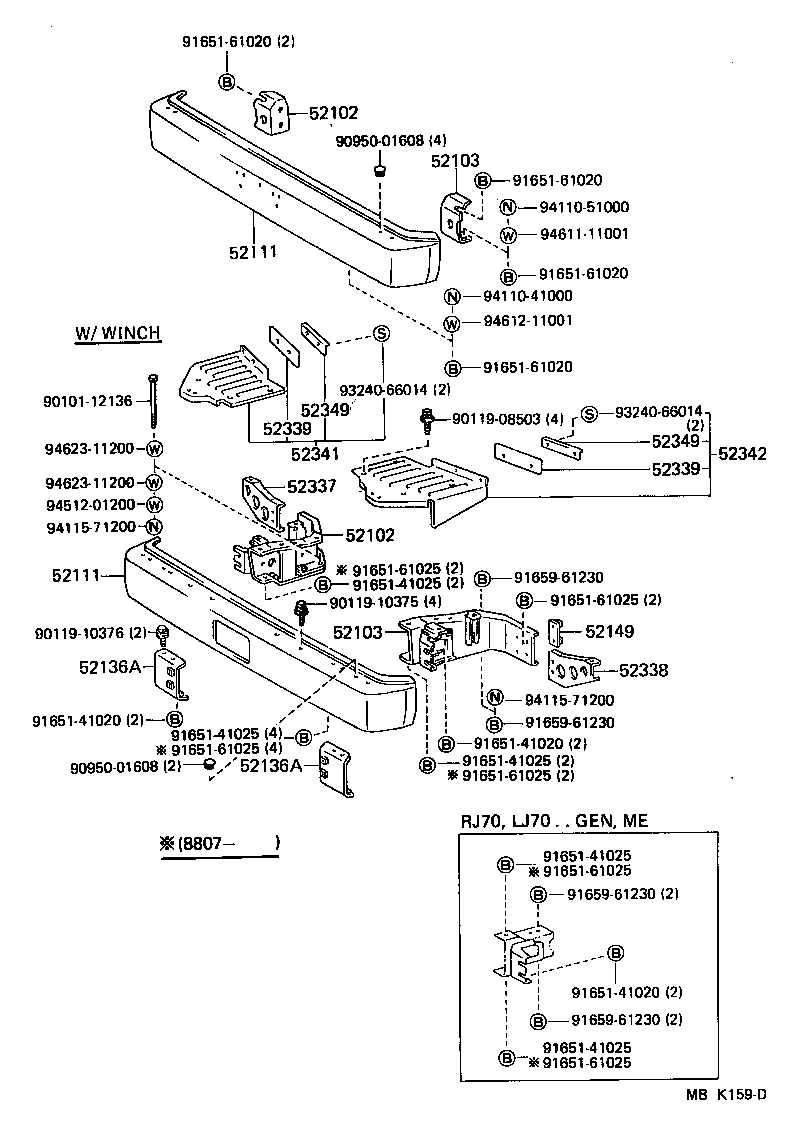

Figure MBH447D MBH447D 1984-11 → 1985-06 Figure MBK159D MBK159D 1985-06 → — Figure MBH502D MBH502D 1984-11 → 1986-08 Figure MBL094B MBL094B 1986-08 → —

Part groups

PNCDescription
52102 Bracket Sub-assy, Front Bumper, RH
52103 Bracket Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52136A Reinforcement, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52149 Bracket, Front Bumper, Inner
52337 Stay, Front Bumper Step, RH
52338 Stay, Front Bumper Step, LH
52339 Seal, Front Bumper Step
52341 Step, Front Bumper, RH
52342 Step, Front Bumper, LH
52343 Step, Front Bumper, Center
52349 Retainer, Front Bumper Step Seal
52521 Retainer, Front Bumper, Upper Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
